Plan 52248WM Bungalow with Terrific Open Living Space

1,871 4 3.5 2 2
1 Client
Album Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Bungalow with Terrific Open Living Space

Plan 52248WM

  • 1,871

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A first floor master suite and large open living space are key design elements in this cozy Country house plan.
  • The home comes with both a formal dining area and an informal nook, both easily served by the efficient kitchen with its big storage island and walk-in pantry.
  • Homeowners won't have far to go at night with the first floor suite close at hand.
  • On the second floor, two good-sized bedrooms share a hall bathroom while bedroom 2 has a private bathroom and walk-in clothes closet.
  • Related Plans: Remove the garage with house plan 52249WM. And downsize with house plan 52252WM (1,717 sq. ft.).

  • Front elevation and construction notes

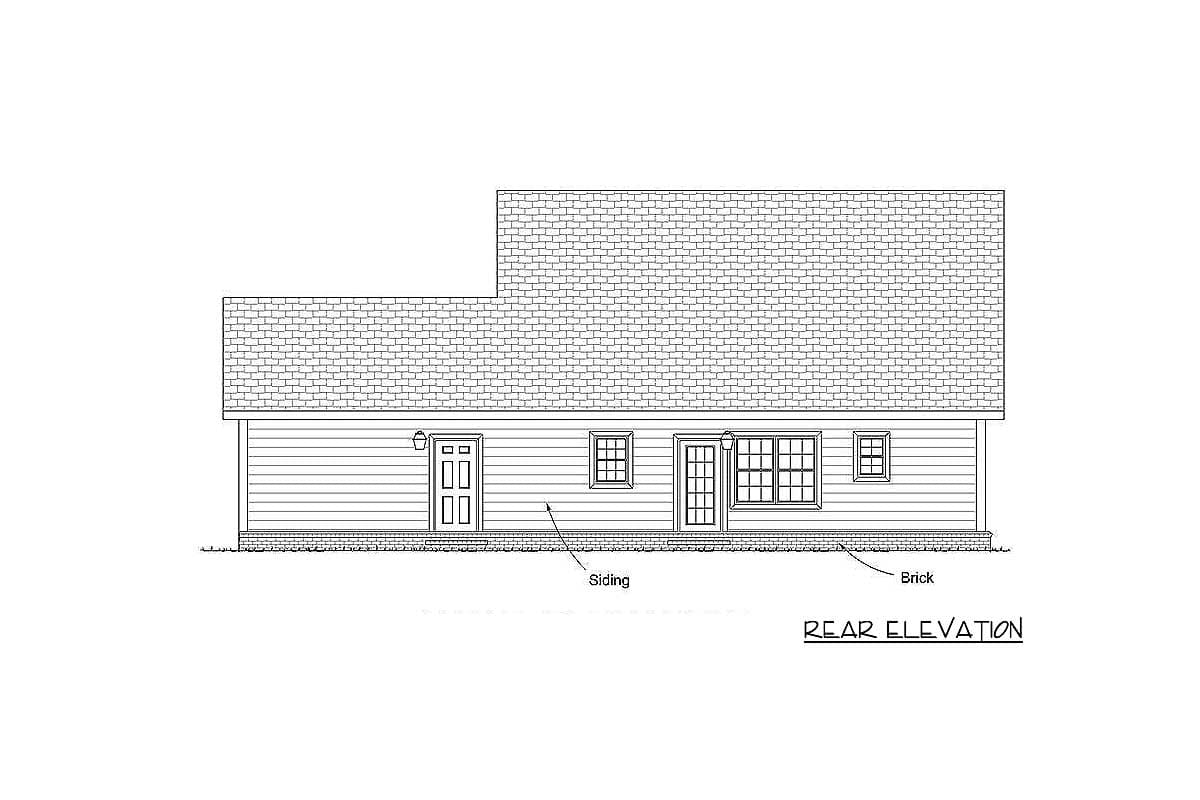

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

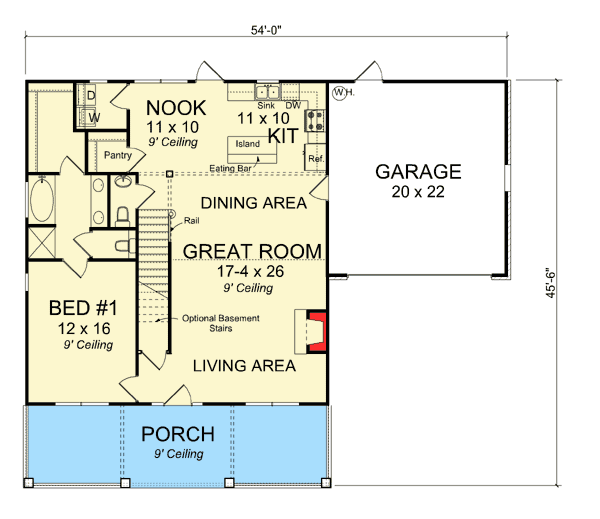

Bungalow with Terrific Open Living Space - 52248WM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

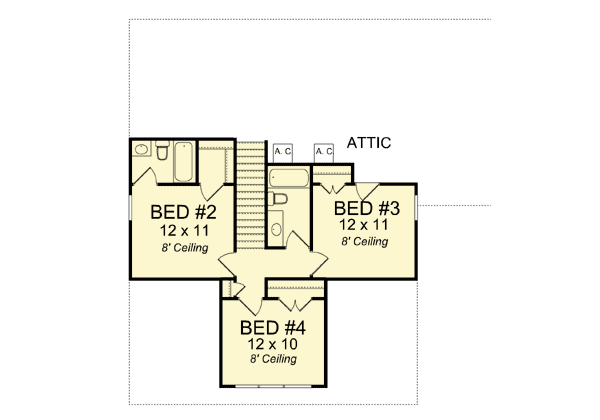

Bungalow with Terrific Open Living Space - 52248WM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,871 sq. ft.
  • 1st Floor: 1,241 sq. ft.
  • 2nd Floor: 630 sq. ft.
  • Porch, Front: 272 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 45' 6"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Bungalow with Terrific Open Living Space

  • 1,871

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Unlimited Build $1,005
  • CAD + PDF - Unlimited Build $1,300
  • View all purchase option online

About This Plan

  • A first floor master suite and large open living space are key design elements in this cozy Country house plan.
  • The home comes with both a formal dining area and an informal nook, both easily served by the efficient kitchen with its big storage island and walk-in pantry.
  • Homeowners won't have far to go at night with the first floor suite close at hand.
  • On the second floor, two good-sized bedrooms share a hall bathroom while bedroom 2 has a private bathroom and walk-in clothes closet.
  • Related Plans: Remove the garage with house plan 52249WM. And downsize with house plan 52252WM (1,717 sq. ft.).
