Cozy 3 Bed Bungalow House Plan

Plan 52254WM

  • 1,717

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • A first floor master suite and large open living space are key design elements in this 3 bed bungalow house plan.
  • The great room is open to the dining room and that space in turn is open to the kitchen and nook. The island in the kitchen has seating and there is a walk-in pantry for storage.
  • Homeowners won't have far to go at night with the first floor suite close at hand complete with walk-in closet and five fixture bath.
  • On the second floor, two good-sized bedrooms share a bathroom.
  • The stick framed roof has a 9:12 pitch.
  • Related Plan: Get an attached garage with house plan 52252WM. And get more room with house plan 52249WM (1,871 sq. ft.).

  • Front elevation and construction notes

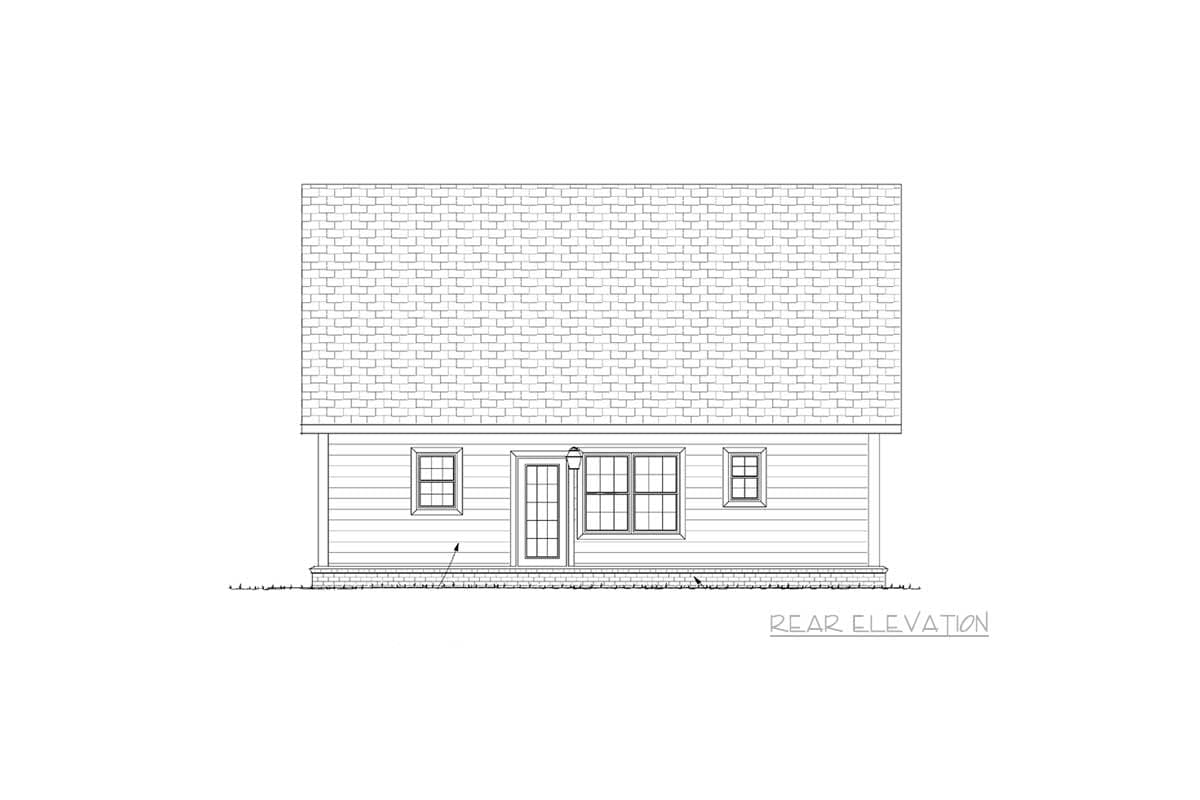

  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Most plans have an optional full building section--only available upon request--at no extra cost.  This section is not typically required in the US but can be a requirement in Canada


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

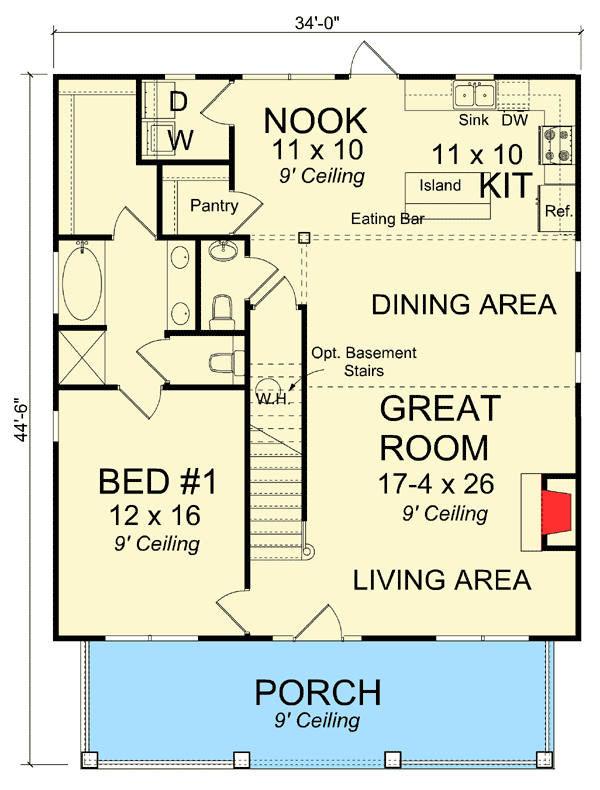

Cozy 3 Bed Bungalow House Plan - 52254WM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

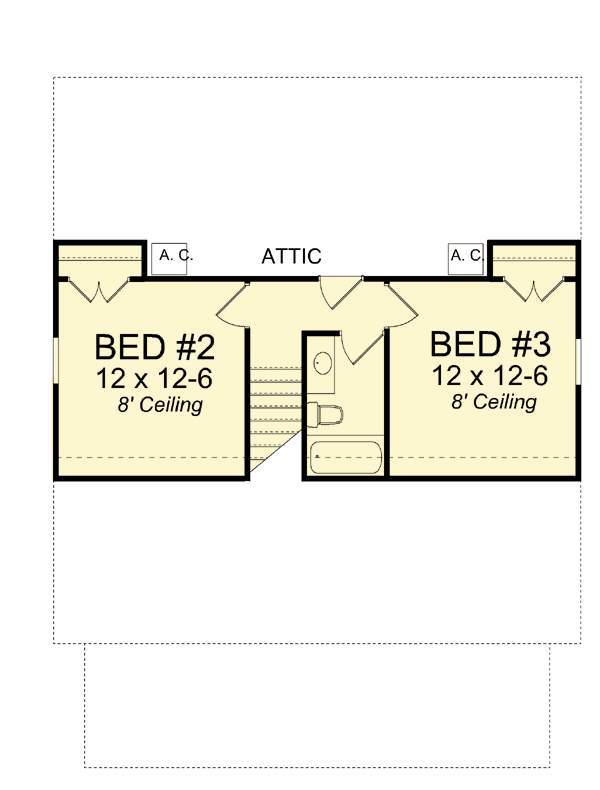

Cozy 3 Bed Bungalow House Plan - 52254WM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,717 sq. ft.
  • 1st Floor: 1,241 sq. ft.
  • 2nd Floor: 476 sq. ft.
  • Porch, Front: 240 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 44' 6"
  • Max ridge height: 24' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

Special features

Cozy 3 Bed Bungalow House Plan

  • 1,717

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Unlimited Build $985
  • CAD + PDF - Unlimited Build $1,280
  • View all purchase option online

About This Plan

  • A first floor master suite and large open living space are key design elements in this 3 bed bungalow house plan.
  • The great room is open to the dining room and that space in turn is open to the kitchen and nook. The island in the kitchen has seating and there is a walk-in pantry for storage.
  • Homeowners won't have far to go at night with the first floor suite close at hand complete with walk-in closet and five fixture bath.
  • On the second floor, two good-sized bedrooms share a bathroom.
  • The stick framed roof has a 9:12 pitch.
  • Related Plan: Get an attached garage with house plan 52252WM. And get more room with house plan 52249WM (1,871 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,717 sq. ft.
  • 1st Floor: 1,241 sq. ft.
  • 2nd Floor: 476 sq. ft.
  • Porch, Front: 240 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 44' 6"
  • Max ridge height: 24' 0"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick
