Plan 666044RAF

Captivating Modern House Plan with Second-Level Master

Heated S.F.
3,150
Beds
3 - 5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 666044RAF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 666044RAF

M-F 9am-5pm EST |

1-203-761-8500

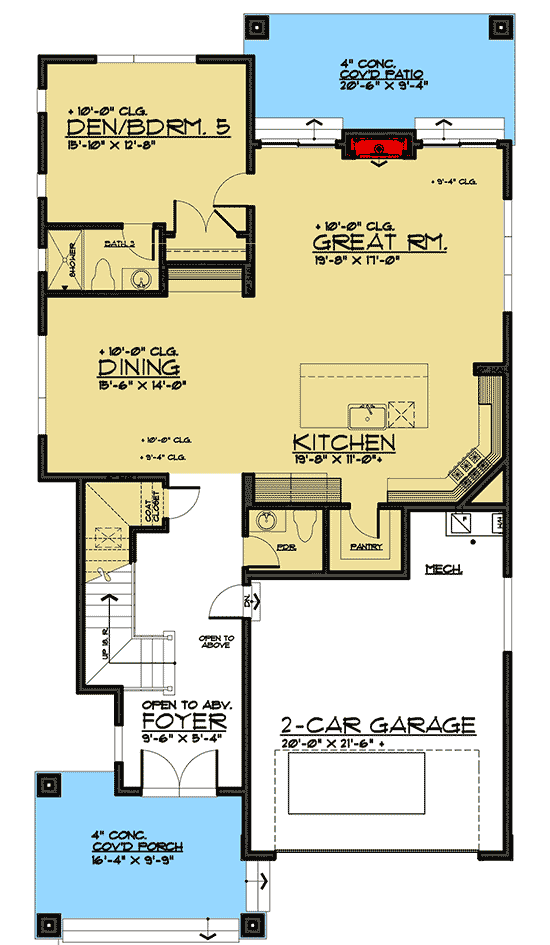

Main Level

Plan 666044RAF: Captivating Modern House Plan with Second-Level Master - Floor Plan - Main Level - Contemporary, Modern, Northwest, Prairie

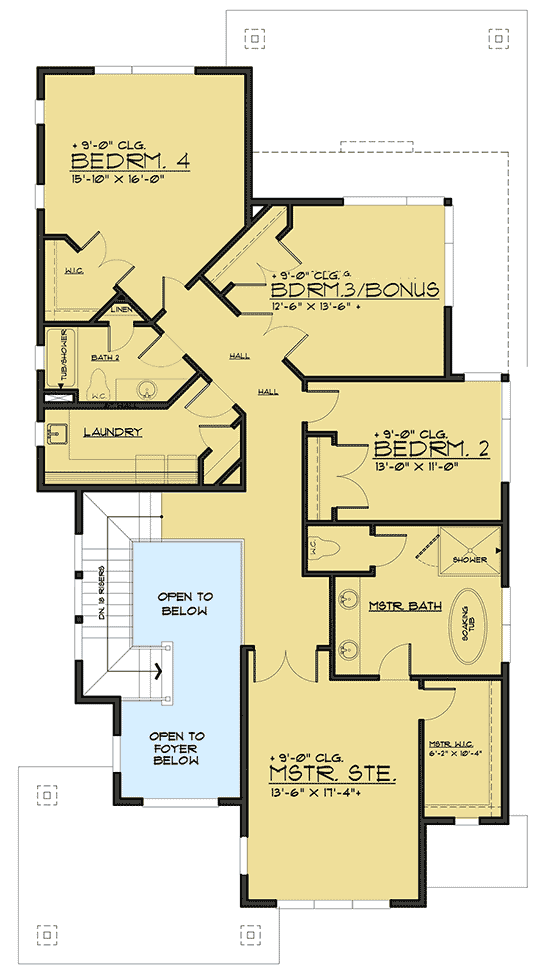

2nd Floor

Plan 666044RAF: Captivating Modern House Plan with Second-Level Master - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest, Prairie

Plan Details

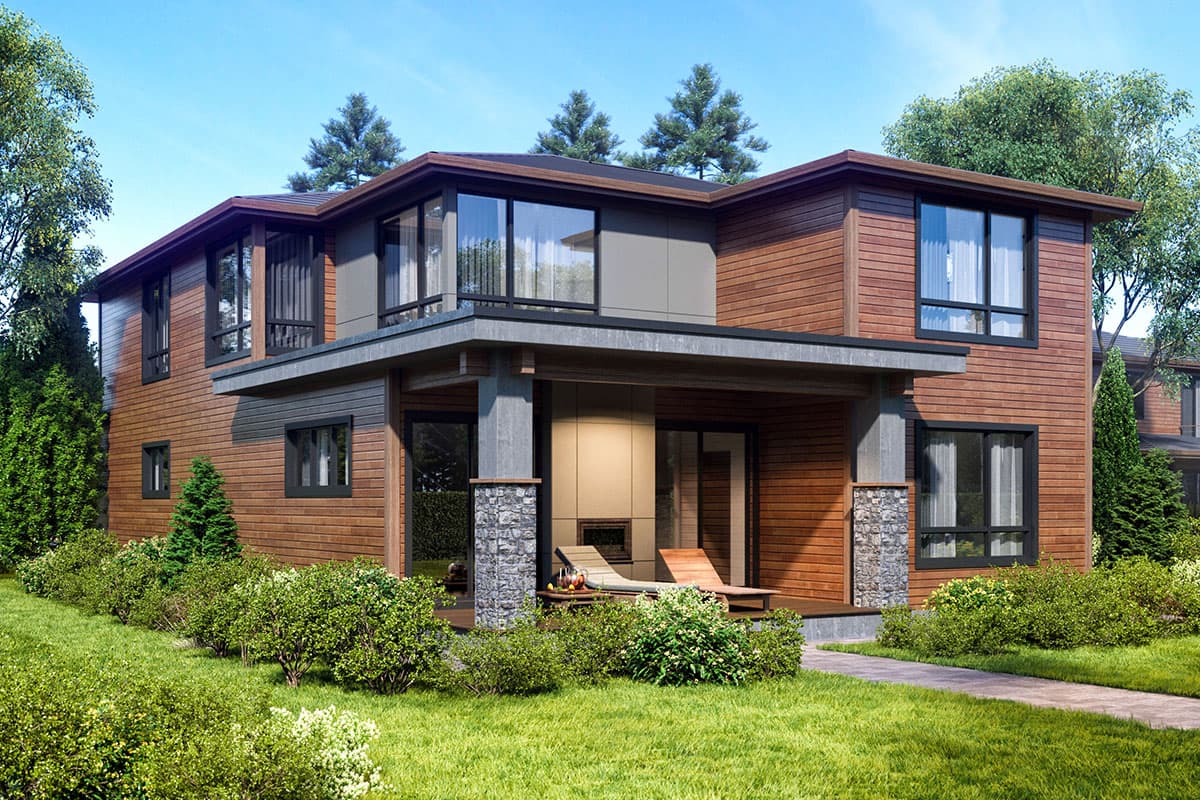

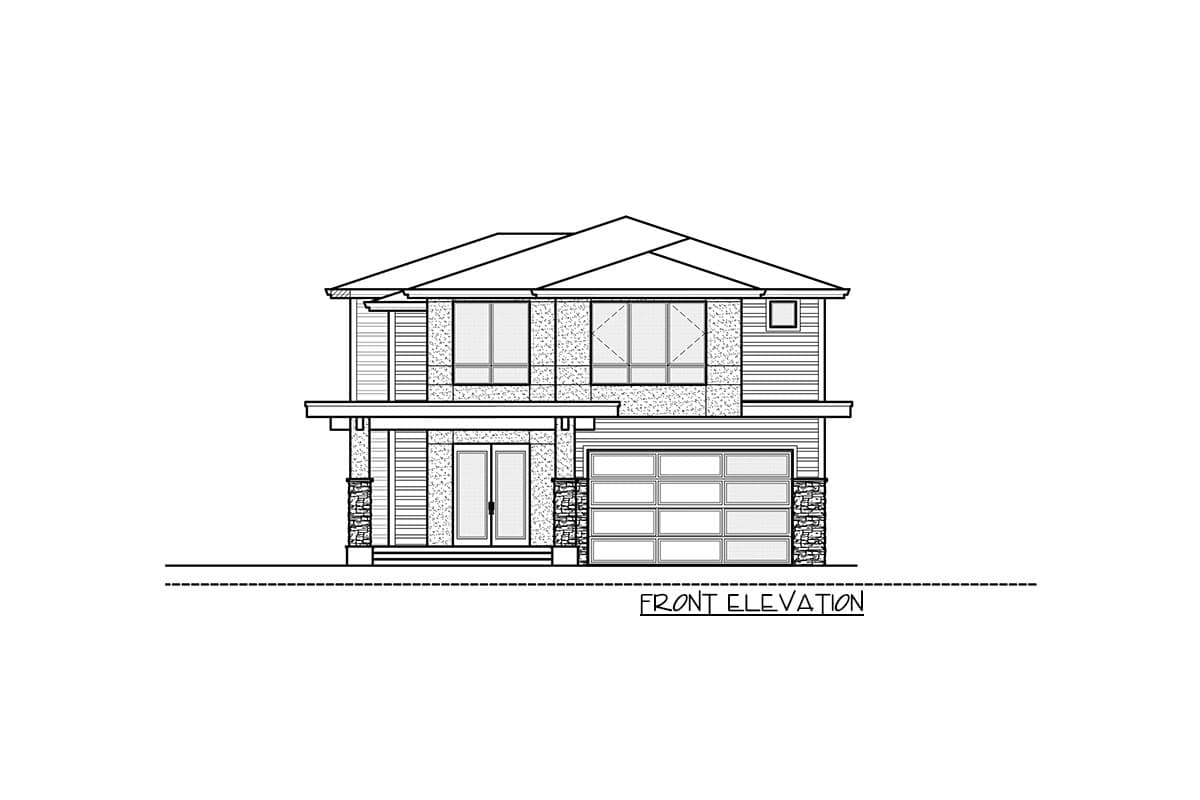

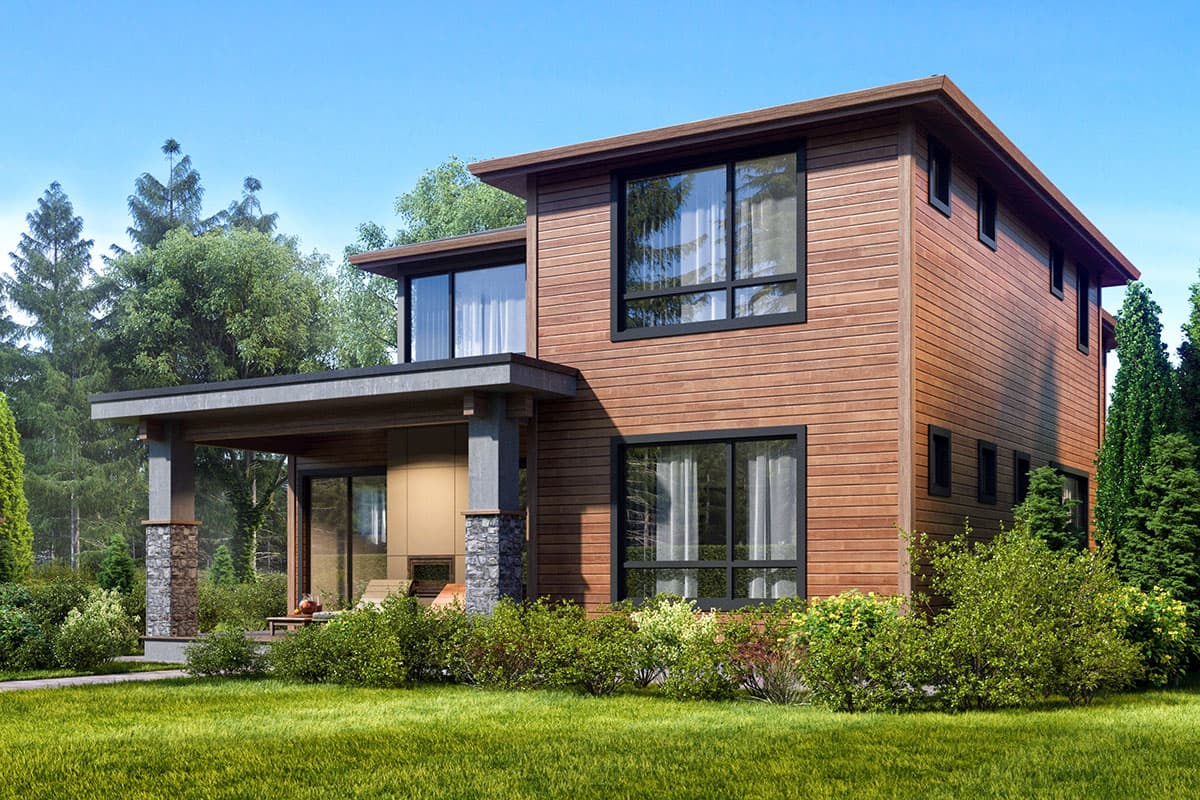

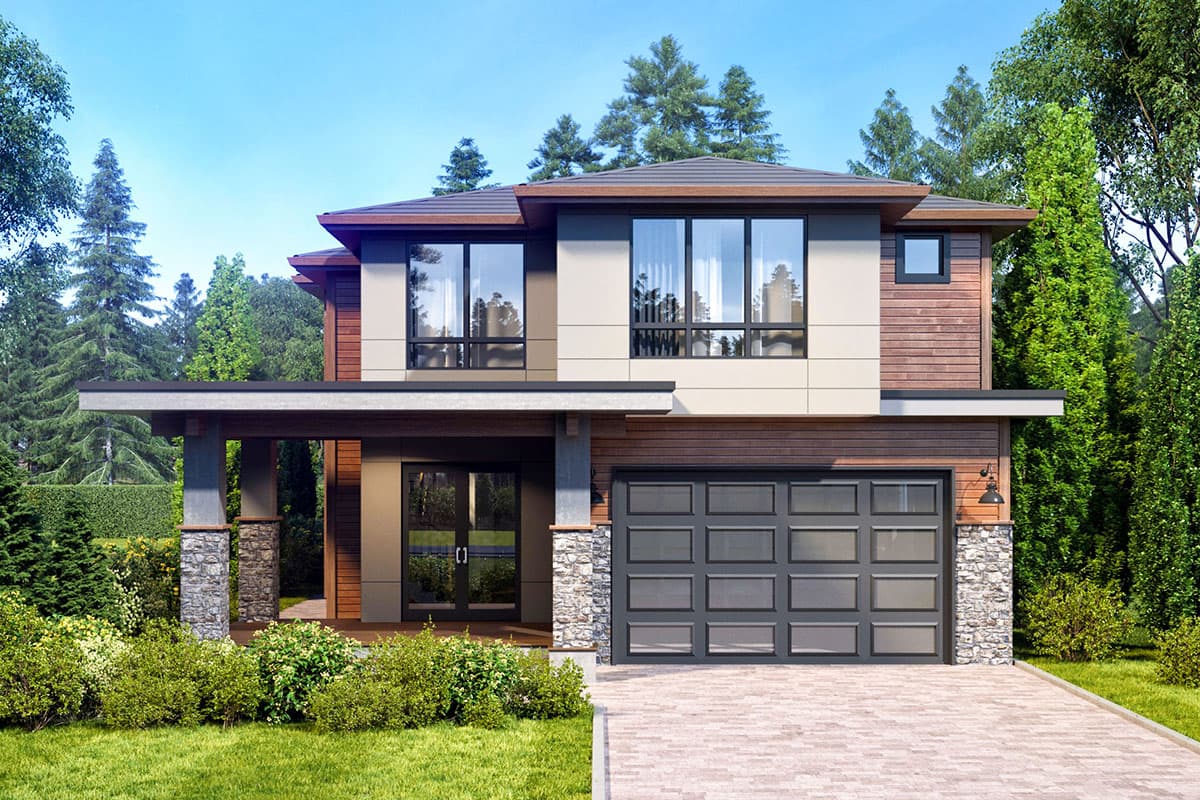

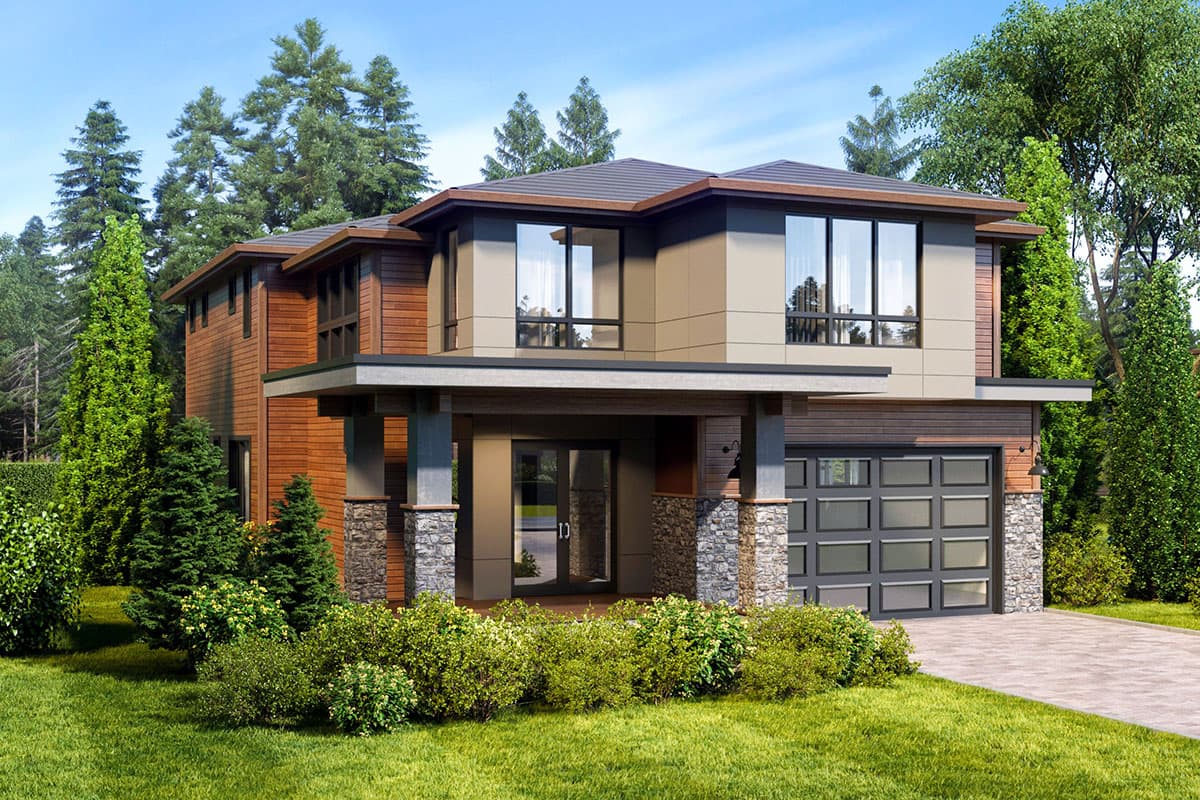

  • Horizontal siding and stone accents adorn the facade of this modern house plan.
  • Once past the threshold, a spacious two-story foyer greets guests and includes a powder bath and a coat closet tucked beneath the staircase.
  • Minimal walls on the main level provide an open layout, while large windows allow natural light to permeate throughout. Two sets of sliding doors frame the fireplace and lead to a covered patio.
  • A sizable island helps in meal preparation and serves as a natural gathering space for friends and family.
  • Retreat to the private den for peace and solitude, or utilize the space as a fifth bedroom if needed.
  • Upstairs, the forward-facing master suite includes a walk-in closet and a sprawling ensuite with a freestanding, soaking tub and two sinks.
  • Three additional bedrooms reside down the hall, across from a full bathroom and centrally located laundry room.

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,150 sq. ft.

1st Floor

1,522 sq. ft.

2nd Floor

1,628 sq. ft.

Porch, Combined

180 sq. ft.

Covered Patio

208 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

37' 0"

Depth

72' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

470 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Garage

11' 6''

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Prairie

Special Features

Den

Laundry - Upstairs

Master Suite - Upstairs

Optionally Finished Bonus Room

Walk-in Pantry
