Plan 68665VR Carriage House Plan with 1-Bed Apartment

793 1 1 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Carriage House Plan with 1-Bed Apartment

Plan 68665VR

  • 793

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • This carriage house plan features a 1-bedroom apartment above the double garage; a total of 793 heated square feet.
  • Additional space in the main-level garage is perfect for lawn equipment and accessible by its own 8' x 8' garage door.
  • The formal entry includes a built-in bench and hooks for outdoor gear, and guides you to the second level apartment.
  • The living room and kitchen are open to one another and extend outdoors onto a balcony through two sets of sliding doors.
  • The bedroom boasts a private balcony and access to the full bath through a walk-in closet.
  • Related Plan: Get an alternate version with house plan 68980VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

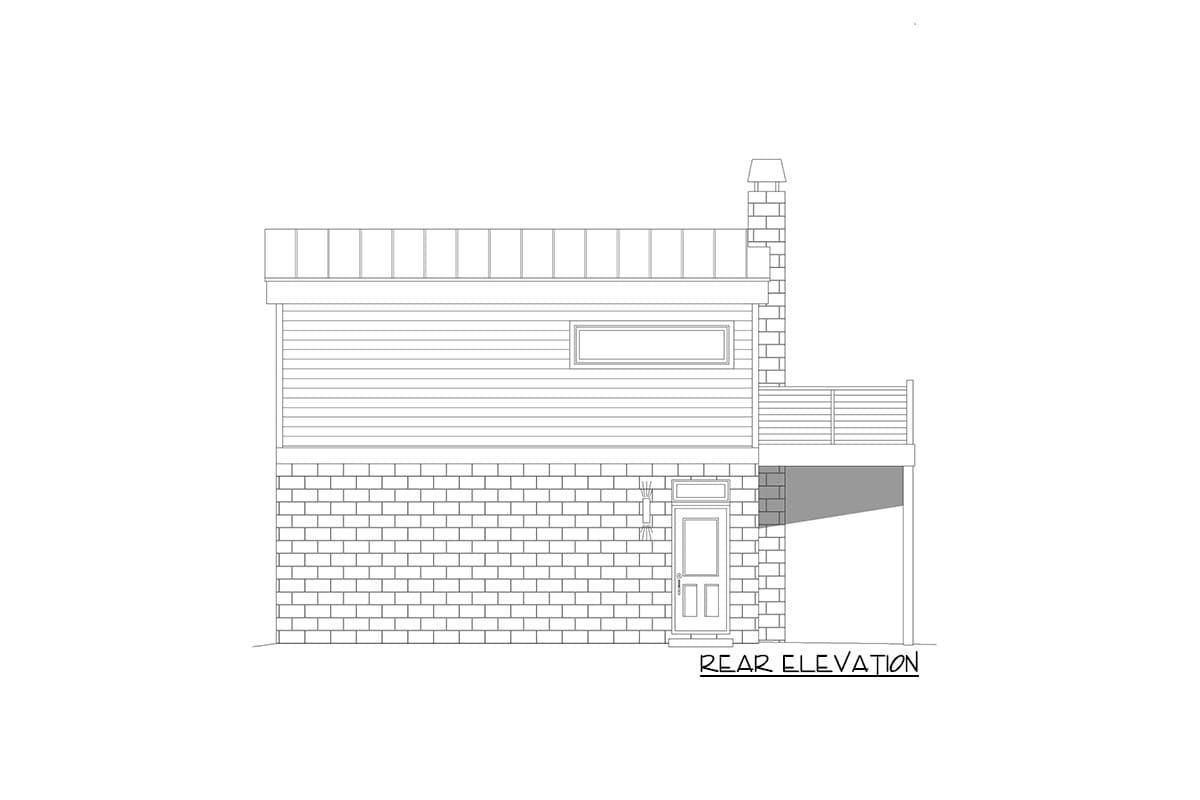

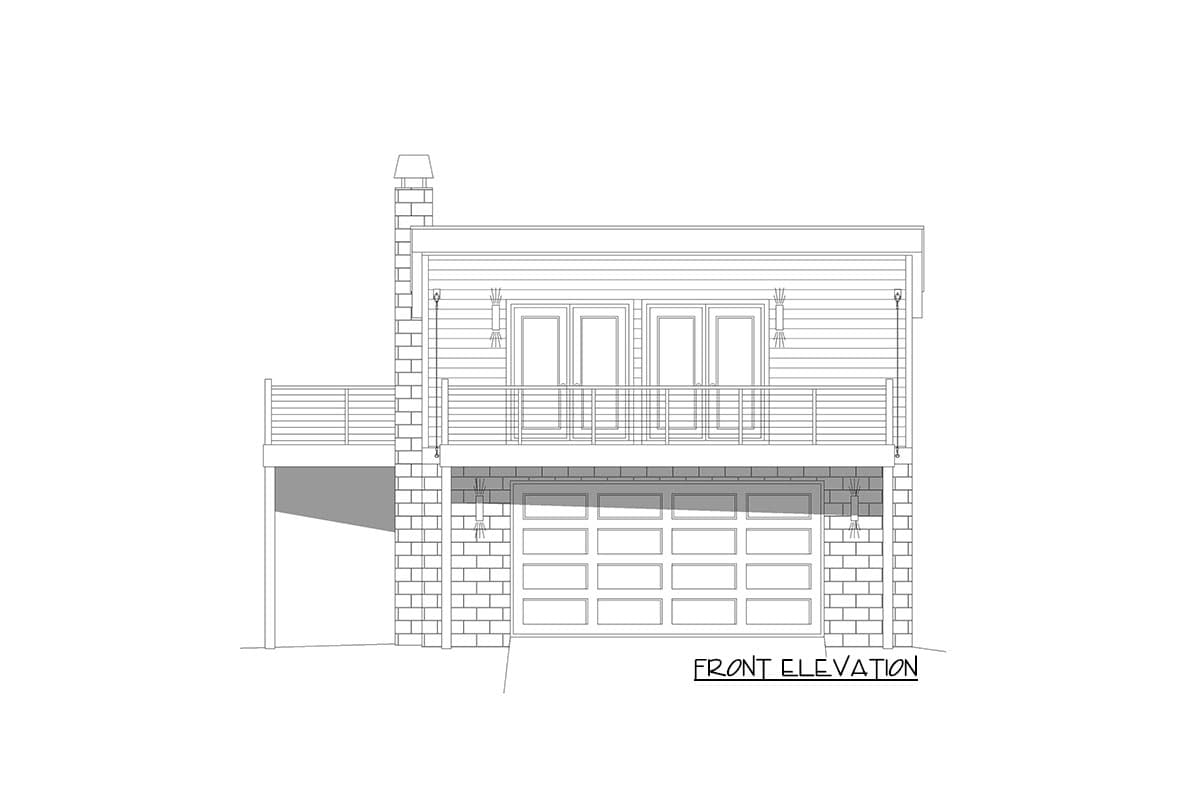

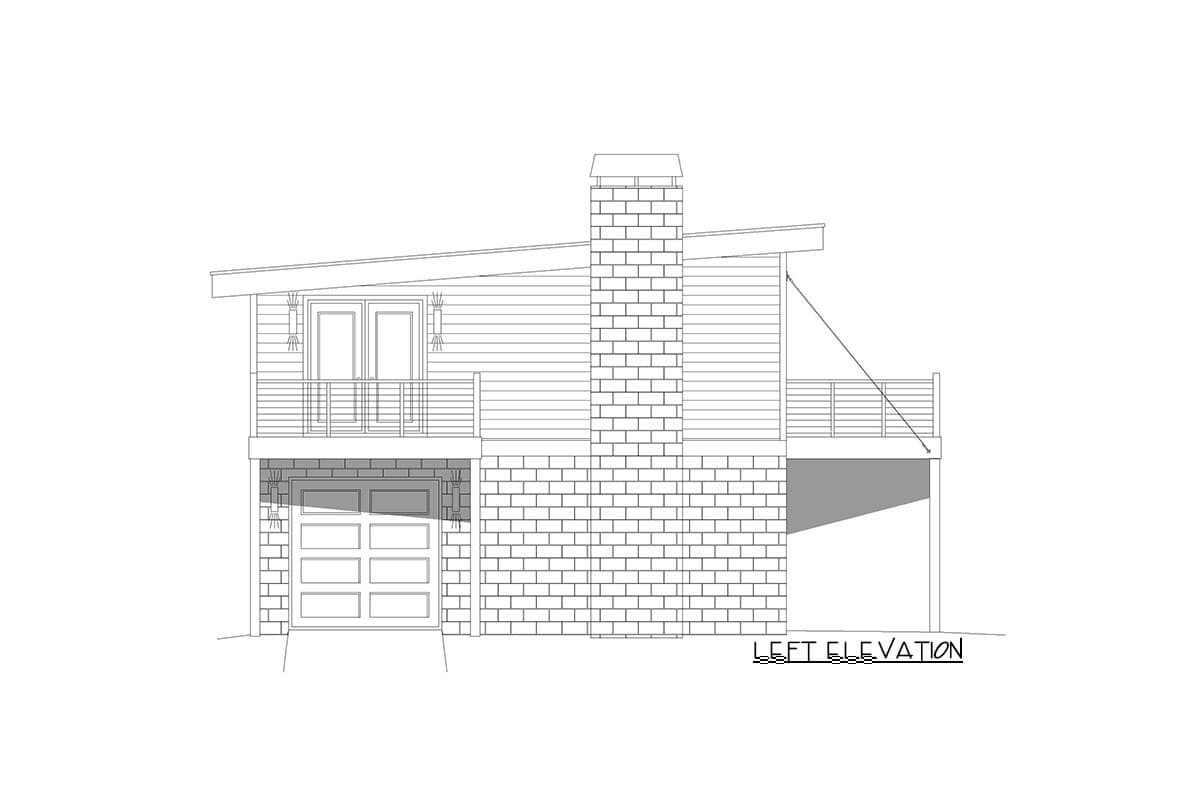

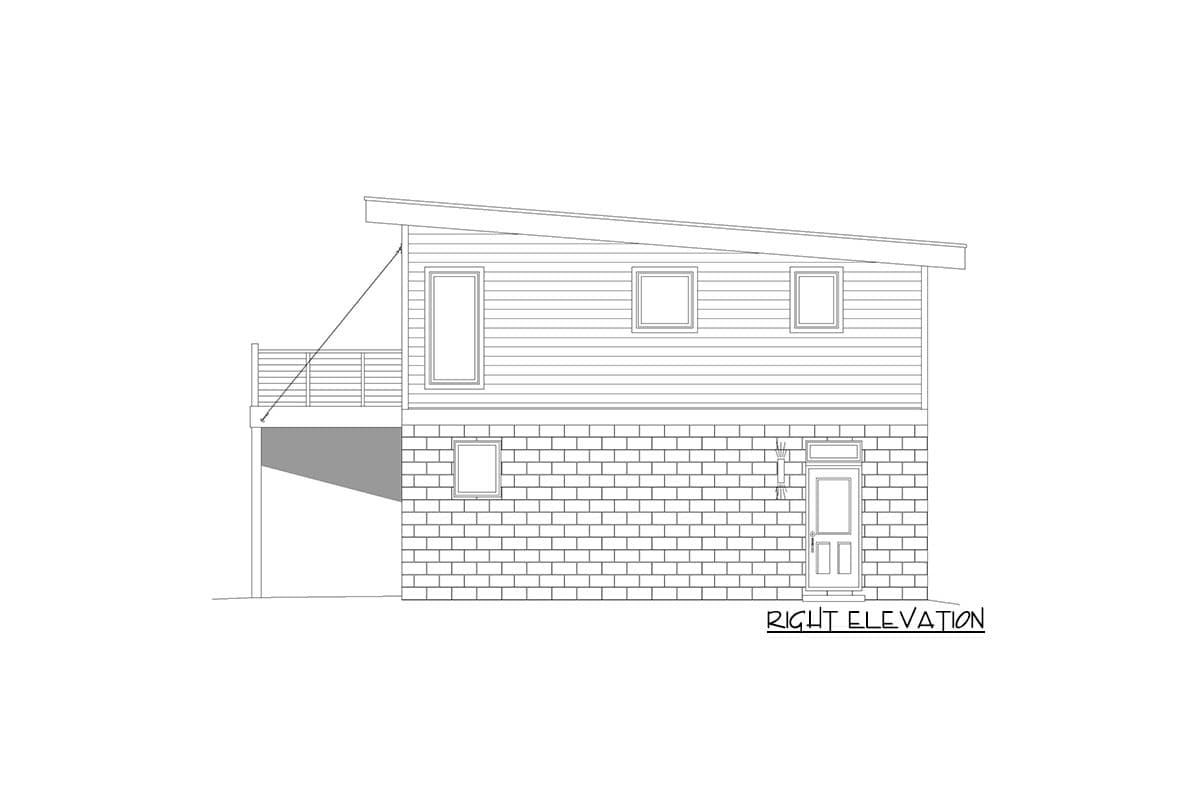

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

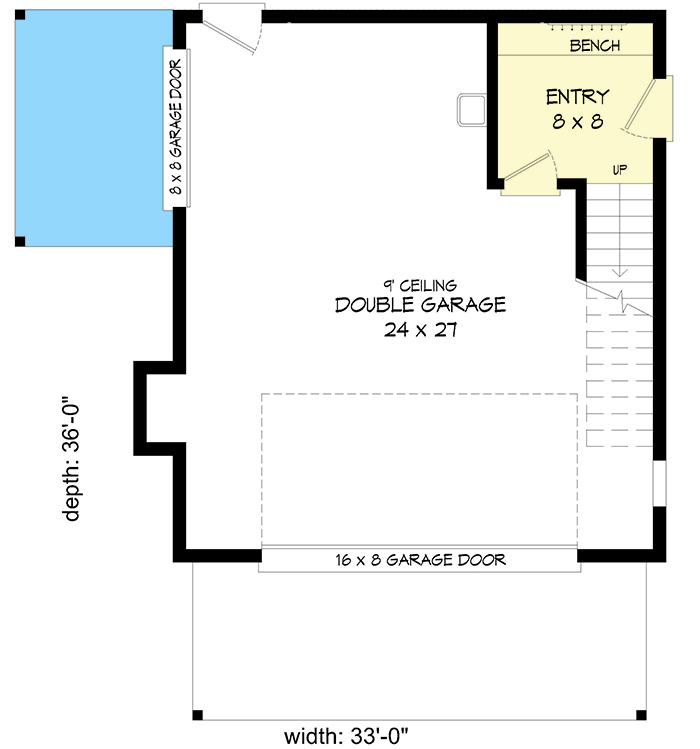

Carriage House Plan with 1-Bed Apartment - 68665VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

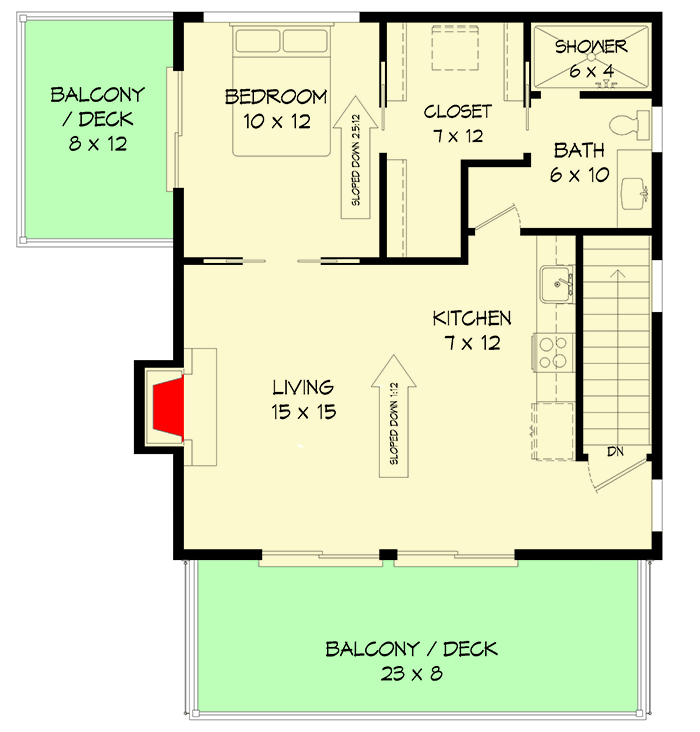

Carriage House Plan with 1-Bed Apartment - 68665VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 793 sq. ft.
  • 1st Floor: 83 sq. ft.
  • 2nd Floor: 710 sq. ft.
  • Balcony / Veranda: 296 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 36' 0"
  • Max ridge height: 19' 9"

Garage

  • Type: Drive Under
  • Area: 627 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 3"

Roof Details

  • Primary Pitch: 1 on 12
  • Framing Type: Stick

Architectural Style

Special features

Carriage House Plan with 1-Bed Apartment

  • 793

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $875
  • 5 Sets $960
  • 5 Sets + PDF $1,079
  • CAD + PDF - Single-Build $1,175
  • View all purchase option online

About This Plan

  • This carriage house plan features a 1-bedroom apartment above the double garage; a total of 793 heated square feet.
  • Additional space in the main-level garage is perfect for lawn equipment and accessible by its own 8' x 8' garage door.
  • The formal entry includes a built-in bench and hooks for outdoor gear, and guides you to the second level apartment.
  • The living room and kitchen are open to one another and extend outdoors onto a balcony through two sets of sliding doors.
  • The bedroom boasts a private balcony and access to the full bath through a walk-in closet.
  • Related Plan: Get an alternate version with house plan 68980VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 793 sq. ft.
  • 1st Floor: 83 sq. ft.
  • 2nd Floor: 710 sq. ft.
  • Balcony / Veranda: 296 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 36' 0"
  • Max ridge height: 19' 9"

Garage

  • Type: Drive Under
  • Area: 627 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 12' 3"

Roof

  • Primary Pitch: 1 on 12
  • Framing Type: Stick
Plan 68665VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68665VR
|
