Carriage House Plan with Deck Above Garage

Plan 62785DJ

This plan plants 3 trees

1,077
Heated s.f.
1
Beds
1
Baths
2
Stories
2
Cars

A courtyard split garage gives this apartment garage plan the appearance of a home and the functionality of a carriage house. On the outside, a beautiful blend of siding, brick, wood, and metal roofing gives this plan great curb appeal.
On the main level, there is ample work space with a built-in workbench. There is also a useful storage closet with built-in shelves and a mudroom that includes a bench/lockers.
Upstairs, you will find a functional 1 bedroom apartment. The family room, kitchen, and dining room lie under a soaring cathedral ceiling to make the living area feel open. The kitchen includes a large kitchen island with a snack bar and a pantry. Just off the family room is a beautiful balcony that is accessed through french doors.
The master suite includes a large walk-through closet that has its own access to the apartment's bathroom.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

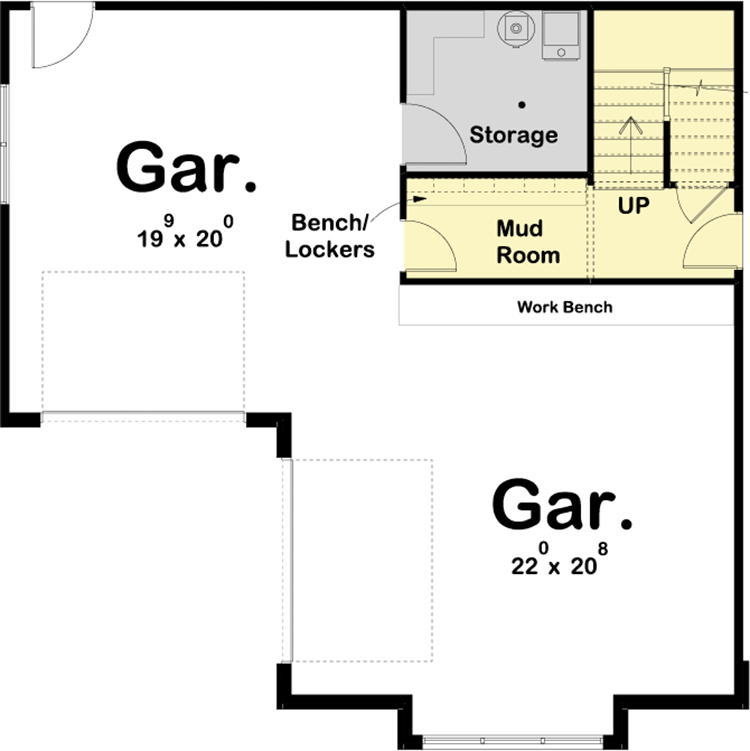

Carriage House Plan with Deck Above Garage - 62785DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

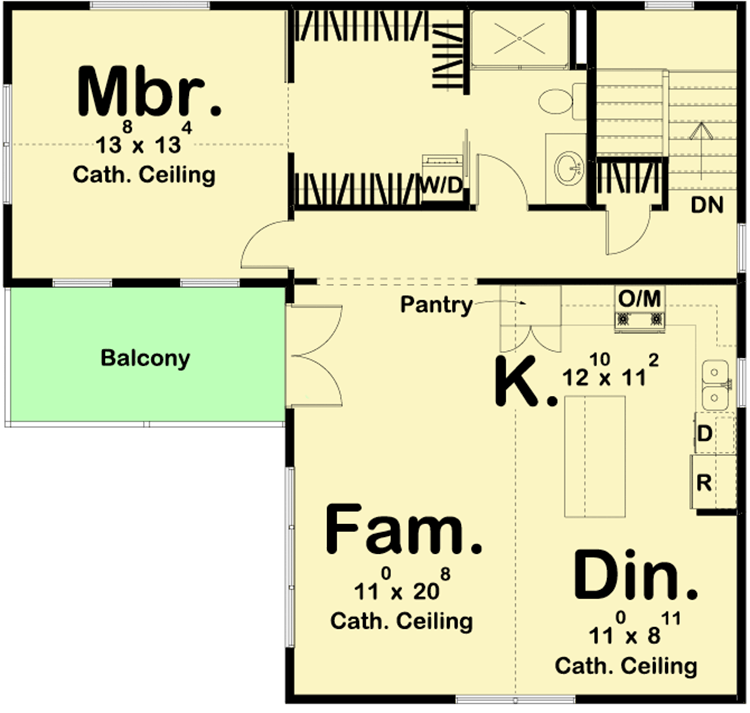

Carriage House Plan with Deck Above Garage - 62785DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 1,077 sq. ft.
1st Floor: 153 sq. ft.
2nd Floor: 924 sq. ft.

Beds/Baths

Bedrooms: 1

Full bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 37' 0"
Depth: 37' 0"

Garage

Type: Detached
Area: 852 sq. ft.
Count: 2 Cars
Entry Location: Side, Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 6 on 12

Architectural Style

Special features
