Plan 21550DR Carriage House with Shed Dormer

Carriage House with Shed Dormer

Plan 21550DR

  • 1,096

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • This carriage house is the perfect addition to any home or can be a standalone home. The shed dormer adds appeal and the overhand design creates a sheltered patio on the ground level.
  • Upstairs, there is a large open space with a fireplace in the middle. This is open to the kitchen.
  • The corners with the dashed lines are sloped down to 4'-6"knee walls.
  • The rear wall in the bedrooms in 8'.
  • Two bedrooms have separate baths. There is laundry centrally located for convenience.
  • The garage door is 16'x7' and the plan can be modified to get you more room if needed. The stairs are 40" wide for ease of movement.
  • Related Plan: Get 3 bedrooms upstairs and living space on the main with house plan 22313DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

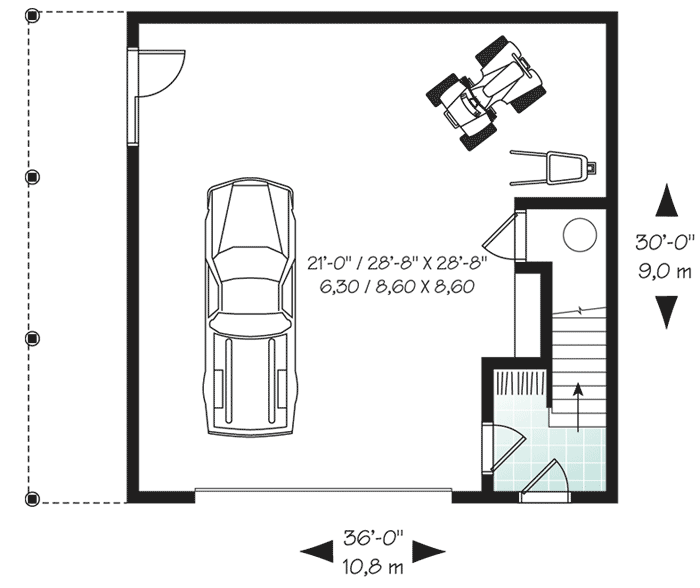

Carriage House with Shed Dormer - 21550DR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

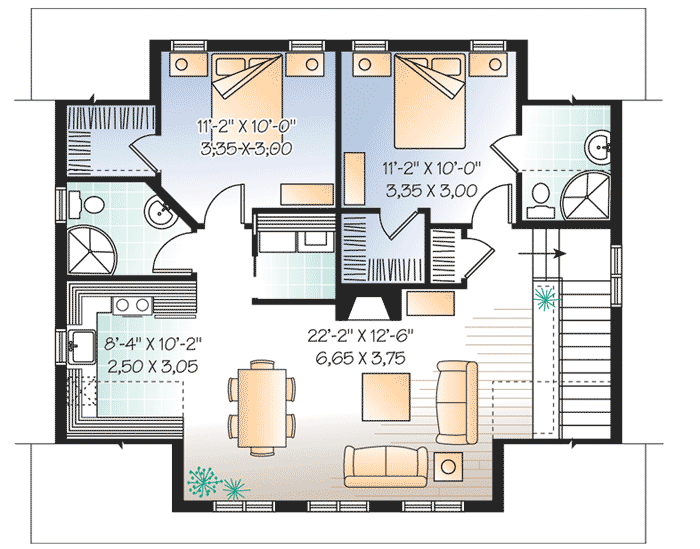

Carriage House with Shed Dormer - 21550DR floor plan - 2nd Floor

Plan details

Architectural Style

Special features

Plan Collections

Carriage House with Shed Dormer

  • 1,096

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $970
  • Reproducible Set $970
  • 5 Sets + PDF $1,095
  • CAD - Single-Build $1,570
  • View all purchase option online

About This Plan

  • This carriage house is the perfect addition to any home or can be a standalone home. The shed dormer adds appeal and the overhand design creates a sheltered patio on the ground level.
  • Upstairs, there is a large open space with a fireplace in the middle. This is open to the kitchen.
  • The corners with the dashed lines are sloped down to 4'-6"knee walls.
  • The rear wall in the bedrooms in 8'.
  • Two bedrooms have separate baths. There is laundry centrally located for convenience.
  • The garage door is 16'x7' and the plan can be modified to get you more room if needed. The stairs are 40" wide for ease of movement.
  • Related Plan: Get 3 bedrooms upstairs and living space on the main with house plan 22313DR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,096 sq. ft.
  • 1st Floor: 128 sq. ft.
  • 2nd Floor: 968 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 30' 0"
  • Max ridge height: 27' 0"

Garage

  • Area: 773 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
