Carriage House with Studio

Plan 23601JD

  • 975

    HEATED S.F.

  • 1

    BEDS

  • 1

    BATHS

  • 2

    FLOORS

  • 4

    CAR GARAGE

About this Plan

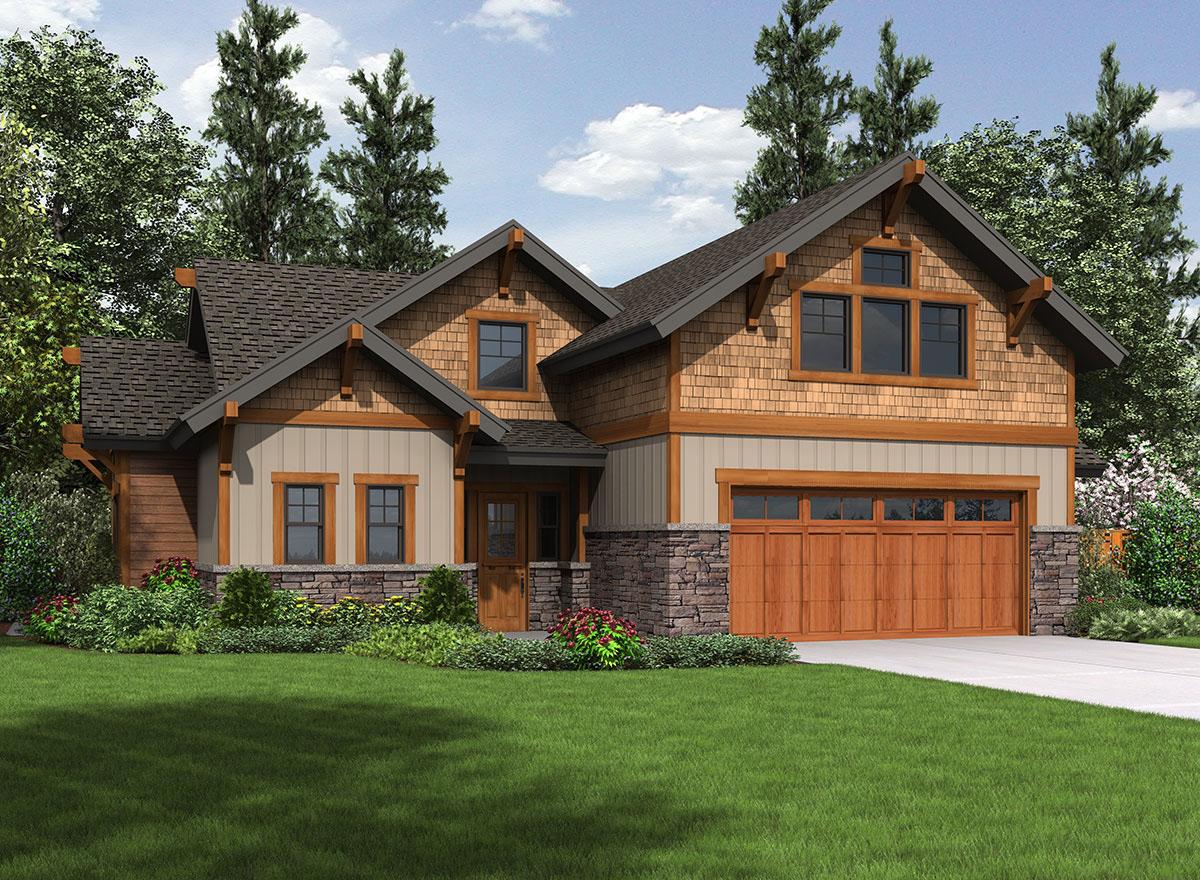

  • A full kitchen and bathroom come with this Northwest style Carriage House plan that offers a four car tandem garage with big workshop area.
  • The main floor living area is vaulted and beamed and could serve as a studio bedroom.

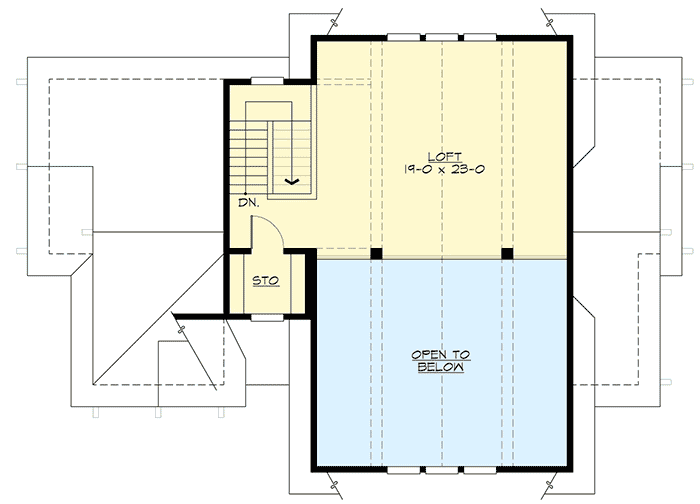

  • Up on the second floor, you have a big walk-in storage closet and loft space that overlooks the front part of the garage.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

See What's Included in this Plan...

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 975 sq. ft.
  • 1st Floor: 400 sq. ft.
  • 2nd Floor: 575 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Dimensions

  • Width: 56' 0"
  • Depth: 40' 0"
  • Max ridge height: 24' 6"

Garage

  • Type: Detached
  • Area: 1265 sq. ft.
  • Details: 4 Cars
  • Location: Front

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick and Truss
