Plan 90177PD
Central Spiraling Stair
Heated S.F.
2,718
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • An air-lock entry to keep out the cold opens to a dramatic two-story foyer with central sweeping stair,
  • A large butler's pantry makes entertaining guests a breeze.
  • You have full width views from the kitchen to the family room with its fireplace centered on the far wall. And a large covered porch gives you room for relaxing in the shade outdoors.
  • All the bedrooms are upstairs including the master with walk-ins. A sitting room behind pocket doors is a great place for reading.
  • Related Plan: Get an alternate exterior and more room with house plan 90222PD (2,968 sq. ft.).
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Central Spiraling Stair

  • 2,718

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

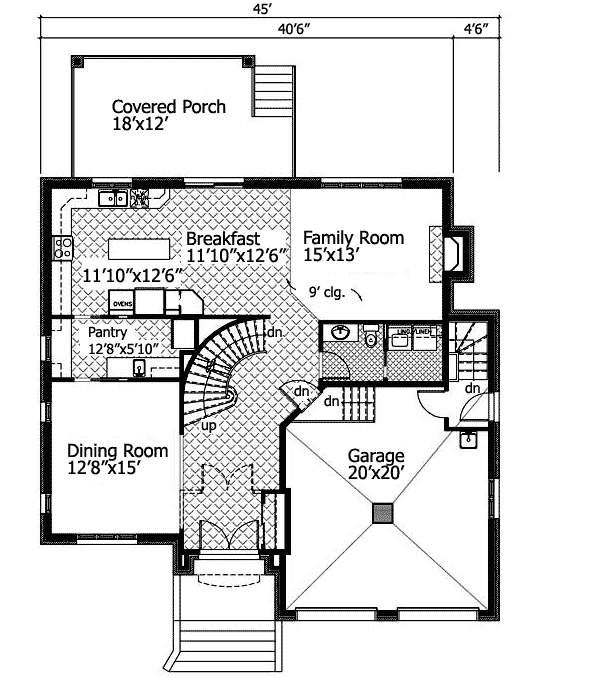

  • Main Level

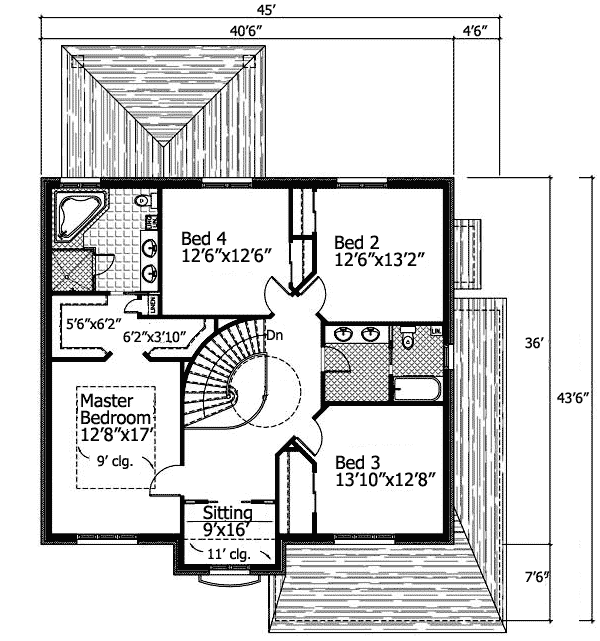

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,718 sq. ft.
  • 1st Floor: 1,227 sq. ft.
  • 2nd Floor: 1,491 sq. ft.

Dimensions

  • Width: 45' 0"
  • Depth: 43' 6"
  • Max ridge height: 37' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 515 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
