Charming 3-Bed Bungalow with Single Garage

Heated S.F.
992
Beds
3
Baths
1
Stories
1
Cars
1

Floor Plan

Plan 801005PM

Main Level
Main Level

Plan 801005PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 801005PM: Charming 3-Bed Bungalow with Single Garage - Floor Plan - Main Level - Bungalow, Country, Ranch, Traditional

Plan Details

  • Decorative shutters, a vaulted porch with classic columns, and front veranda truly enhance the appearance of this charming bungalow with 3 bedrooms and 1 bathroom.
  • The house is 54 feet wide by 26 feet deep and provides a 992 square foot living area.
  • The 340 square foot one-car garage has two doors - one with a direct access to the house through the dining room, and another leading to the back yard.
  • The living room overlooks the front porch and the U-shaped kitchen opens to the dining area with sliding doors the lead to the back yard.
  • Three bedrooms complete the home and surround a full bathroom.

What's Included

Please note this plan is designed to the National Building Code of Canada.

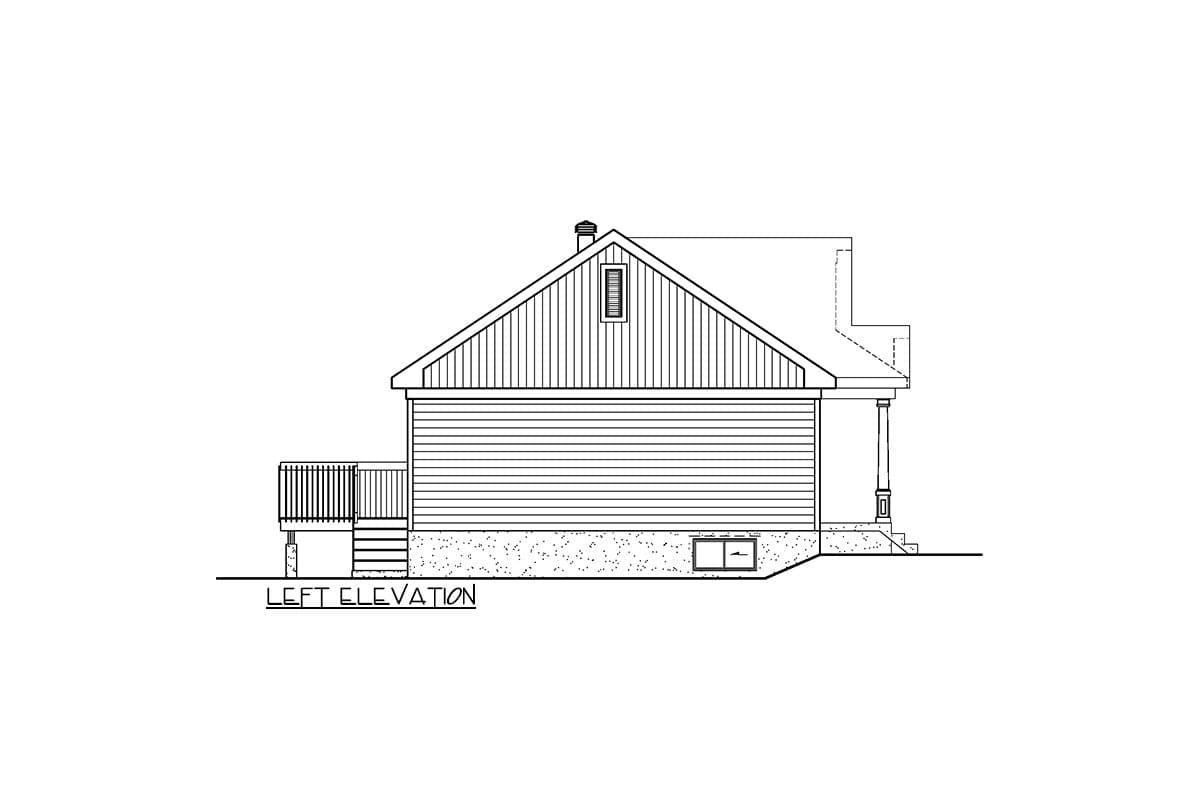

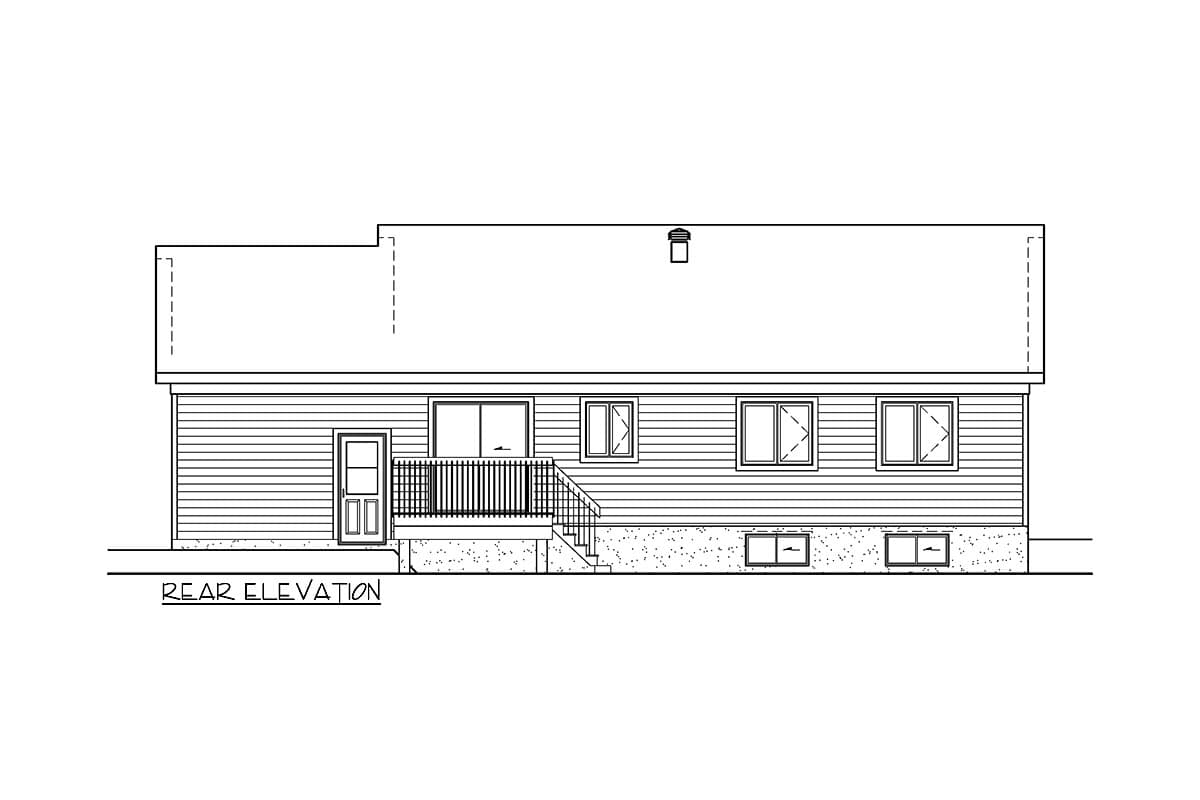

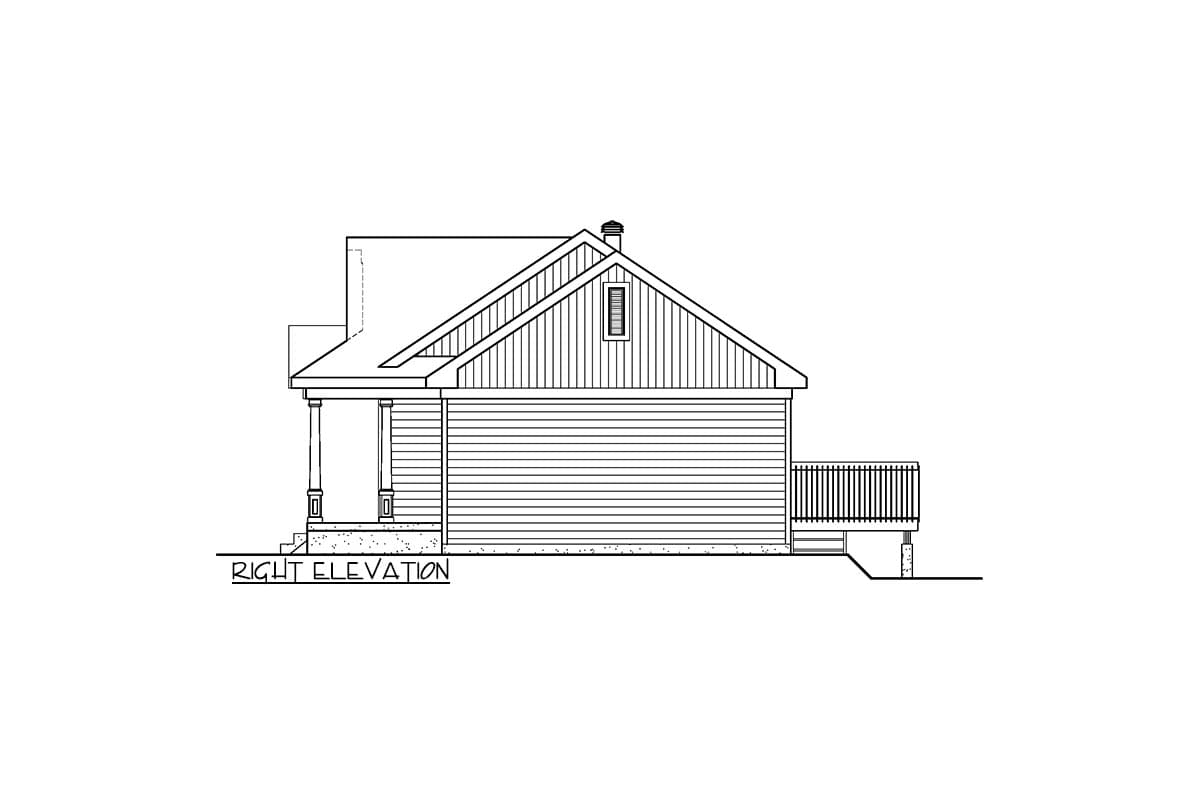

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

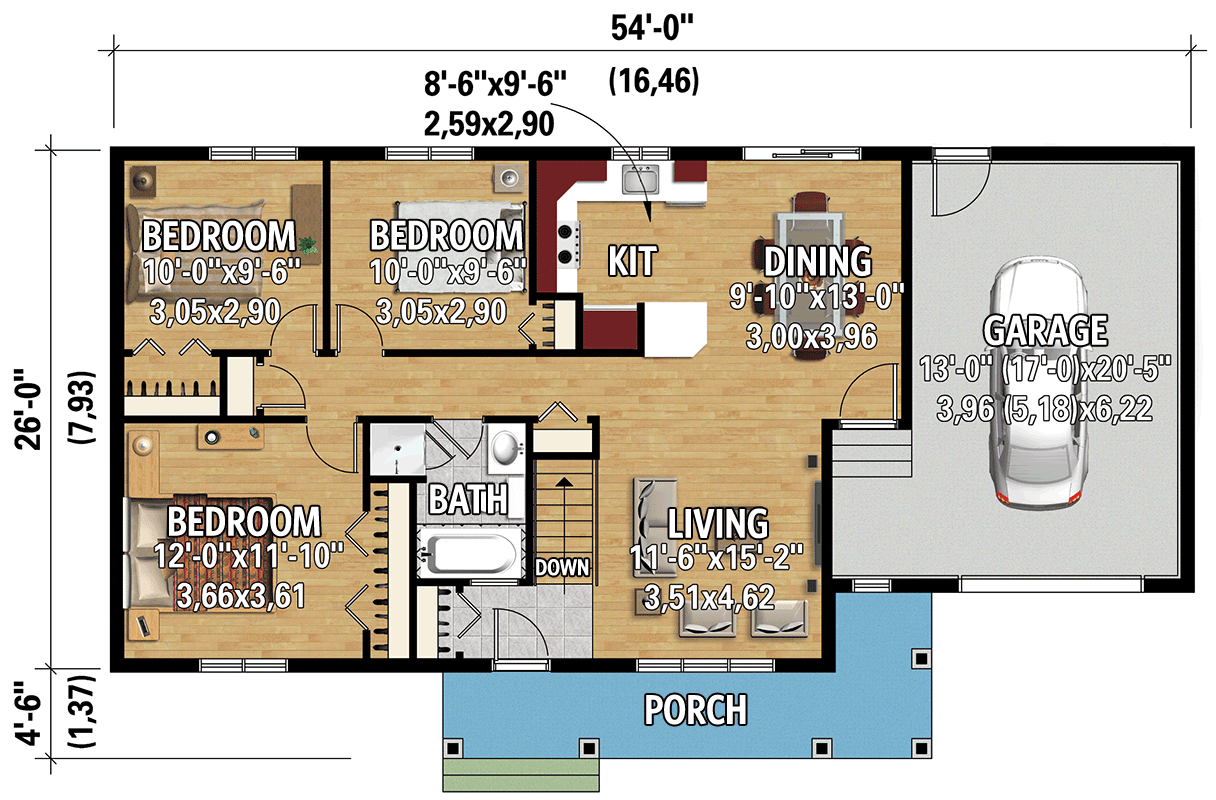

  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

992 sq. ft.

1st Floor

992 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

26' 0"

Max Ridge Height

22' 1"

Garage

Type

Attached

Area

340 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Bungalow

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

992 sq. ft.

1st Floor

992 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

26' 0"

Max Ridge Height

22' 1"

Garage

Type

Attached

Area

340 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Bungalow

Country

Ranch

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
