Plan 59812ND

Charming Arched Entry

Heated S.F.
2,135
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 59812ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59812ND

M-F 9am-5pm EST |

1-203-761-8500

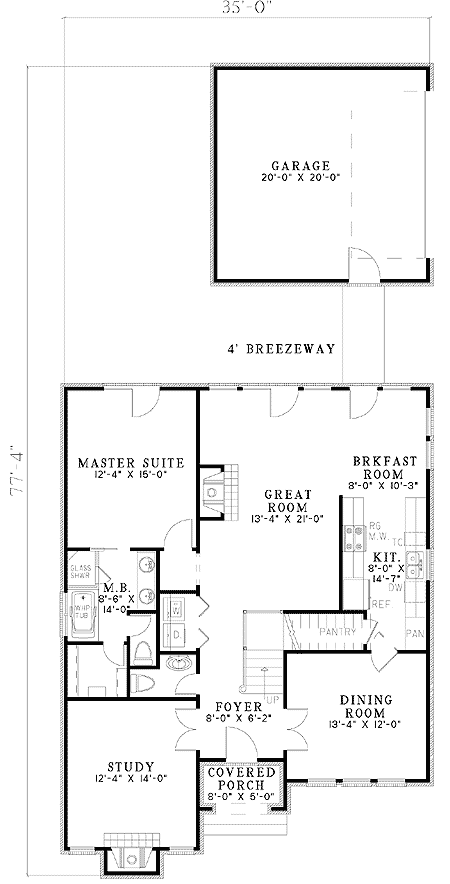

Main Level

Plan 59812ND: Charming Arched Entry - Floor Plan - Main Level - European, Mediterranean, Traditional

2nd Floor

Plan 59812ND: Charming Arched Entry - Floor Plan - 2nd Floor - European, Mediterranean, Traditional

Plan Details

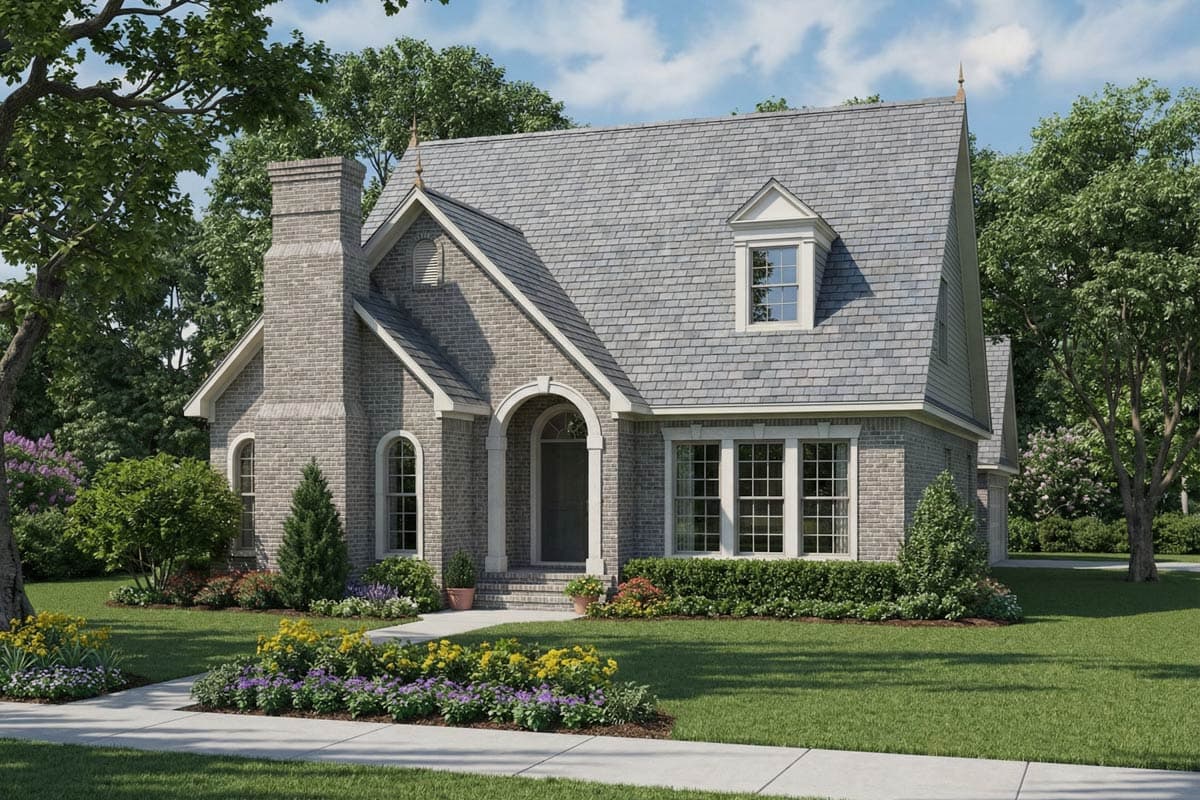

  • An arched entryway and finials only add to the charm of this house plan.
  • Grab a snack in the step-saver kitchen before heading into the great room for family movie night.
  • The private study at the front of this home will lend the perfect place to surf the web or curl up with a good book in front of the fire.
  • An amenity-filled master suite and a generous dining area complete the main level of this home plan.
  • Upstairs, two additional bedrooms, a full bath, and a loft area create a comfortable atmosphere for guest or for the kids.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,135 sq. ft.

1st Floor

1,393 sq. ft.

2nd Floor

742 sq. ft.

Entry

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 0"

Depth

77' 4"

Max Ridge Height

29' 0"

Garage

Type

Detached

Area

427 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Mediterranean

Traditional

Special Features

Library/Study

Loft

Master Suite - 1st Floor
