Plan 69740AM
Charming Country Craftsman House Plan with Rec Room Over Garage
Heated S.F.
2,193
Beds
3
Baths
3
Stories
1
Cars
2
Plan Details
  • This fine Craftsman house plan offers a quaint covered porch at the entry, cedar shingles in the gables, and stonework at the foundation line.
  • To the right of the foyer, a den allows for either a desk or a closet. The hall to the left leads to three bedrooms, two for family and guests. In the master suite, the bedroom is nicely vaulted and opens to a large walk-in closet and a private bath with a spa tub.
  • Also vaulted is the great room with fireplace and room for media above. The adjacent dining room has space for a hutch or built-ins, and the open kitchen is delineated by an angled island with an eating bar.6930

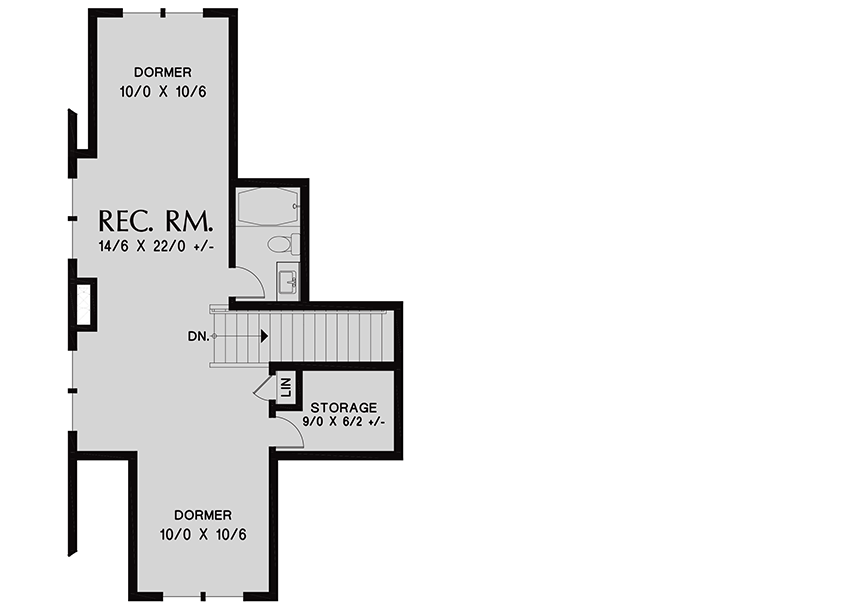

  • Adjacent to the roomy laundry room you'll find stairs leading to the rec room and extra bathroom over the garage.
  • Width of 60' does NOT include the bump-out for the chimney.  Chimney juts out 2' bringing the overall width to 62 feet.
  • Related Plans: Eliminate the bonus room with house plans 69750AM6930AM and get a 3-car garage with house plan 69741AM. And see these alternate versions, too: 69691AM69023AM6965AM and 69022AM.
What's Included

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

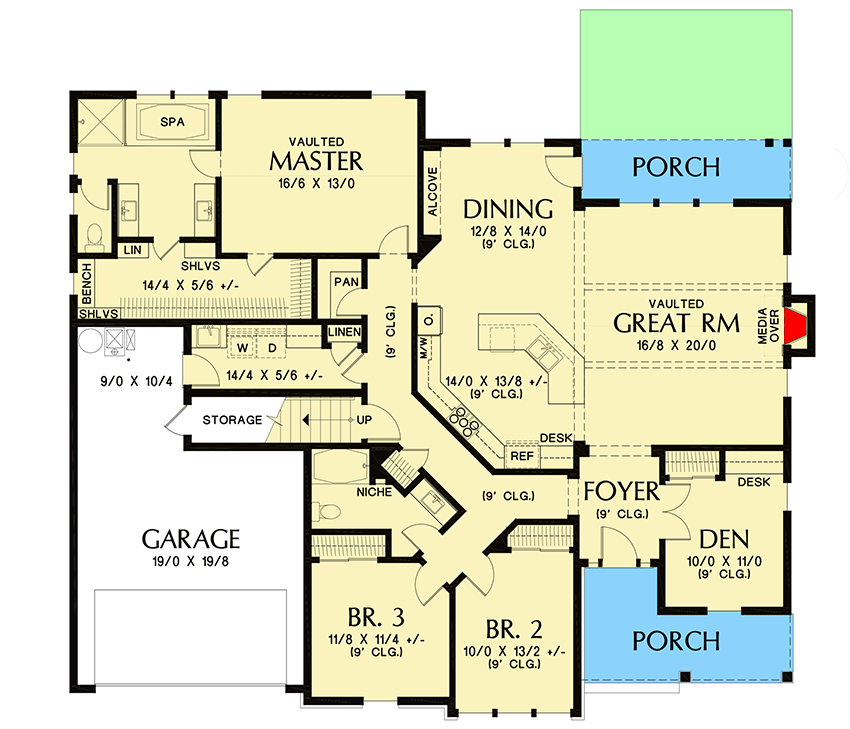

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Charming Country Craftsman House Plan with Rec Room Over Garage

  • 2,193

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

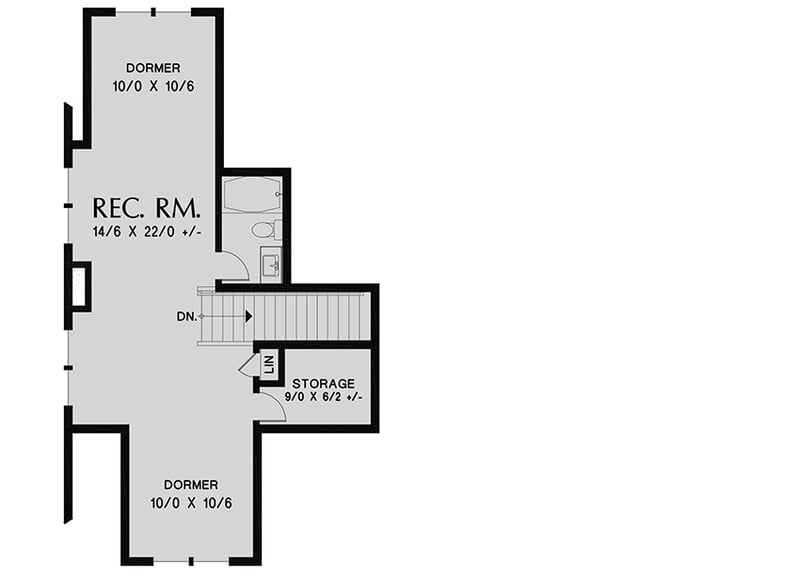

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 2,193 sq. ft.
  • 1st Floor: 2,193 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 52' 0"
  • Max ridge height: 26' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 491 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
