Charming Craftsman House Plan

Plan 915004CHP

  • 2,018

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

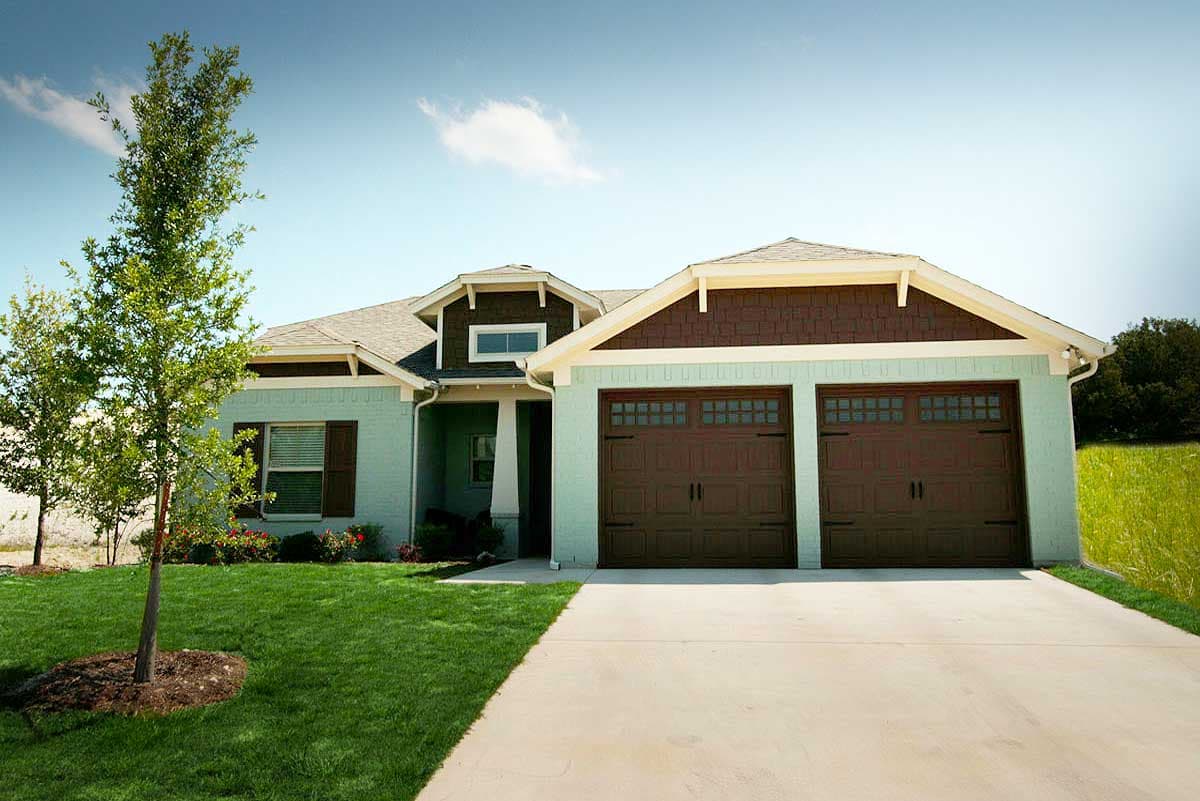

  • Clipped roof lines makes a beautiful statement for this Craftsman house plan.
  • The open layout maximizes the views from the kitchen to the huge family room.
  • A door in the eating nook leads out to a covered rear porch.
  • Tucked away in back, the private master suite has a ceiling that vaults up, adding elegance.
  • Related Plans: Get a 2 bedroom version with a study with house plan 915001CHP. Get different exteriors with house plans 915000CHP, 915002CHP and 915003CHP.

Plan includes the following elements:

  • All four elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical schematics
  • Cross section(s)
  • Rafter plan and ceiling joist plans
  • Interior elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Charming Craftsman House Plan - 915004CHP floor plan - Main Level

Charming Craftsman House Plan

  • 2,018

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,018 sq. ft.
  • 1st Floor: 2,018 sq. ft.

Dimensions

  • Width: 47' 0"
  • Depth: 62' 8"
  • Max ridge height: 18' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 463 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
