Charming Craftsman with Optional Bonus Room

Plan 500031VV

  • 2,580

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A front porch with timber supports and trimmed with stone greets you to this Craftsman house plan with 3 or 4 beds.
  • The foyer is flanked by the study and dining rooms.
  • The family room has a fireplace and access to a rear deck and is open to the kitchen.
  • The kitchen island has counter seating and a good size pantry.
  • The upstairs gives you three bedrooms  plus a laundry room. Expand over the garage and add a 4th bedroom and bath.
  • Related Plan:  Get another bedroom or optional game room with plan 500007VV

This house plan includes the following:
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

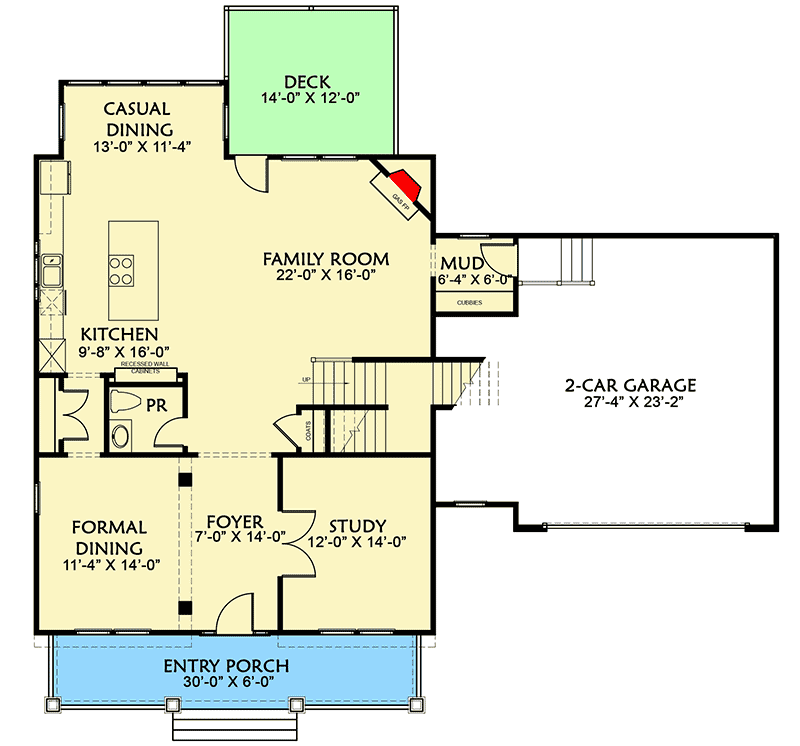

Charming Craftsman with Optional Bonus Room  - 500031VV floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

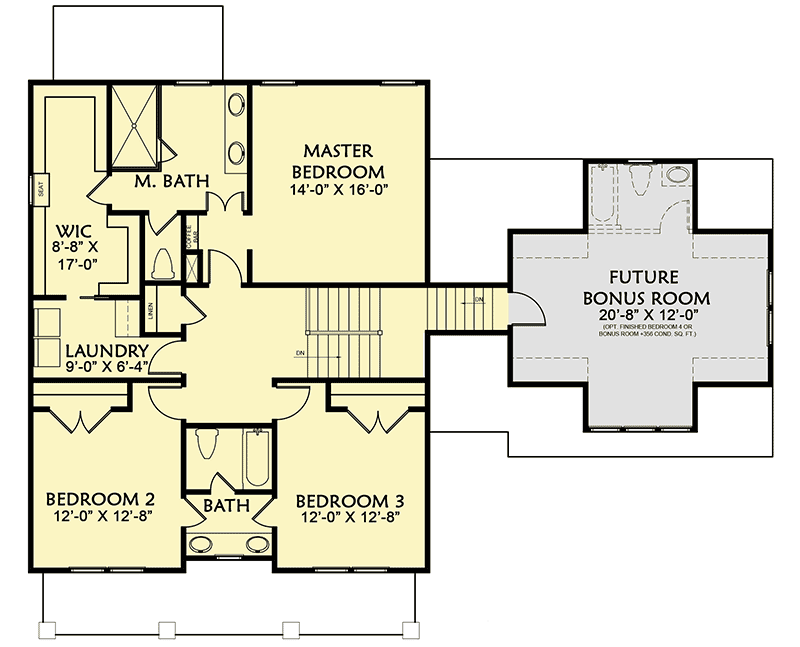

Charming Craftsman with Optional Bonus Room  - 500031VV floor plan - 2nd Floor

Charming Craftsman with Optional Bonus Room

  • 2,580

    Heated s.f.

  • 3

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,580 sq. ft.
  • 1st Floor: 1,377 sq. ft.
  • 2nd Floor: 1,203 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 51' 0"
  • Max ridge height: 31' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 607 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
