Charming European Abode

Plan 9307EL

  • 3,505

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

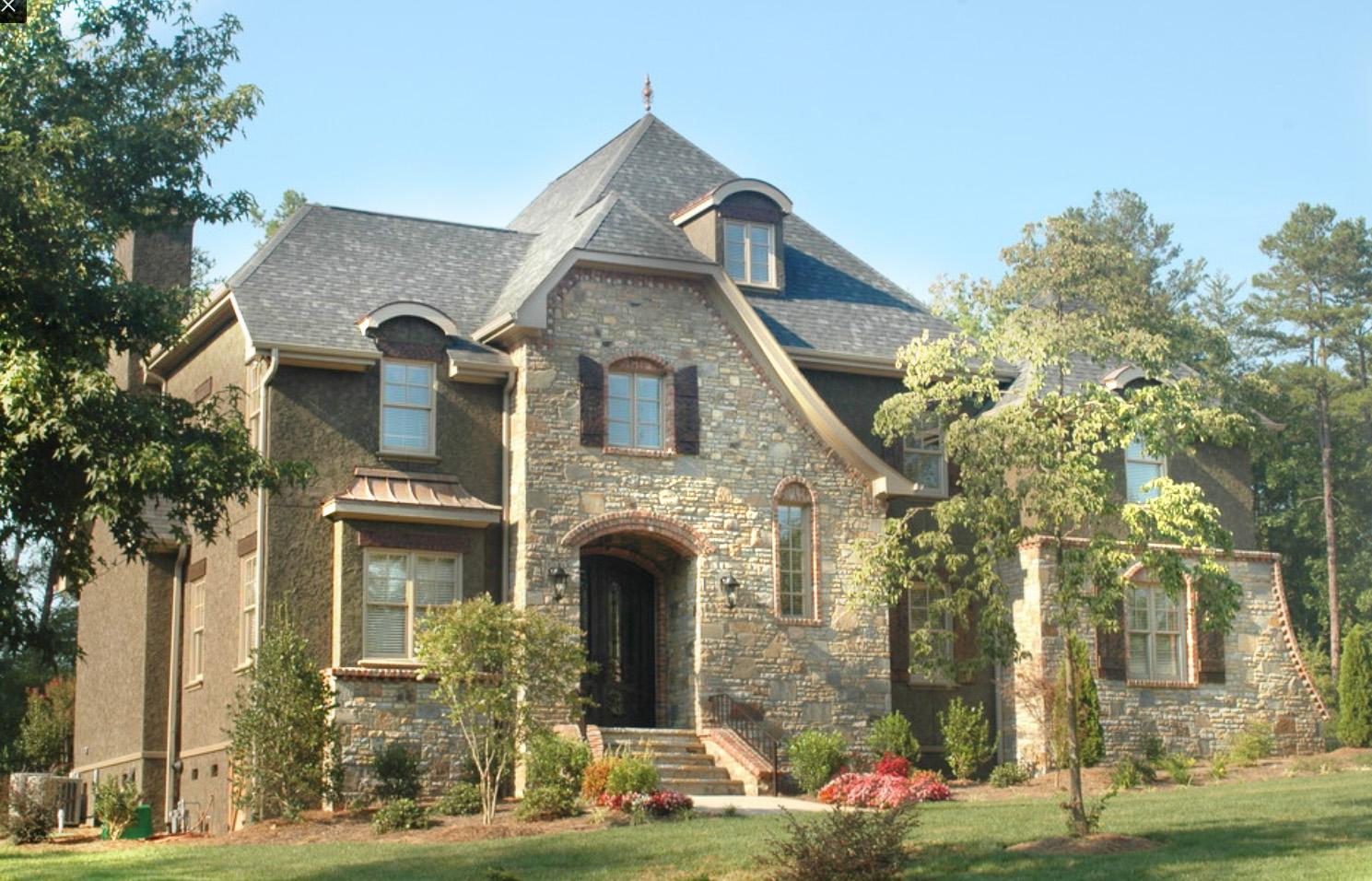

  • Stone and stucco on the exterior along with decorative shutters and a steep pitched roof give this home plan its European charm. An open floor plan on the inside allows for good traffic flow and a feeling of spaciousness.
  • The formal dining room with tray ceiling blends right into the huge family gathering room with its beamed ceiling and fireplace flanked by built-ins.
  • With a view of almost all first floor rooms, the family chef gets to be part of it all in the gourmet kitchen. Note the convenient access to the bright informal dining area.
  • A vaulted guest suite with terrace access and a home office complete the first floor.
  • Two family bedrooms, a play room, laundry and loft area share space on the second floor with the superb master suite with its own sitting room.
  • Ceilings: 10' first floor; 9' second floor.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

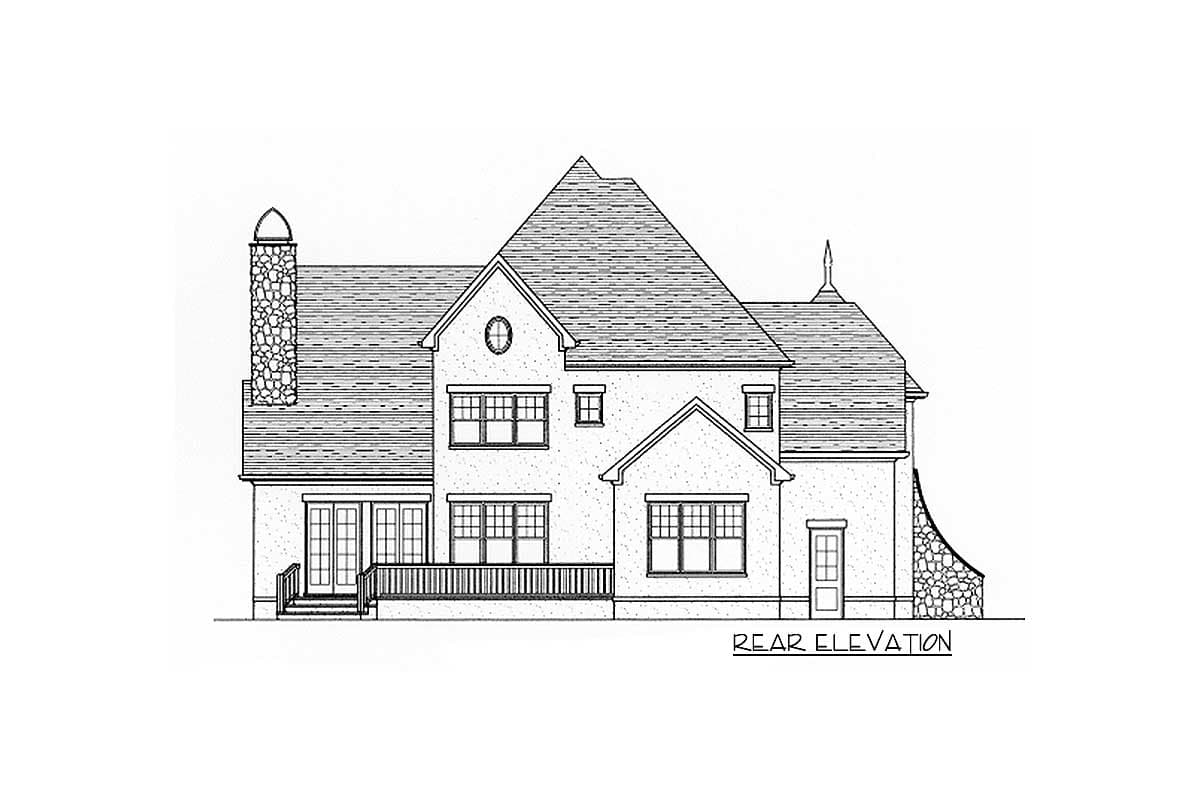

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

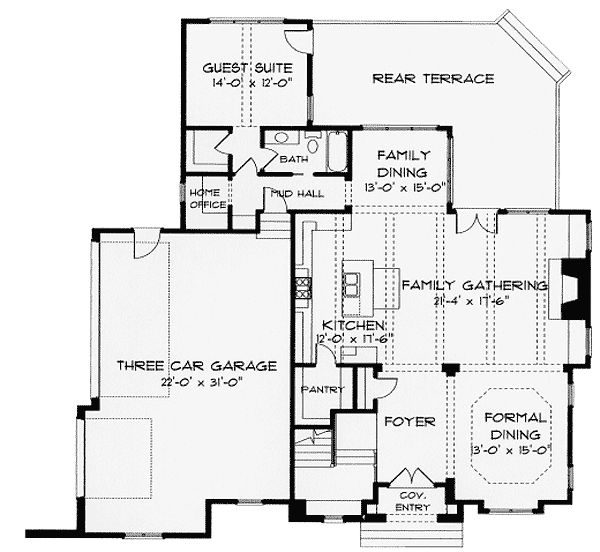

Charming European Abode - 9307EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

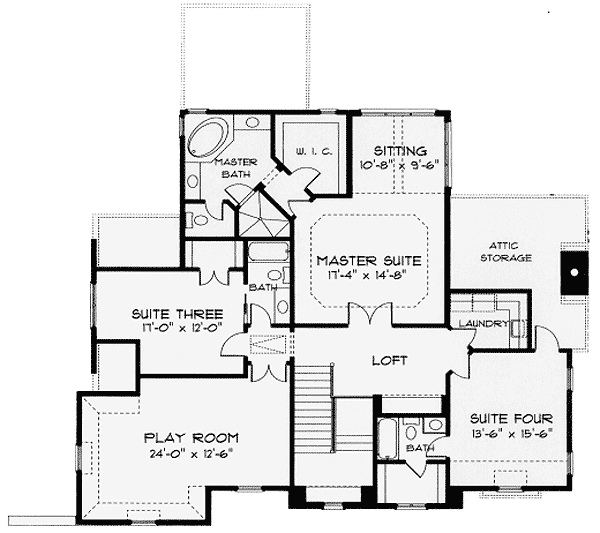

Charming European Abode - 9307EL floor plan - 2nd Floor

Charming European Abode

  • 3,505

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,505 sq. ft.
  • 1st Floor: 1,650 sq. ft.
  • 2nd Floor: 1,855 sq. ft.

Dimensions

  • Width: 58' 6"
  • Depth: 60' 2"
  • Max ridge height: 33' 6"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 682 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
