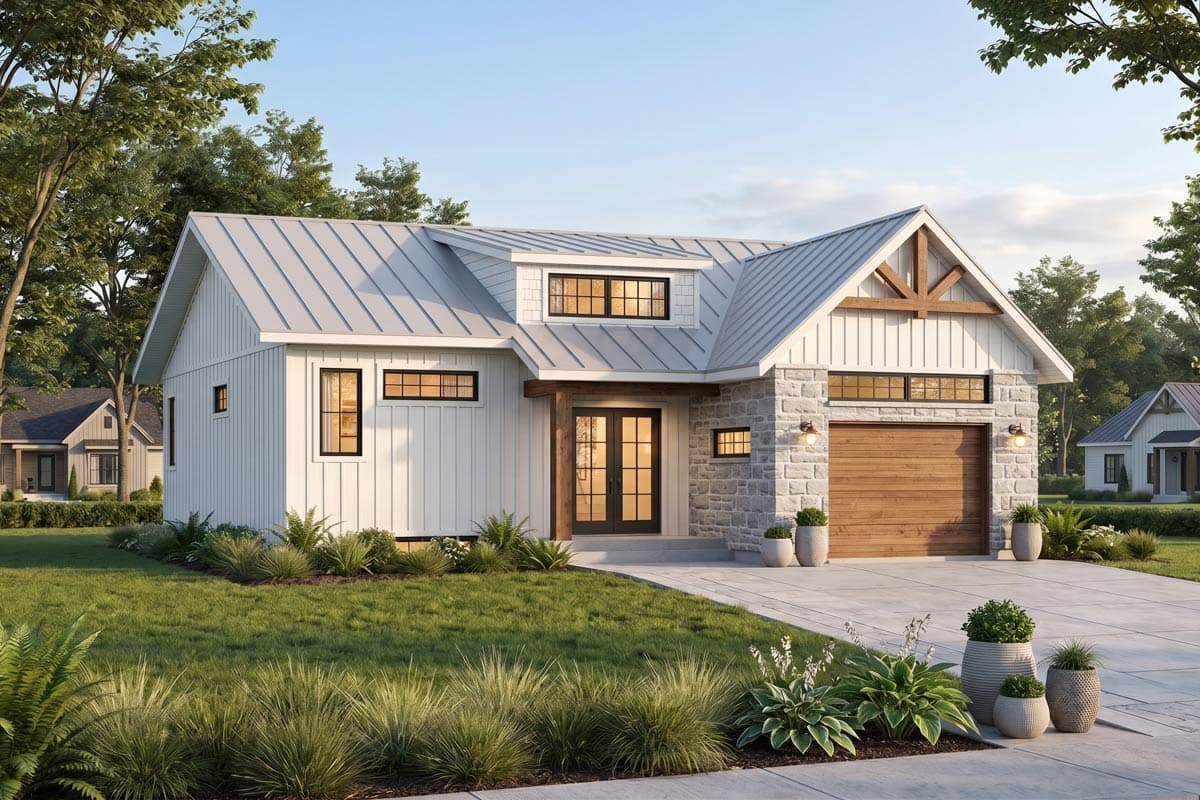

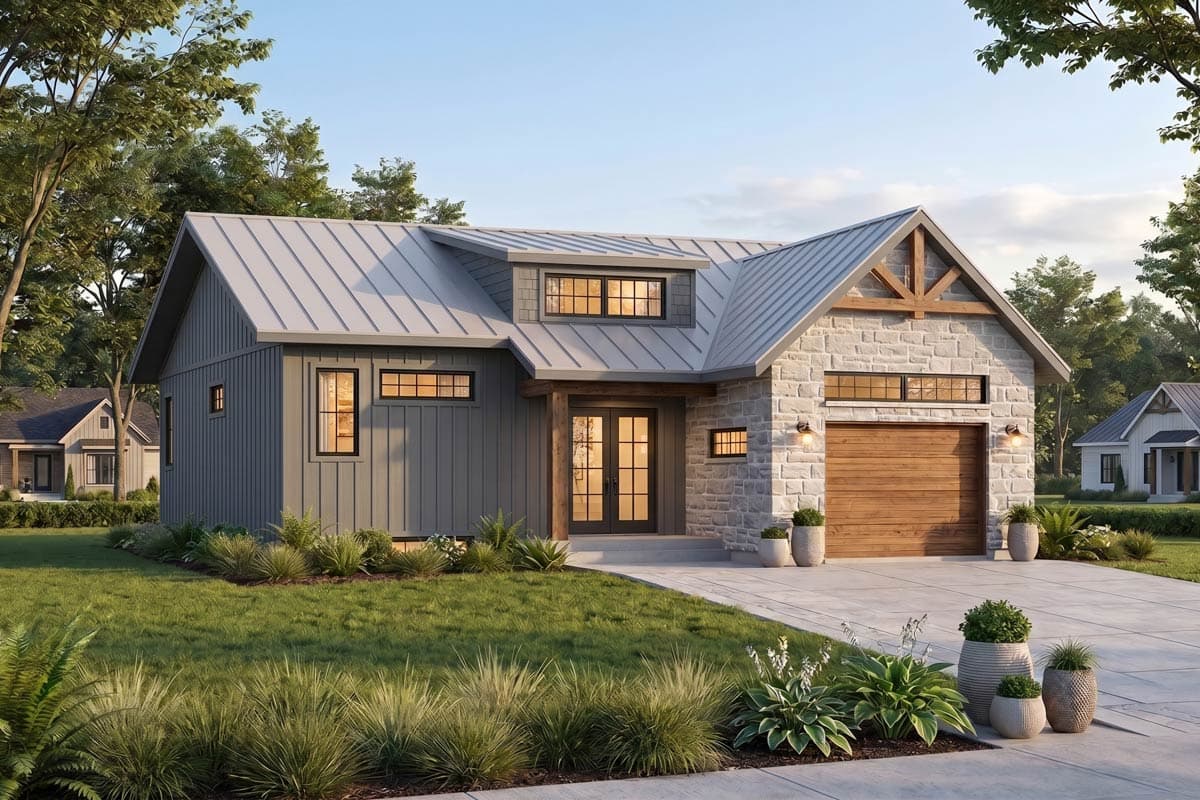

Charming Northwest House Plan

Plan 22450DR

  • 1,399

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • Step inside this one-level house plan and you are greeted with an entry hall with ceilings that are over 15'-high with a clutter-reducing closet and access to the garage. A skylight gives you great natural light into this space and the open floor plan family area.
  • The open floor plan features a kitchen with views of the backyard as well as to dining and living rooms.
  • Two bedrooms are roomy enough for either a queen or king size bed and one of them could even be converted into a guest room, gym or home office, as needed. The shared bathroom has a separate bathtub and shower and private toilet room.
  • A washer / dryer closet is located away from the kitchen.
  • The one-car garage has ceilings just over 10'-high.
  • Related Plans: Get an alternate layout with house plans 22449DR and 22595DR.

Each plan includes the following:

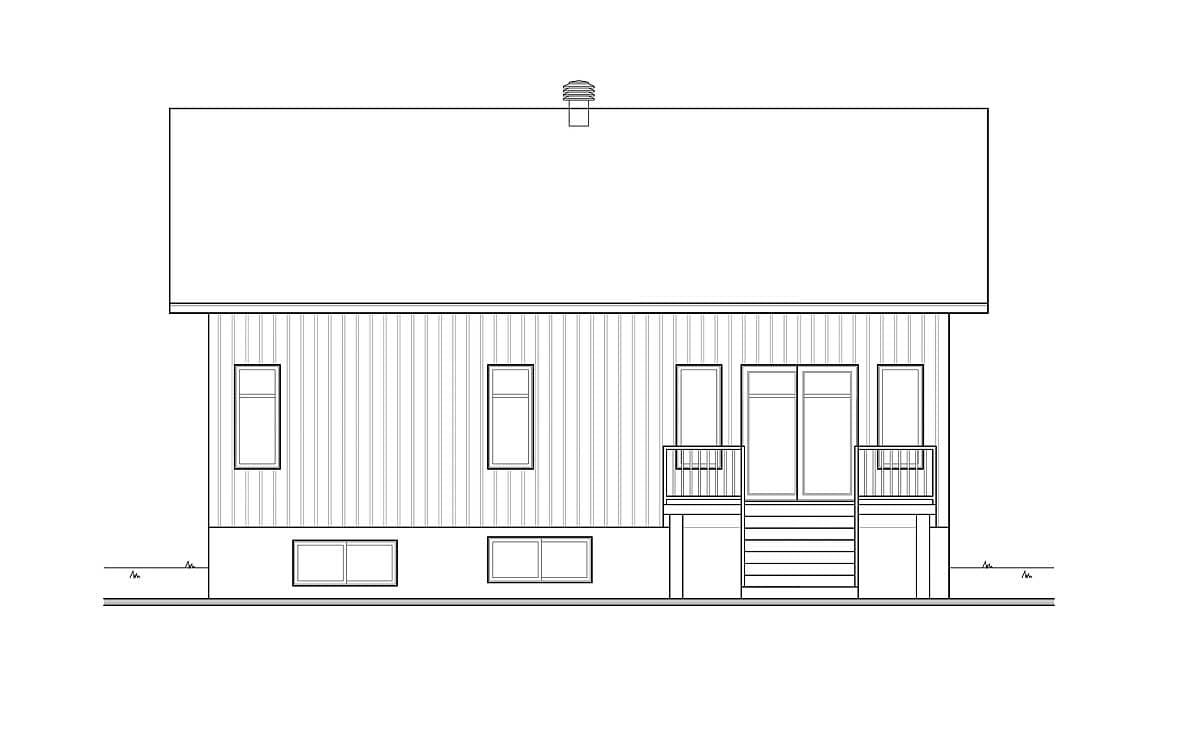

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

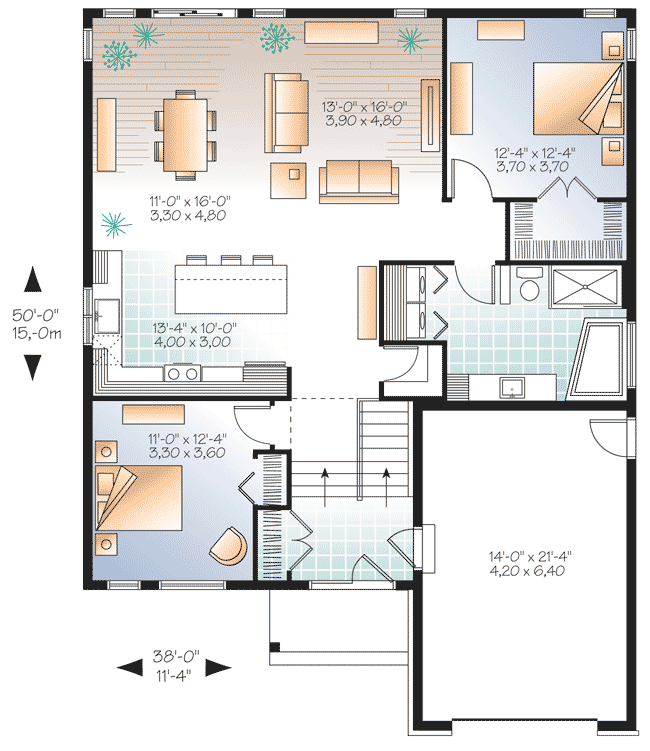

Charming Northwest House Plan - 22450DR floor plan - Main Level

Architectural Style

Plan Collections

Charming Northwest House Plan

  • 1,399

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,399 sq. ft.
  • 1st Floor: 1,399 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 50' 0"
  • Max ridge height: 22' 2"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 338 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
