Plan 59400ND

Charming Ranch Home with Spacious Great Room and Mudroom

Heated S.F.
1,474
Beds
3
Baths
2
Stories
1
Cars
2

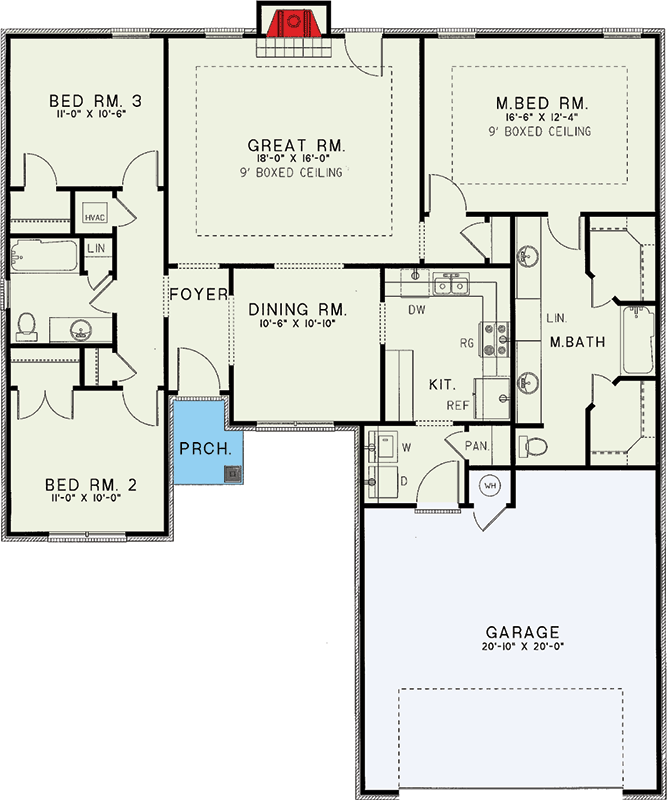

Floor Plan

Plan 59400ND

Main Level
Main Level

Plan 59400ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59400ND: Charming Ranch Home with Spacious Great Room and Mudroom - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This delightful ranch home offers 1,474 sq. ft. of living space, featuring 3 bedrooms and 2 bathrooms, with an attached 2-car garage.
  • Upon entering, you're welcomed into an inviting foyer leading to a cozy great room with a boxed ceiling, perfect for family gatherings.
  • The open floor plan seamlessly connects the dining area to the modern kitchen, complete with a convenient pantry and ample countertop space.
  • The master suite, located on the main floor, provides privacy and includes a well-appointed master bathroom with a linen closet.
  • A practical mudroom off the garage adds functionality, perfect for keeping outdoor gear organized.
  • Enjoy quiet mornings on the charming front porch, surrounded by beautiful landscape views.
  • Related Plans: For an alternate plan, see house plan 59409ND.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,474 sq. ft.

1st Floor

1,474 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 10"

Depth

56' 4"

Max Ridge Height

17' 10"

Garage

Type

Attached

Area

437 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

1,474 sq. ft.

1st Floor

1,474 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

46' 10"

Depth

56' 4"

Max Ridge Height

17' 10"

Garage

Type

Attached

Area

437 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Split

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Closed Floor Plans
