Plan 51802HZ

Charming Southern Home Plan with Optional Bonus Room - 2854 Sq Ft

Heated S.F.
2,854
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
2- 3
Client Photos

Floor Plan

Plan 51802HZ

Main Level
Main Level
Optionally Finished Bonus
Optionally Finished Bonus
Basement Stair Location
Basement Stair Location
Basement
Basement

Plan 51802HZ

M-F 9am-5pm EST |

1-203-761-8500

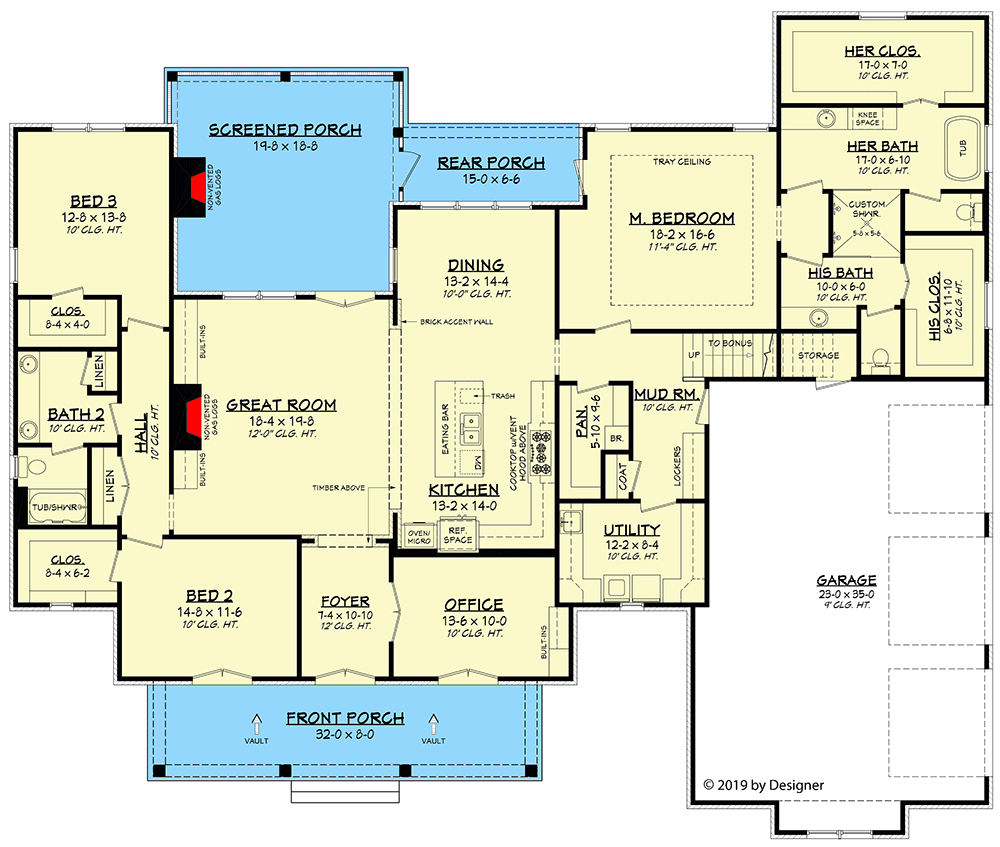

Main Level

Plan 51802HZ: Charming Southern Home Plan with Optional Bonus Room - 2854 Sq Ft - Floor Plan - Main Level - Acadian, Louisiana-Style, Southern

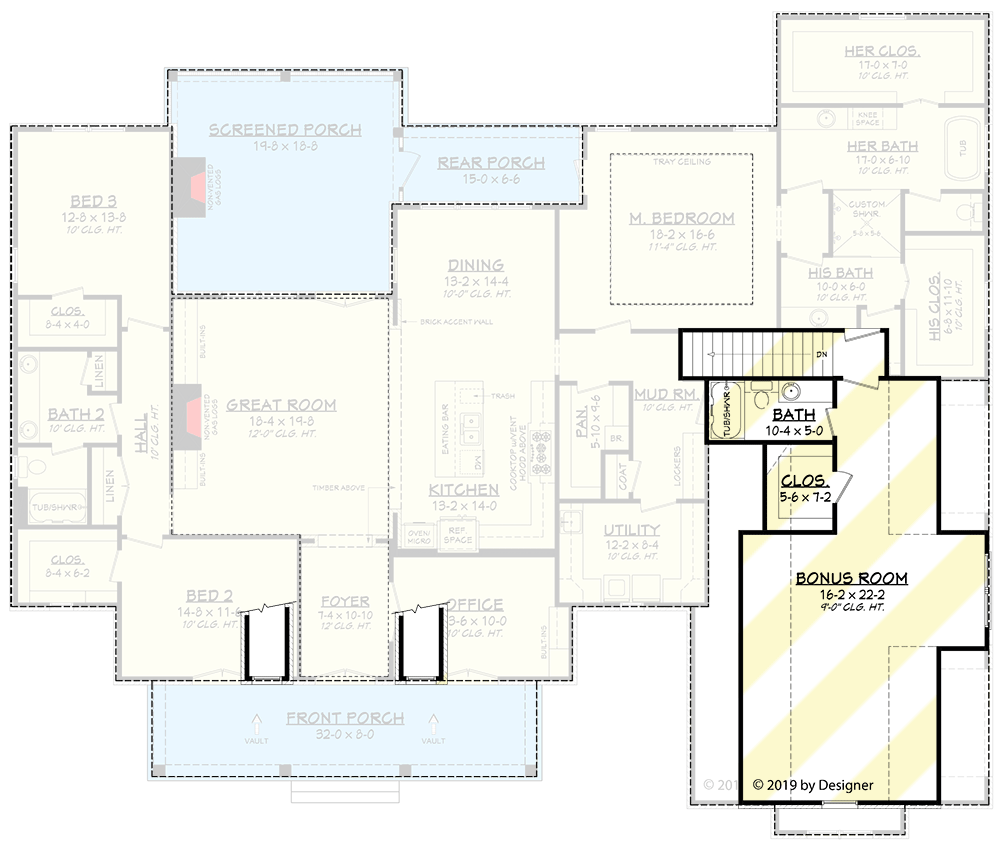

Optionally Finished Bonus

Plan 51802HZ: Charming Southern Home Plan with Optional Bonus Room - 2854 Sq Ft - Floor Plan - Optionally Finished Bonus - Acadian, Louisiana-Style, Southern

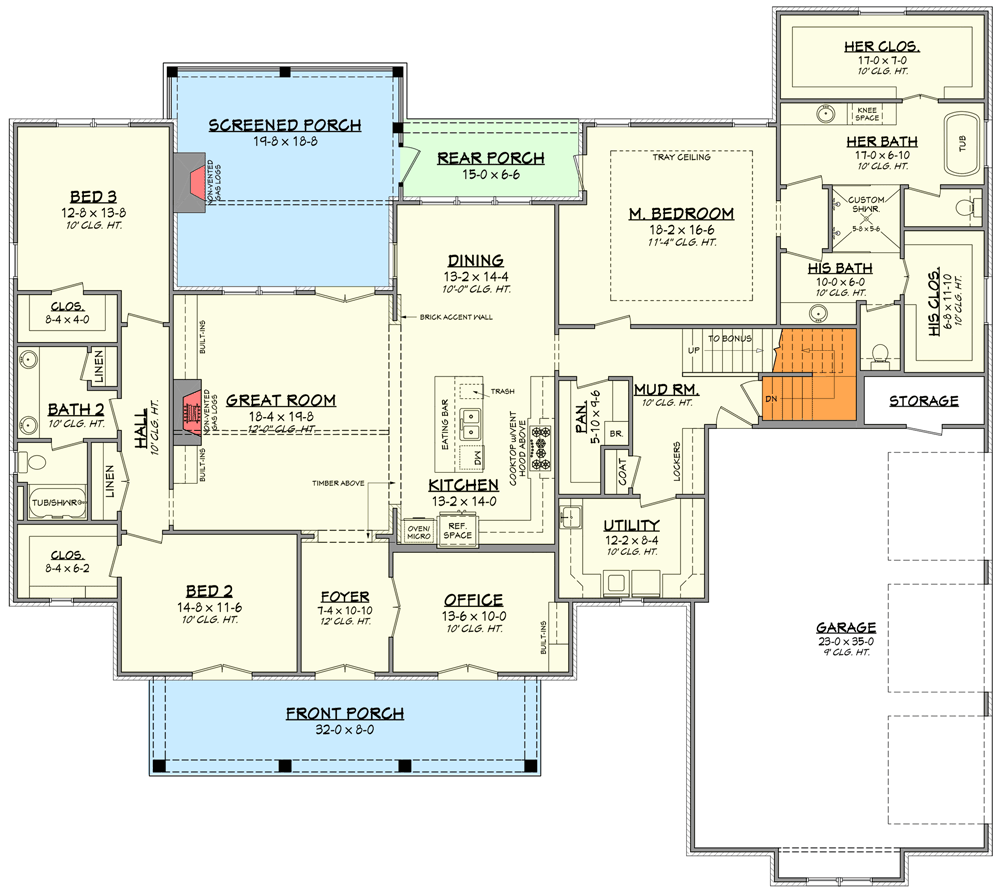

Basement Stair Location

Plan 51802HZ: Charming Southern Home Plan with Optional Bonus Room - 2854 Sq Ft - Floor Plan - Basement Stair Location - Acadian, Louisiana-Style, Southern

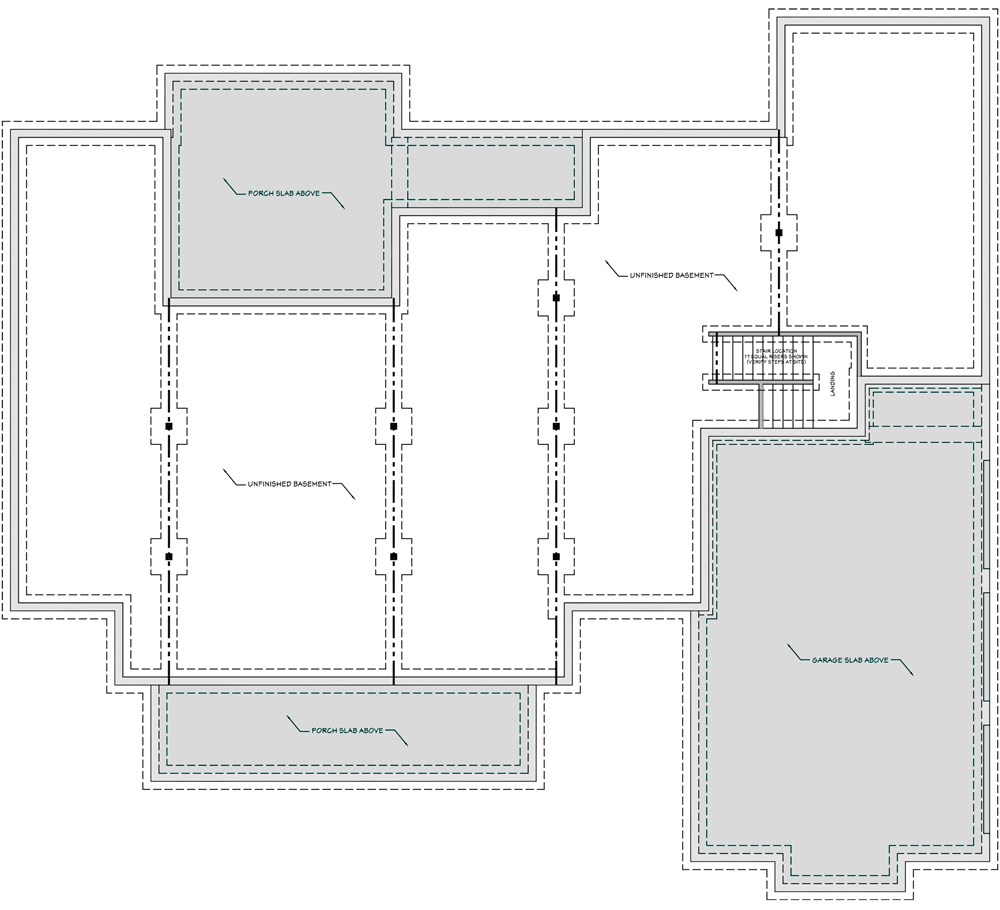

Basement

Plan 51802HZ: Charming Southern Home Plan with Optional Bonus Room - 2854 Sq Ft - Floor Plan - Basement - Acadian, Louisiana-Style, Southern

Plan Details

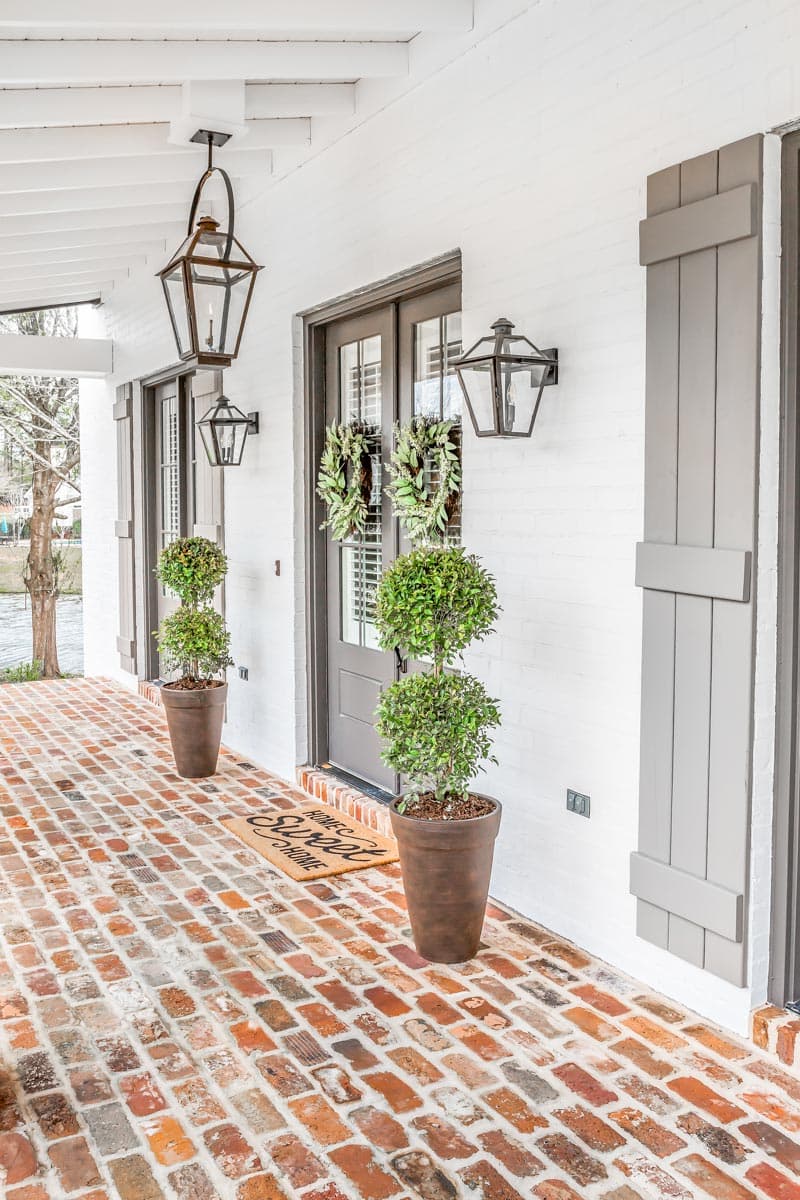

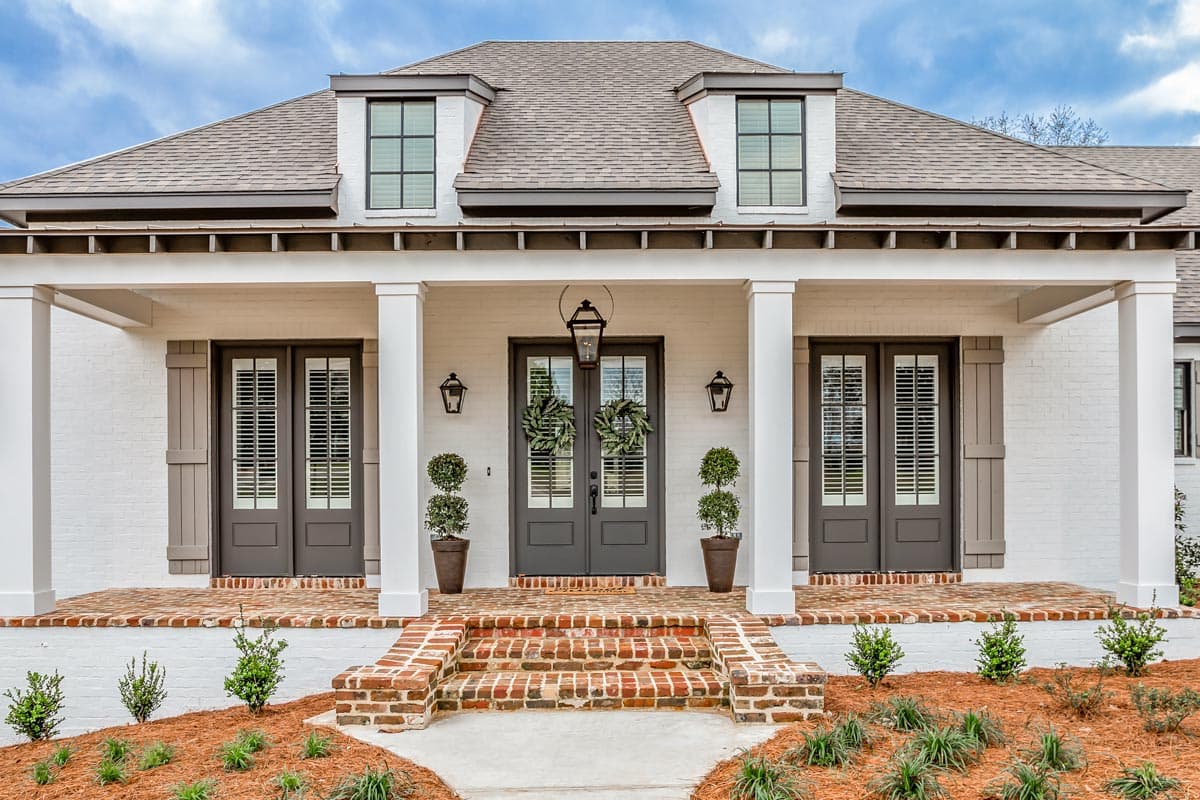

  • Two dormers rest above a welcoming front porch on this charming, Southern home plan. The smart interior flow provides all of the must-haves and more for the modern family.

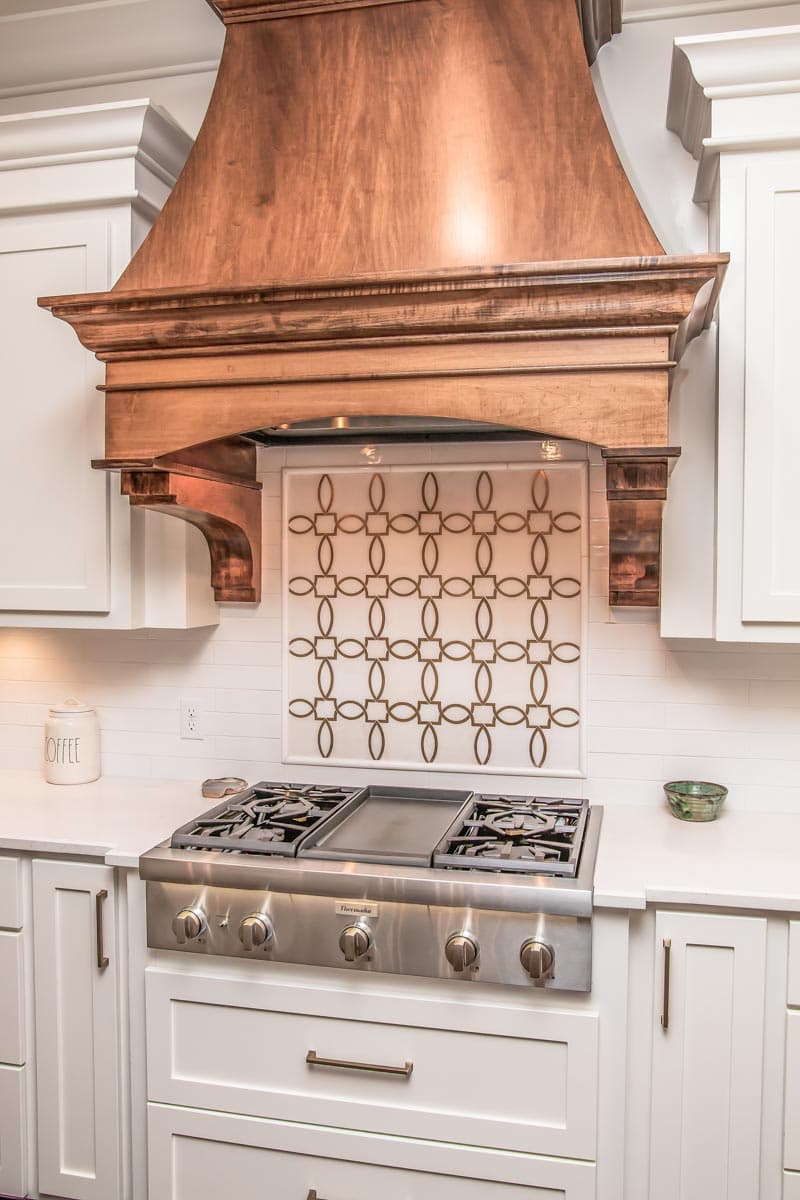

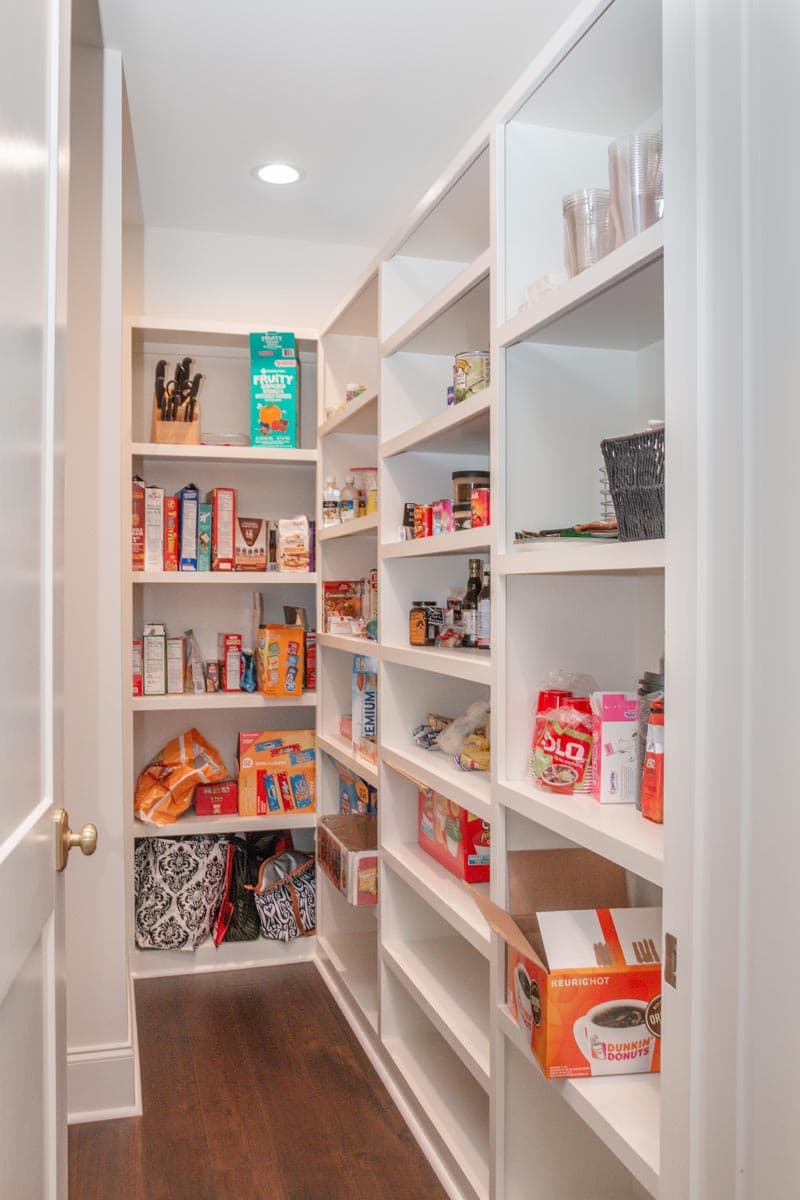

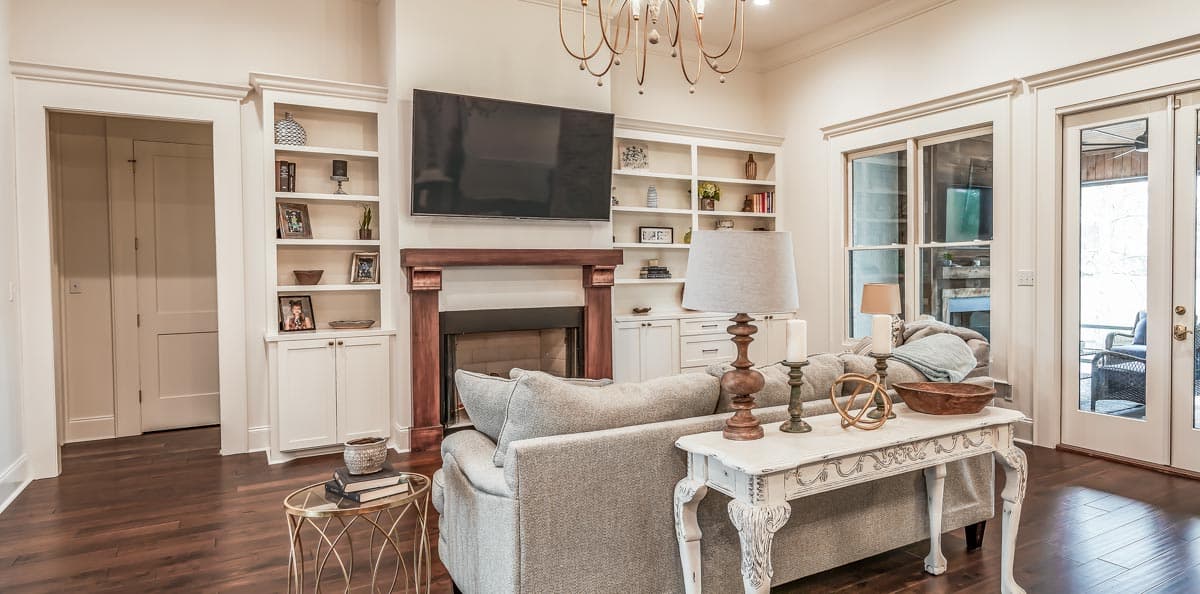

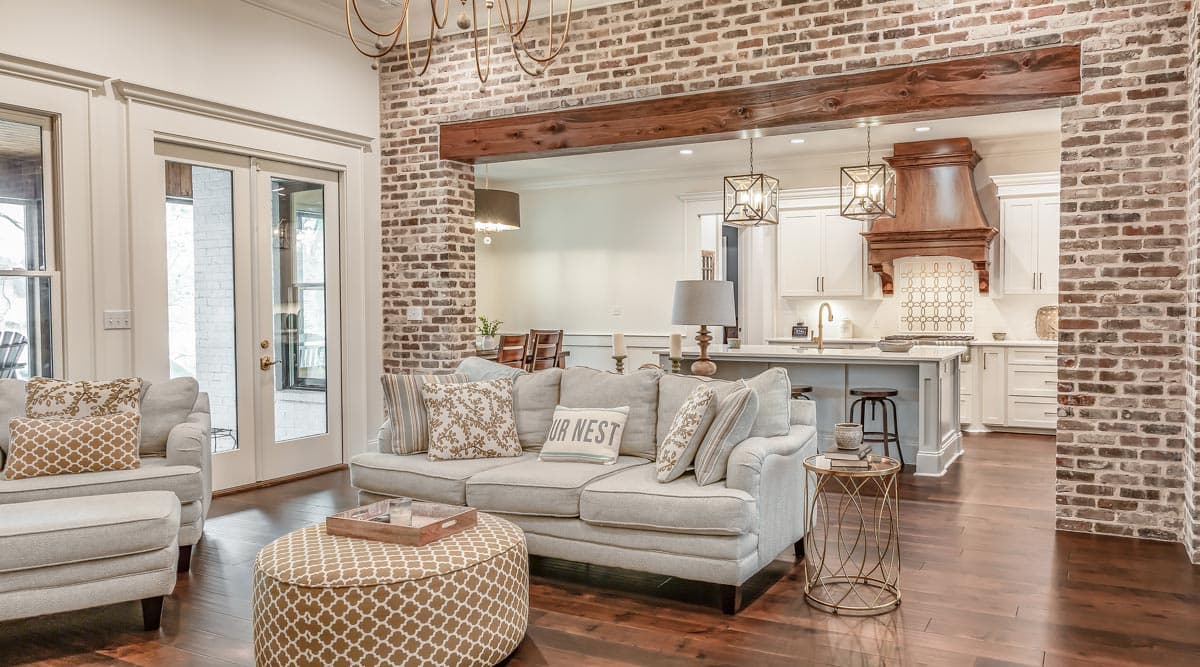

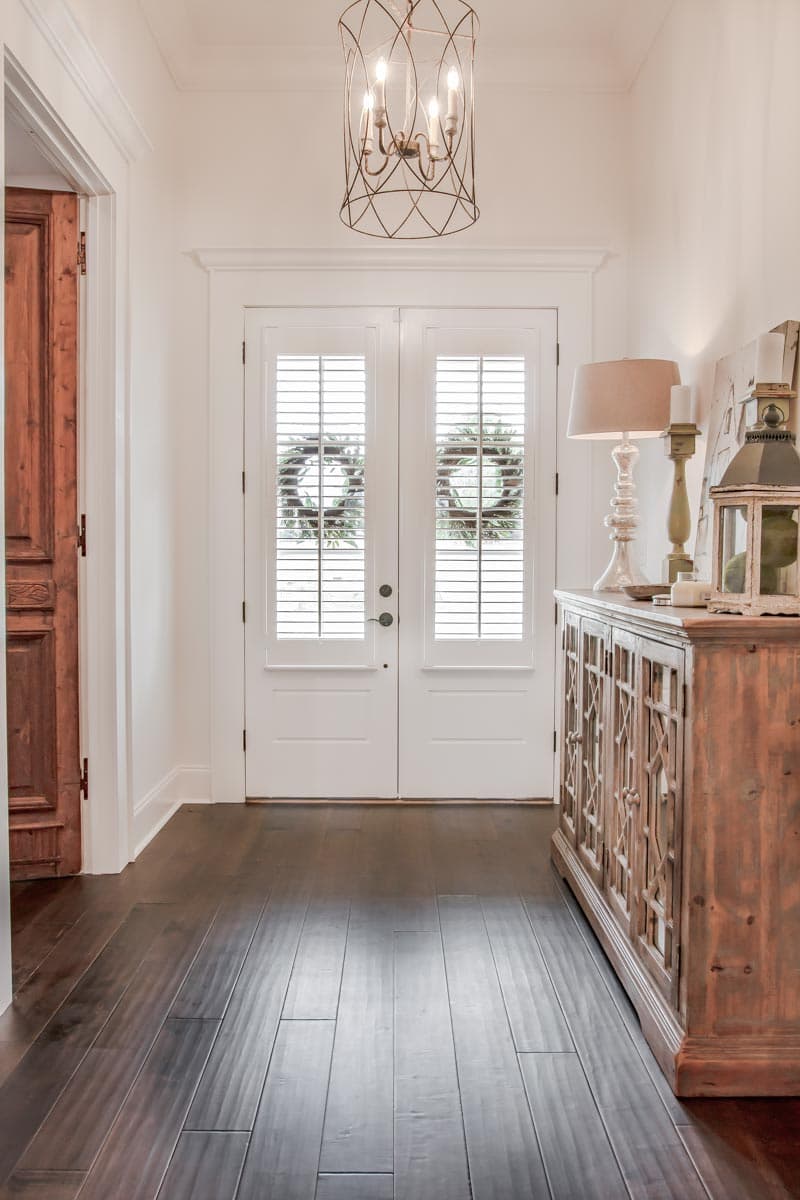

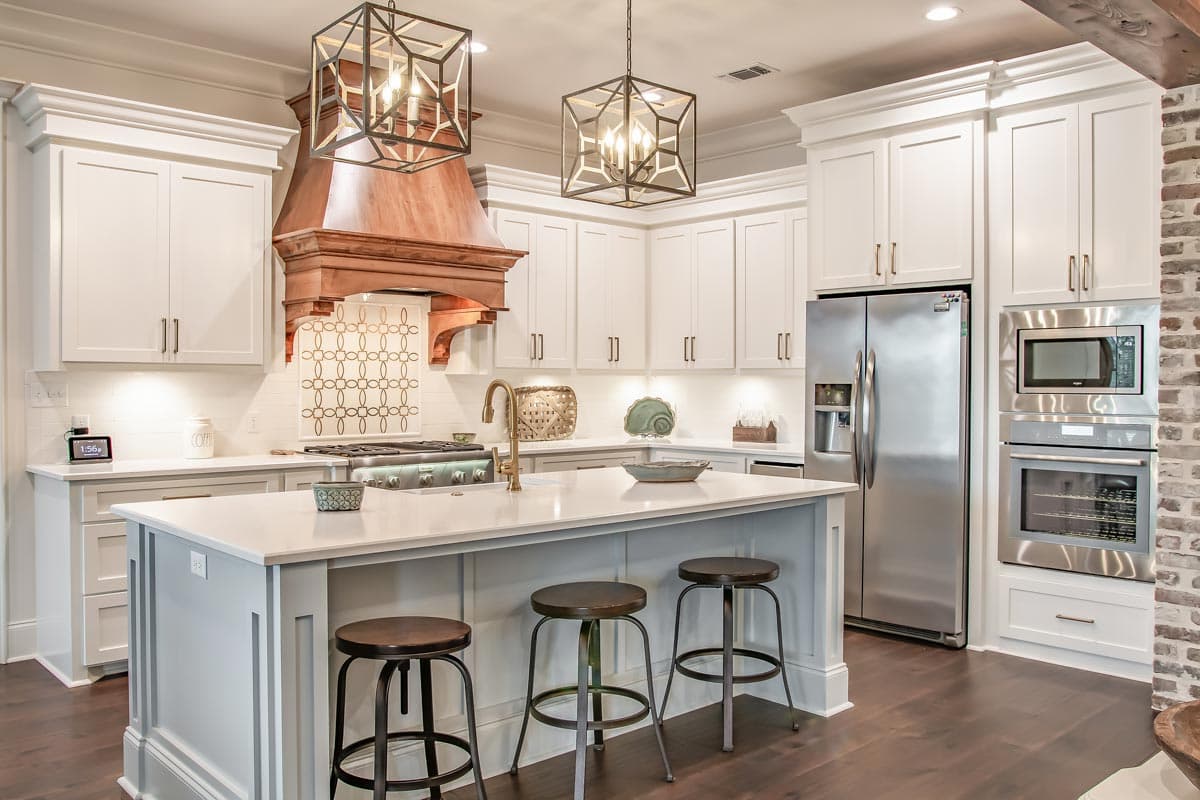

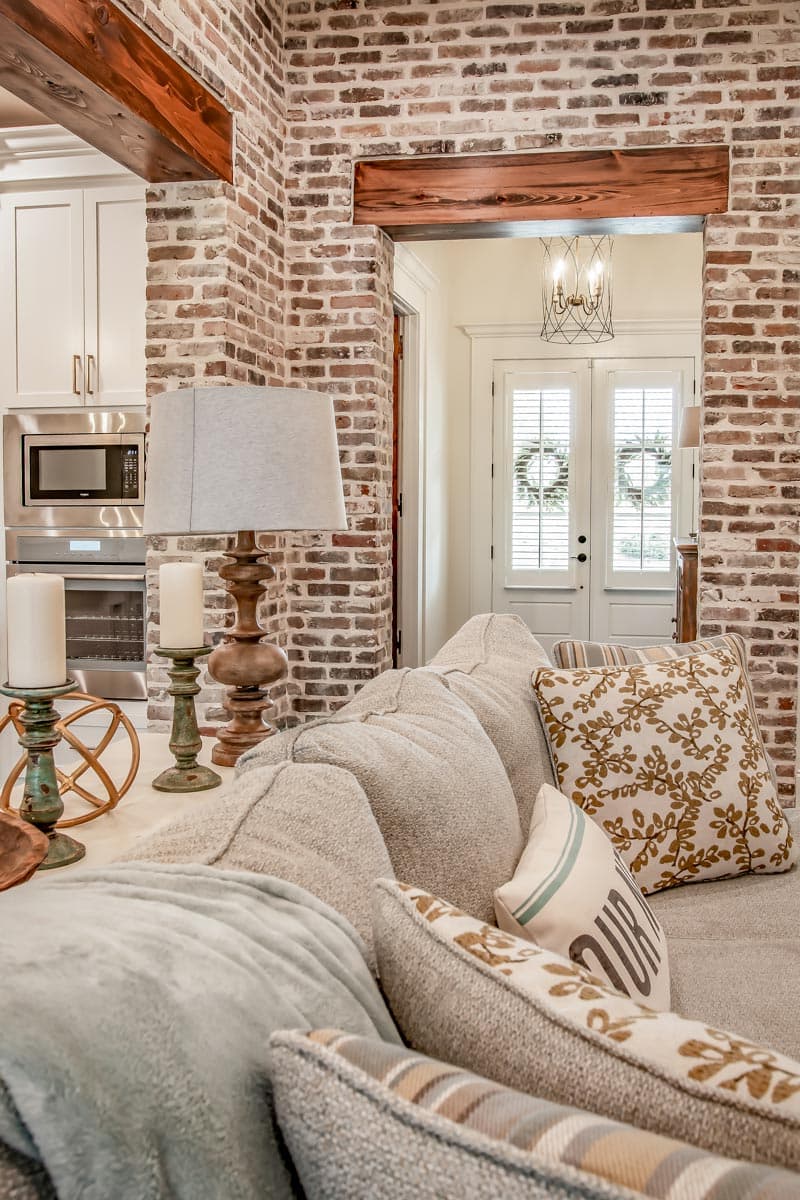

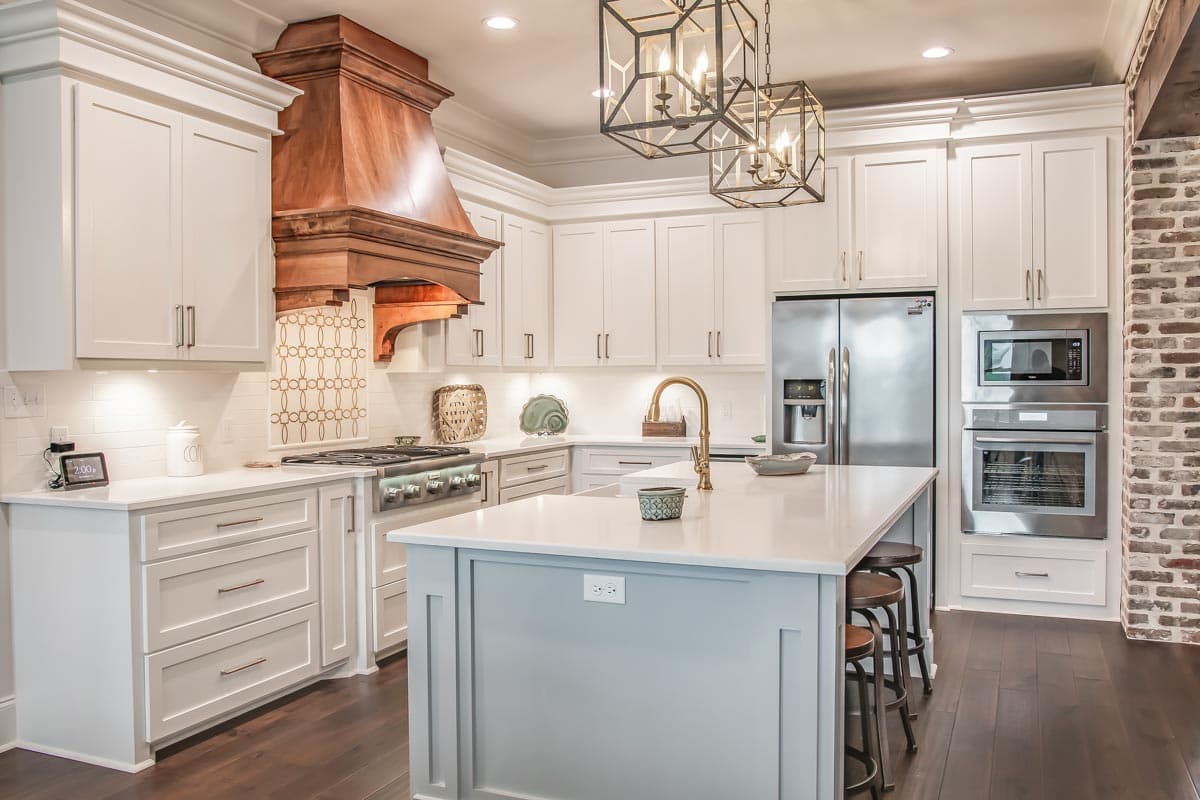

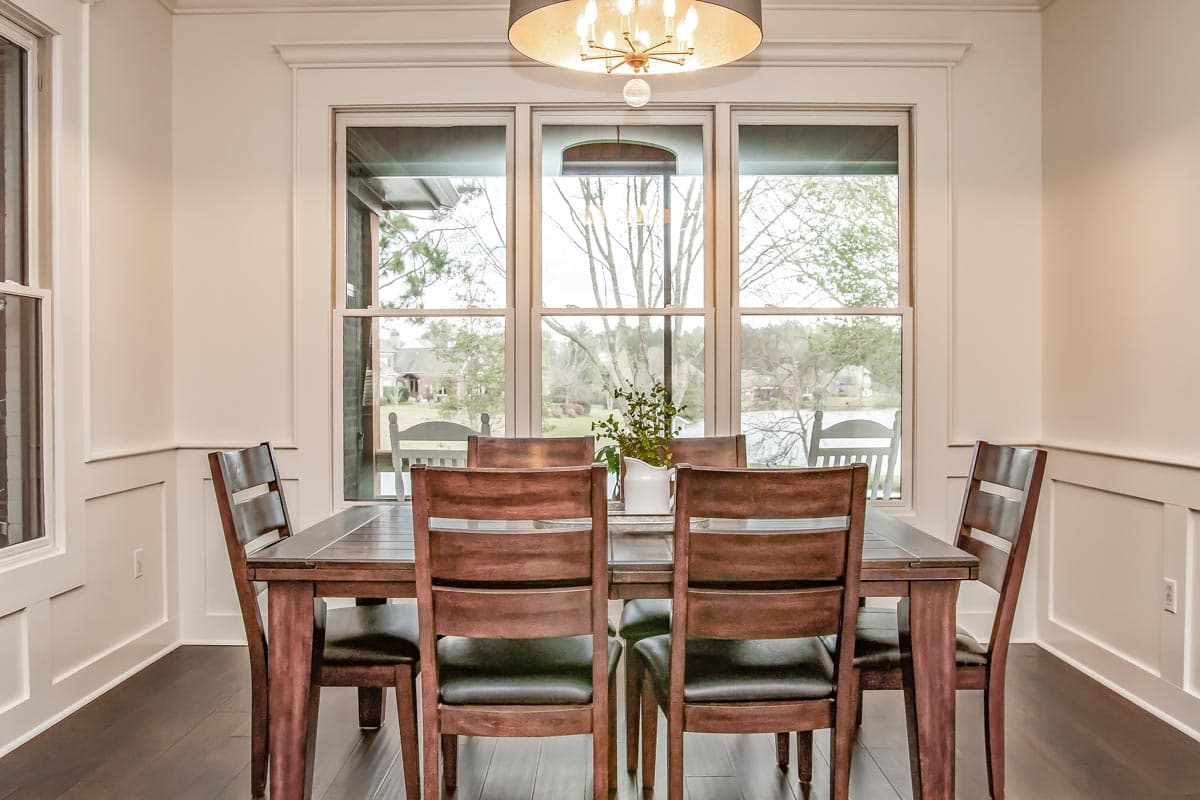

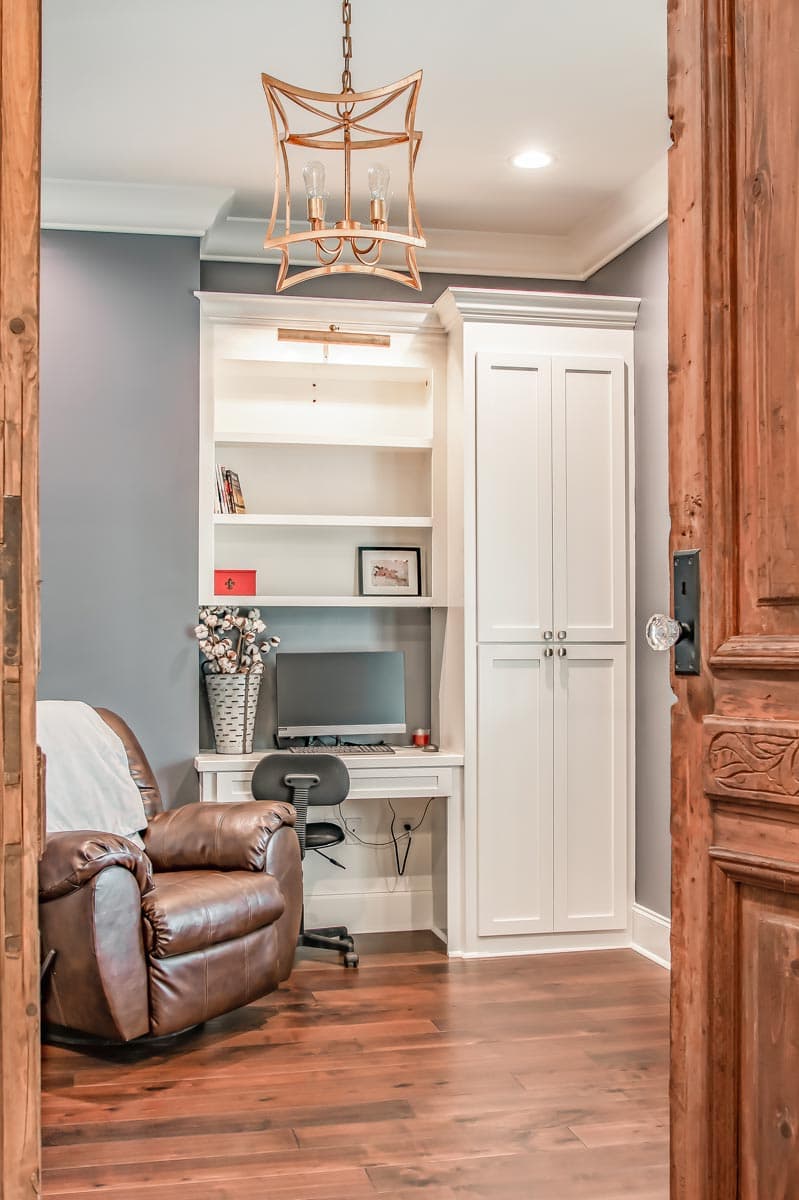

  • Upon entering, french doors lead to a quiet office with access to the front porch. The heart of the home gives you an open floor plan with the great room open to the kitchen and dining room. The great room has a 12' ceiling and comes with a vault option that gets you a ceiling with a 16'6" peak at the highest point. The kitchen has a sizable island with an eating bar and a large walk-in pantry.

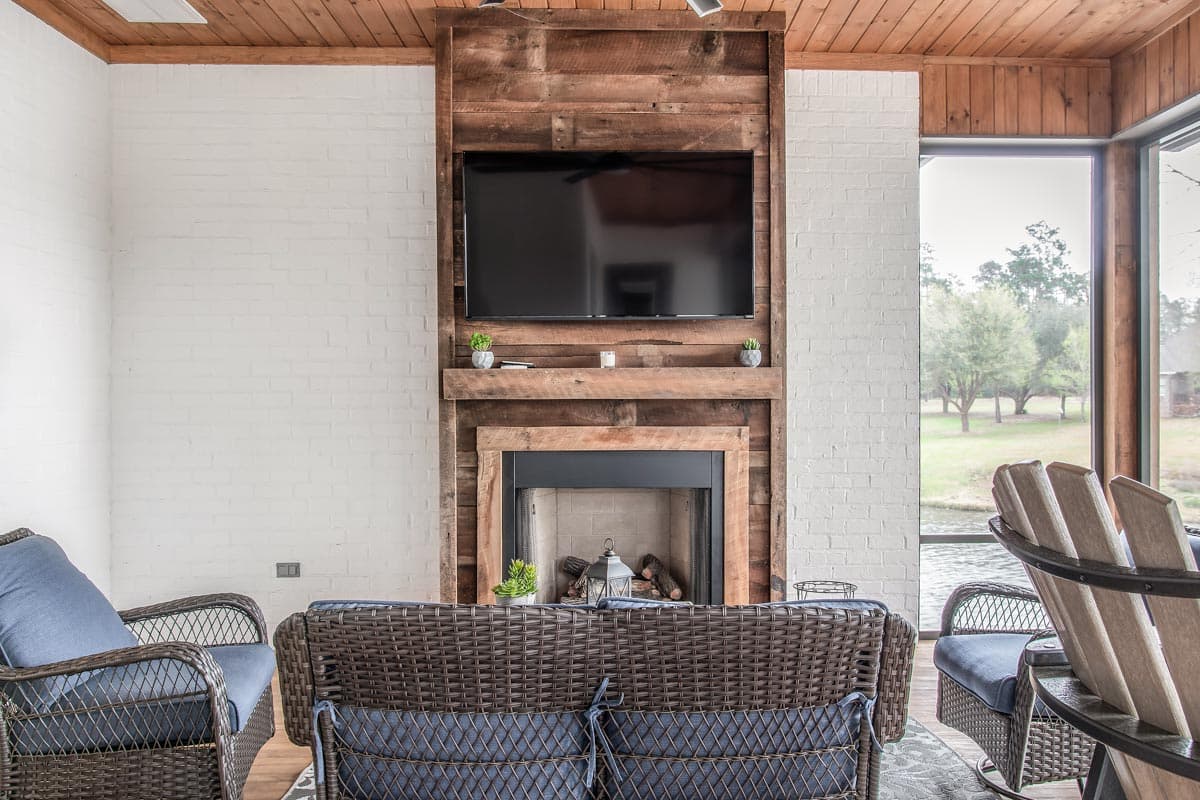

  • Stay warm in the screened porch that includes a fireplace, while keeping the bugs at bay.

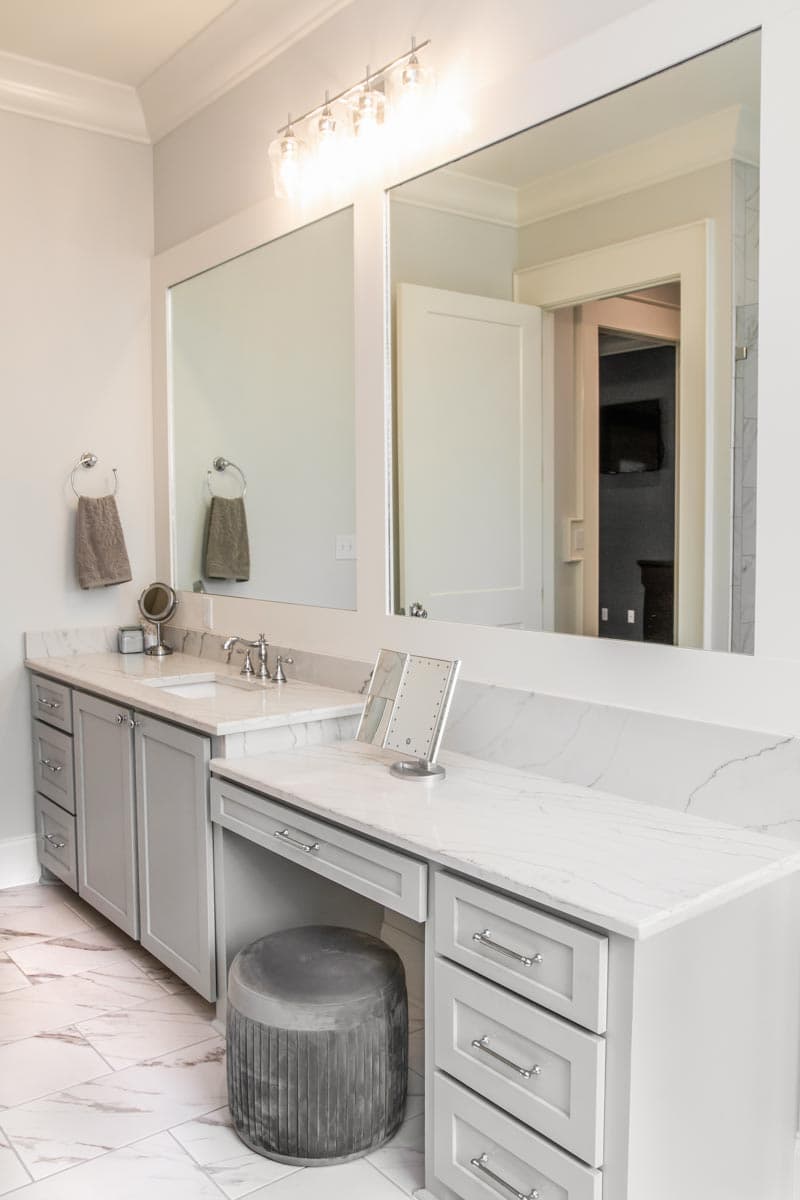

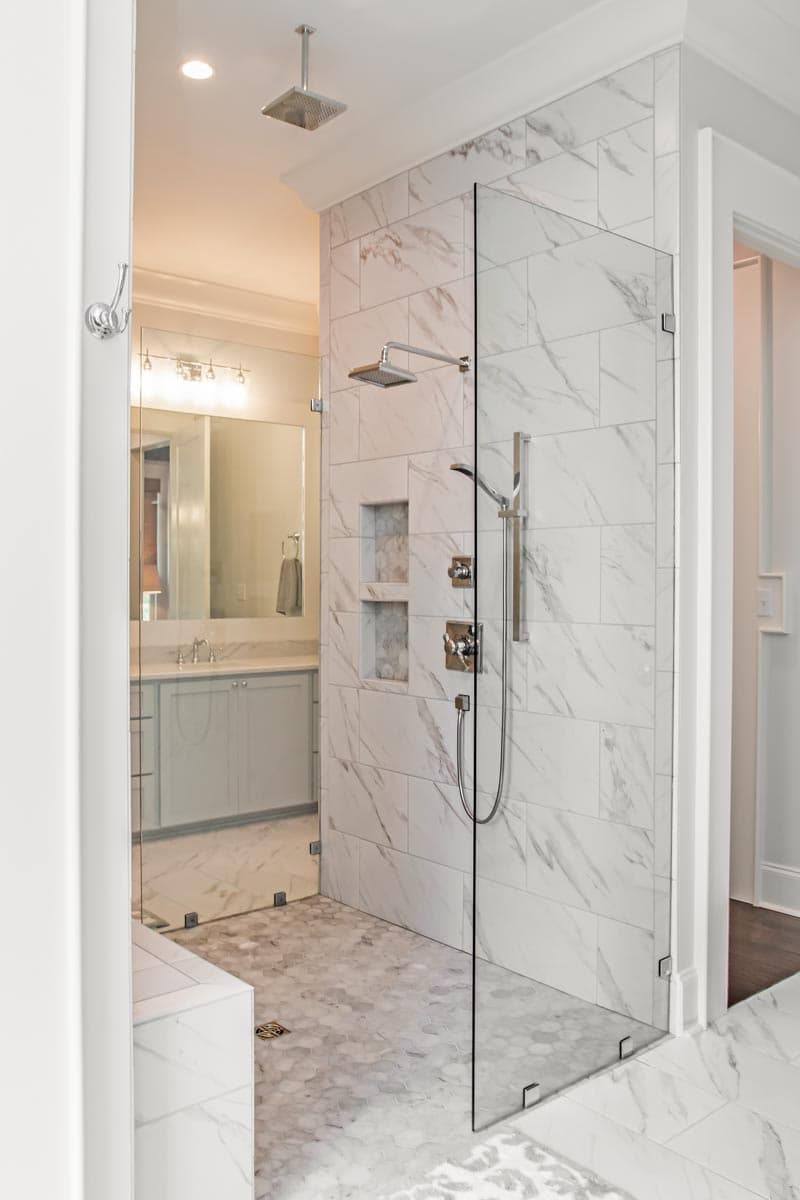

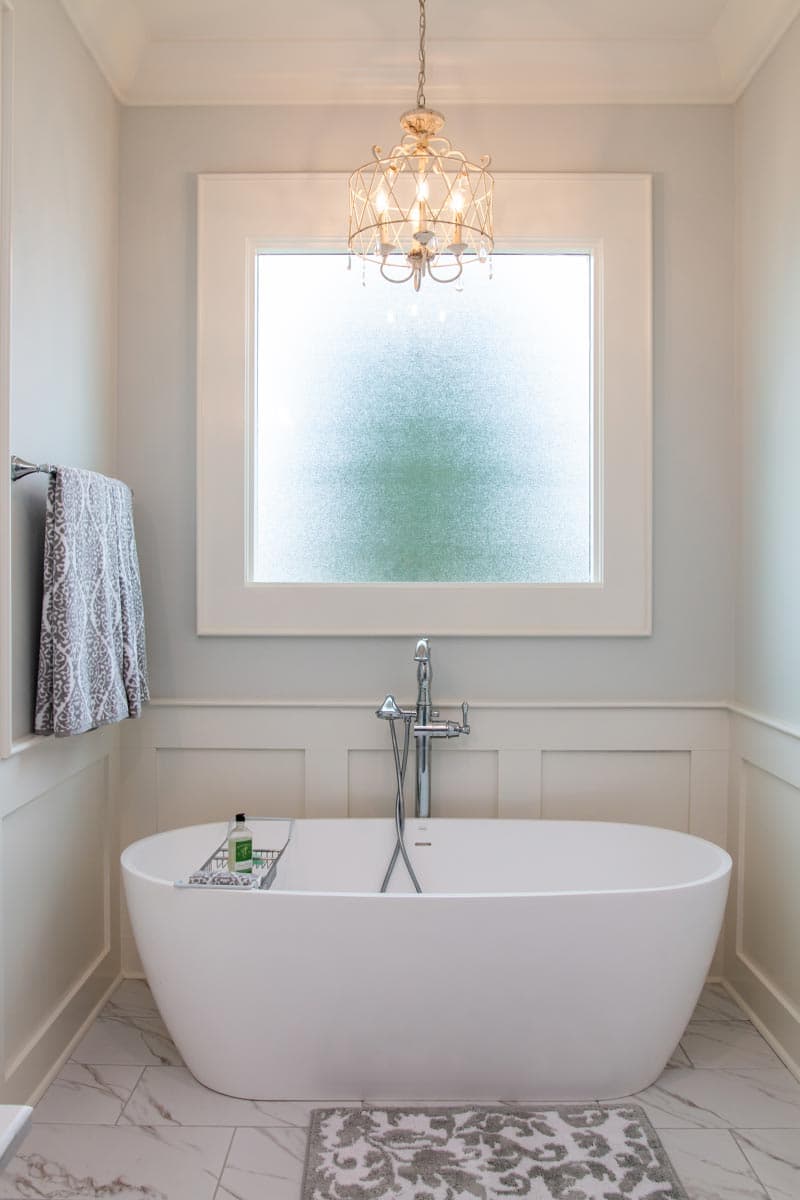

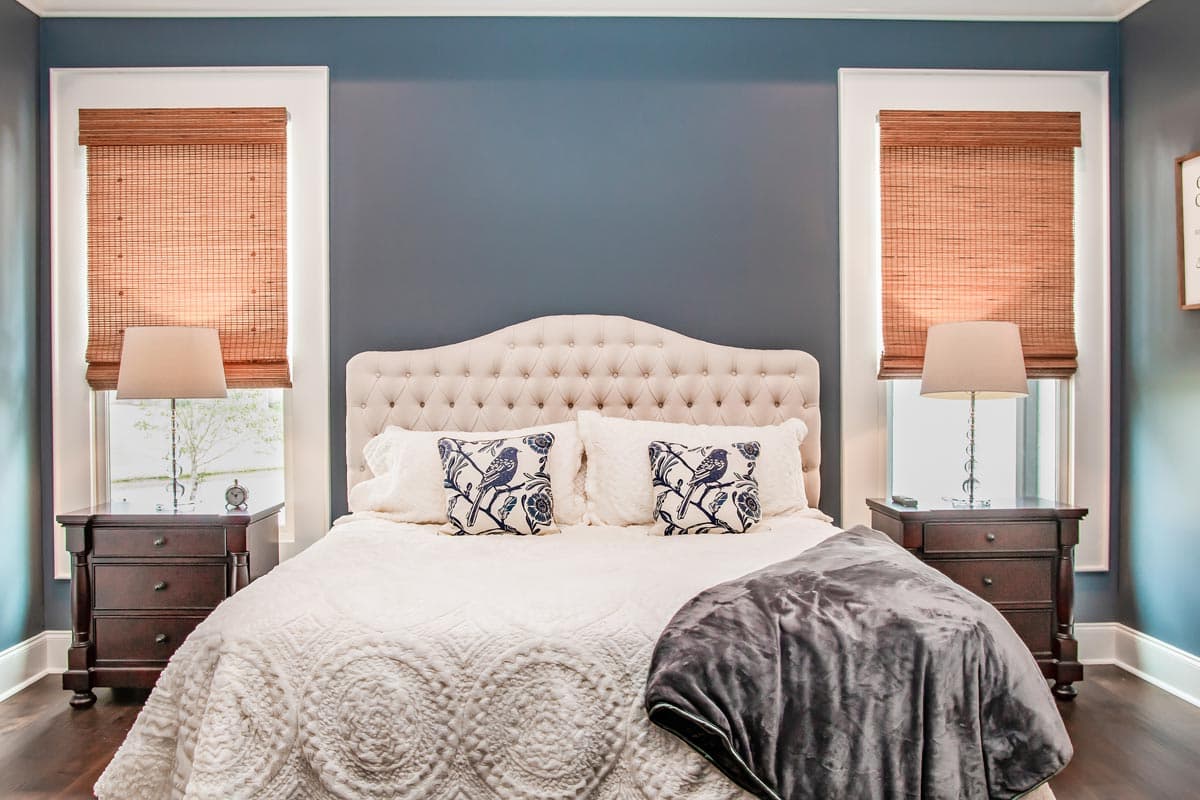

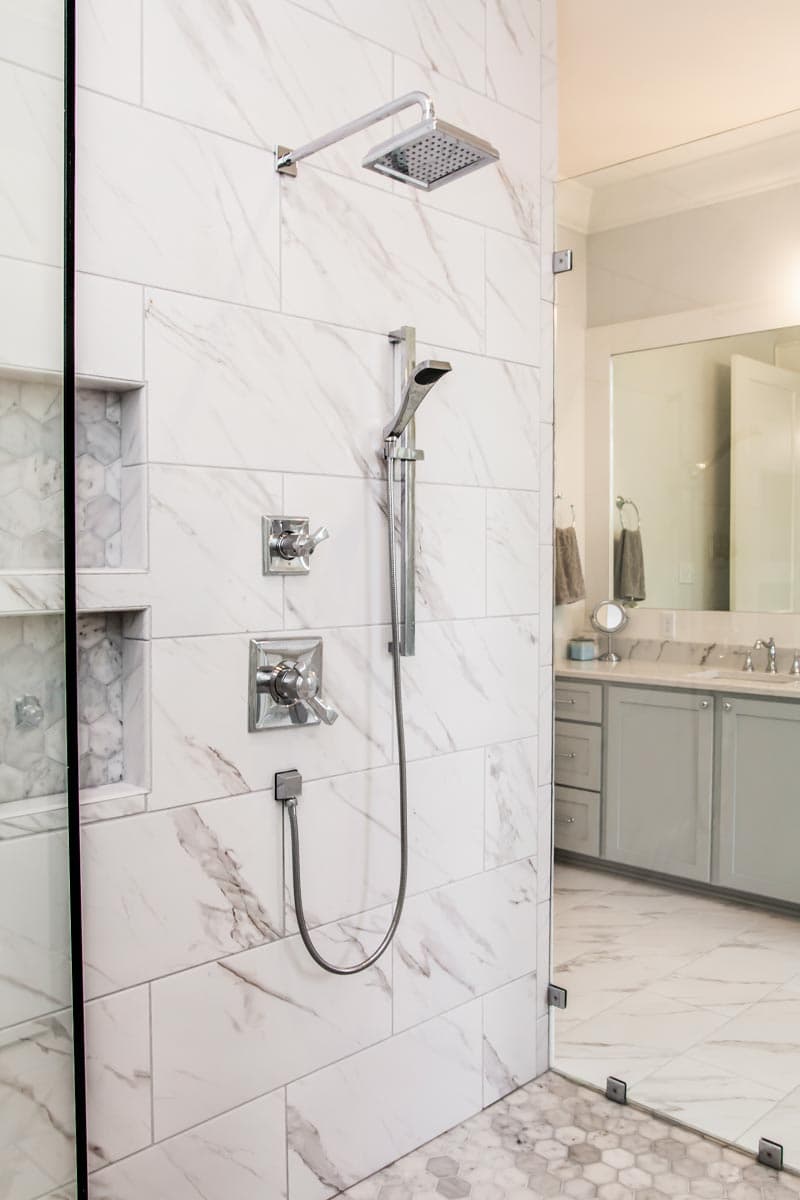

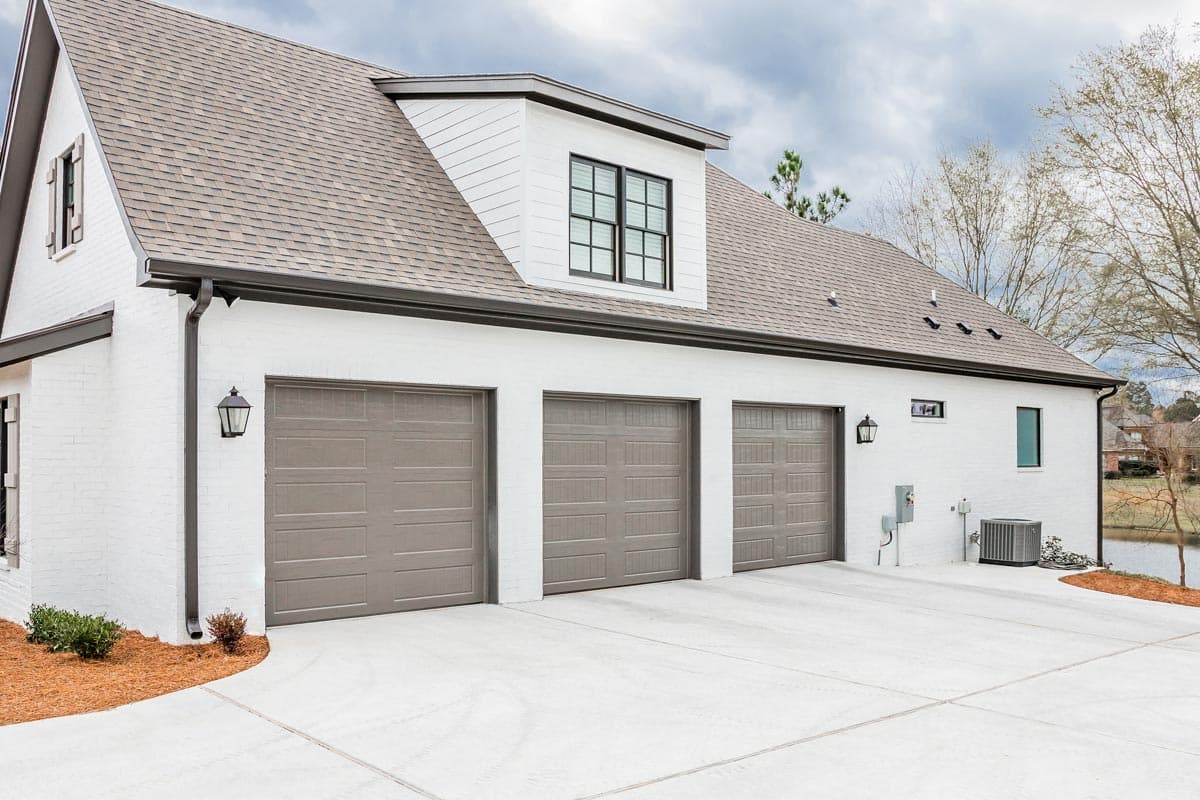

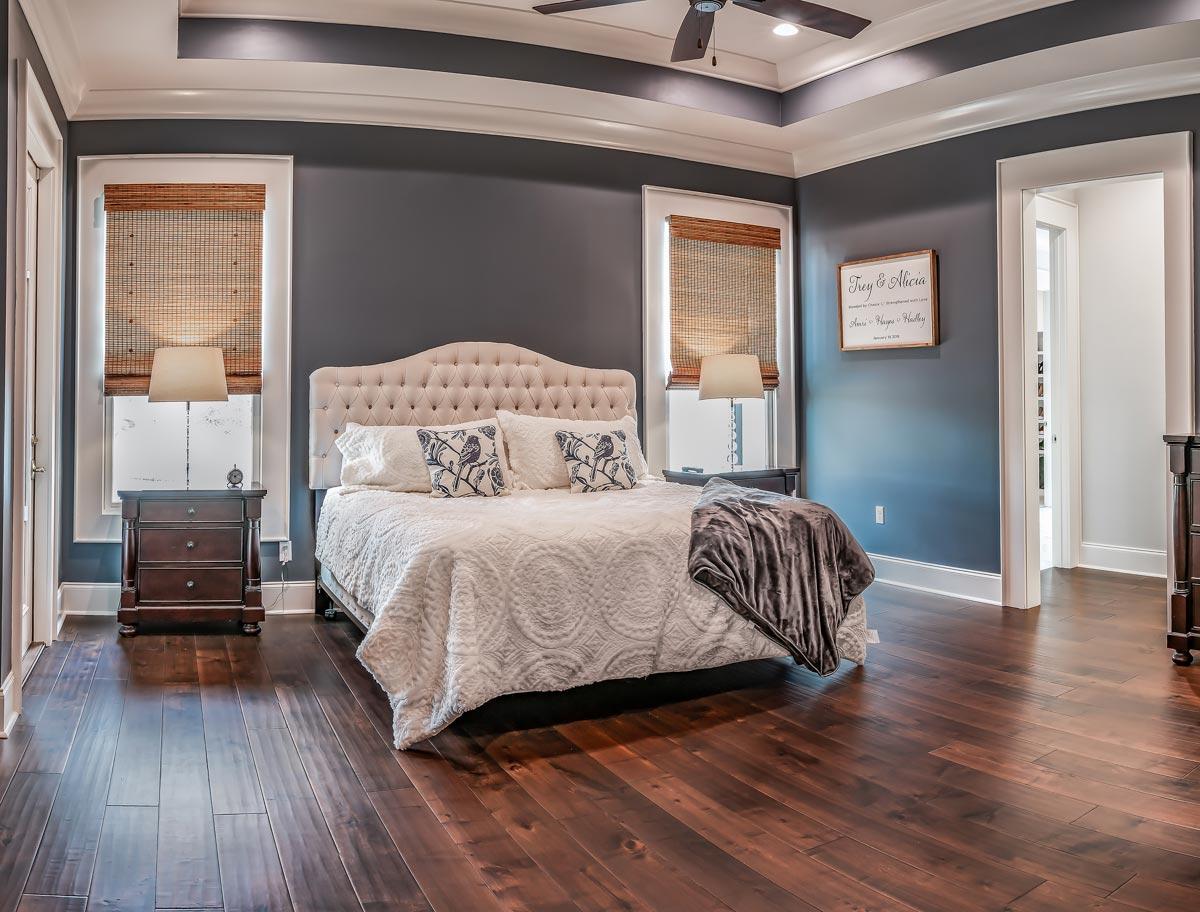

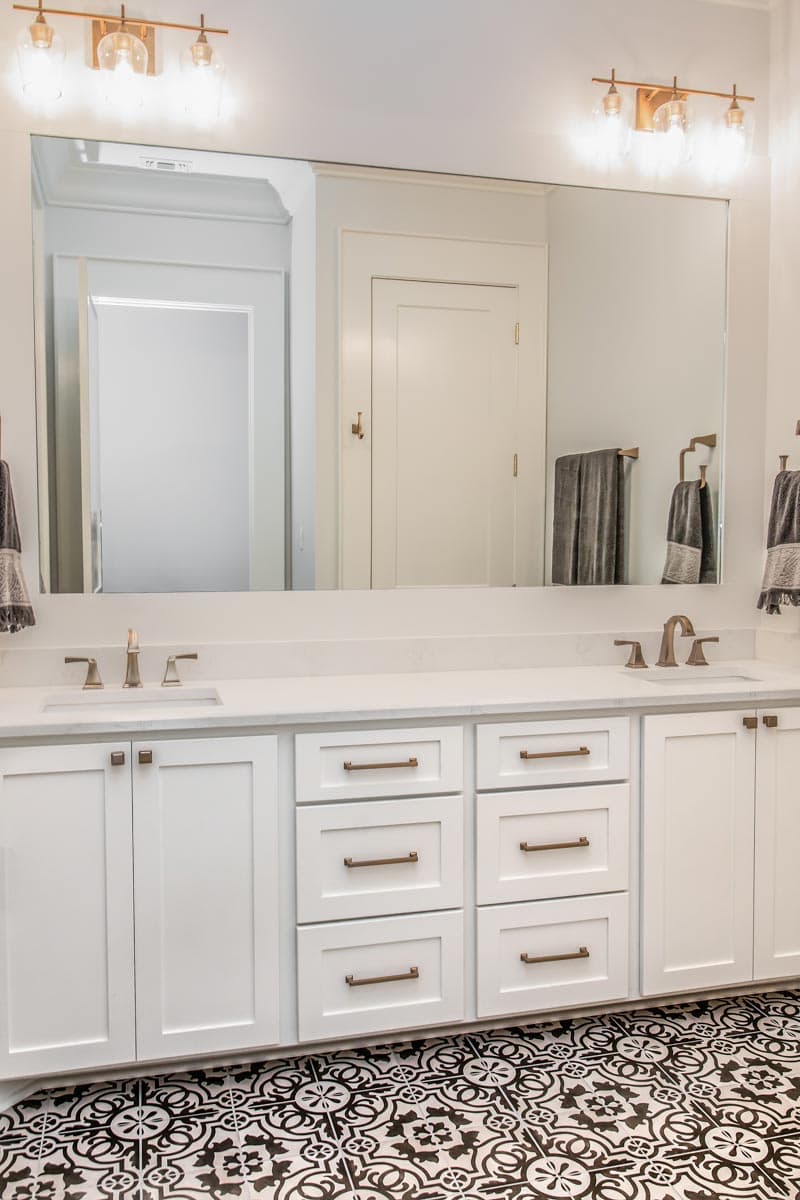

  • Discover the master bedroom, privately situated behind the 3-car garage, which features his and her bathrooms connected by a custom shower with two shower heads.

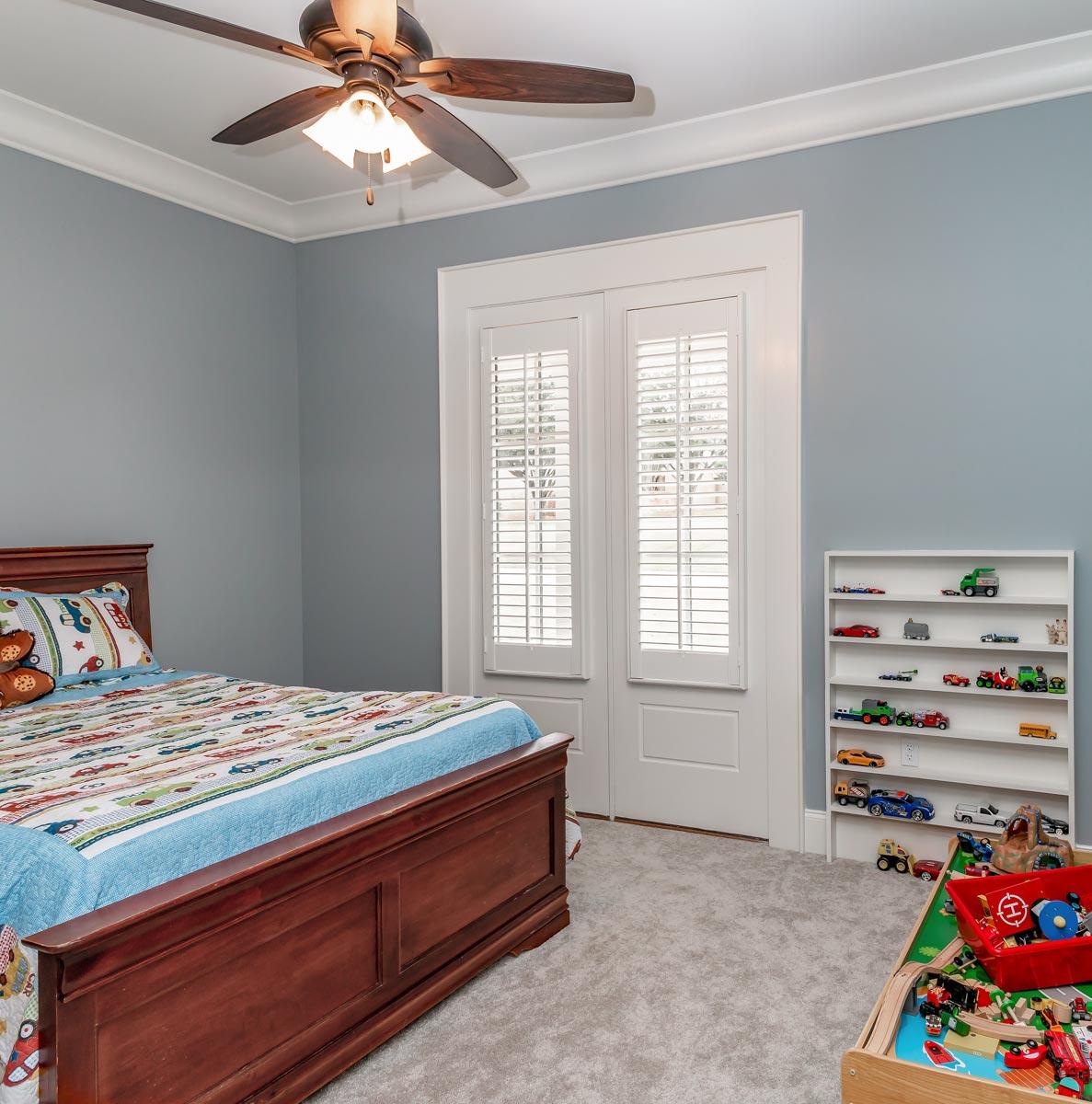

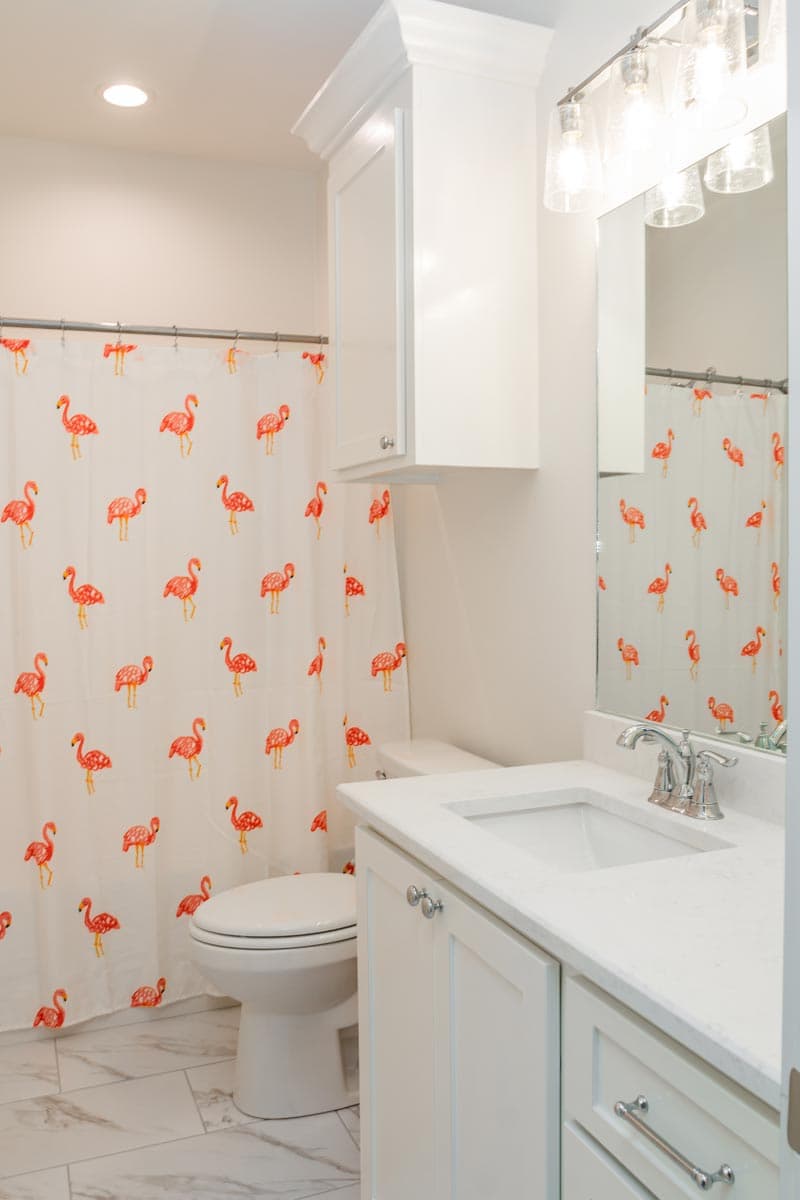

  • Two additional bedrooms reside on the opposite side of the home and share a compartmentalized, hall bath.

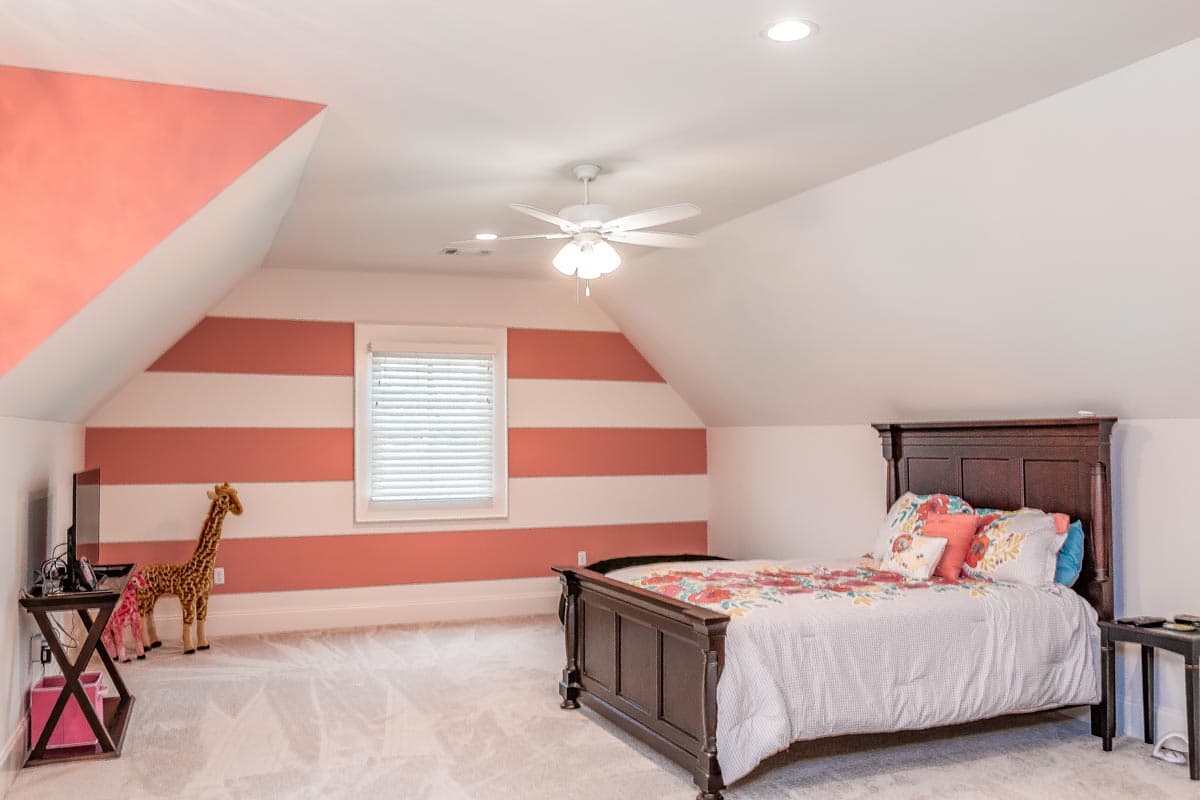

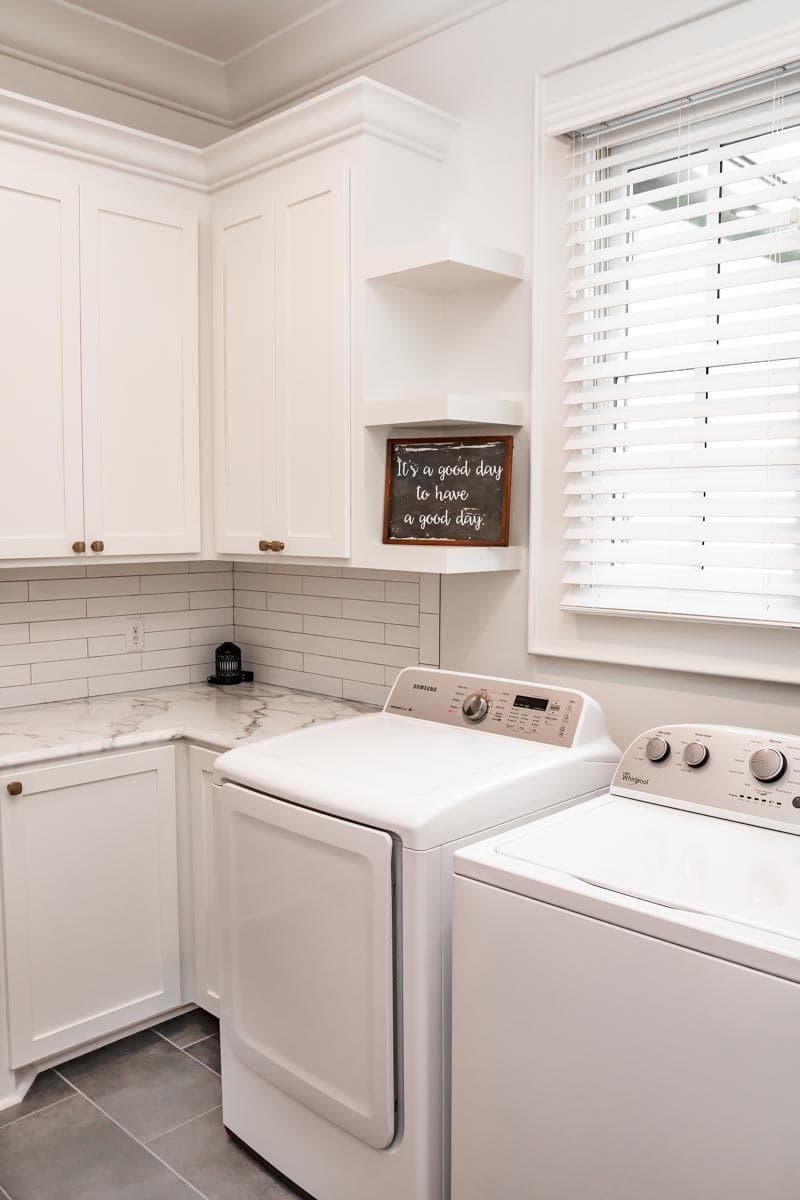

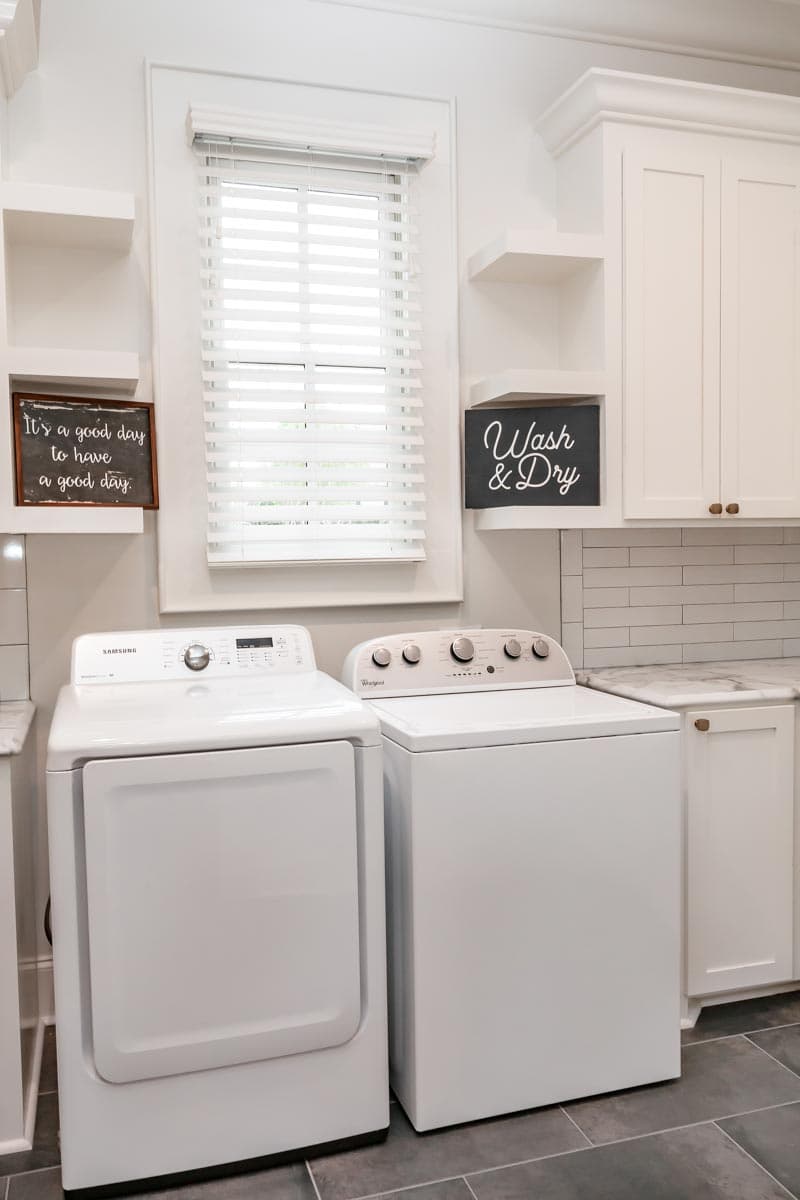

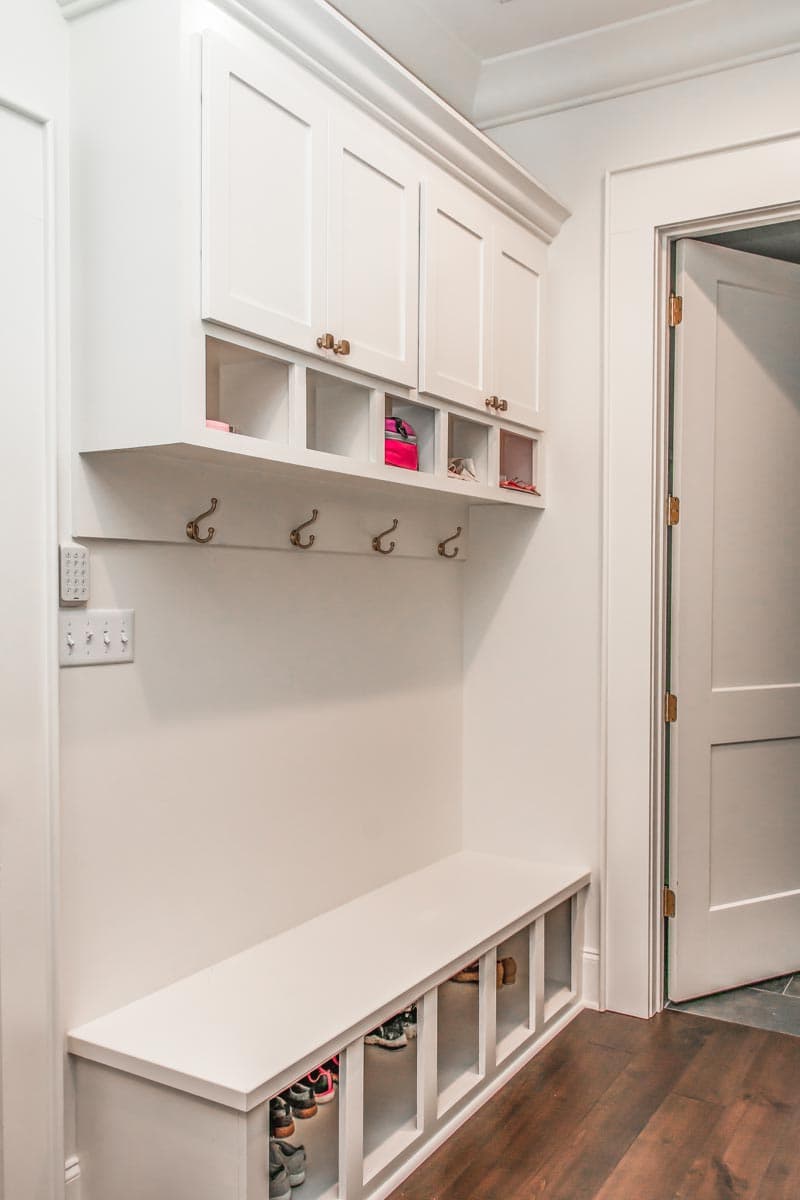

  • A large mudroom with built-in lockers sits just inside from the garage, and neighbors the laundry room with a utility sink. Increase living space with the sizable bonus room above the garage.
  • Related Plan: Get an alternate version with house plan 51915HZ.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - Southern Home Plan 51802HZ Comes to Life in Tennessee

Southern Home Plan 51802HZ Comes to Life in Tennessee

68

Photos

build gallery item - House Plan 51802HZ Comes to Life in Florida

House Plan 51802HZ Comes to Life in Florida

5

Photos

What's Included

This house plan gives you the following details:

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed first floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Page 4  Second/Bonus floor plan
Page 5  Exterior views and other misc notes/ details
Page 6  Exterior views and other misc notes/ details
Page 7  Cross Sections & Kitchen Cabinet Views
Page 8  Roof Plan & Span Charts
Page 9  Electrical Plans & Notes
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,854 sq. ft.

1st Floor

2,854 sq. ft.

Bonus

642 sq. ft.

Porch, Front

256 sq. ft.

Porch, Rear

98 sq. ft.

Porch, Combined

708 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

81' 4"

Depth

68' 4"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

876 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Room

Ceiling Type

Height

Bonus

9' 0''

Great Room

12' 0''

Foyer

12' 0''

Master Bedroom

Tray

11' 4''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

Louisiana-Style

Southern

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Plan Collections

Home Office

Photo Gallery

USDA Approved
