Plan 25404TF

Charming Triple Decker

Heated S.F.
2,824
Beds
3
Baths
2.5
Stories
2-3

Floor Plan

Plan 25404TF

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 25404TF

M-F 9am-5pm EST |

1-203-761-8500

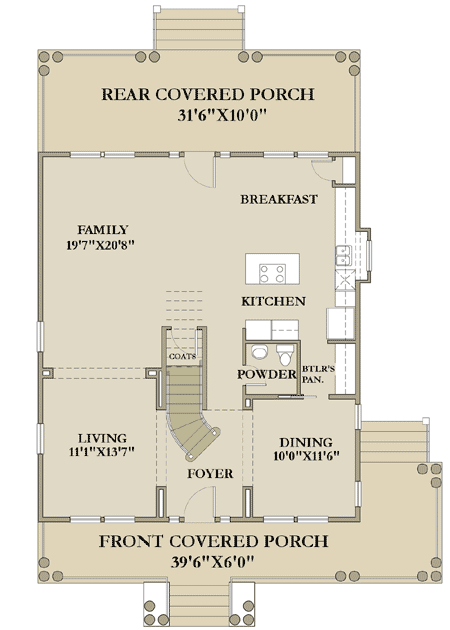

Main Level

Plan 25404TF: Charming Triple Decker - Floor Plan - Main Level - Colonial, Farmhouse, Traditional

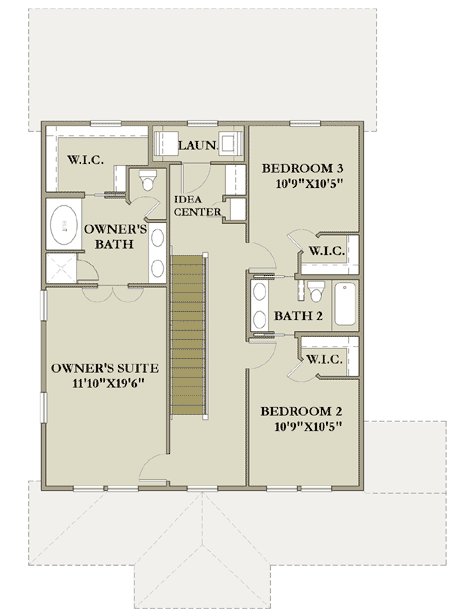

2nd Floor

Plan 25404TF: Charming Triple Decker - Floor Plan - 2nd Floor - Colonial, Farmhouse, Traditional

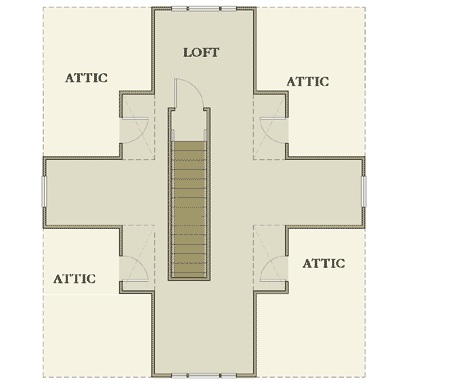

3rd Floor

Plan 25404TF: Charming Triple Decker - Floor Plan - 3rd Floor - Colonial, Farmhouse, Traditional

Plan Details

  • This charming three bedroom house plan gives you three floors of living including the topmost vaulted "loft" level giving you 531 square feet of living space to do with what you want.
  • The front porch partially wraps and features three clustered columns at the corners and paired columns on the right. The back porch has a similar column arrangement and at 10' in depth gives you extra room for furniture.
  • The floor plan is quite open, with the family room having views across the home in two directions.
  • The dining room is serviced by a convenient butler's pantry and a powder room is nearby for guests.
  • The bedrooms are on the second floor as is the laundry. The space labeled "idea center" is a nice spot to do homework or to get reading done.
  • The roof is stick framed and has a 8:12 pitch.

What's Included

  • Cover Sheet w/General Notes
  • Foundation Plan (Dimension Control)
  • Floor Plan(s) w/Door and Window Schedule
  • Roof Plan
  • Building Section (through the whole space) + Wall Section (showing materials, etc)
  • Exterior Elevations
  • Carriage House Floor Plan, Electrical Plan and Roof Plan (when applicable)
  • Carriage House Elevations (when applicable)
  • Electrical Floor Plan(s) w/legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,824 sq. ft.

1st Floor

1,165 sq. ft.

2nd Floor

1,128 sq. ft.

3rd Floor

531 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

52' 2"

Max Ridge Height

34' 6"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick and Truss

Architectural Style

Colonial

Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Upstairs

Loft

Master Suite - Upstairs

Plan Collections

Corner Lot

Square Footage Breakdown

Total Heated Area

2,824 sq. ft.

1st Floor

1,165 sq. ft.

2nd Floor

1,128 sq. ft.

3rd Floor

531 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

39' 6"

Depth

52' 2"

Max Ridge Height

34' 6"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick and Truss

Architectural Style

Colonial

Farmhouse

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Upstairs

Loft

Master Suite - Upstairs

Plan Collections

Corner Lot
