Plan 70975MK

Charming Tudor Cottage House Plan with Four Bedrooms and Bonus Room

Name: Plan 70975MK: Charming Tudor Cottage House Plan with Four Bedrooms and Bonus Room
Brand: Architectural Designs
SKU: 70975MK
Price: 1119.88 USD
Availability: InStock

Heated S.F.

3,420

Beds

Baths

4.5

Stories

Cars

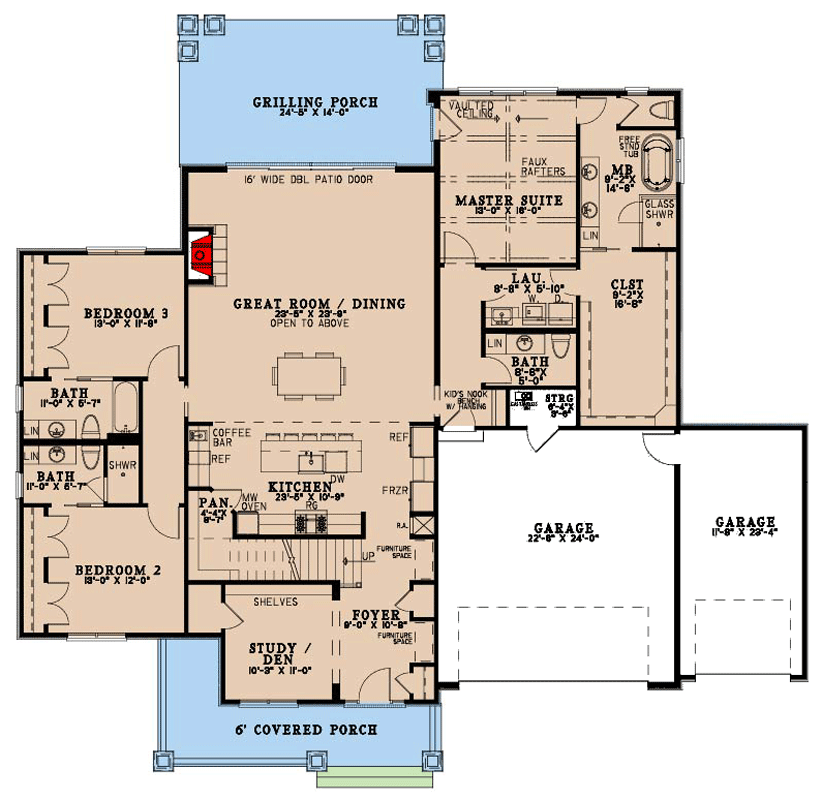

Floor Plan

Plan Details

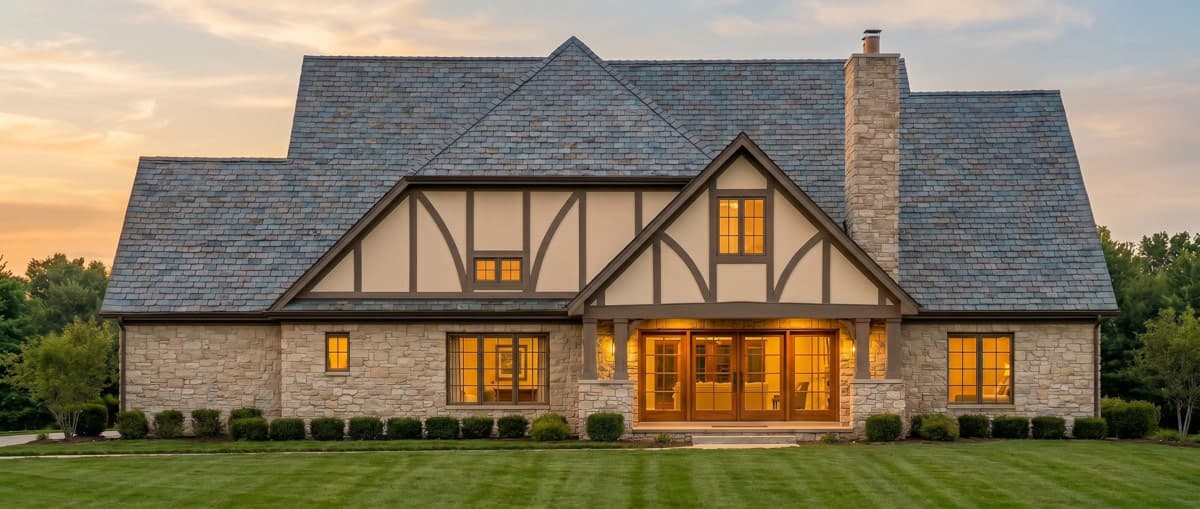

This charming Tudor cottage offers 3,420 finished square feet, 4 bedrooms, 4.5 baths, and an attached 3-car garage spanning 876 square feet.
The home greets guests with a welcoming covered porch that leads into a thoughtfully designed layout featuring a dedicated library and formal dining space.
A spacious main living area provides a seamless flow between the kitchen, which includes a walk-in pantry, and the adjacent gathering spaces.
The primary suite is conveniently located on the main level for enhanced privacy, while the secondary bedrooms are situated to offer comfort and separation.

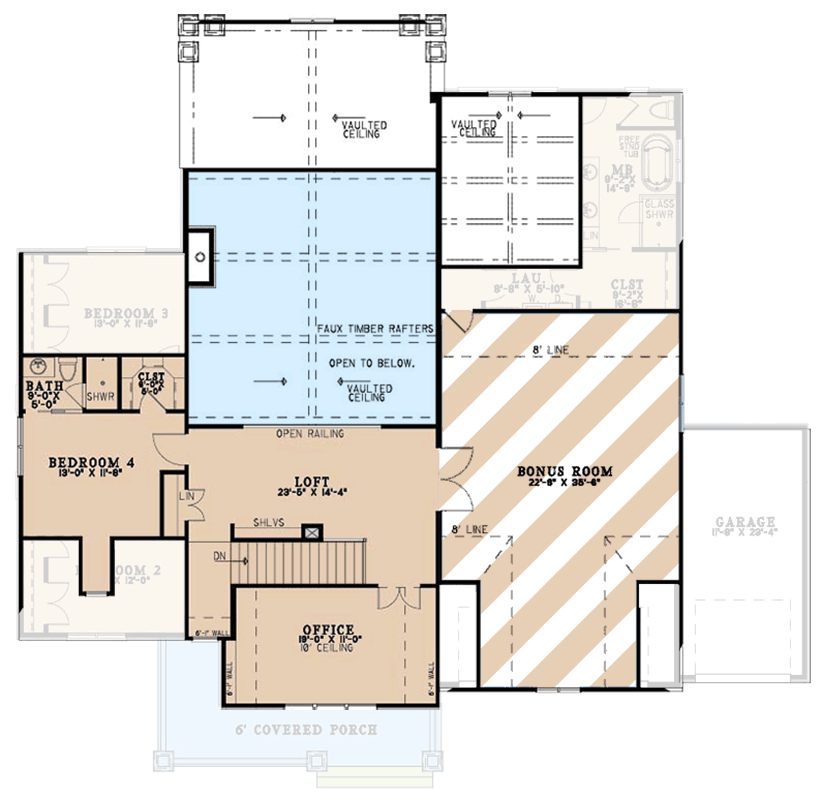

A versatile bonus room provides 755 square feet of flexible space, ideal for a home office, den, or private getaway.
Generous porch areas totaling 535 square feet create an inviting connection between the interior living spaces and the outdoors.
The floor plan includes a finished bonus room and offers the flexibility of an optional walkout basement foundation for future expansion.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)
Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
Roof Overview Plan (1/4"=1")
An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
