Plan 4274MJ
Chateau Masterpiece
Heated S.F.
6,158
Beds
5
Baths
5.5
Stories
1
Cars
4
What's Included
Plan Details

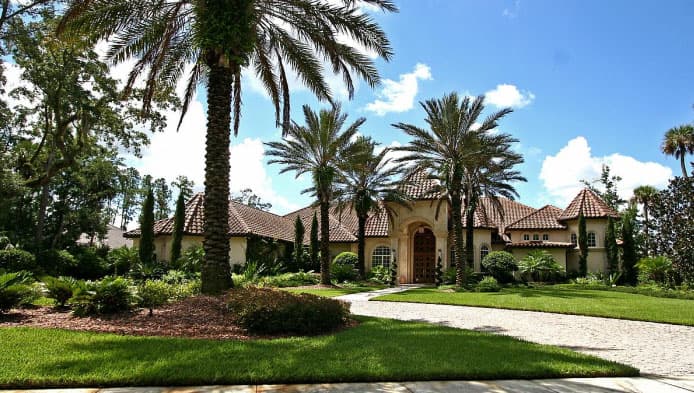

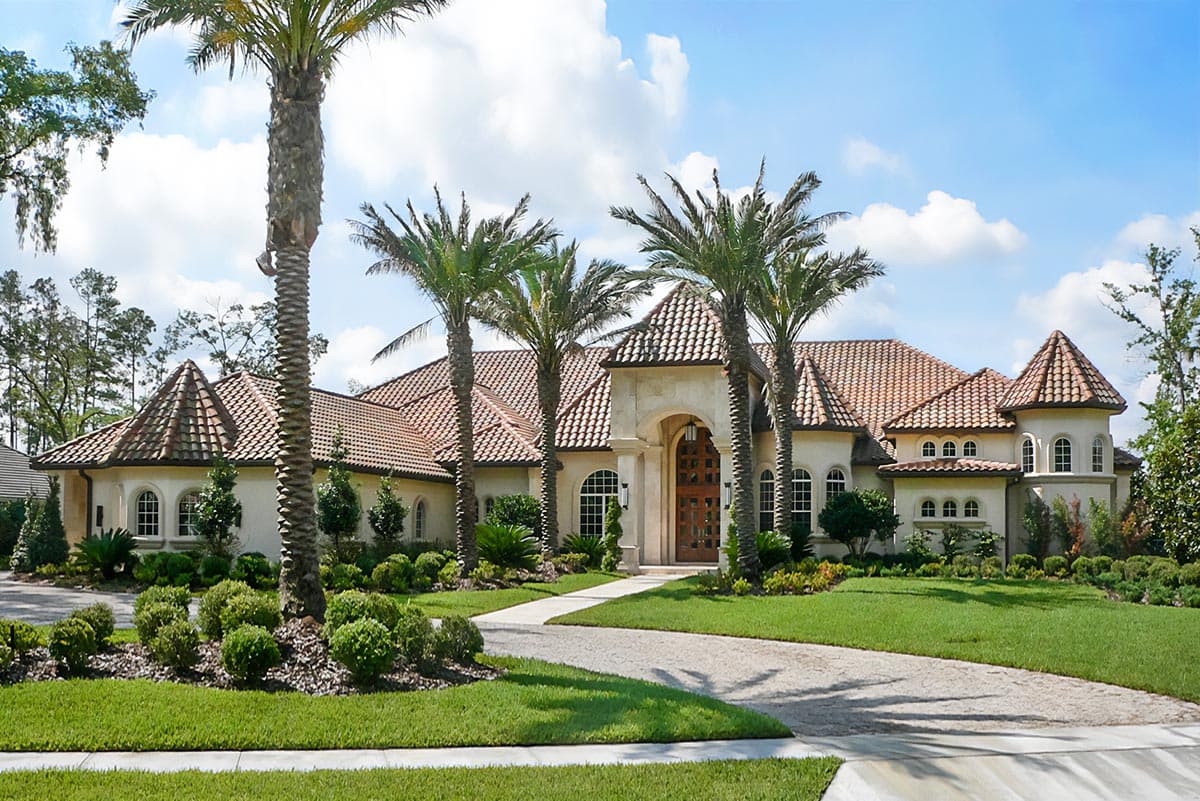

  • Peaks and turrets create a one of a kind impression. Angled views are found in every direction.
  • The master suite has a sitting room with see-thru fireplace, and the bath is a study in grand design ideas, with a 16-foot high ceiling in the marble walled shower, accessed though a coffered ceiling gallery. Two walk-in closets, one with its own washer/dryer, round out this luxurious master suite.
  • Huge rooms abound in the family spaces, and a play room is the centerpiece of the secondary bedrooms.

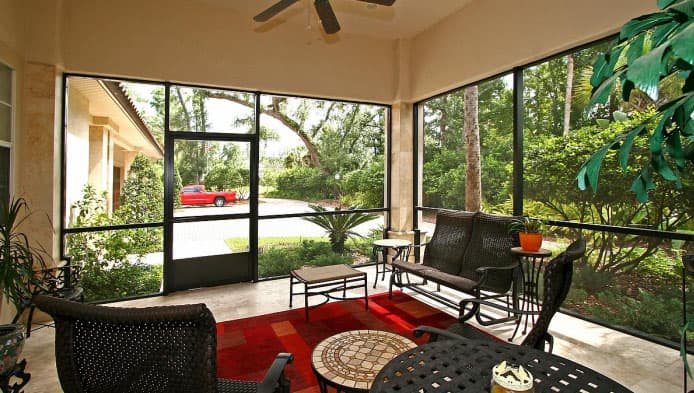

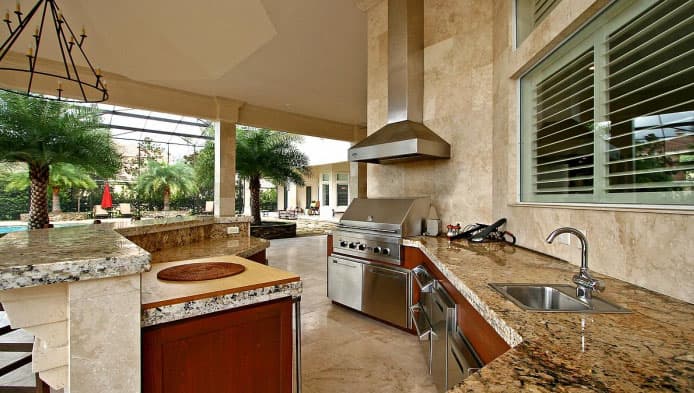

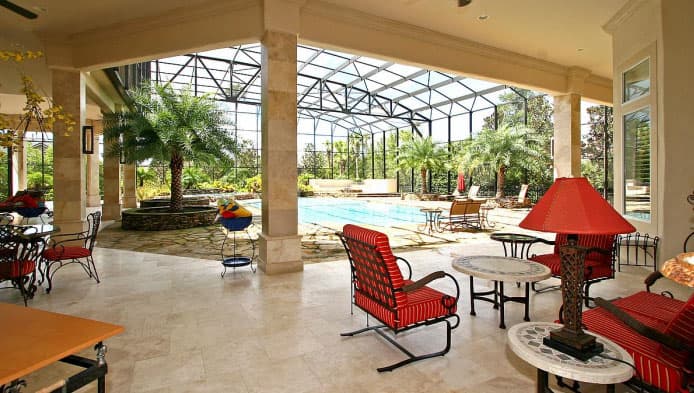

  • Outdoor living is enhanced with a summer kitchen, and see-thru fireplace on the lanai.
  • Exit the four-car garage to a covered walkway that leads you to the heart of this luxury house plan.
  • FLORIDA RESIDENTS: We can coordinate engineering for you. Contact us for pricing.
What's Included
  • Cover Sheet
  • Floor Plans
  • Slab Foundation Plan (plumbing layout)
  • Elevations
  • Sections
  • Stair Sections if applicable
  • Electrical Layout
  • Basic Details Sheet
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Some plans may not include sections. Please contact us for availability.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Chateau Masterpiece

  • 6,158

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 1

    Floors

  • 4

    Car garage

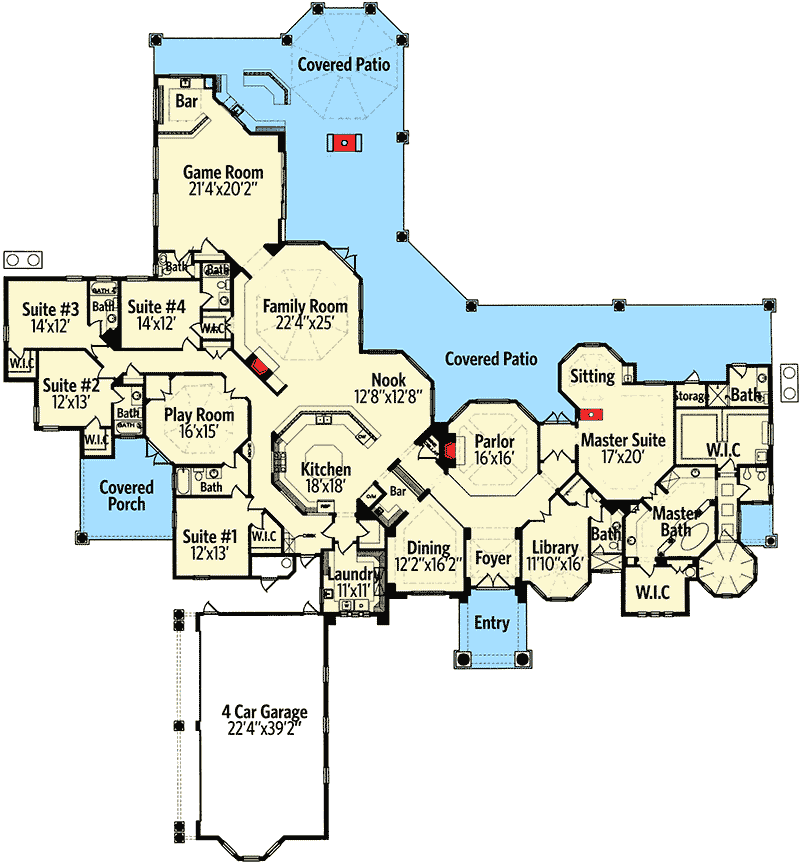

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 6,158 sq. ft.
  • 1st Floor: 6,158 sq. ft.

Dimensions

  • Width: 136' 8"
  • Depth: 152' 8"
  • Max ridge height: 40' 3"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 935 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
