Plan 80951PM

Chic Northwest Structure with 2 Units

Heated S.F.
2,586
Units
2
Width
Depth

Floor Plan

Plan 80951PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80951PM

M-F 9am-5pm EST |

1-203-761-8500

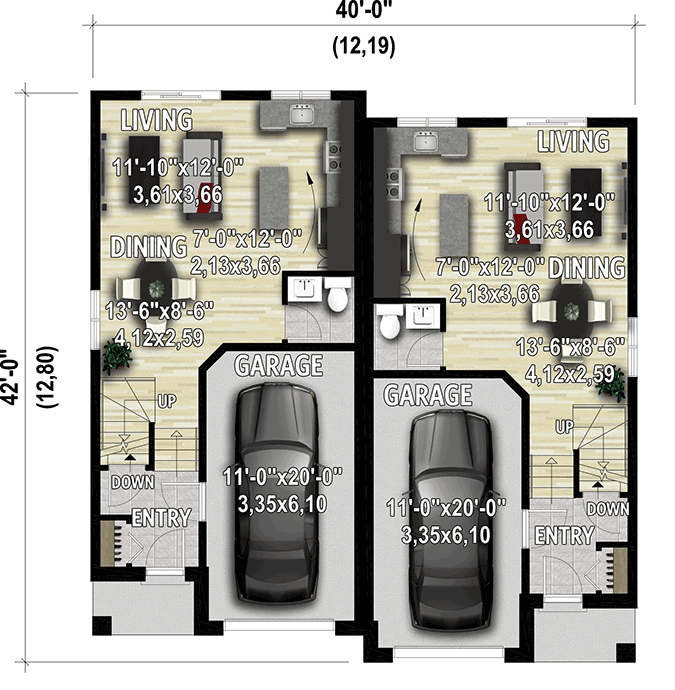

Main Level

Plan 80951PM: Chic Northwest Structure with 2 Units - Floor Plan - Main Level - Northwest, Prairie

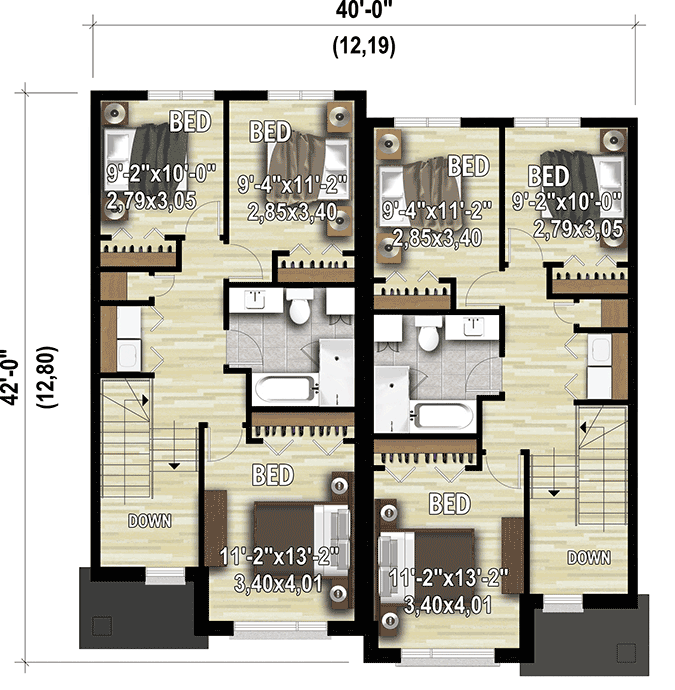

2nd Floor

Plan 80951PM: Chic Northwest Structure with 2 Units - Floor Plan - 2nd Floor - Northwest, Prairie

Plan Details

  • This structure provides 2 units that mirror one another, with one unit protruding slightly, adding depth to the front elevation.
  • A rain porch welcomes the resident and the foyer's coat closet adds convenience. Access to the 1-car garage sits next to the front entry.
  • The kitchen, dining, and living rooms combine to form one shared space on the main level, making everyday living comfortable and easy.
  • The second level offers three bedrooms, a 4-fixture bathroom, and laundry closet.
Unit A
Heated Area
1,293Sq. Ft.
523 Sq. Ft. 1st
770 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
247 Sq. Ft.
Dimensions
20'width
42'depth
29'height
Unfinished Areas
247 Sq. Ft. Garage
Unit B
Heated Area
1,293Sq. Ft.
523 Sq. Ft. 1st
770 Sq. Ft. 2nd
Beds
3Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
247 Sq. Ft.
Dimensions
20'width
42'depth
29'height
Unfinished Areas
247 Sq. Ft. Garage

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,586 sq. ft.

1st Floor

1,046 sq. ft.

2nd Floor

1,540 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

494 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

2,586 sq. ft.

1st Floor

1,046 sq. ft.

2nd Floor

1,540 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

2

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

494 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 2"

Roof Details

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Canadian House Plans

Metric
