Clapboard and Brick 3-Bed Traditional House Plan with Bonus Room

Plan 710104BTZ

  • 1,760

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

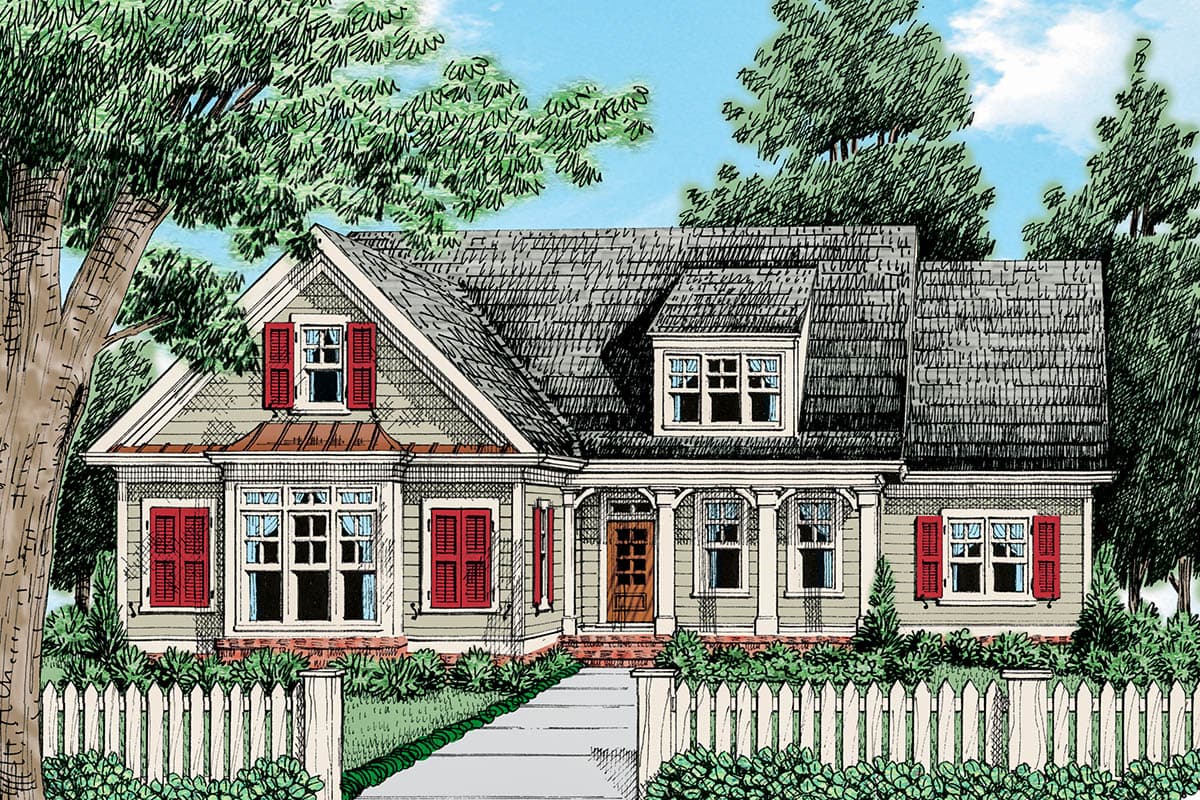

  • A brick water table and clapboard siding are the materials of choice for this traditional, 3-bed house plan with a bonus room over the garage. The boxed bay window with its copper roofing and the double shed dormer complete the exterior.
  • The kitchen comes with a large island, which opens into the vaulted family room, and serves the breakfast and dining rooms.
  • The master suite is sized to accommodate a full furniture ensemble. The master bath has a separate soaking tub and shower and a walk-in-closet. Two additional bedrooms along with a shared bathroom complete the main level.
  • The laundry room is large enough to handle chores created by an active family.
  • There is an optional bonus space above the garage for additional walk-up storage or a finished space with multiple uses.
  • Related Plans: Get alternate exteriors with house plans 710170BTZ, 710171BTZ and 710172BTZ.

The plans include the following:

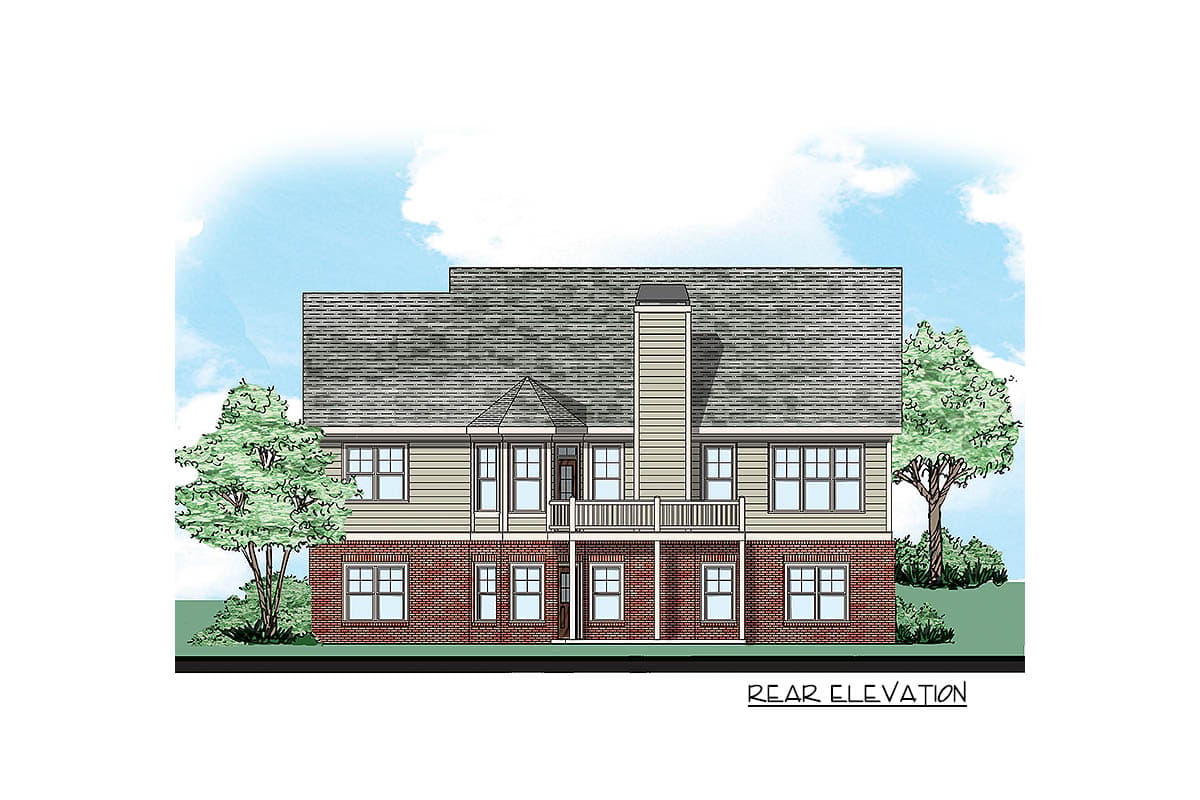

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

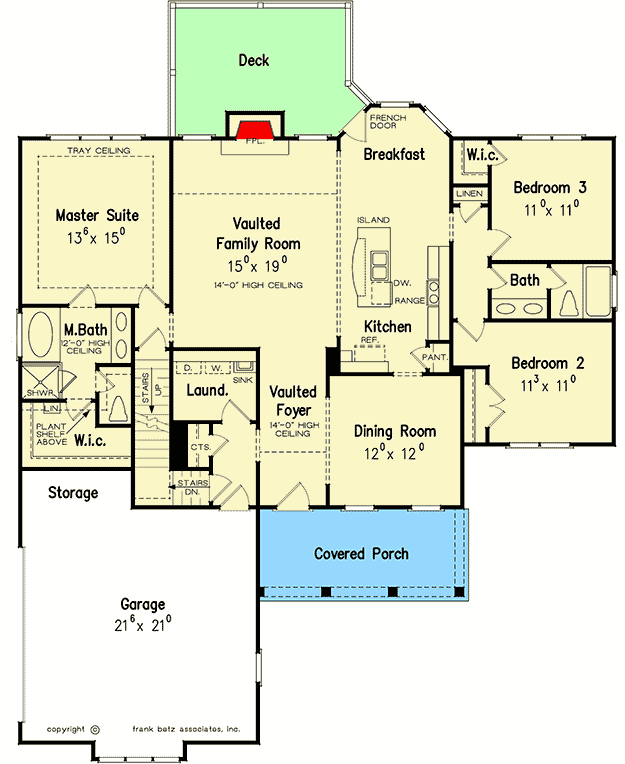

Clapboard and Brick 3-Bed Traditional House Plan with Bonus Room - 710104BTZ floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Clapboard and Brick 3-Bed Traditional House Plan with Bonus Room - 710104BTZ floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,760 sq. ft.
  • 1st Floor: 1,760 sq. ft.
  • Bonus: 311 sq. ft.
  • Basement Unfinished: 1,760 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 6"
  • Depth: 60' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 522 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Clapboard and Brick 3-Bed Traditional House Plan with Bonus Room

  • 1,760

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets + PDF $1,575
  • PDF - Unlimited Build $1,595
  • PDF - Unlimited Build + 5-Sets $1,875
  • CAD - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • A brick water table and clapboard siding are the materials of choice for this traditional, 3-bed house plan with a bonus room over the garage. The boxed bay window with its copper roofing and the double shed dormer complete the exterior.
  • The kitchen comes with a large island, which opens into the vaulted family room, and serves the breakfast and dining rooms.
  • The master suite is sized to accommodate a full furniture ensemble. The master bath has a separate soaking tub and shower and a walk-in-closet. Two additional bedrooms along with a shared bathroom complete the main level.
  • The laundry room is large enough to handle chores created by an active family.
  • There is an optional bonus space above the garage for additional walk-up storage or a finished space with multiple uses.
  • Related Plans: Get alternate exteriors with house plans 710170BTZ, 710171BTZ and 710172BTZ.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,760 sq. ft.
  • 1st Floor: 1,760 sq. ft.
  • Bonus: 311 sq. ft.
  • Basement Unfinished: 1,760 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 6"
  • Depth: 60' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 522 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 710104BTZ
