Country Charmer with Bonus Room Over Garage

Plan 710170BTZ

  • 1,755

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • This lovely country charmer has a cottage feel and welcomes guests with handcrafted stone, wood siding and shingle detailing.
  • A formal dining room and laundry area are right off of the foyer, which leads to the vaulted family room with a fireplace and view onto the back deck.
  • The eat-in kitchen is to the right with an attached breakfast area. Two bedrooms and a full bathroom are just down the hall off of the kitchen.
  • The master suite is on the right wing of the home, and offers a master bath with a walk-in shower and large walk-in closet.
  • An optional bonus room is available upstairs; ideal for another bedroom or game room for the children.
  • Related Plans: Get alternate exteriors with house plans 710171BTZ, 710172BTZ and 710104BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

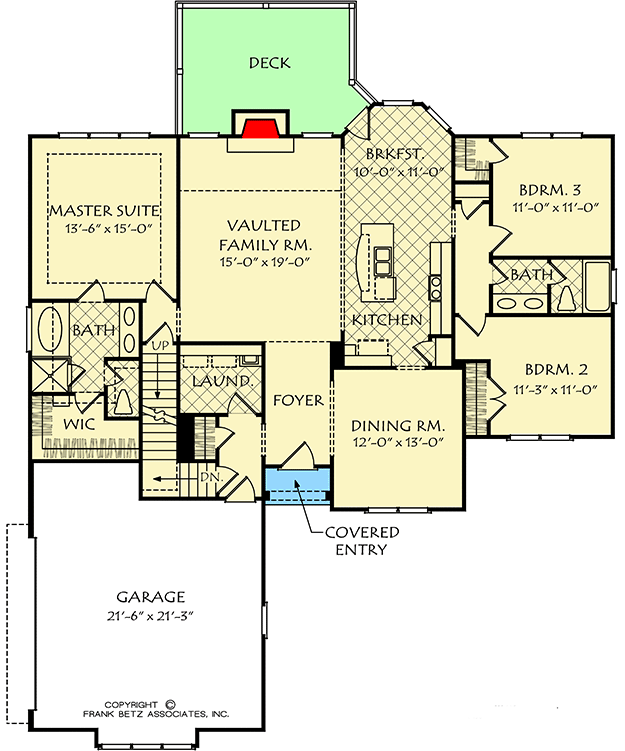

Country Charmer with Bonus Room Over Garage - 710170BTZ floor plan - Main Level

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Country Charmer with Bonus Room Over Garage - 710170BTZ floor plan - Bonus Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,755 sq. ft.
  • 1st Floor: 1,755 sq. ft.
  • Bonus: 318 sq. ft.
  • Basement Unfinished: 1,755 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 6"
  • Depth: 60' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Country Charmer with Bonus Room Over Garage

  • 1,755

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets + PDF $1,575
  • PDF - Unlimited Build $1,595
  • PDF - Unlimited Build + 5-sets $1,875
  • CAD - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • This lovely country charmer has a cottage feel and welcomes guests with handcrafted stone, wood siding and shingle detailing.
  • A formal dining room and laundry area are right off of the foyer, which leads to the vaulted family room with a fireplace and view onto the back deck.
  • The eat-in kitchen is to the right with an attached breakfast area. Two bedrooms and a full bathroom are just down the hall off of the kitchen.
  • The master suite is on the right wing of the home, and offers a master bath with a walk-in shower and large walk-in closet.
  • An optional bonus room is available upstairs; ideal for another bedroom or game room for the children.
  • Related Plans: Get alternate exteriors with house plans 710171BTZ, 710172BTZ and 710104BTZ.
