Plan 56431SM

Classic Acadian House Plan with Outdoor Grilling Porch and Optional Bonus Room

Classic Acadian House Plan with Outdoor Grilling Porch and Optional Bonus Room

Plan 56431SM

  • 2,992

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Four columns support the covered entry porch on this 4-bed French Country house plan with a bonus room option over the garage. A brick exterior and hip roof design add to the visual appeal.
  • The foyer has a 12' ceiling and leads you to the massive family room with fireplace and access to the rear porch with outdoor kitchen and fireplace as well.
  • The sturdy kitchen island has a double sink and dishwasher on the working side and seating for friends on the other. A walk-in pantry gives you great storage and access from the garage is steps away making unloading groceries a breeze.
  • The master suite has a large walk-in closet with convenient access to the laundry room. The bath has twin vanities, a spa tub and a walk-in shower with built-in bench.
  • Two separate garages create a courtyard effect on the side of the home.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

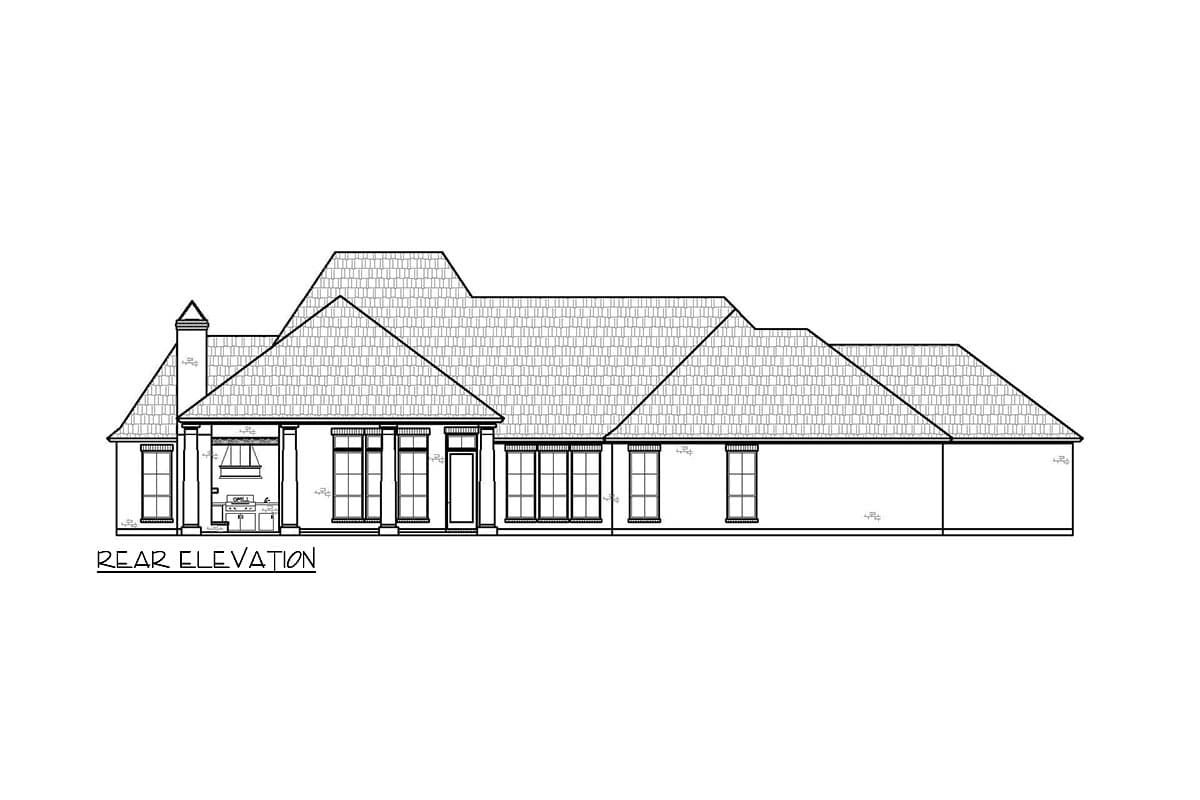

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.

Plan details



Classic Acadian House Plan with Outdoor Grilling Porch and Optional Bonus Room

  • 2,992

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,150
  • 6 Sets $1,250
  • 5 Sets PLUS $1,450
  • CAD $2,150
  • CAD - multi-use $2,545
  • View all purchase option online

About This Plan

  • Four columns support the covered entry porch on this 4-bed French Country house plan with a bonus room option over the garage. A brick exterior and hip roof design add to the visual appeal.
  • The foyer has a 12' ceiling and leads you to the massive family room with fireplace and access to the rear porch with outdoor kitchen and fireplace as well.
  • The sturdy kitchen island has a double sink and dishwasher on the working side and seating for friends on the other. A walk-in pantry gives you great storage and access from the garage is steps away making unloading groceries a breeze.
  • The master suite has a large walk-in closet with convenient access to the laundry room. The bath has twin vanities, a spa tub and a walk-in shower with built-in bench.
  • Two separate garages create a courtyard effect on the side of the home.
  • NOTE: Please allow a 5 to 10 day delay for 2x6 option to be completed.

Floor Plans

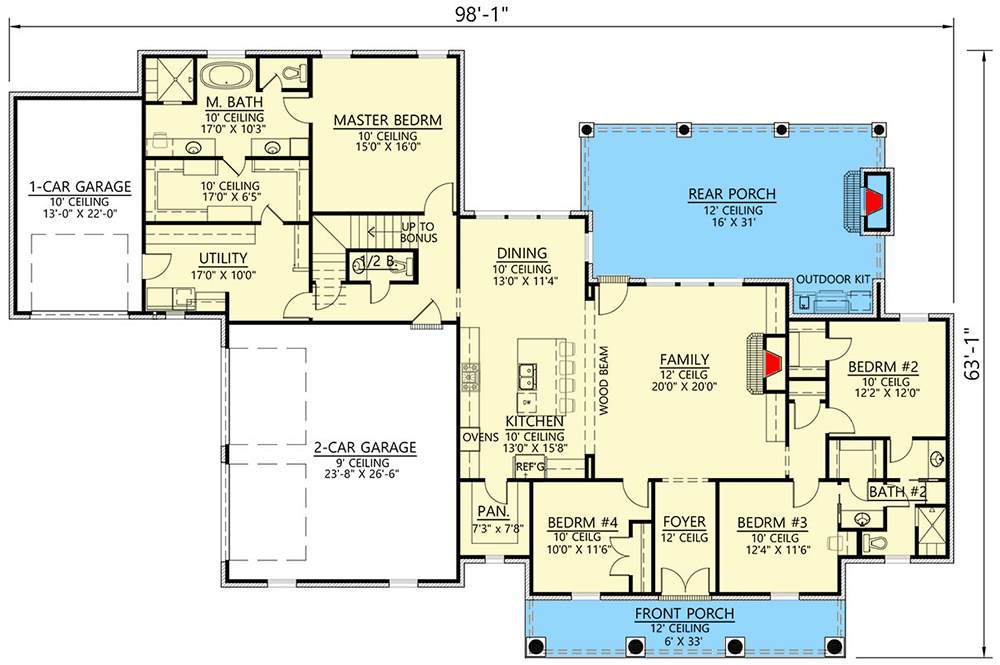

  • Main Level

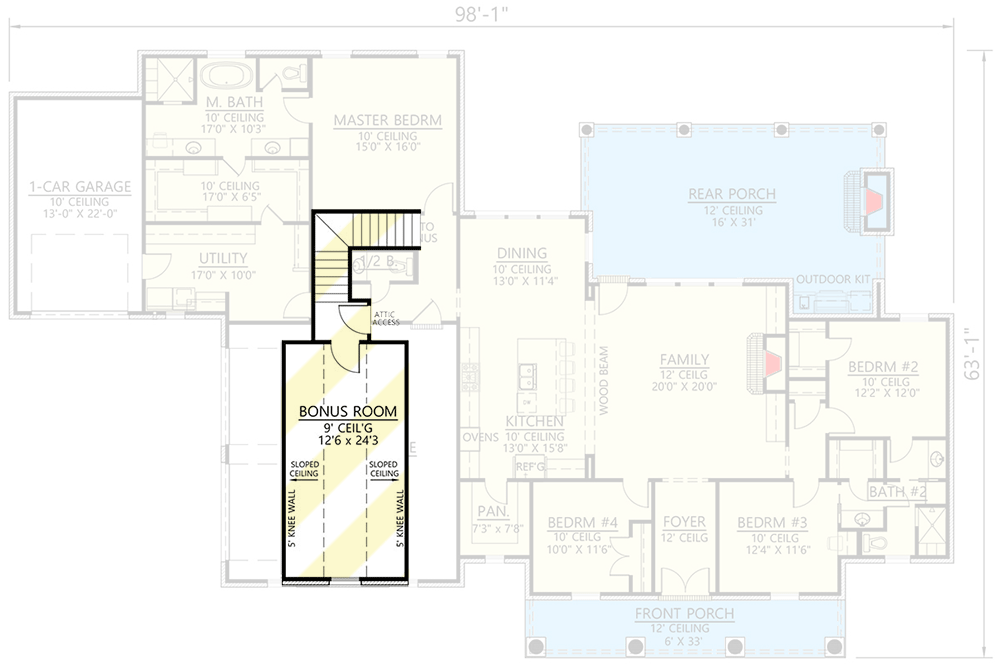

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,992 sq. ft.
  • 1st Floor: 2,633 sq. ft.
  • Porch, Front: 198 sq. ft.
  • Bonus: 359 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 98' 1"
  • Depth: 63' 1"

Garage

  • Type: Attached
  • Area: 914 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
