Classic Colonial with Covered Front Porch

Pageloader

Classic Colonial with Covered Front Porch

Plan 69281AM

  • 1,875

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

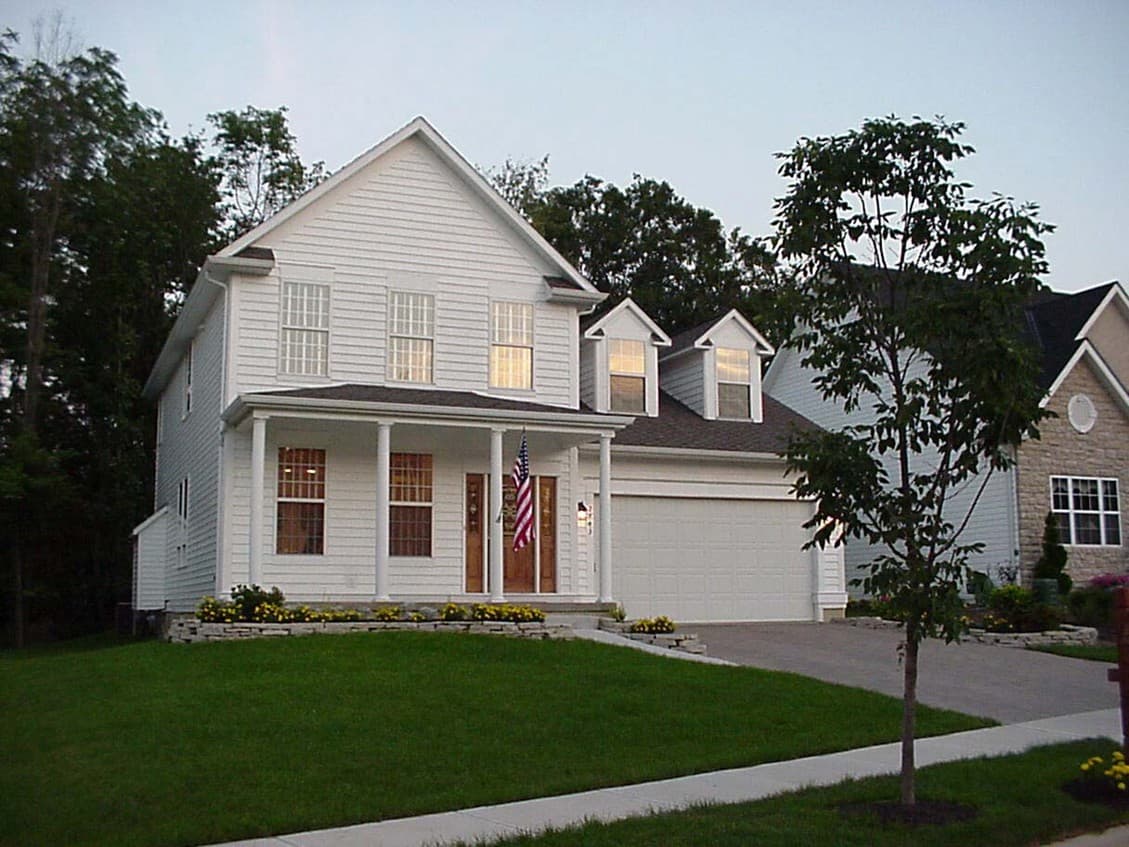

  • Columns, a covered front porch, and multipane windows give this two-story home a classic appeal. The contemporary floor plan provides communal space on the first floor and bedrooms on the second. Numerous windows capture natural light. Storage abounds, from the garage to the walk-in pantry in the kitchen, from the built-in units in the study to the second-floor bonus room.
  • The open floor plan readily serves family lifestyles. The cooks in the kitchen can communicate with family in the great room. Meal service to the windowed breakfast nook and to the dining room is quick and efficient. A French door facilitates outdoor grilling, gardening, and games. The kitchen island is equipped with a sink, dishwasher, and snack counter. The dining room is formalized by columns at three corners.
  • The upstairs sleeping quarters include a large master suite with a vaulted bedroom, walk-in closet, and compartmentalized bath with both shower and whirlpool tub. The laundry center also is located upstairs, where most laundry is generated.
  • Related Plan: For an alternate version, see house plan 6903AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Classic Colonial with Covered Front Porch

  • 1,875

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $791
  • PDF - single-use $1,141
  • 5 Sets $1,291
  • 5 Sets PLUS $1,341
  • CAD - multi-use $2,282
  • View all purchase option online

About This Plan

  • Columns, a covered front porch, and multipane windows give this two-story home a classic appeal. The contemporary floor plan provides communal space on the first floor and bedrooms on the second. Numerous windows capture natural light. Storage abounds, from the garage to the walk-in pantry in the kitchen, from the built-in units in the study to the second-floor bonus room.
  • The open floor plan readily serves family lifestyles. The cooks in the kitchen can communicate with family in the great room. Meal service to the windowed breakfast nook and to the dining room is quick and efficient. A French door facilitates outdoor grilling, gardening, and games. The kitchen island is equipped with a sink, dishwasher, and snack counter. The dining room is formalized by columns at three corners.
  • The upstairs sleeping quarters include a large master suite with a vaulted bedroom, walk-in closet, and compartmentalized bath with both shower and whirlpool tub. The laundry center also is located upstairs, where most laundry is generated.
  • Related Plan: For an alternate version, see house plan 6903AM.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,875 sq. ft.
  • 1st Floor: 1,082 sq. ft.
  • 2nd Floor: 793 sq. ft.
  • Bonus: 250 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 52' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 596 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
