Classic Farmhouse Plan with Split Bedrooms

Plan 56472SM

  • 2,520

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Classic farmhouse features allow you to enjoy country living in this 3-bedroom home plan, complete with a spacious front and rear porch.
  • Step inside and discover a light-filled great room, topped by a vaulted ceiling, and open to the kitchen and dining area. Friends and family will naturally linger at the large kitchen island when entertaining, or retreat to the back porch for some outdoor living.
  • The master bedroom occupies the left side of the home, set apart from the secondary bedrooms for the utmost privacy, and includes a freestanding tub in the 5-fixture bath, dual closets, and access to the mudroom, which serves as a shortcut to the laundry facilities.
  • Bedrooms 2 and 3 are identical in size on the opposite side of the home, and share a Jack-and-Jill bath. Another forward-facing room is ideal for a home office, or playroom.
  • Storage space in the double garage helps to reduce clutter, and built-in lockers just inside allow you to keep outdoor gear organized.

Each plan set includes the following:


  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

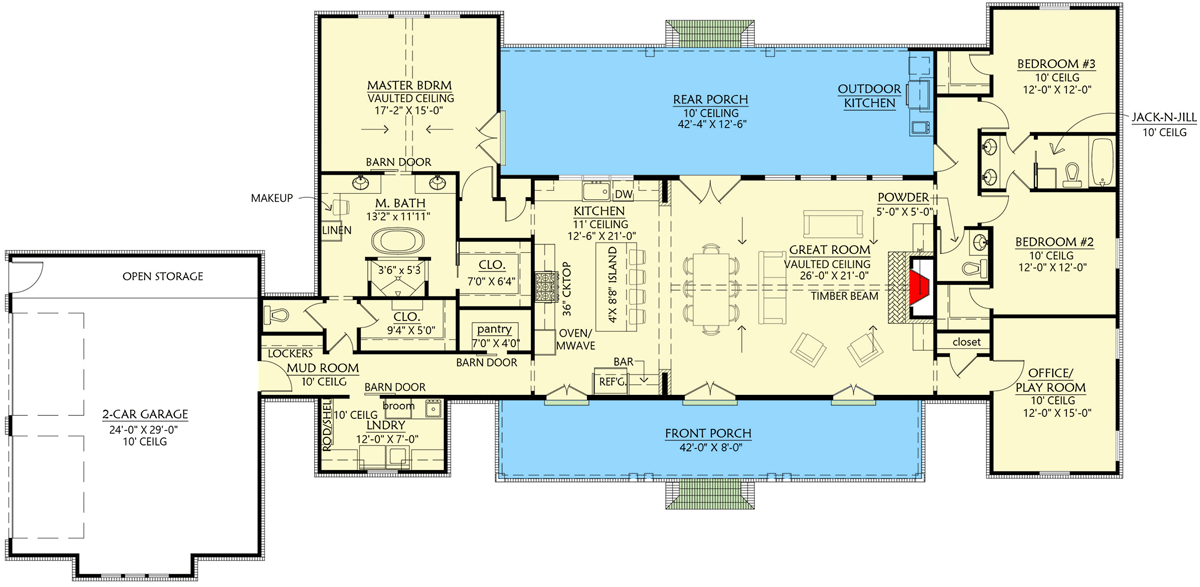

Classic Farmhouse Plan with Split Bedrooms - 56472SM floor plan - Main Level

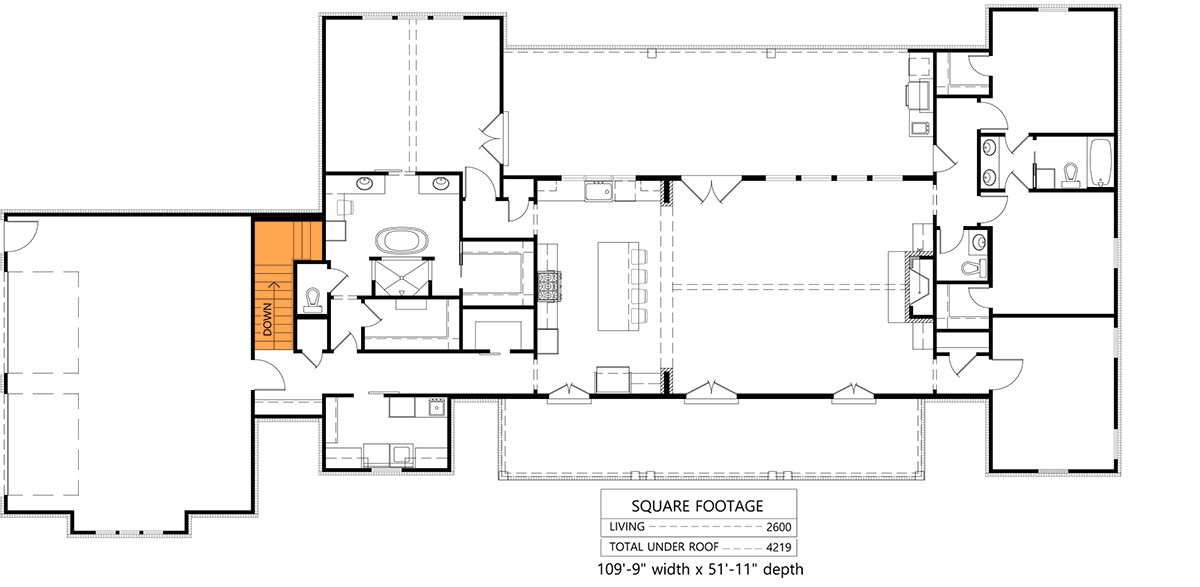

Main Floor - Basement Stairs Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Classic Farmhouse Plan with Split Bedrooms - 56472SM floor plan - Main Floor - Basement Stairs Location

Classic Farmhouse Plan with Split Bedrooms

  • 2,520

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Main Floor - Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 2,520 sq. ft.
  • 1st Floor: 2,520 sq. ft.

Dimensions

  • Width: 108' 7"
  • Depth: 55' 1"
  • Max ridge height: 25' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 755 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
