Coastal Contemporary 4-Car Garage House Plan with Wet Bar and Pergola Courtyard

Heated S.F.
482
Beds
0
Baths
1
Stories
1
Cars
4

Floor Plan

Plan 623629DJ

Main Level
Main Level

Plan 623629DJ

M-F 9am-5pm EST |

1-203-761-8500

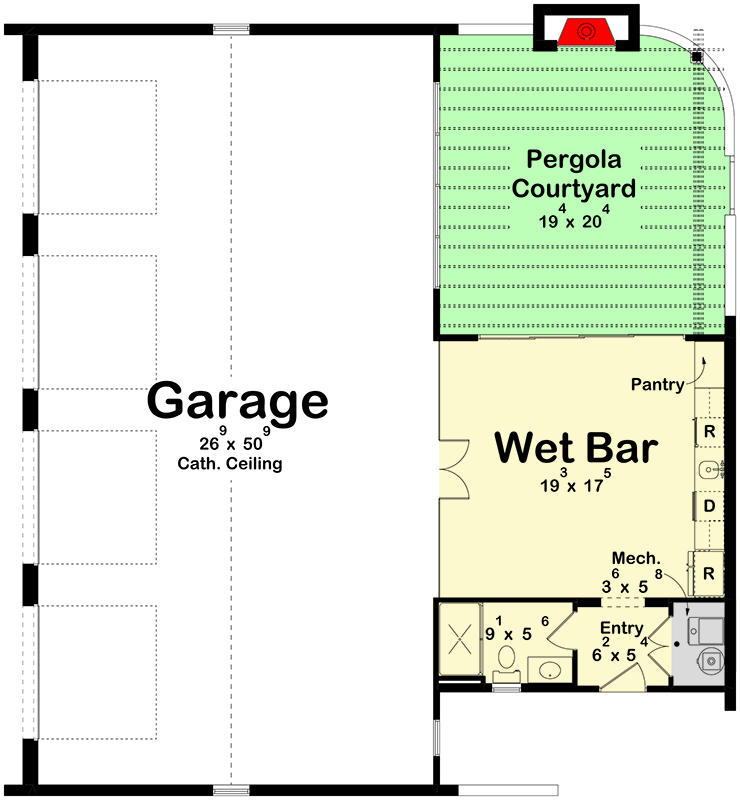

Main Level

Plan 623629DJ: Coastal Contemporary 4-Car Garage House Plan with Wet Bar and Pergola Courtyard - Floor Plan - Main Level - Coastal Contemporary, Contemporary, Florida-Style

Plan Details

  • This Coastal Contemporary accessory structure features 482 finished sq ft of flexible space, 1 full bath, and an impressive 1454 sq ft, 4-car detached garage, all in a sleek Florida-style.
  • A charming entry leads into the functional layout, providing convenient access to the full bath and the expansive wet bar area, perfect for entertaining.
  • The heart of the conditioned space is a generous 19' x 17' wet bar, complete with a pantry, designed for hosting gatherings or serving as a versatile recreational hub.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

482 sq. ft.

1st Floor

482 sq. ft.

Porch, Combined

411 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

53' 4"

Max Ridge Height

25' 8"

Garage

Type

Detached

Area

1454 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style

Square Footage Breakdown

Total Heated Area

482 sq. ft.

1st Floor

482 sq. ft.

Porch, Combined

411 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

49' 4"

Depth

53' 4"

Max Ridge Height

25' 8"

Garage

Type

Detached

Area

1454 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style
