Coastal Contemporary Duplex House Plan with Three Stories and Multiple Balconies

Heated S.F.
4,186
Units
2
Width
Depth
Tour

Floor Plan

Plan 623565DJ

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 623565DJ

M-F 9am-5pm EST |

1-203-761-8500

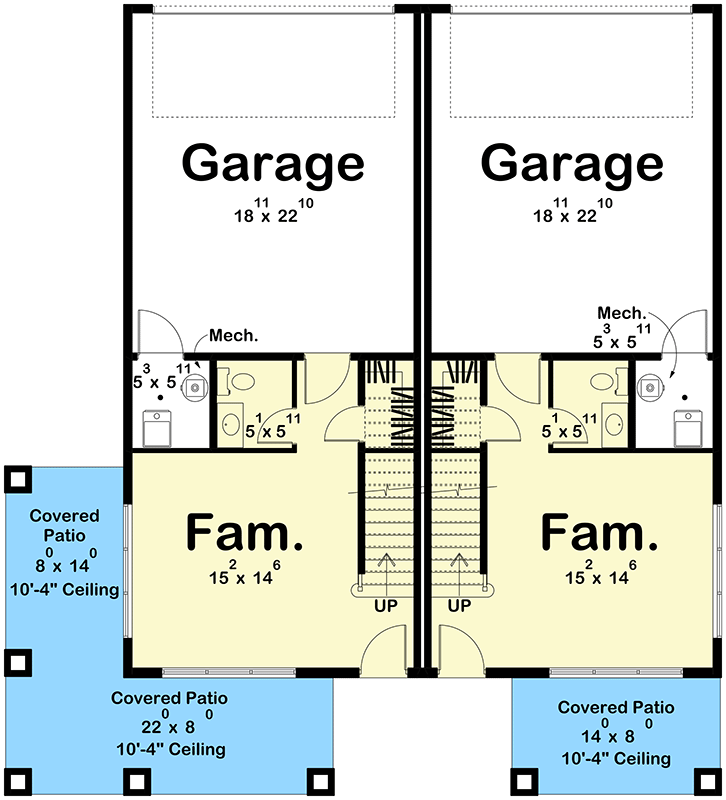

Main Level

Plan 623565DJ: Coastal Contemporary Duplex House Plan with Three Stories and Multiple Balconies - Floor Plan - Main Level - Coastal Contemporary, Contemporary, Modern

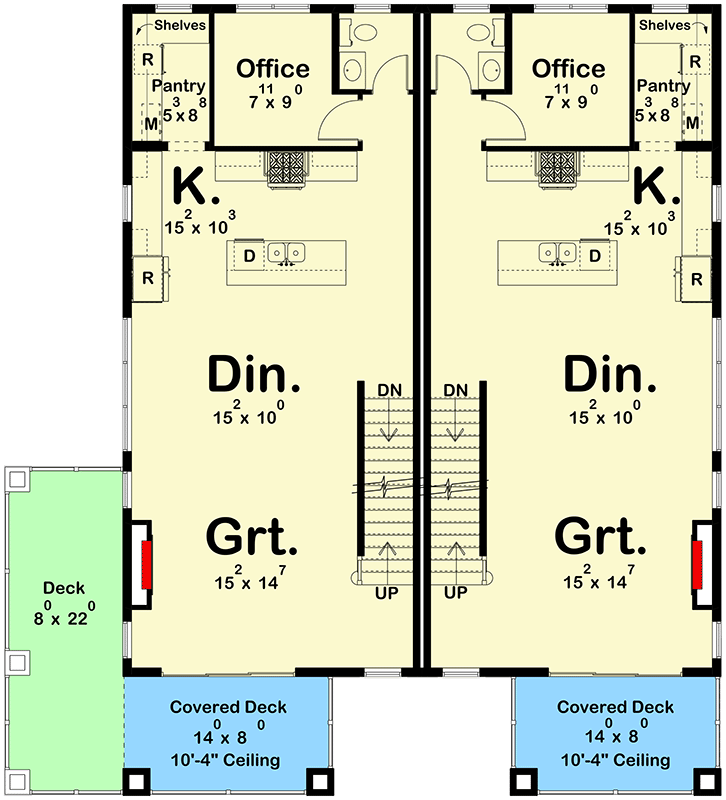

2nd Floor

Plan 623565DJ: Coastal Contemporary Duplex House Plan with Three Stories and Multiple Balconies - Floor Plan - 2nd Floor - Coastal Contemporary, Contemporary, Modern

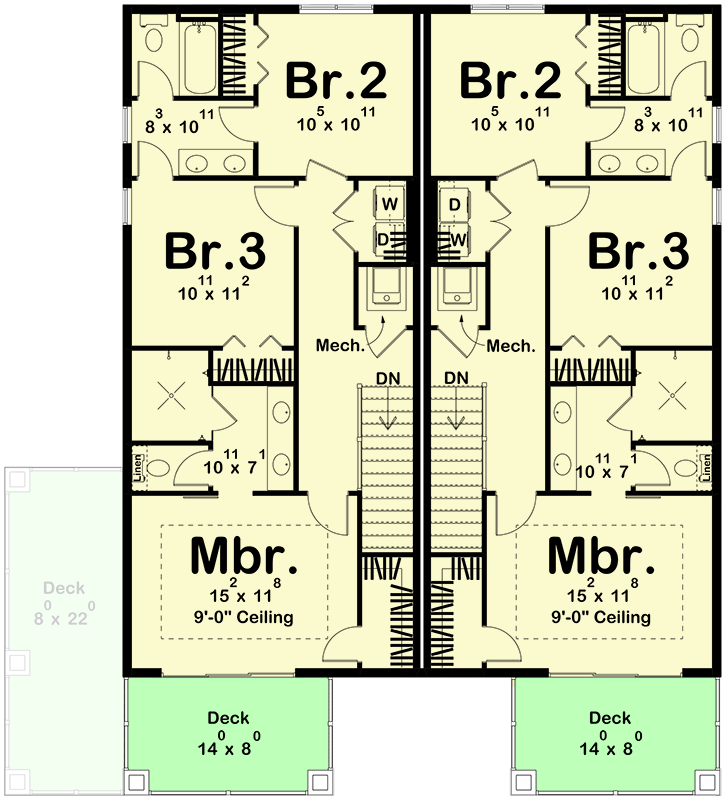

3rd Floor

Plan 623565DJ: Coastal Contemporary Duplex House Plan with Three Stories and Multiple Balconies - Floor Plan - 3rd Floor - Coastal Contemporary, Contemporary, Modern

Plan Details

  • This striking 4,186 sq. ft. Coastal Contemporary duplex house plan offers two identical units, each featuring 3 bedrooms, 2 full baths, 2 half baths, and a 2-car attached rear-entry garage totaling 928 sq. ft.
  • Step inside each unit to discover an inviting open-concept layout, designed for modern living and seamless flow. A dedicated home office on the main floor provides a private workspace, while the mudroom offers a practical transition from the rear-entry garage.
  • The main level's generous living area flows effortlessly into the gourmet kitchen, complete with a butler walk-in pantry, perfect for culinary enthusiasts. Adjacent dining spaces are ideal for intimate meals or larger gatherings, fostering connection and ease of movement.
  • The master suite, located upstairs, provides a luxurious retreat with ample space and privacy. Secondary bedrooms are thoughtfully placed, with one featuring a convenient Jack & Jill bath, ensuring comfort and functionality for all residents. An upstairs laundry room adds to everyday convenience.
  • Each unit boasts an impressive 400 sq. ft. of combined outdoor living space, featuring a welcoming covered porch on the first floor and two private balconies on the upper levels. These outdoor havens invite residents to enjoy morning coffee or evening breezes, extending the living space outdoors.
Unit A & B
Heated Area
2,093Sq. Ft.
400 Sq. Ft. 1st
852 Sq. Ft. 2nd
841 Sq. Ft. 3rd
Beds
3Beds
Baths
2Full Baths
2Half Baths
Cars
Attached
464 Sq. Ft.
Dimensions
24'width
53'depth
Unfinished Areas
464 Sq. Ft. Garage
400 Sq. Ft. Porch, Combined
