Plan 86164BW

Coastal Contemporary Florida Style House Plan with 4 Bedrooms and Lanai

Name: Plan 86164BW: Coastal Contemporary Florida Style House Plan with 4 Bedrooms and Lanai
Brand: Architectural Designs
SKU: 86164BW
Price: 2109.70 USD
Availability: InStock

Heated S.F.

2,920

Beds

3 - 4

Baths

3.5

Stories

Cars

Floor Plan

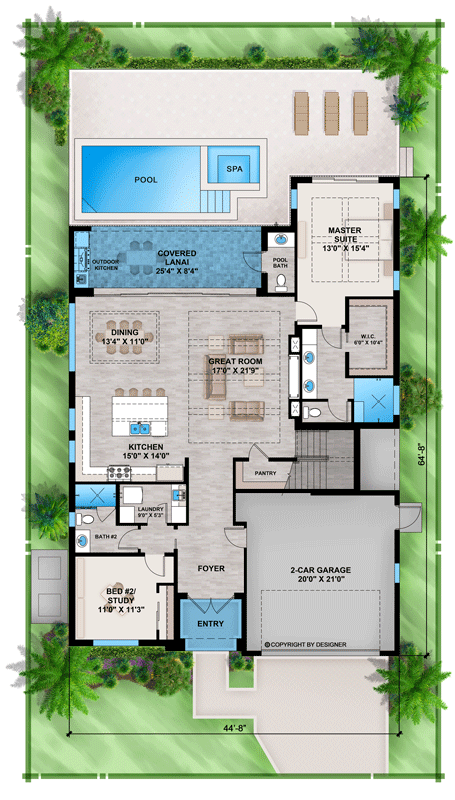

Main Level

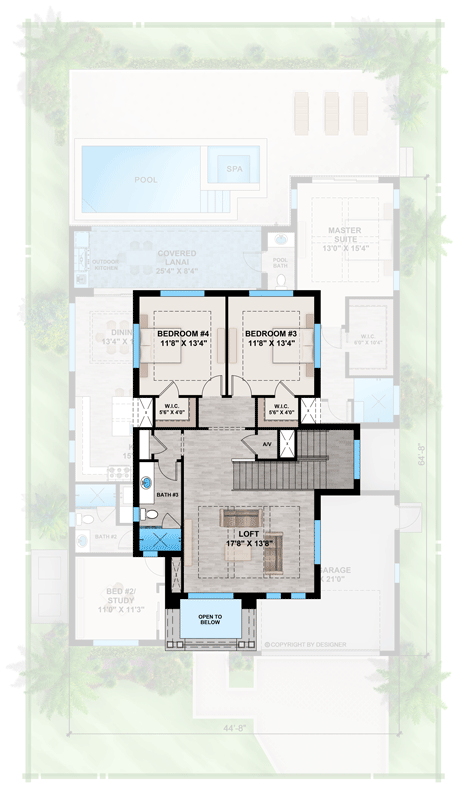

2nd Level

Plan Details

This striking 2,920 square foot Coastal Contemporary Florida-style home features four bedrooms, three and a half baths, and a convenient two-car garage.
Upon entering, you are greeted by an open and airy layout that seamlessly integrates formal and casual living spaces, including a dedicated library or study perfect for remote work.
The heart of the home centers on a spacious living area that flows effortlessly into a modern kitchen, which is complemented by a large walk-in pantry for organized storage.
The main level houses a private primary suite, offering a peaceful retreat, while the remaining bedrooms are thoughtfully positioned to ensure comfort and privacy for family or guests.
A functional main-level laundry room adds to the ease of daily living, reflecting the efficient and well-planned design of this residence.
Embracing the indoor-outdoor lifestyle, the rear of the home opens to a expansive 217 square foot lanai equipped with an outdoor kitchen, ideal for enjoying warm evenings and alfresco dining.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Size

Electrical Layouts

Building Section Markers
Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

Floor Joist Size and Spacing
Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
