Coastal Contemporary House Plan with 3 Bedrooms and 3-Car Garage

Name: Plan 65817BS: Coastal Contemporary House Plan with 3 Bedrooms and 3-Car Garage
Brand: Architectural Designs
SKU: 65817BS
Price: 3152.0 USD
Availability: InStock

Heated S.F.

3,152

Beds

Baths

Stories

Cars

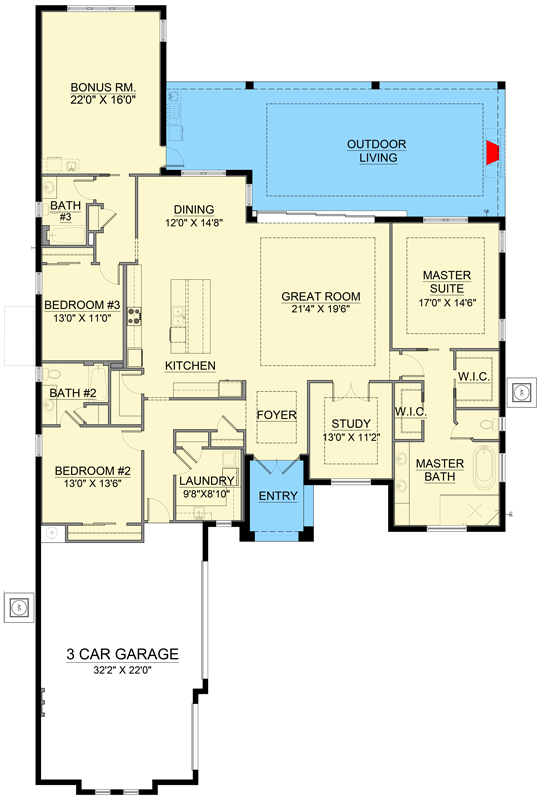

Floor Plan

Plan Details

This sophisticated 3,152 square foot coastal contemporary house plan offers a seamless blend of indoor and outdoor living with three bedrooms and three full bathrooms.
The striking exterior features clean lines and a courtyard-style entry that leads into a bright, airy foyer.
A sprawling open-concept living area serves as the heart of the home, connecting the kitchen, breakfast nook, and family room for effortless movement.
The private primary suite is thoughtfully separated from the secondary bedrooms to ensure tranquility and includes a luxurious spa-inspired bathroom.
A dedicated library provides a quiet retreat for work or reading, while the expansive outdoor living space is enhanced by a cozy fireplace and a fully equipped outdoor kitchen.
The attached three-car garage provides ample storage and completes this refined Florida-style residence.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
