Plan 65780BS

Coastal Contemporary House Plan with 4 Bedrooms and Expansive Lanai

Name: Plan 65780BS: Coastal Contemporary House Plan with 4 Bedrooms and Expansive Lanai
Brand: Architectural Designs
SKU: 65780BS
Price: 2682.64 USD
Availability: InStock

Heated S.F.

3,713

Beds

Baths

4.5

Stories

Cars

Floor Plan

Plan Details

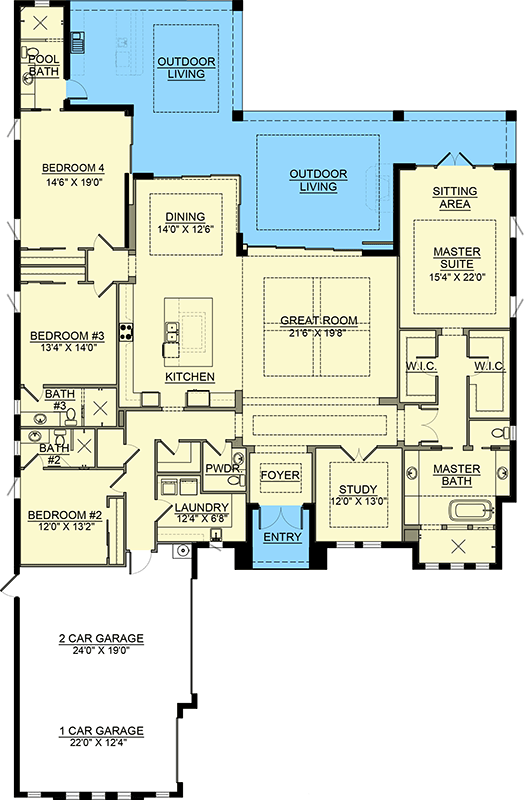

Boasting 3,713 finished square feet, this coastal contemporary house plan features 4 bedrooms, 4 full baths, 1 half bath, and a 3-car garage spanning 816 square feet.
The home greets you with a striking courtyard entry that sets a sophisticated tone for the open-concept floor plan found within.
The expansive living area flows seamlessly into the gourmet kitchen, which is highlighted by a convenient walk-in pantry and a dedicated formal dining space.
A private primary suite serves as a serene retreat, complete with a sitting area and separation from the three secondary bedrooms to ensure maximum privacy.
A dedicated library or study offers a quiet space for remote work, while the expansive 1,023-square-foot lanai provides a seamless transition for indoor-outdoor living.
The outdoor space is enhanced by an integrated outdoor kitchen, making it an exceptional setting for enjoying warm evenings and alfresco dining.

What's Included

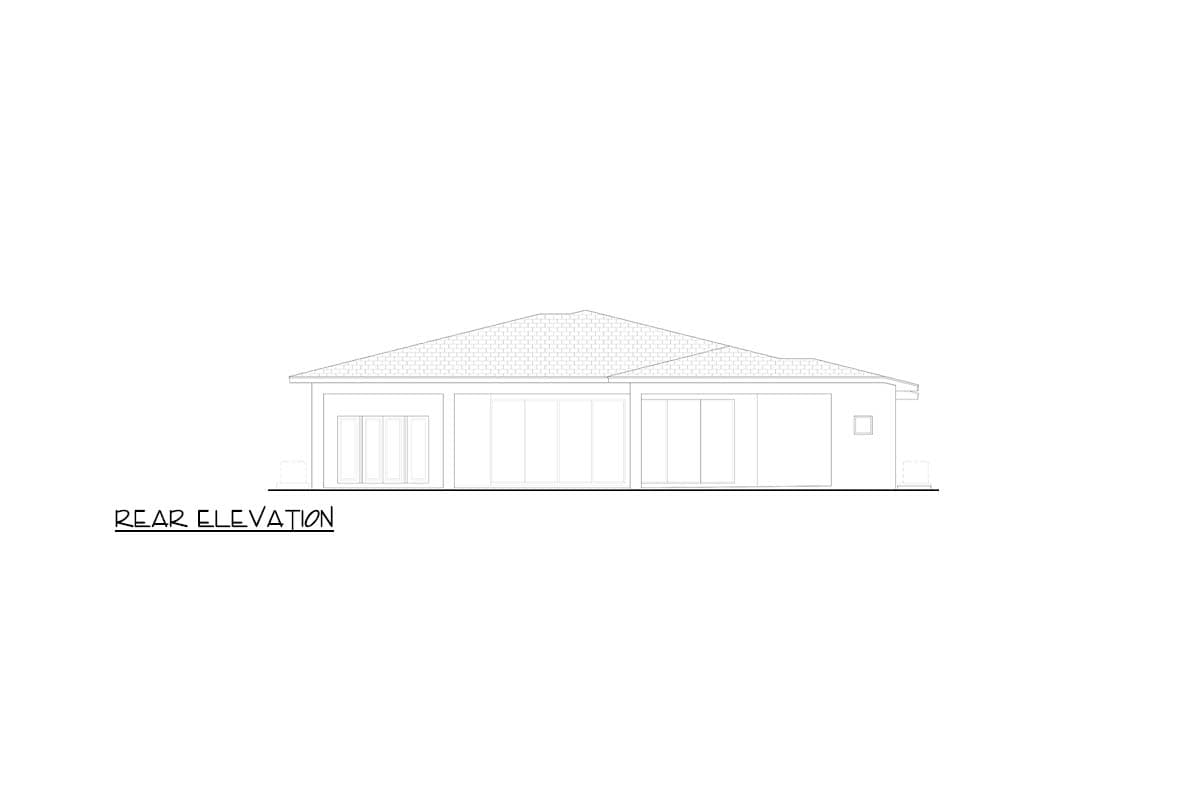

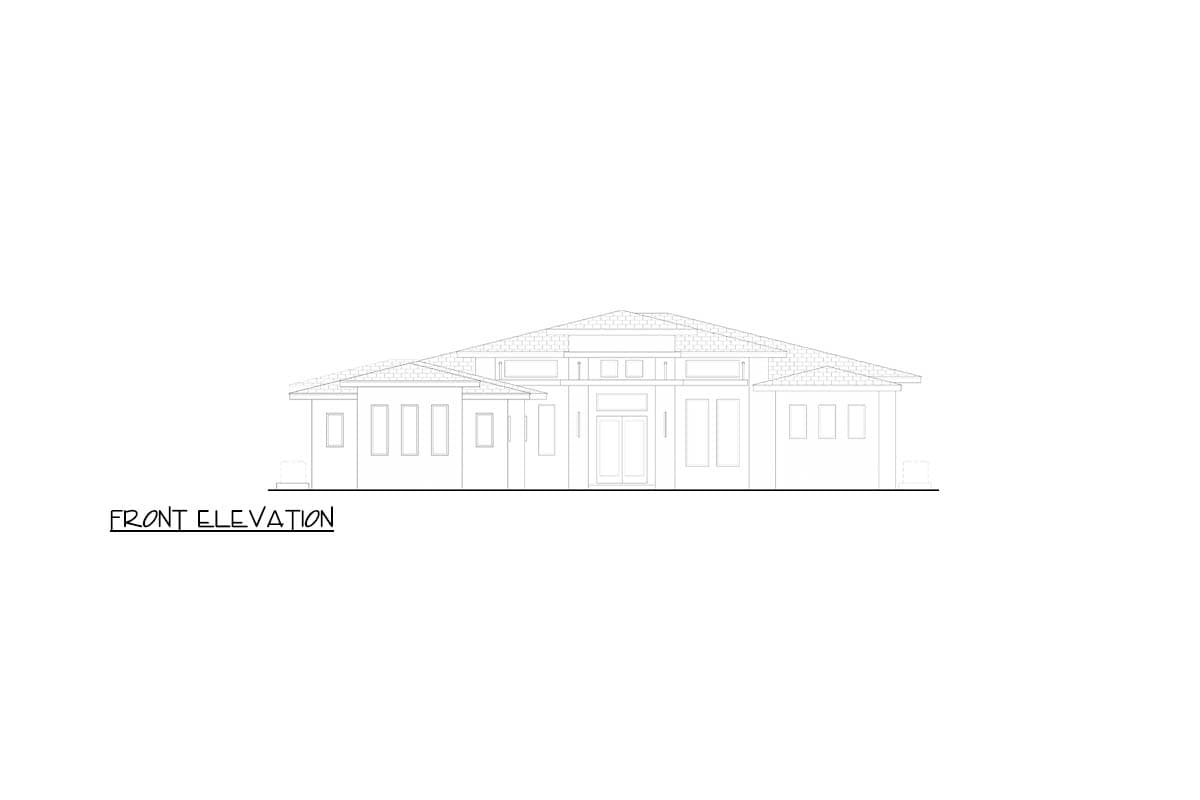

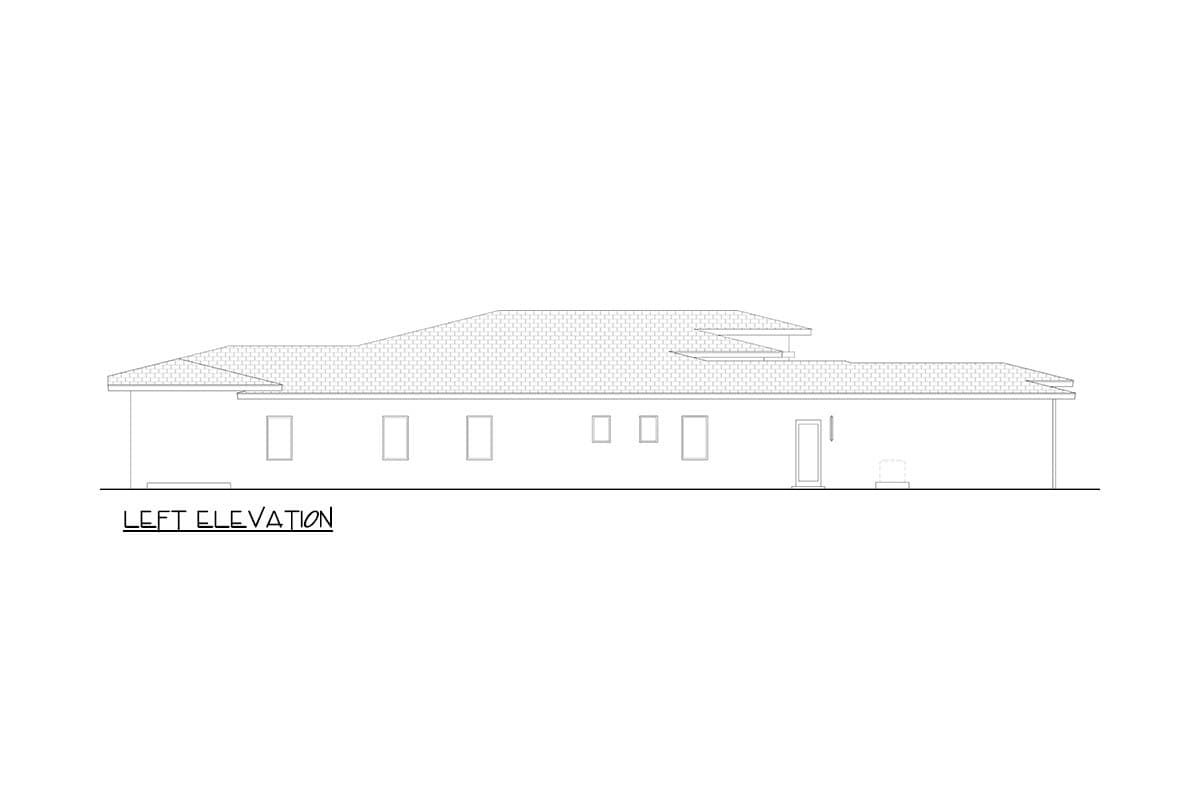

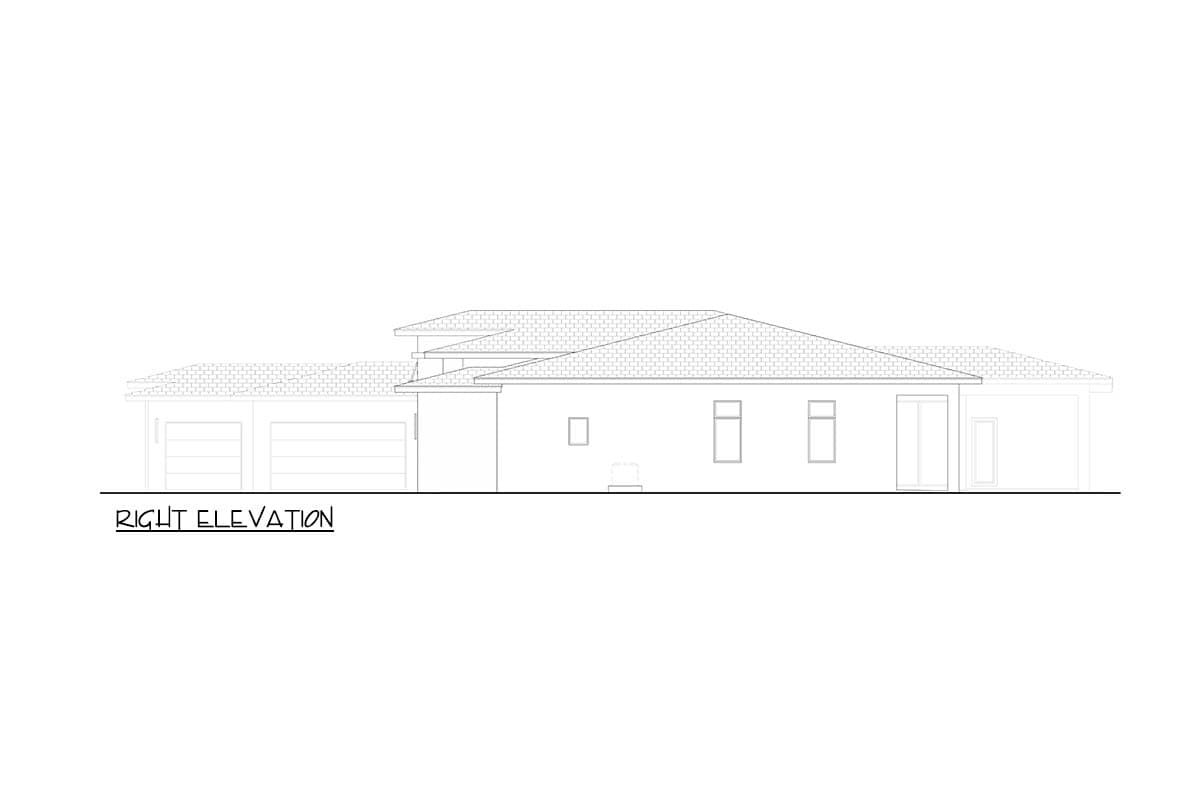

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
