Plan 660025JMD

Coastal Contemporary House Plan with Dual Masters, Elevator, and Outdoor Kitchen

Name: Plan 660025JMD: Coastal Contemporary House Plan with Dual Masters, Elevator, and Outdoor Kitchen
Brand: Architectural Designs
SKU: 660025JMD
Price: 4800.0 USD
Availability: InStock

Heated S.F.

5,842

Beds

Baths

5.5

Stories

Cars

Floor Plan

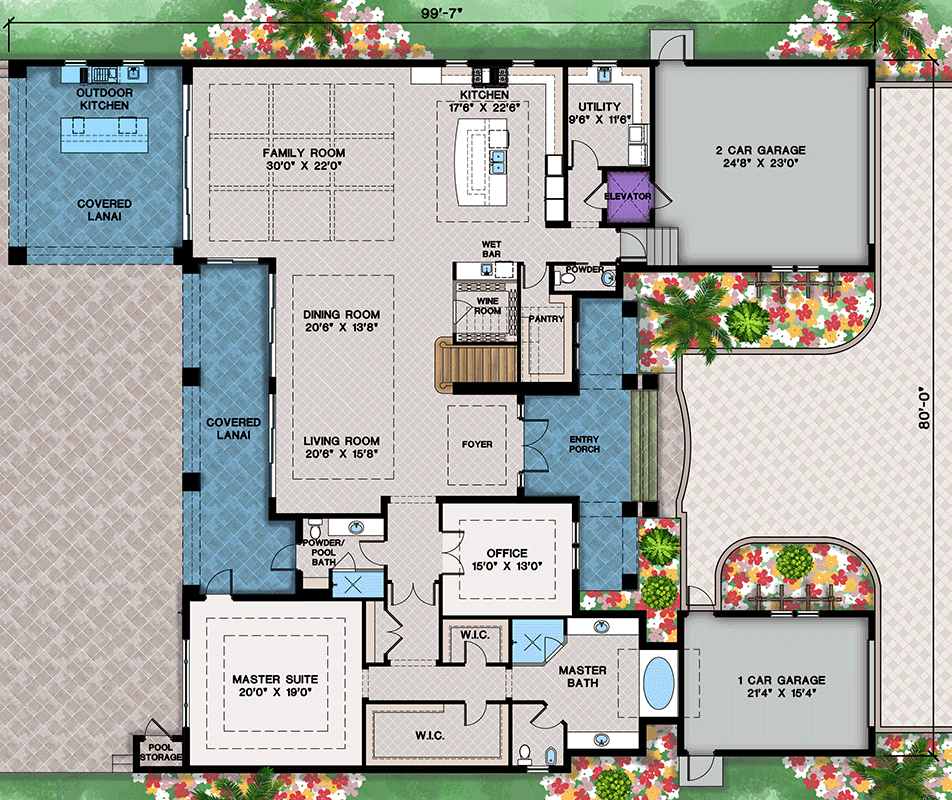

Main Level

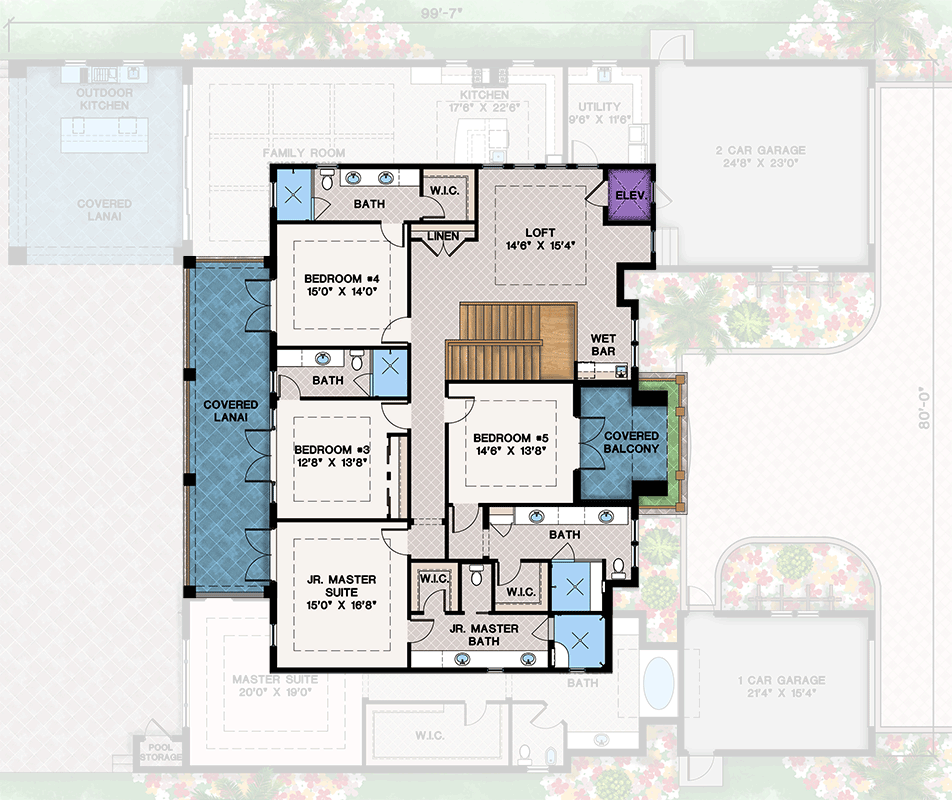

2nd Floor

Plan Details

This expansive 5,842 sq. ft. Coastal Contemporary House Plan features 5 bedrooms, 5.5 bathrooms, and an attached 1012 sq. ft. three-car garage, presenting a sophisticated facade of block/CMU construction.
Step into a grand entry foyer that immediately reveals the home's open-concept design, where the main living areas flow seamlessly, creating an inviting atmosphere. A thoughtfully placed home office ensures privacy and focus for remote work or study.
At the heart of the home, the chef's dream kitchen boasts a generous island, premium appliances, and a convenient butler's walk-in pantry, opening gracefully to the dining and living spaces, fostering effortless gatherings and daily living. A dedicated wine room adds a touch of connoisseur luxury.
This exceptional plan offers the luxury of two master suites: one on the main level and another upstairs, both designed as private havens. Each features a spacious bedroom, ample walk-in closets, and spa-like bathrooms with soaking tubs and large walk-in showers. Additional split bedrooms throughout ensure comfort and privacy for all residents.
Enhancing the home’s luxurious appeal, an integrated elevator provides seamless access across both levels, while an upstairs loft offers a versatile space for relaxation or recreation. The spacious three-car garage also provides ample room for storage or a dedicated workshop area.
Embrace the coastal lifestyle with an expansive 872 sq. ft. covered patio, perfect for enjoying morning coffee or evening cocktails. This outdoor oasis is further enhanced by an integrated outdoor kitchen, ideal for al fresco dining and entertaining under the open sky.

What's Included

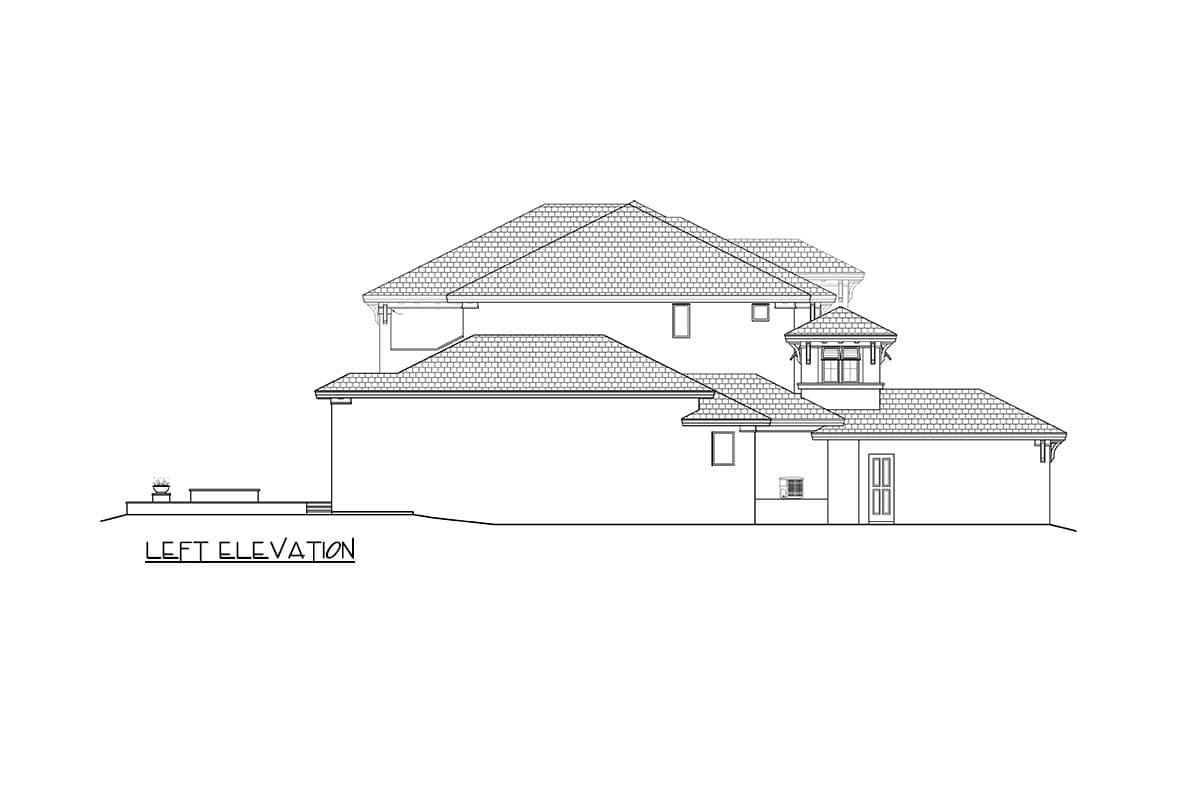

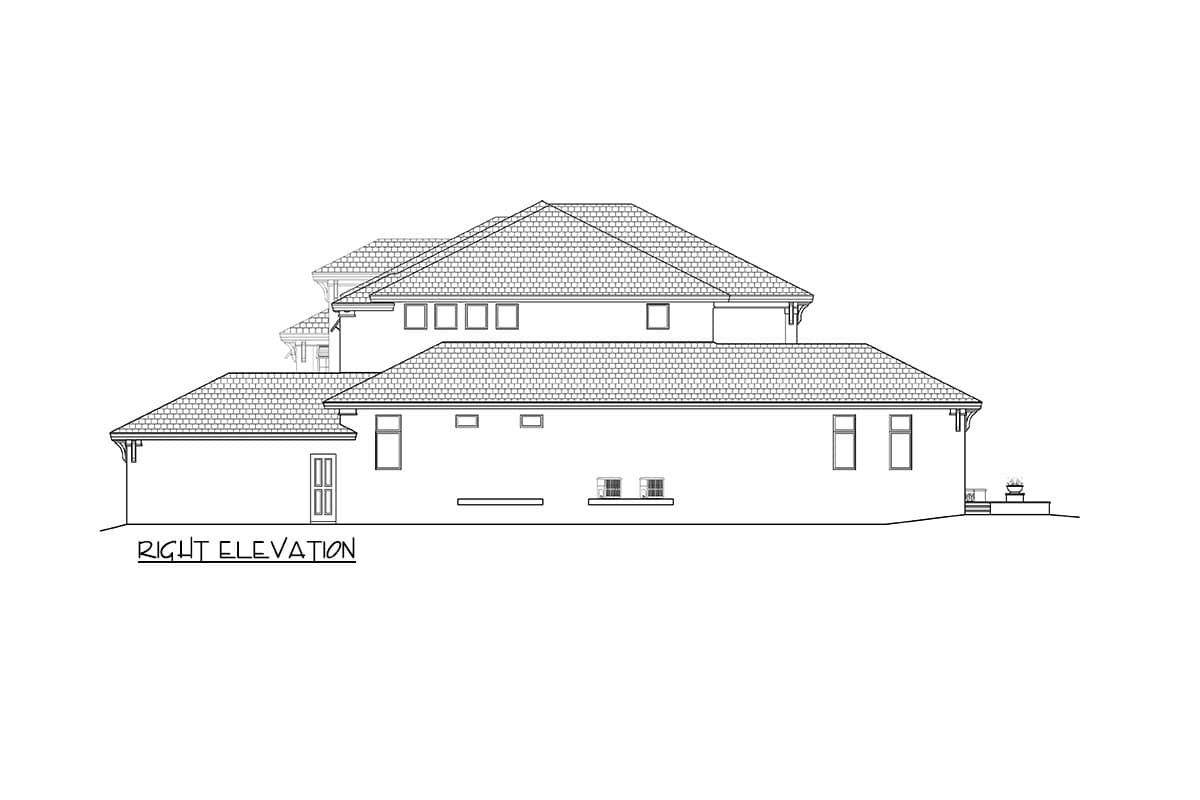

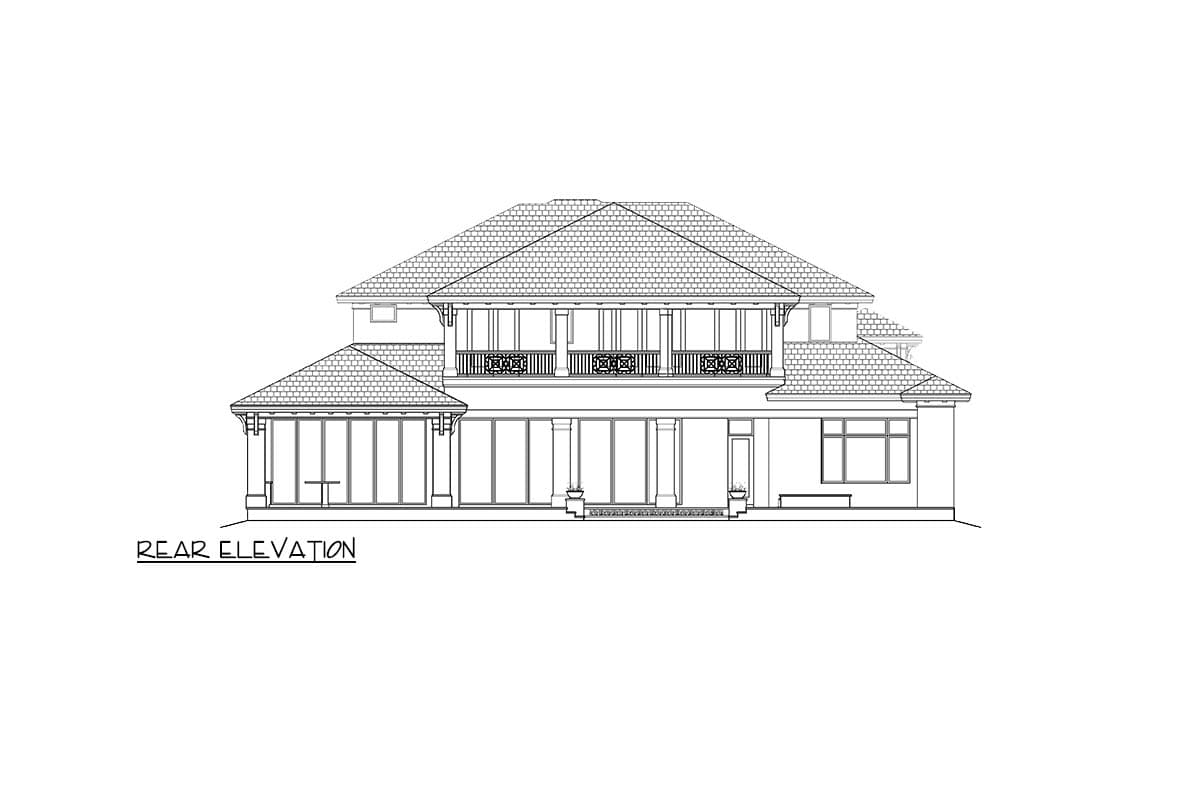

Elevations Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

*Slab Plan Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Rough-in Plumbing Location (if applicable)
Mechanical Equipment Locations (if applicable)
Electrical Locations (if applicable)

Roof Design Plan Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

*We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
