Plan 65792BS

Coastal Contemporary House Plan with Four Bedrooms and Drive Under Garage

Name: Plan 65792BS: Coastal Contemporary House Plan with Four Bedrooms and Drive Under Garage
Brand: Architectural Designs
SKU: 65792BS
Price: 2791.0 USD
Availability: InStock

Heated S.F.

2,791

Beds

Baths

Stories

Cars

Floor Plan

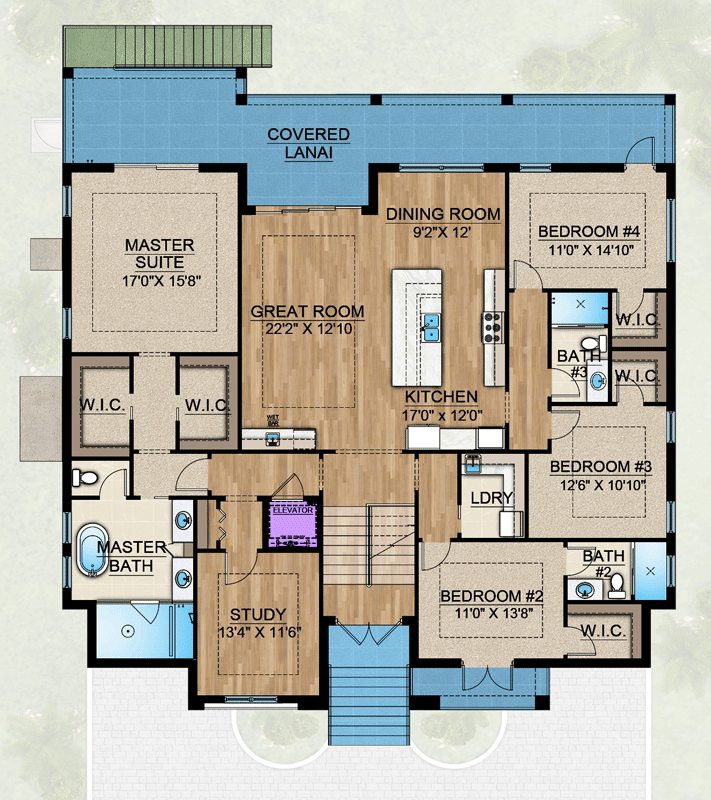

2nd Level

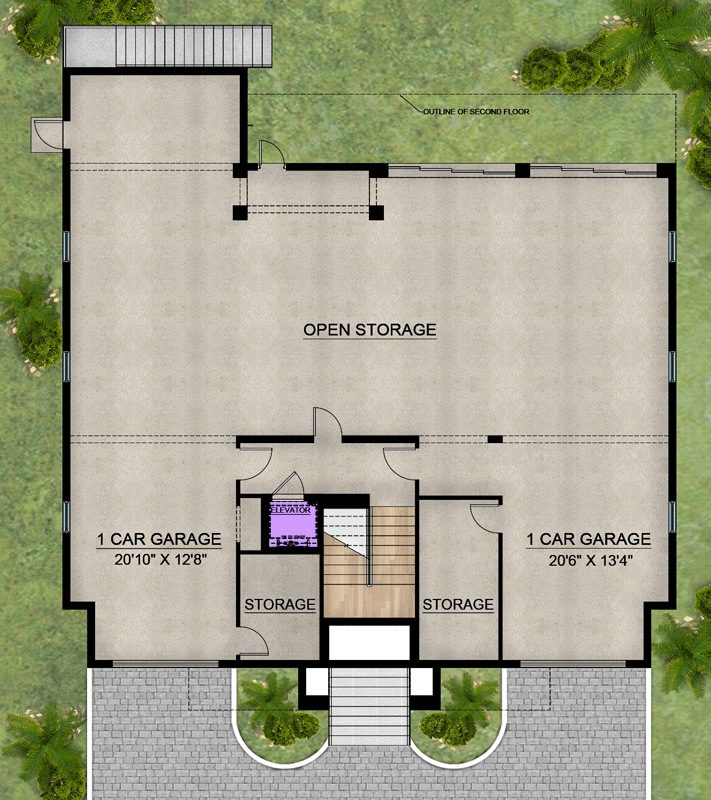

Main Level

Plan Details

This stunning 2,791 square foot coastal contemporary home features four bedrooms, three full bathrooms, and a spacious two-car drive under garage.
Ascend the front entry stairs to discover a thoughtfully designed layout that emphasizes vertical living and elegant architectural detail.
The main floor serves as the heart of the home, offering seamless transitions between common areas and providing access to a generous 464 square foot lanai for outdoor relaxation.
A dedicated library provides a quiet sanctuary for work or study, while the inclusion of an elevator ensures convenient accessibility across all levels.
The primary suite is positioned for optimal privacy and comfort, perfectly complemented by secondary bedrooms that offer ample space for family or guests.
An expansive 1,636 square foot storage area on the lower level provides exceptional utility for coastal living, keeping your living spaces clean and organized.

What's Included

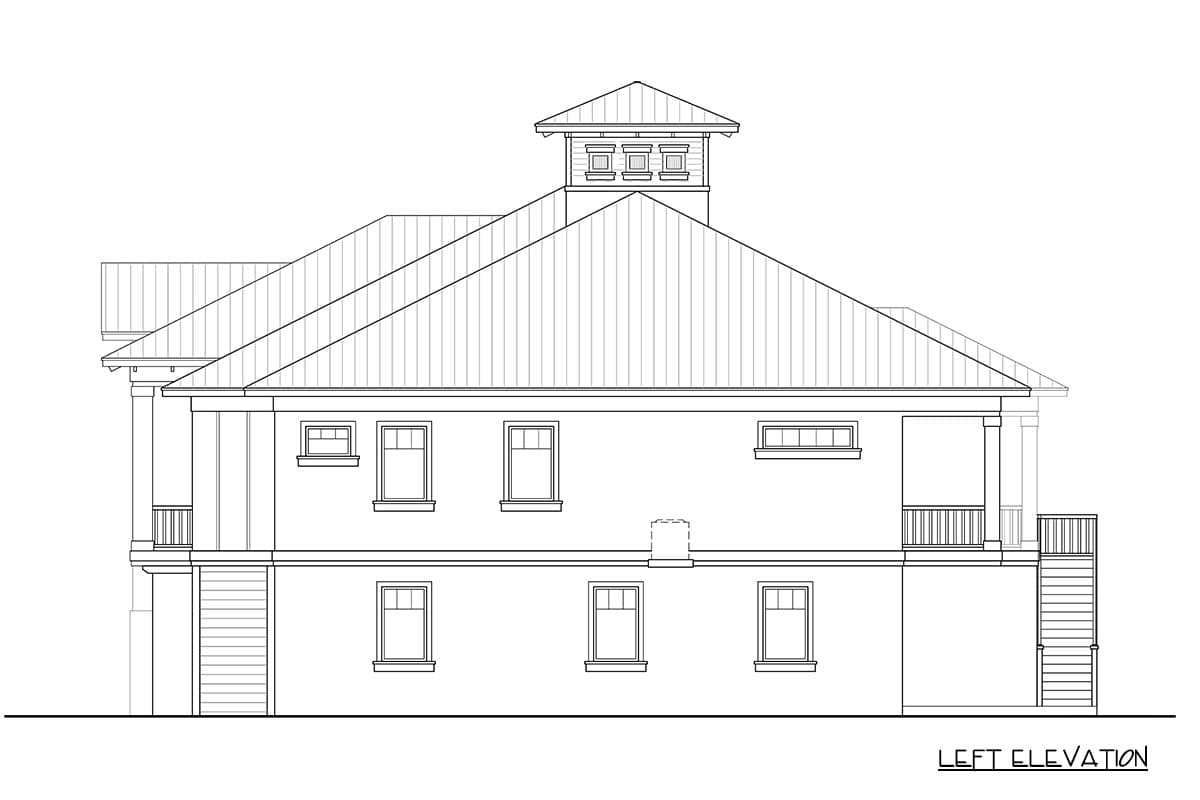

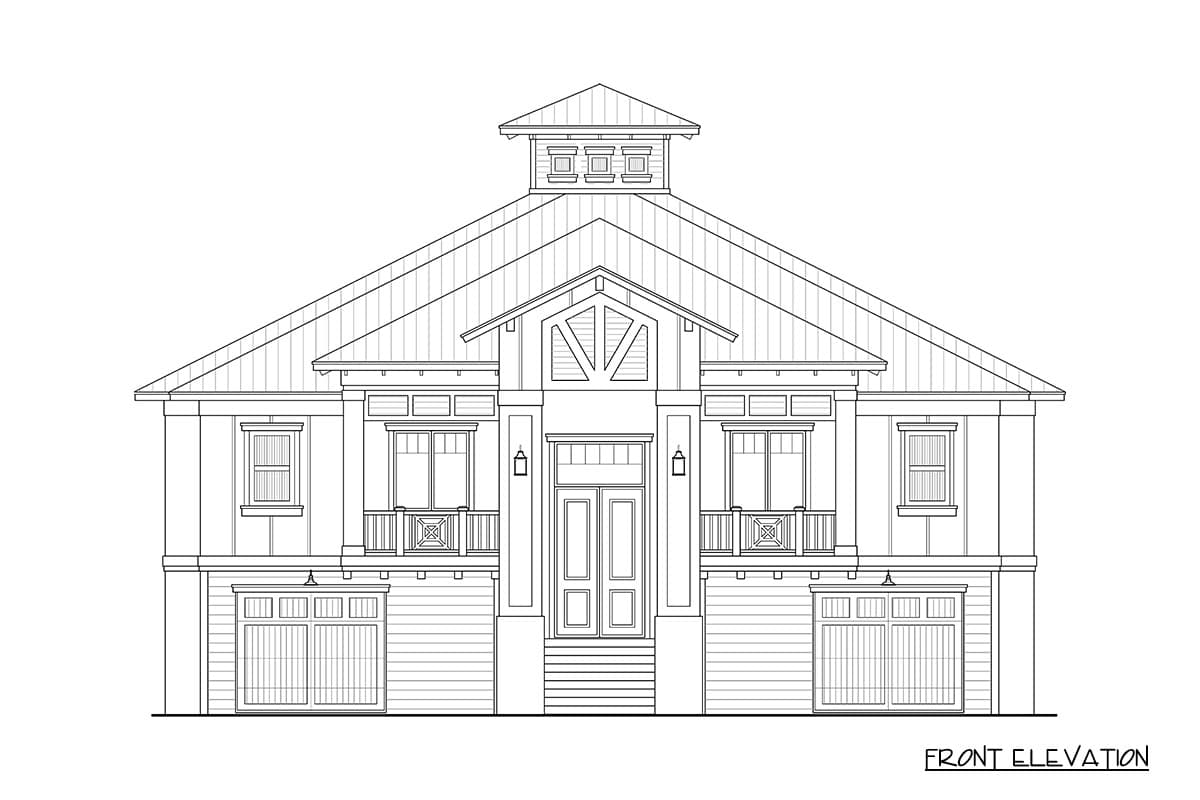

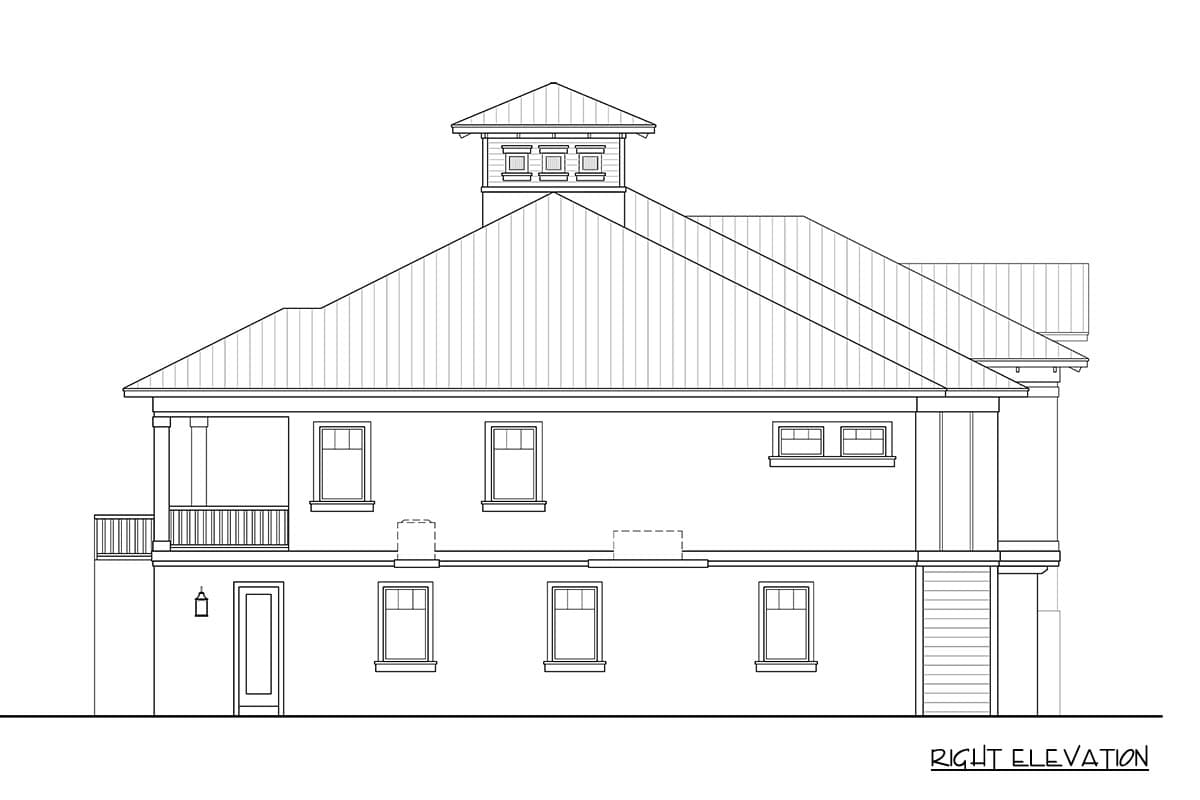

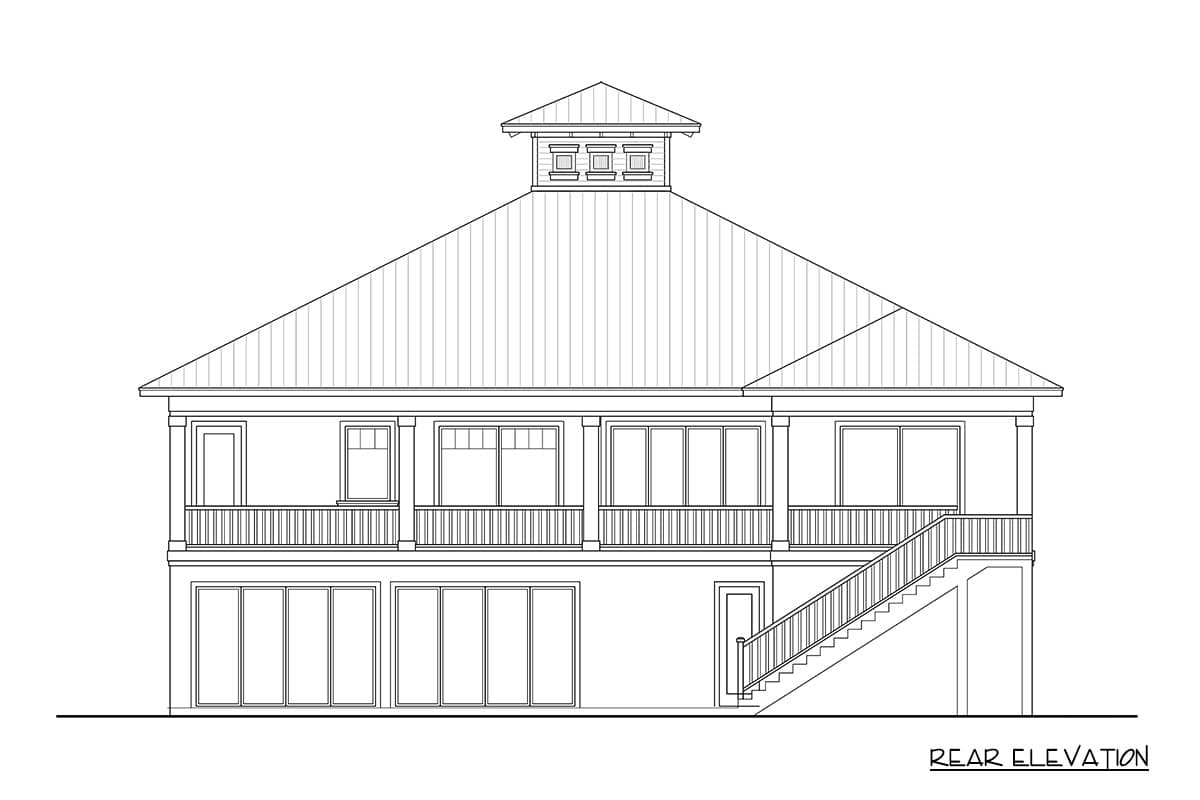

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
