Plan 65838BS

Coastal Contemporary House Plan with Four Bedrooms and Three-Car Garage

Name: Plan 65838BS: Coastal Contemporary House Plan with Four Bedrooms and Three-Car Garage
Brand: Architectural Designs
SKU: 65838BS
Price: 3752.0 USD
Availability: InStock

Heated S.F.

3,752

Beds

Baths

4.5+

Stories

Cars

Floor Plan

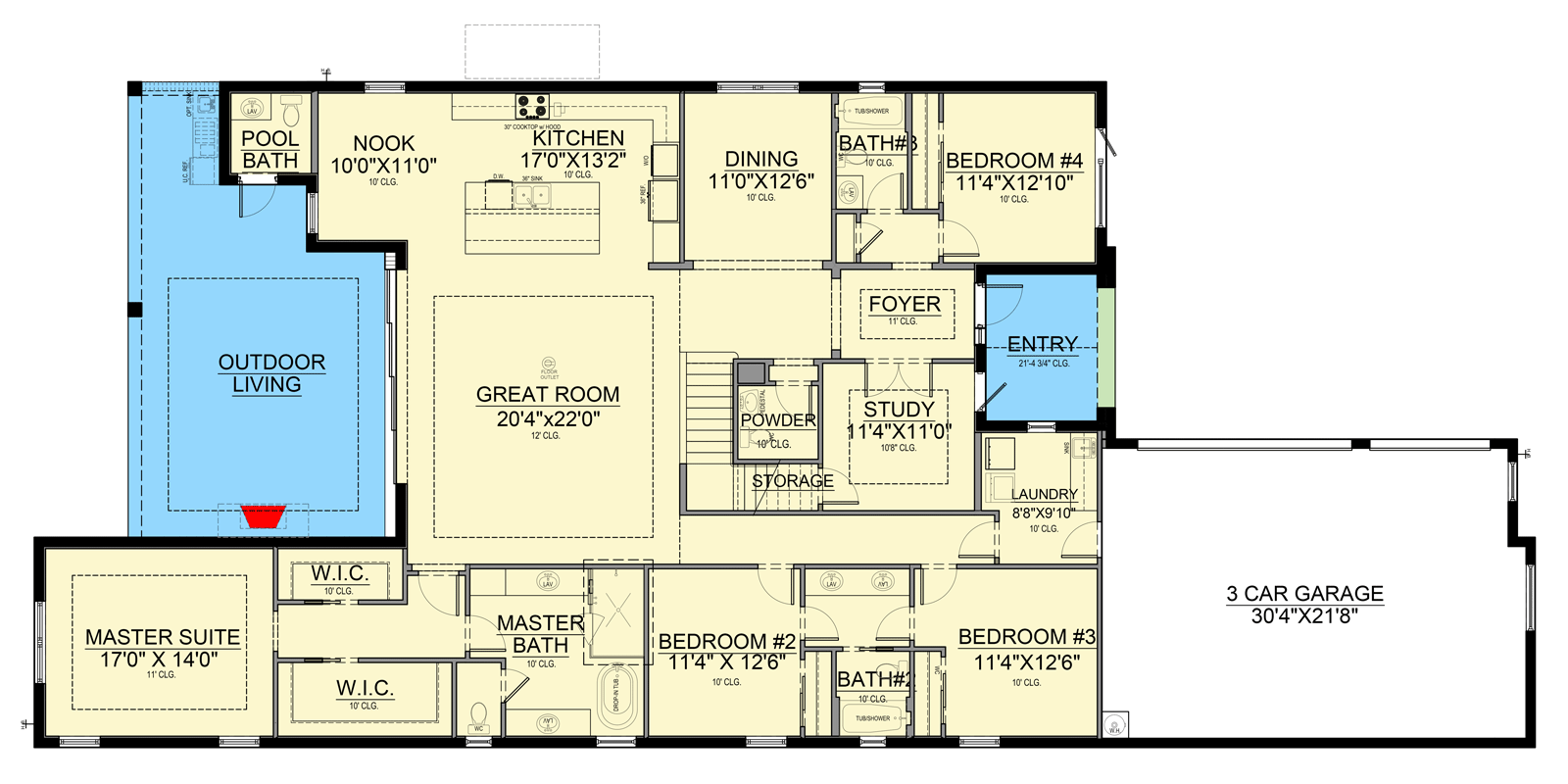

Main Level

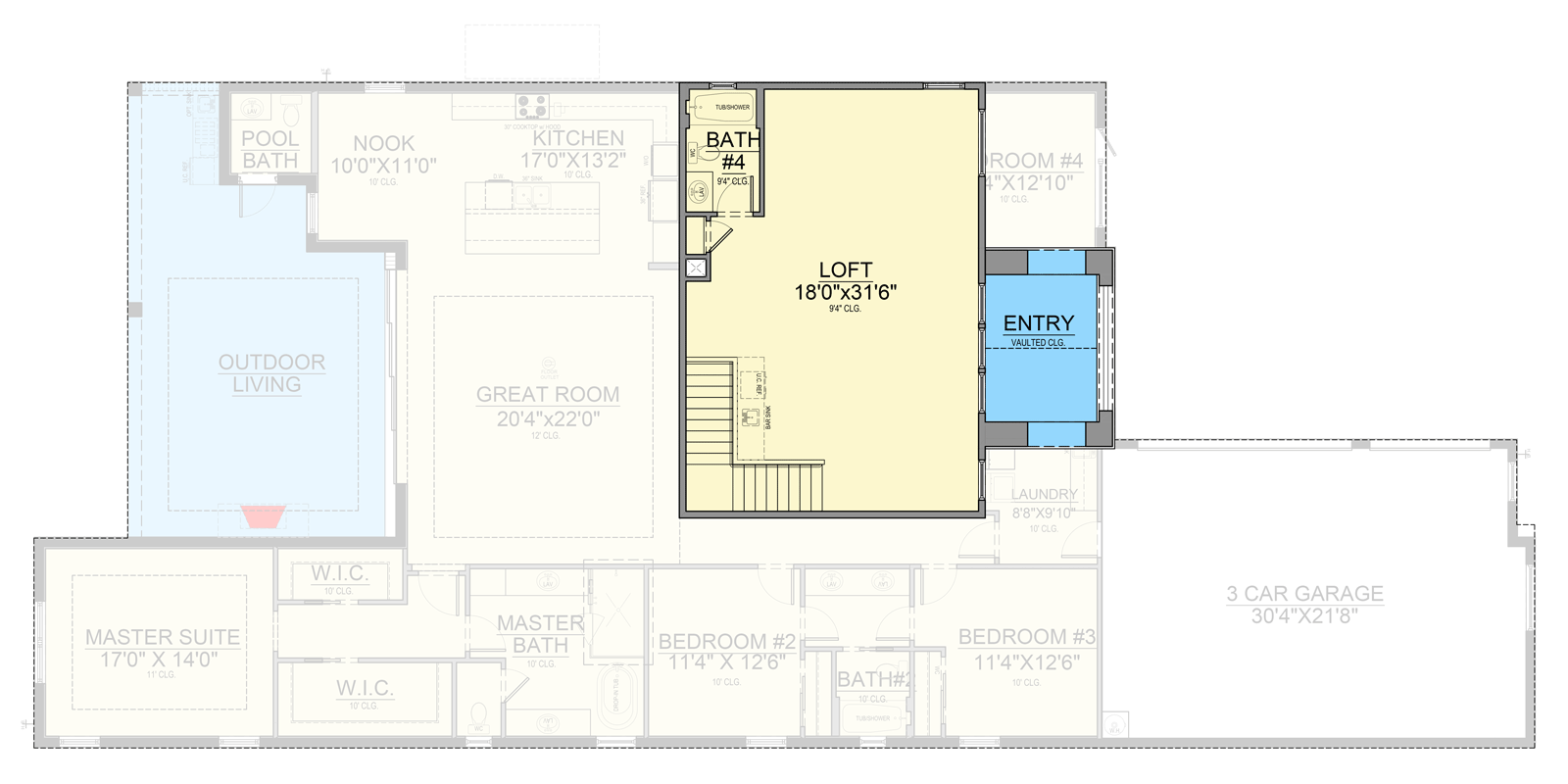

2nd Level

Plan Details

Spanning 3,752 finished square feet, this coastal contemporary home offers four bedrooms, four full baths, two half baths, and a three-car garage.
The striking exterior features clean lines and a welcoming front courtyard entry that leads into a sophisticated open-concept interior.
The main living area is designed for seamless flow, anchored by a gourmet kitchen, a sun-drenched breakfast nook, and a formal dining room perfect for gatherings.
A private first-floor master suite provides a tranquil retreat, while the remaining bedrooms are thoughtfully clustered to ensure comfort and privacy for family and guests.
Additional highlights include a dedicated library for quiet study, a versatile loft space, and an integrated wet bar for effortless hosting.
Step outside to enjoy the expansive outdoor living area, complete with an outdoor kitchen and fireplace, ideal for year-round alfresco dining and relaxation.

What's Included

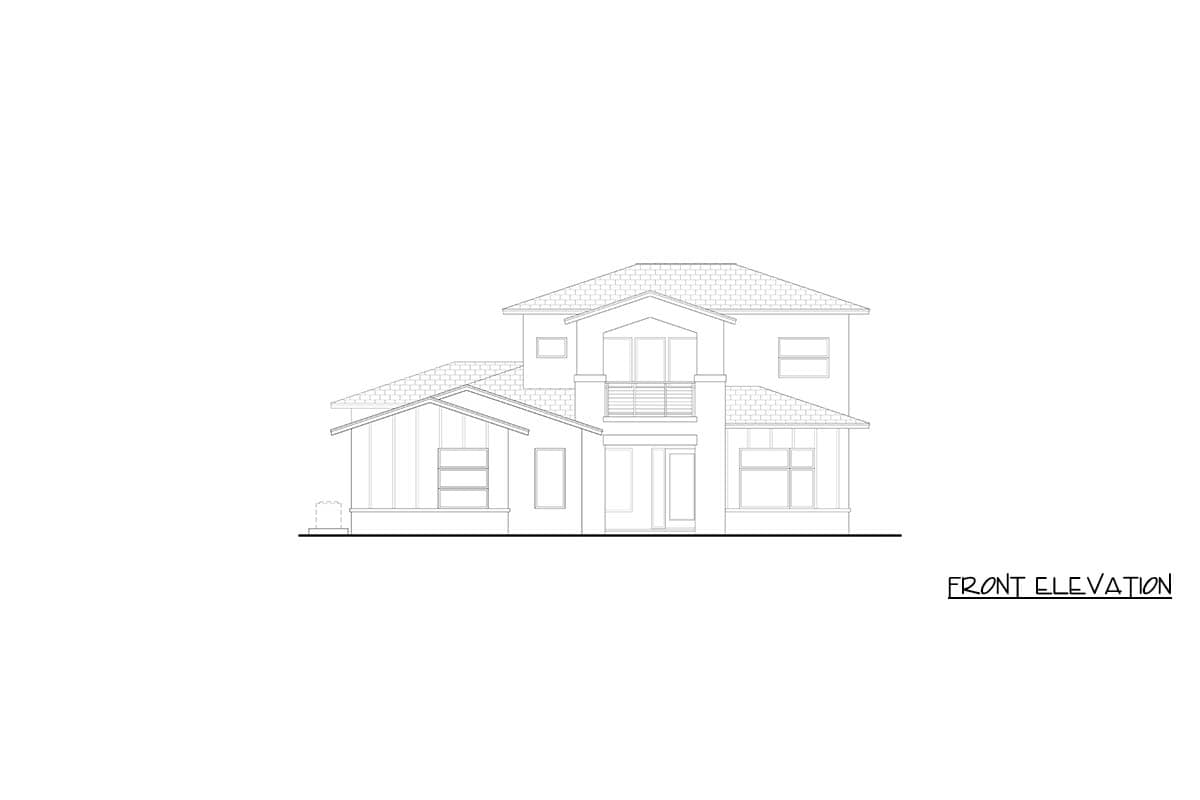

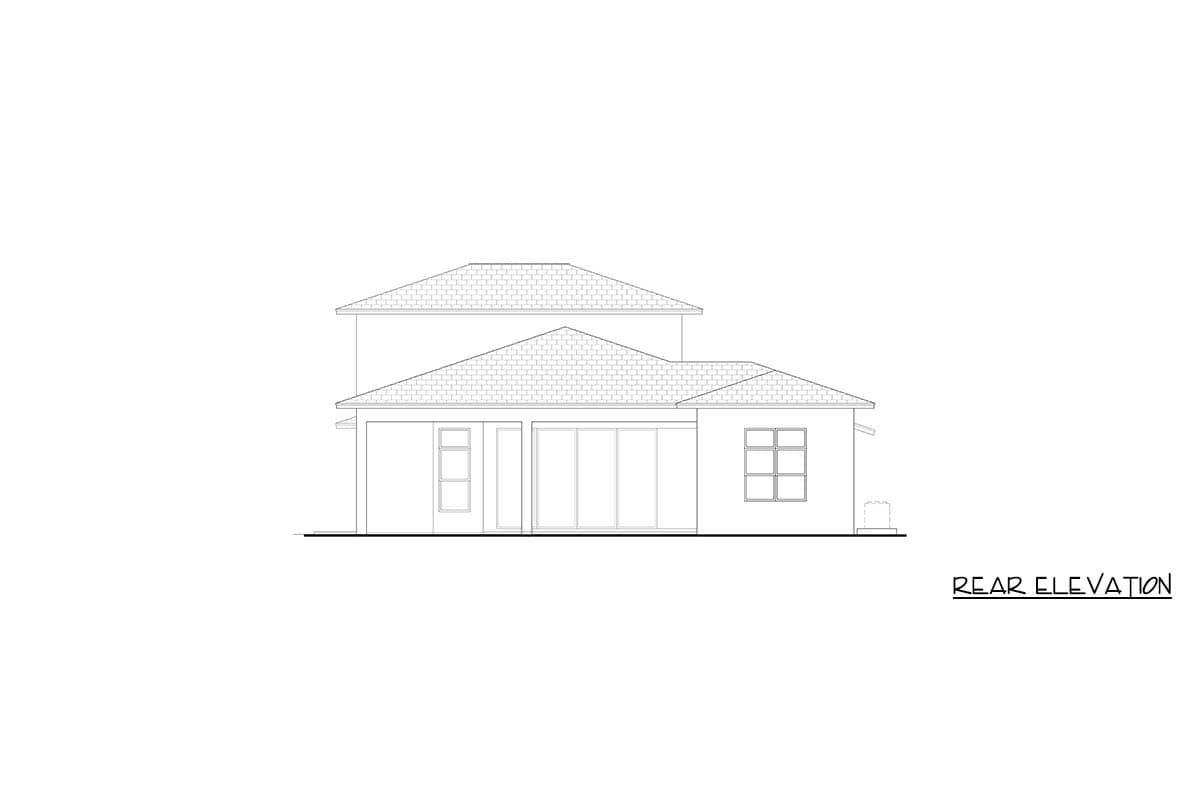

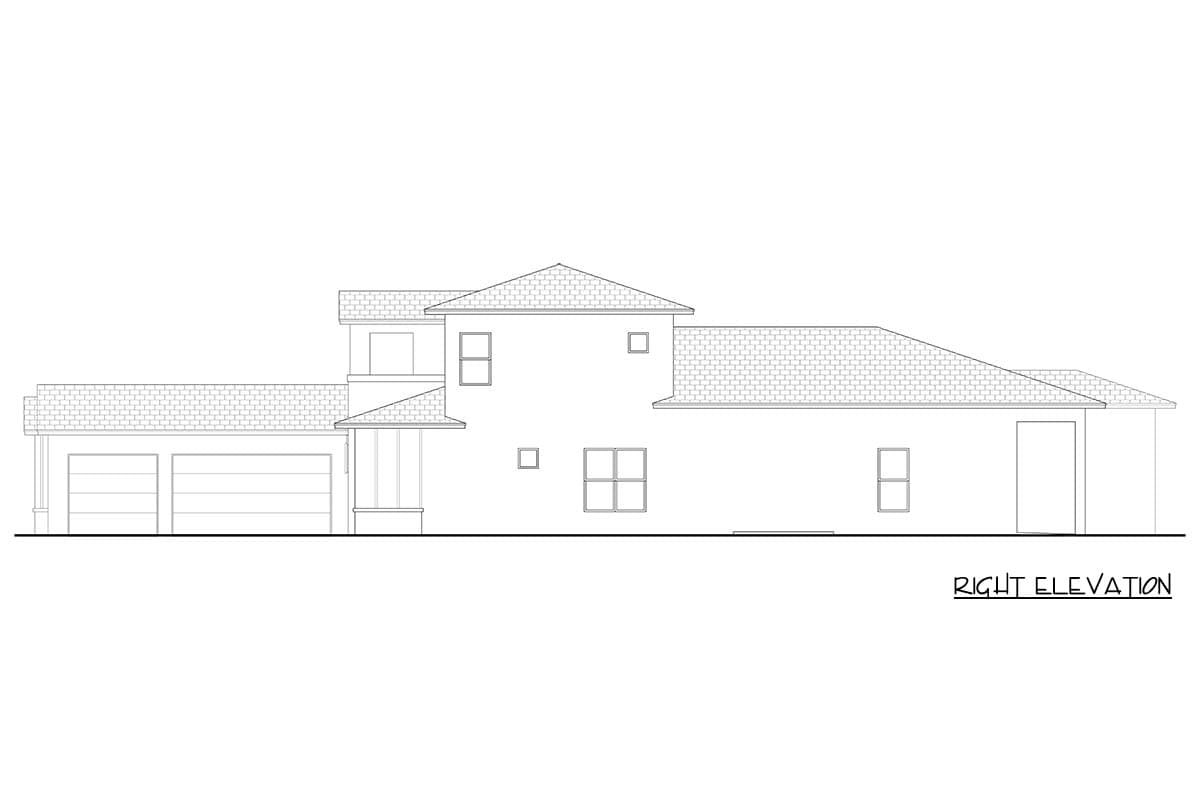

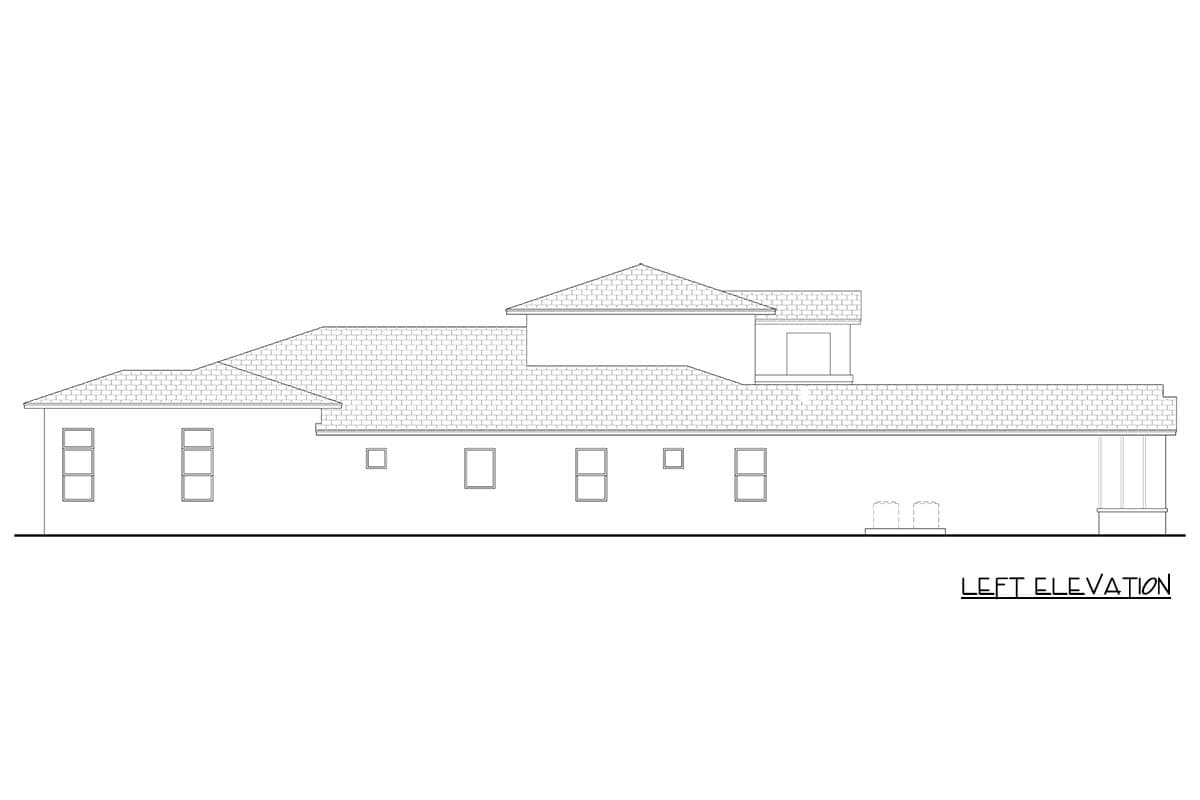

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
