Coastal Contemporary House Plan with Large Covered Lanai and Exercise Room - 4211 Sq Ft

Name: Plan 65729BS: Coastal Contemporary House Plan with Large Covered Lanai and Exercise Room - 4211 Sq Ft
Brand: Architectural Designs
SKU: 65729BS
Price: 3042.45 USD
Availability: InStock

Heated S.F.

4,211

Beds

3 - 4

Baths

4.5

Stories

Cars

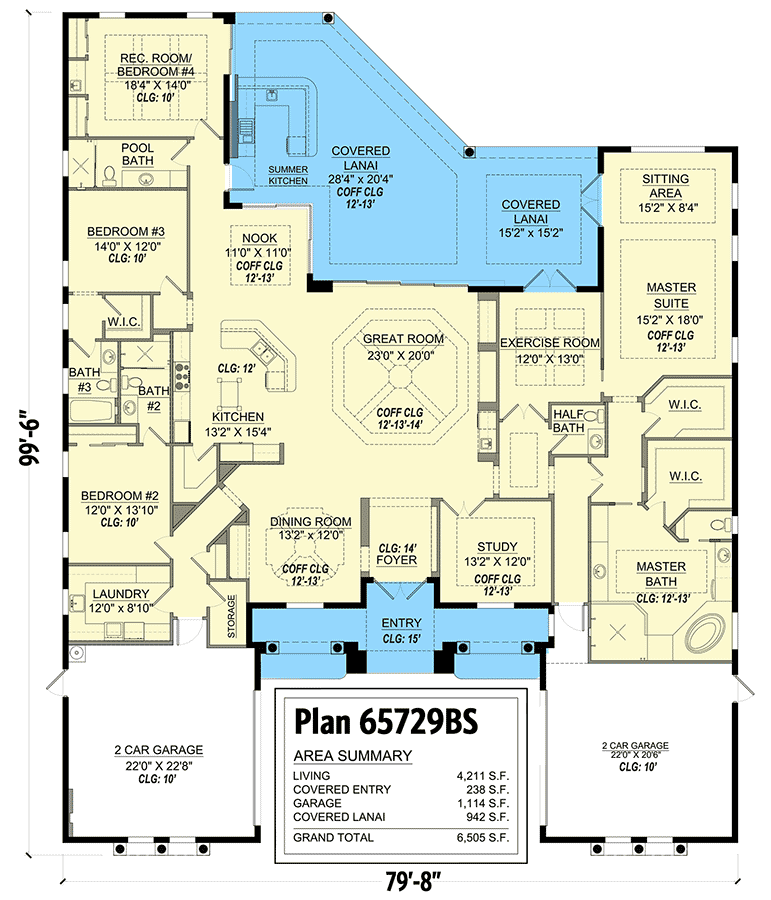

Floor Plan

Main Level

Plan Details

Arch details and columns decorate the exterior of this Florida home plan that delivers a 2-car garage on either side of the front elevation.
Coffered ceilings add an elegant touch throughout the design, which freely flows between the great room, kitchen, and generous covered lanai.
Host gatherings with ease in this gourmet kitchen with two islands and a walk-in pantry lending plenty of storage and workspace.
The right wing of the home serves as the homeowner's oasis, including the master suite, exercise room, and study.
Two bedroom suites are in line with the laundry room on the left side of the home, and a flexible recreation room tucked towards the rear offers access to the covered lanai.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

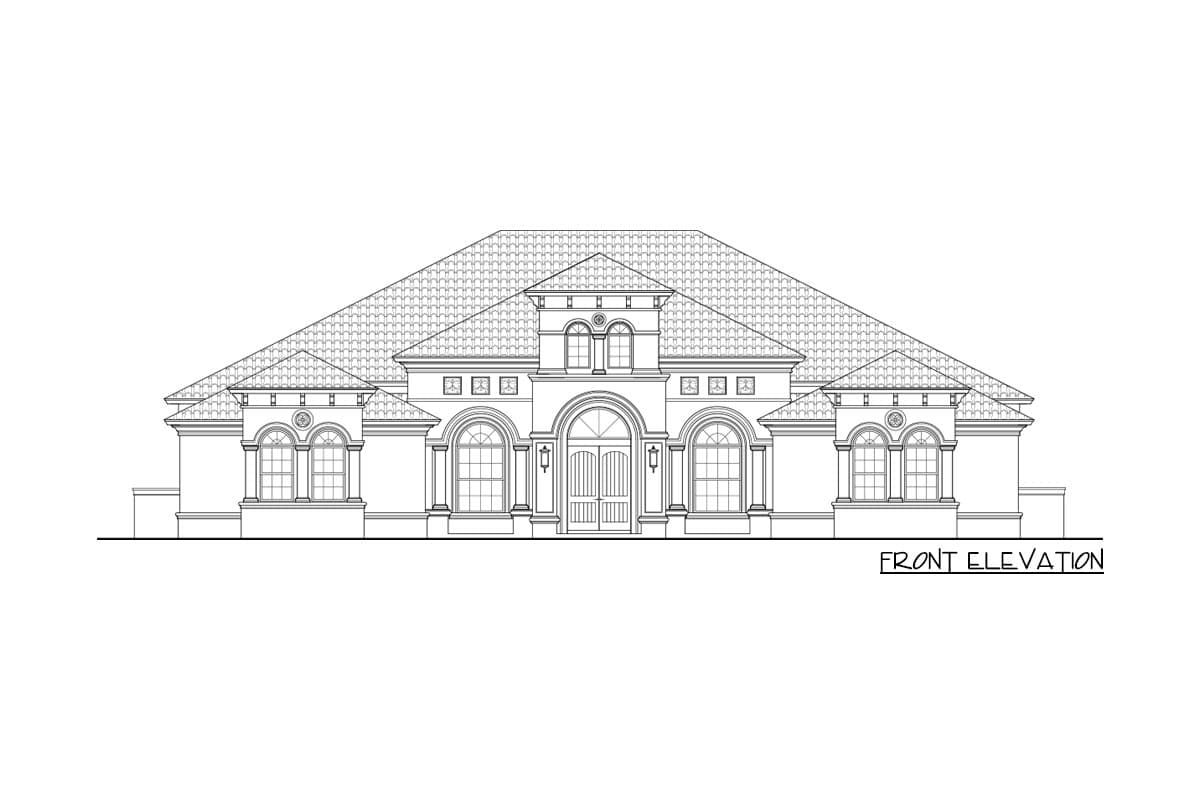

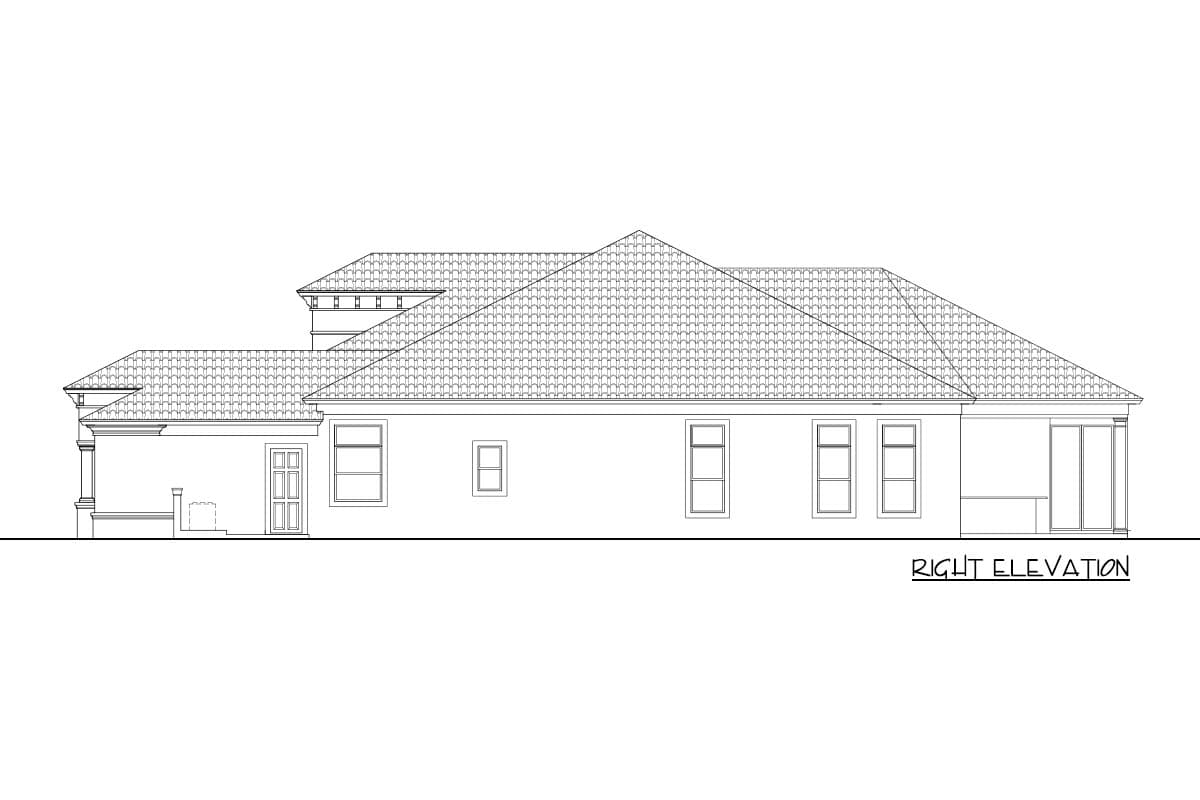

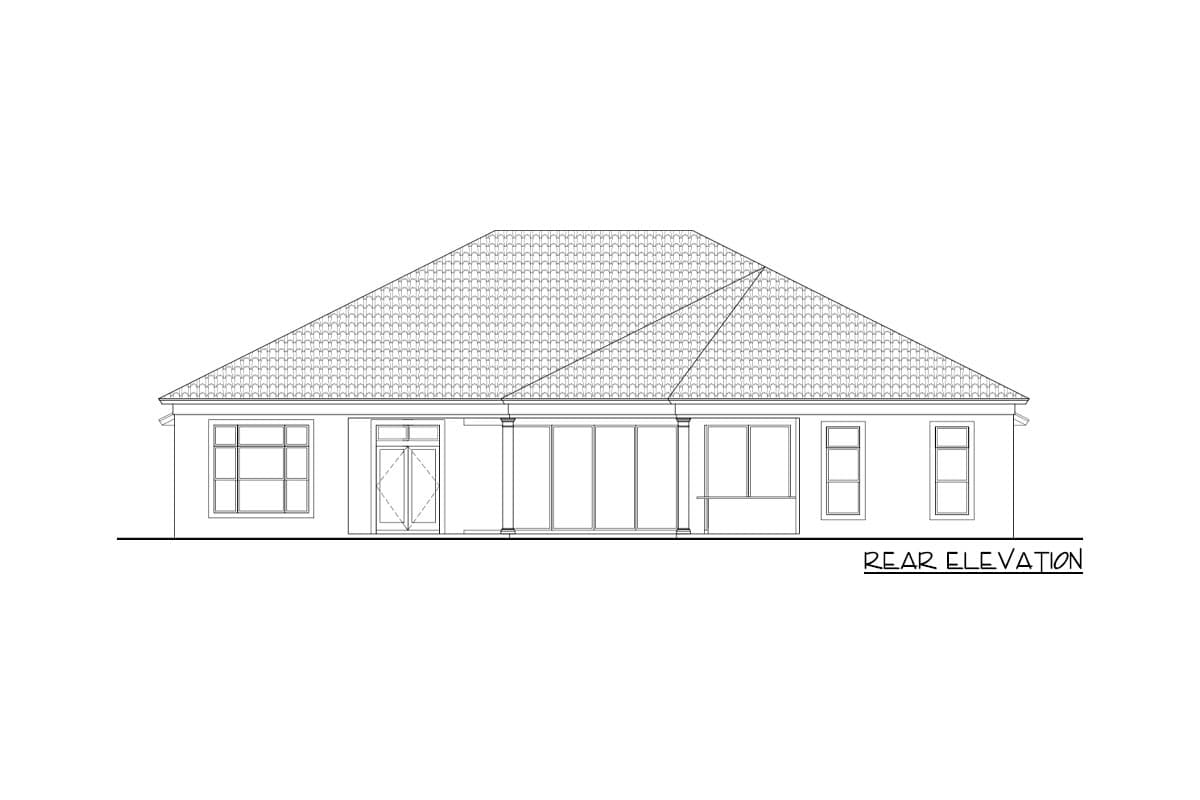

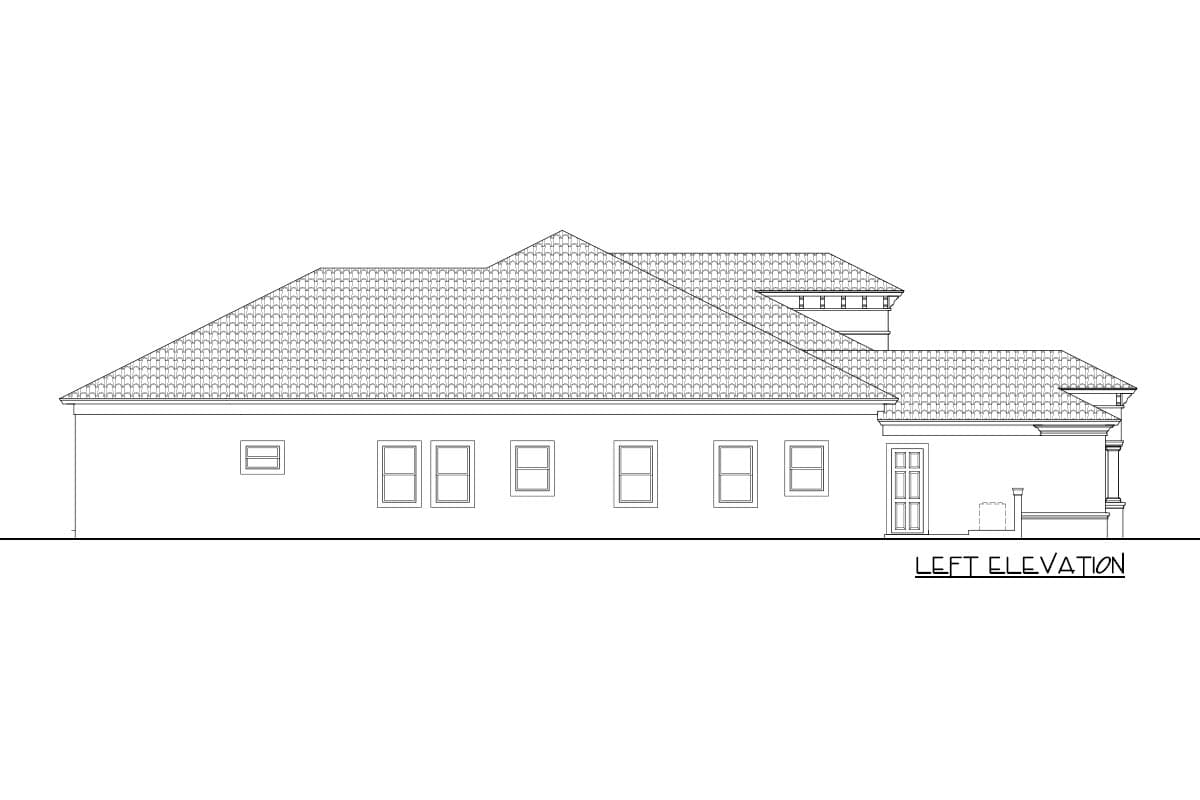

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
