Plan 65747BS

Coastal Contemporary House Plan with Large Outside Living Area - 4369 Sq Ft

Name: Plan 65747BS: Coastal Contemporary House Plan with Large Outside Living Area - 4369 Sq Ft
Brand: Architectural Designs
SKU: 65747BS
Price: 4369.0 USD
Availability: InStock

Heated S.F.

4,369

Beds

3 - 4

Baths

4.5

Stories

Cars

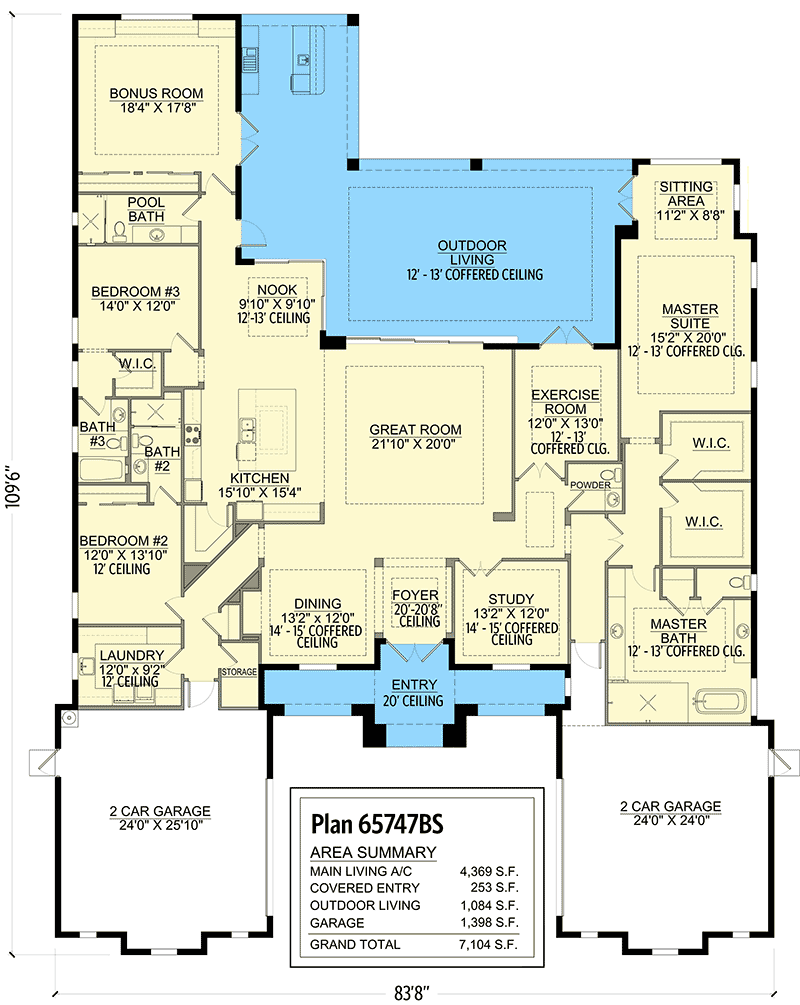

Floor Plan

Main Level

Plan Details

A double garage extends from either side of this coastal contemporary house plan, creating a parking courtyard between the four garage bays.
In the center of the design, you will find a spacious great room, filled with natural light, while staying connected to the covered lanai through the retractable rear wall. The outdoor living space is made for entertaining with its fireplace and built-in summer kitchen.
A massive island anchors the main kitchen and provides seating for casual meals, or dine in the formal dining room just off the foyer. A quiet study is located to the left of the foyer.
Pass an exercise room on your way to the master suite, which boasts a sitting area that opens to the back porch, as well as two large closets and a 5-fixture bathroom.
Two secondary bedroom suites line the left side of the layout, and the whole family will enjoy the generous bonus room - factored into the total living area - or use it as a fourth bedroom.
Related Plan: Get an alternate exterior with house plan 65633BS.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

What's Included

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
