Plan 871033JEN
Coastal Contemporary House Plan with Two Flex Rooms - 4306 Sq Ft
Heated S.F.
4,306
Beds
3
Baths
3.5
Stories
2
Cars
2
Plan Details
    • Designed for maximizing views, this beach-style plan has a reverse-living layout. Main living spaces include: Great Room, Dining and Kitchen, and the Primary Bedroom Suite all on the Second Floor level. Entertaining spaces and guest bedrooms are located on the First Floor level.

    • The home is accessible on both levels with an Elevator and a spacious Primary Suite which features a private Laundry Room. It has the ability to provide up to 4 possible Bedrooms and 3.5 Bathrooms.

    • The main living spaces are all open to one another, providing expansive views in 3 directions, with a large sliding glass door expanding the living spaces out onto the Covered Porch.

    • There are two flex rooms, one being an Office/BR 2 on the Second Floor with a walk-up stairway to the attic. On the First Floor, an Exercise/Office/BR 4 option.

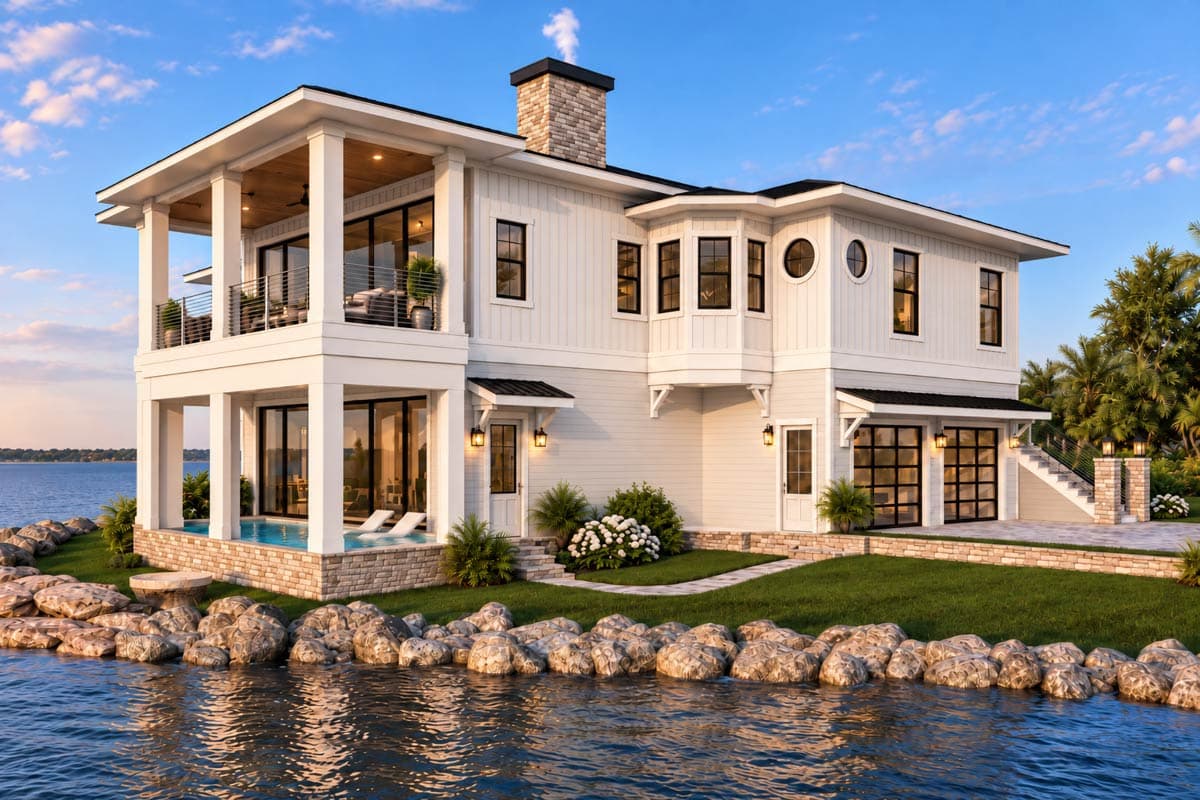

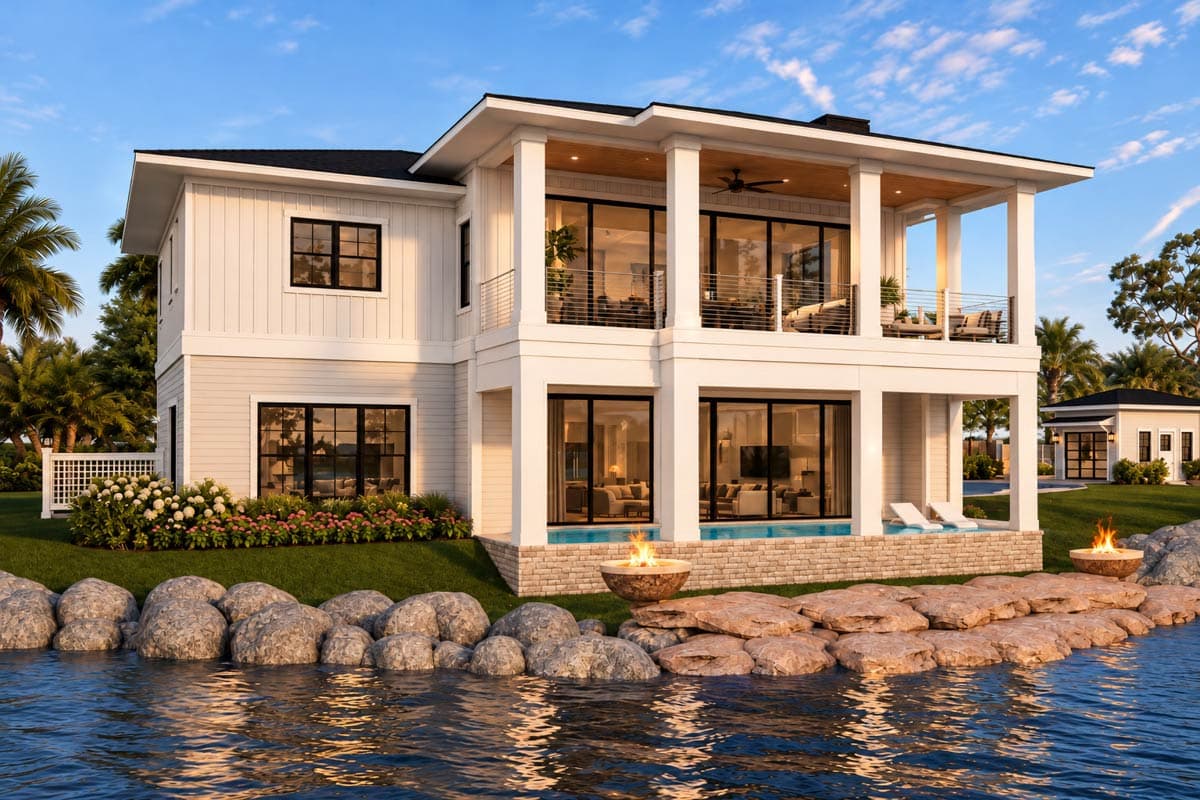

    • This home also features an attached swimming pool and hot tub under a Covered Porch on the First Floor level, for properties with a tight building envelope and no space for a regular pool. There is also the option of having the pool detached from the home, to provide another Covered Porch space available on the First Floor level.

    • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

What's Included
  • Foundation plan
  • Detailed floor plans
  • Roof plan

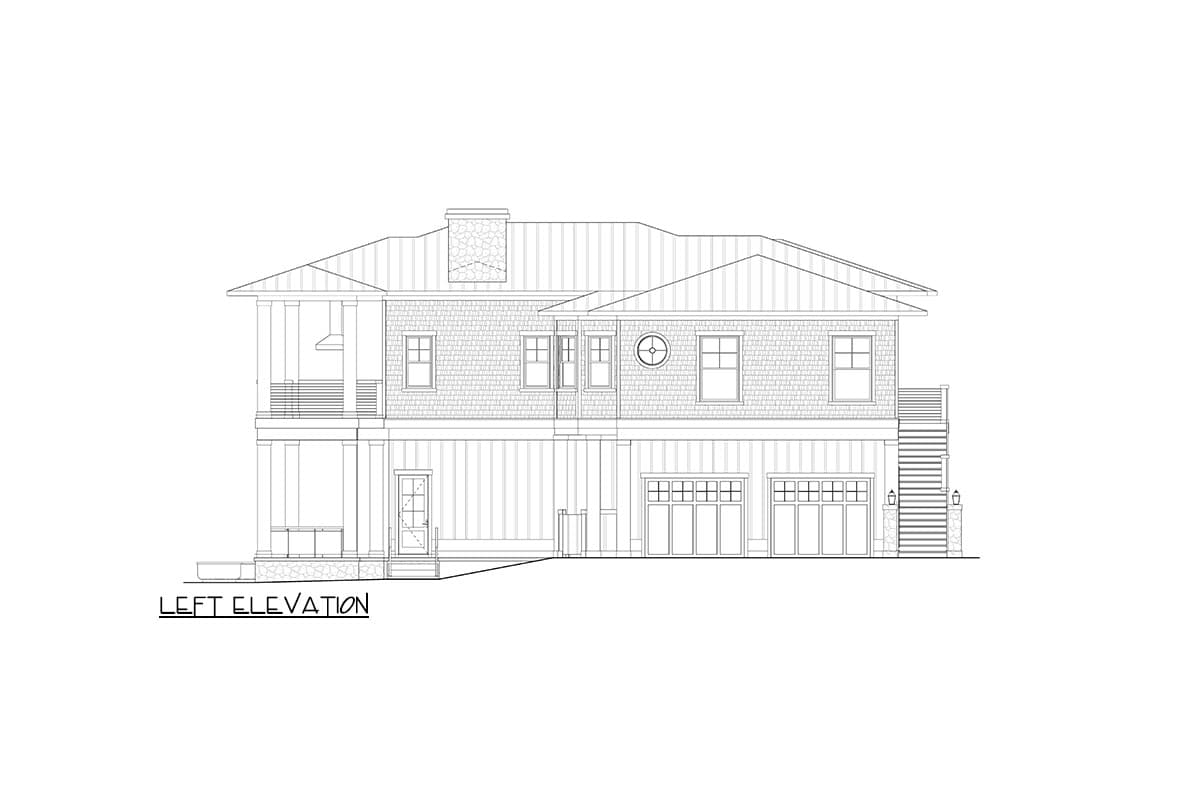

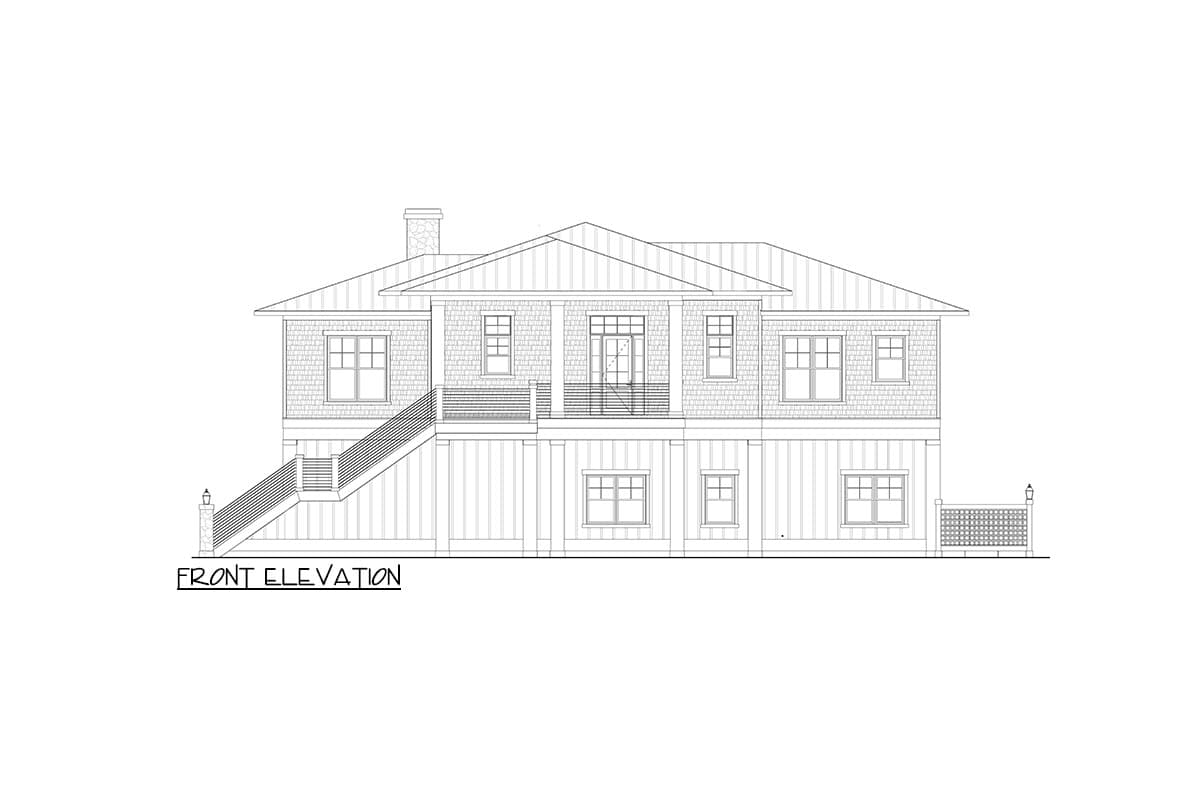

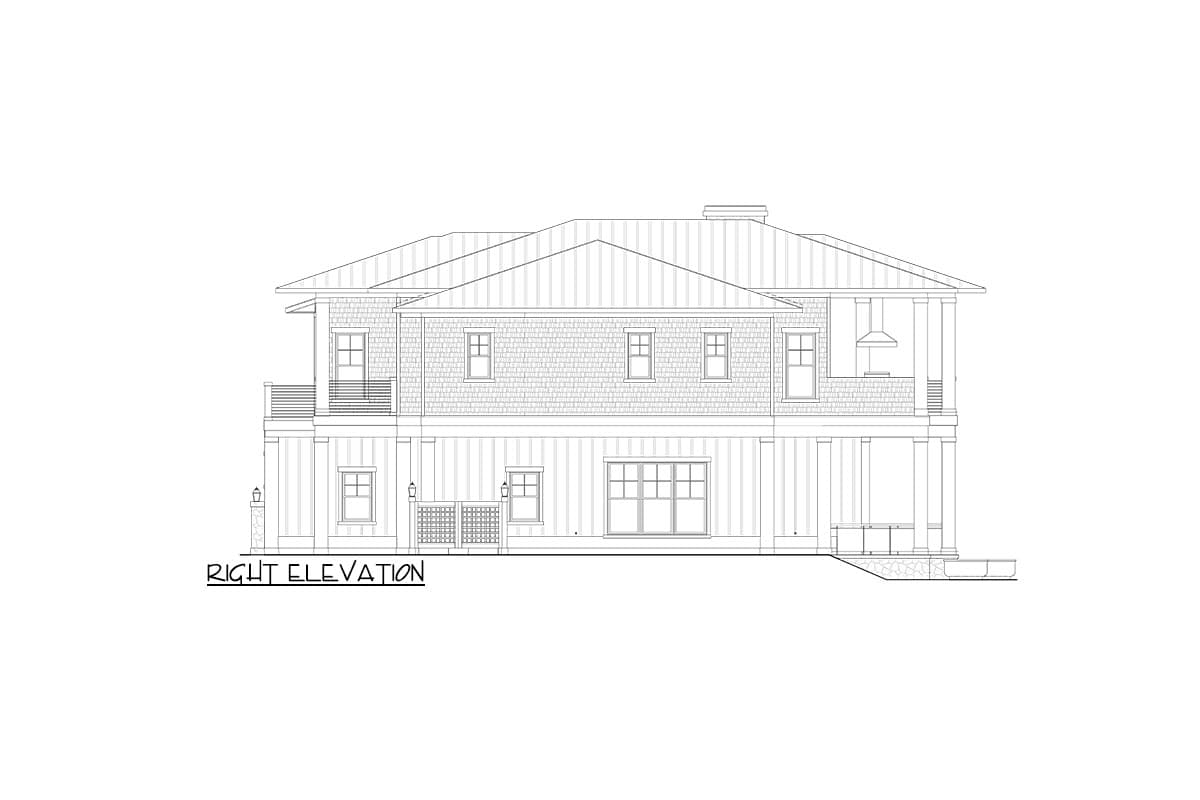

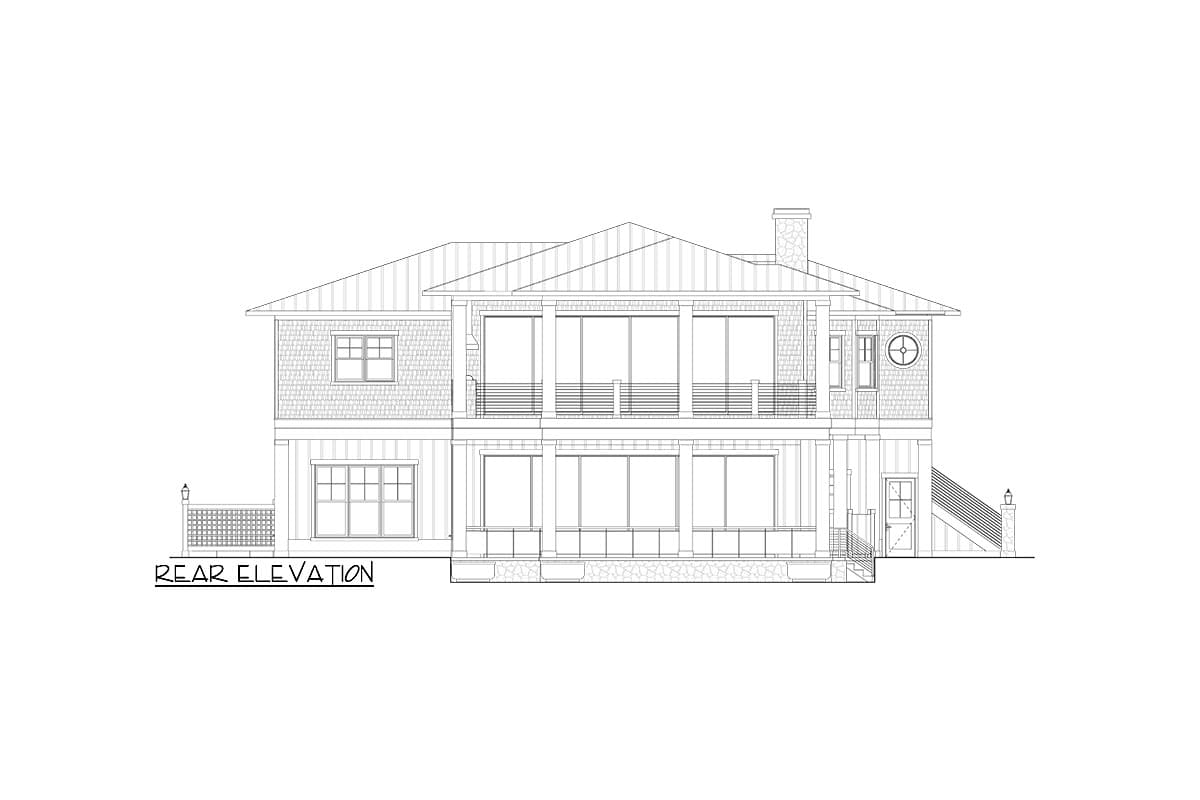

  • Elevations (all four sides)
  • Sections

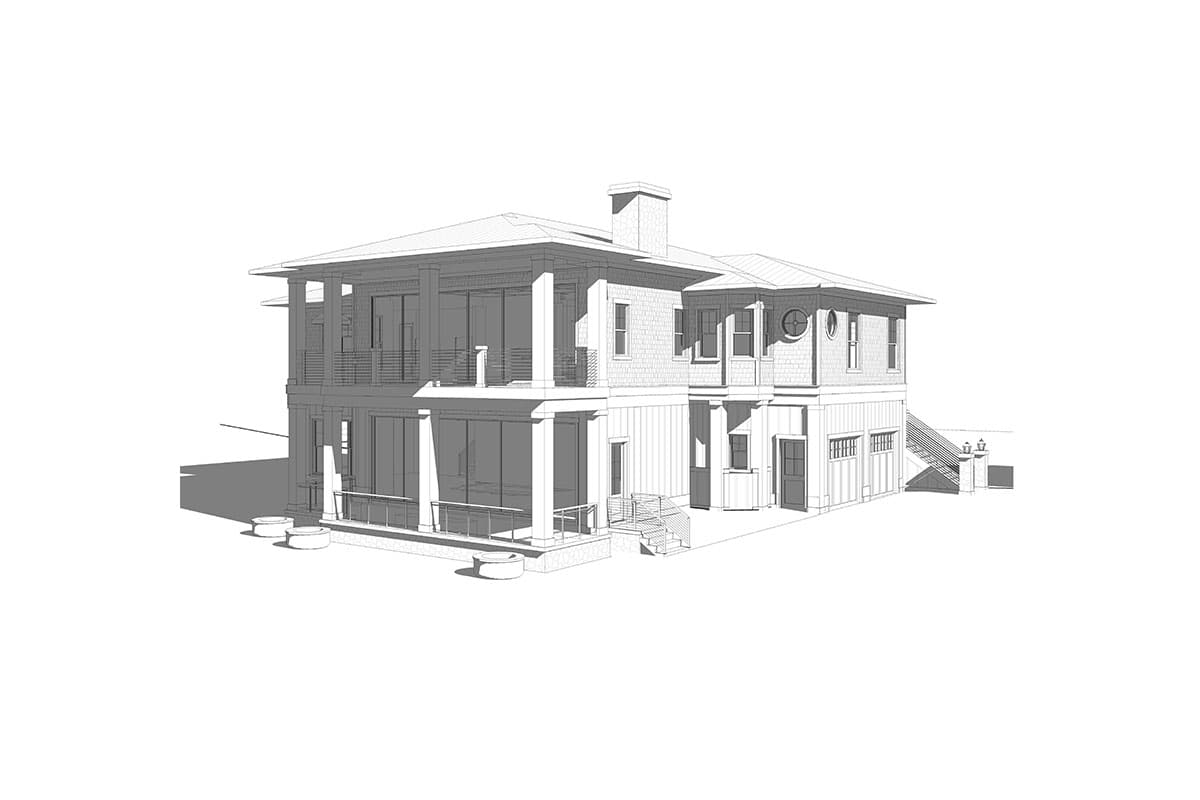

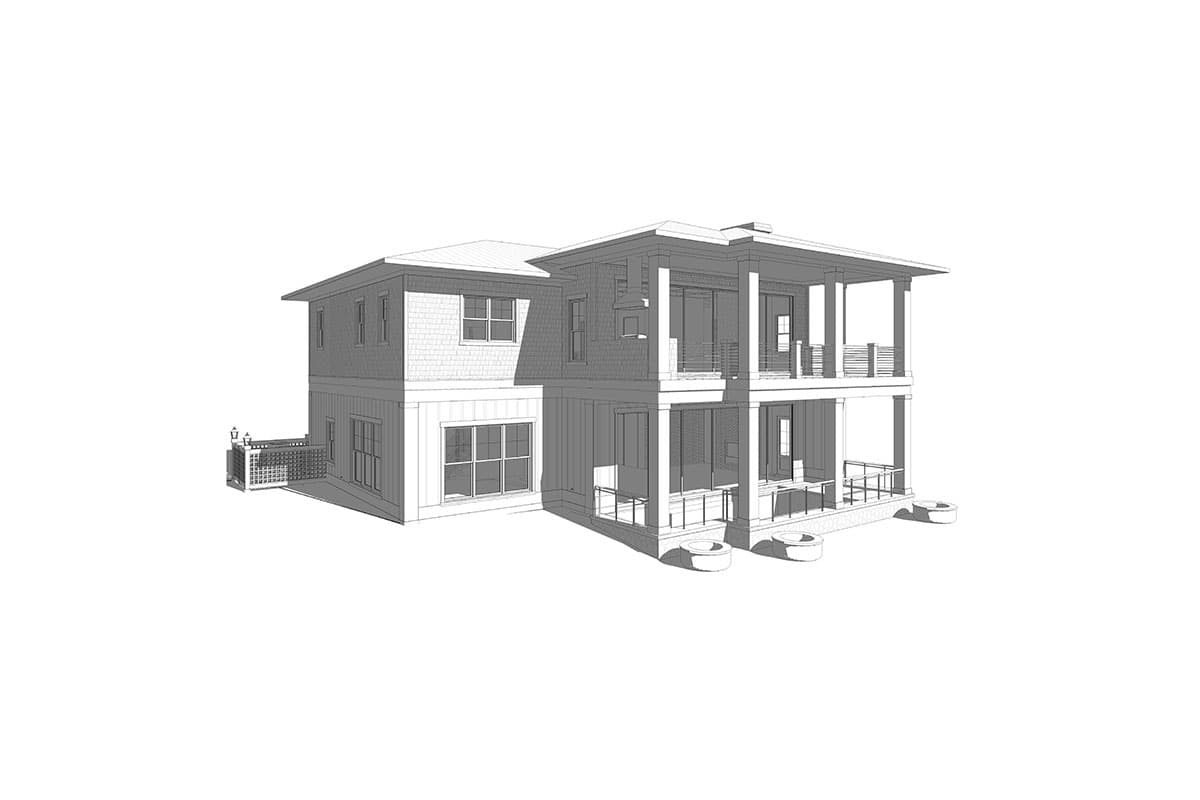

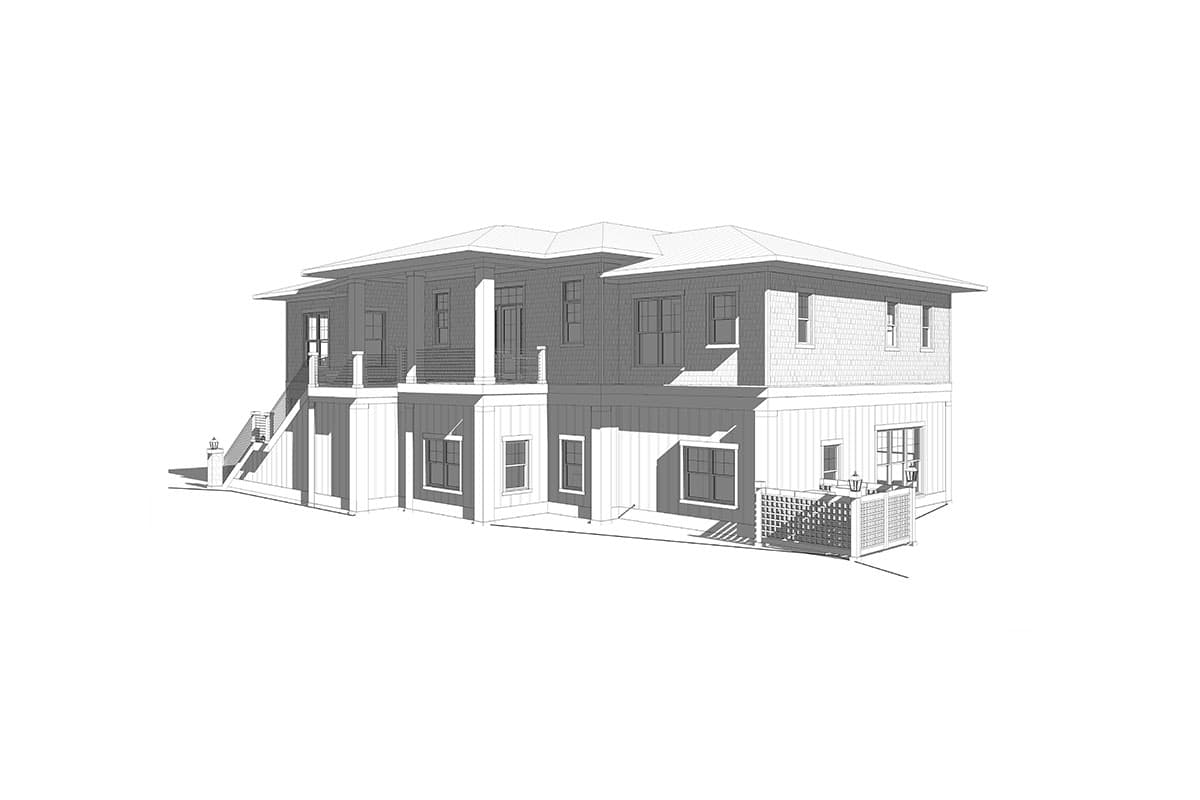

  • 3D model views
  • Electrical plans
  • Framing details
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Coastal Contemporary House Plan with Two Flex Rooms - 4306 Sq Ft

  • 4,306

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

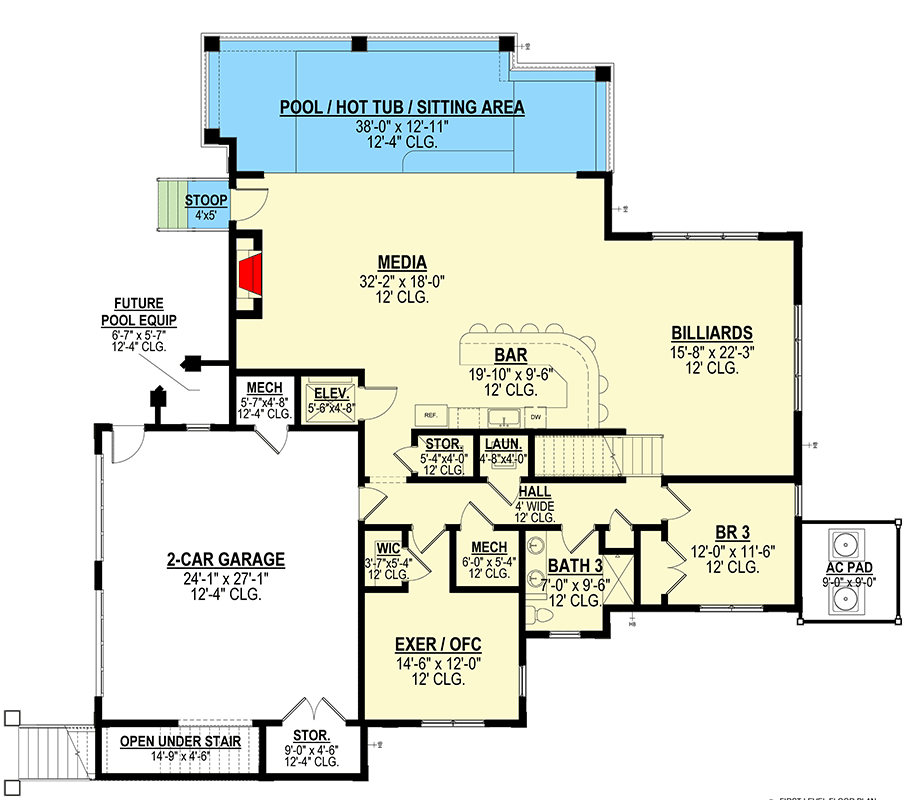

  • Main Level

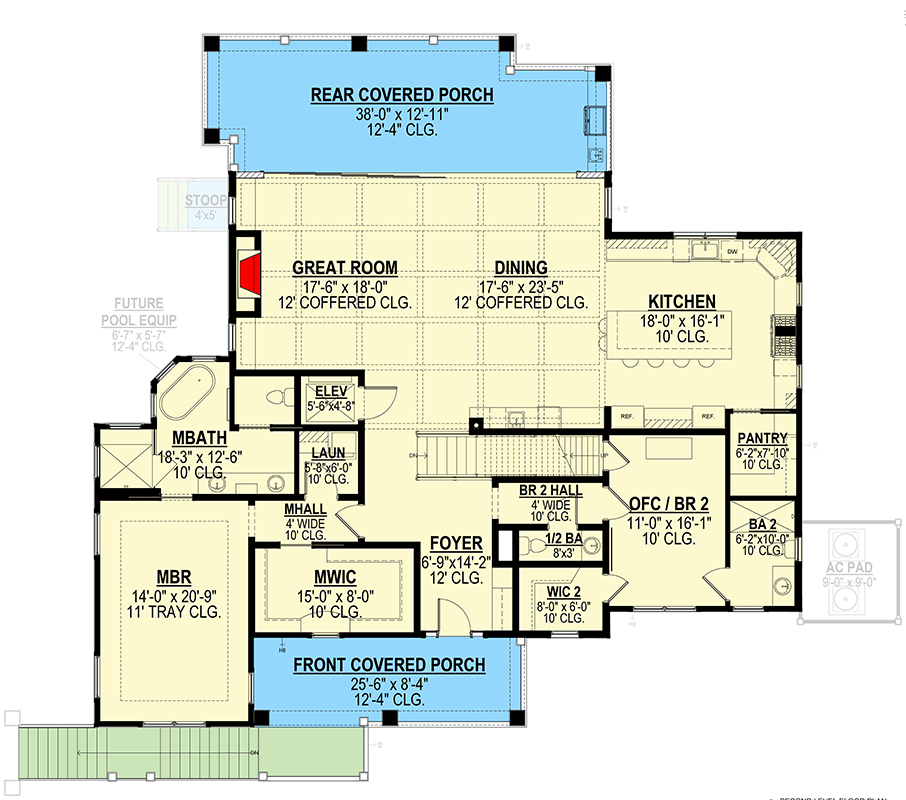

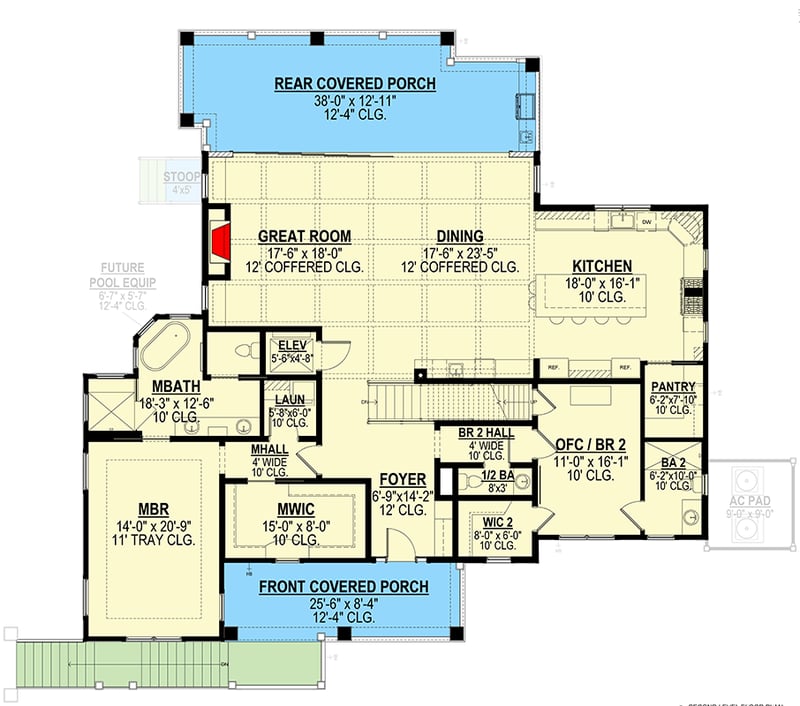

  • 2nd Floor

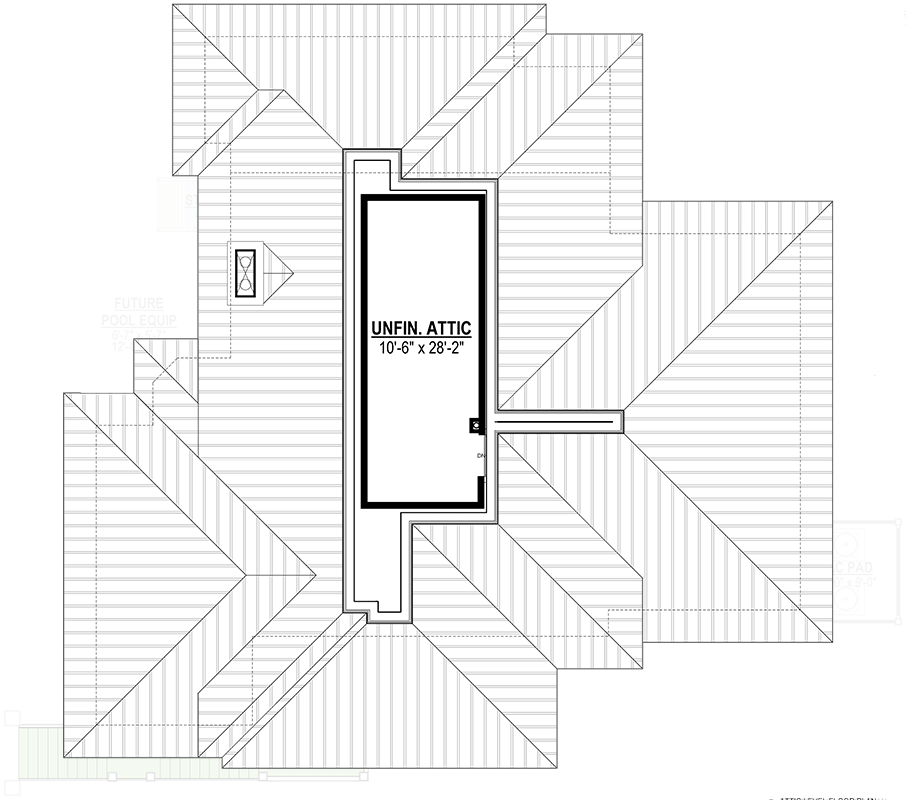

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,306 sq. ft.
  • 1st Floor: 1,811 sq. ft.
  • 2nd Floor: 2,495 sq. ft.

Dimensions

  • Width: 83' 3"
  • Depth: 70' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 977 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4 and 2x6
