Plan 65794BS

Coastal Florida Style House Plan with 5 Bedrooms and Elevator

Name: Plan 65794BS: Coastal Florida Style House Plan with 5 Bedrooms and Elevator
Brand: Architectural Designs
SKU: 65794BS
Price: 5456.0 USD
Availability: InStock

Heated S.F.

5,456

Beds

Baths

6.5+

Stories

Cars

Floor Plan

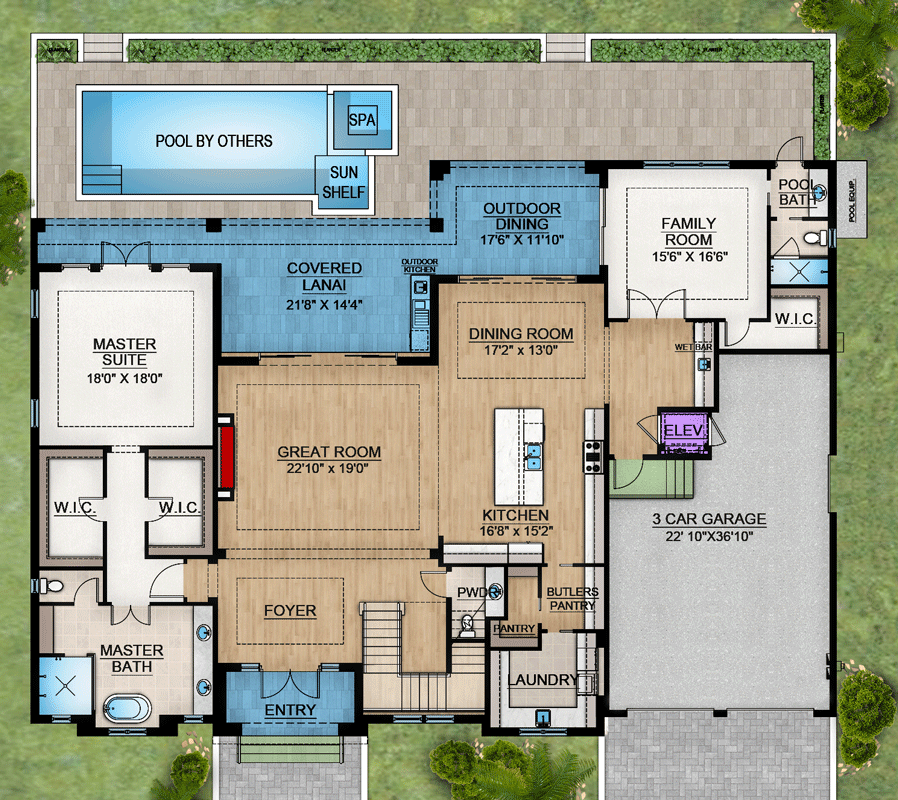

Main Level

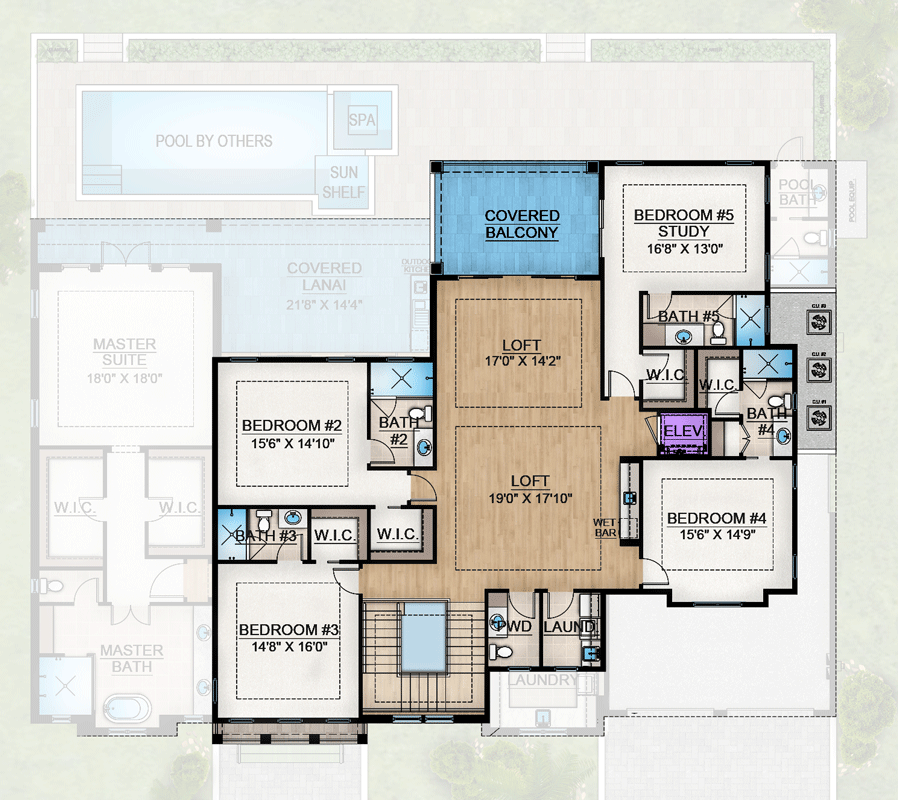

2nd Level

Plan Details

This expansive coastal Florida-style residence offers 5,456 square feet of living space, featuring 5 bedrooms, 6 full baths, 2 half baths, and a 775-square-foot garage.
The striking exterior makes a bold impression, leading into a grand foyer that introduces a sophisticated layout enhanced by a convenient built-in elevator.
The main floor is designed for seamless transitions, connecting a formal dining room and a dedicated library to the heart of the home.
A generous primary suite on the first level provides a private retreat, while the upper level hosts additional bedrooms and a versatile loft area.
Designed for indoor-outdoor living, the home features a massive 609-square-foot lanai complete with an outdoor kitchen for alfresco dining.
High-end finishes throughout include a gourmet kitchen with a large walk-in pantry and a stylish wet bar, ideal for hosting guests in comfort.

What's Included

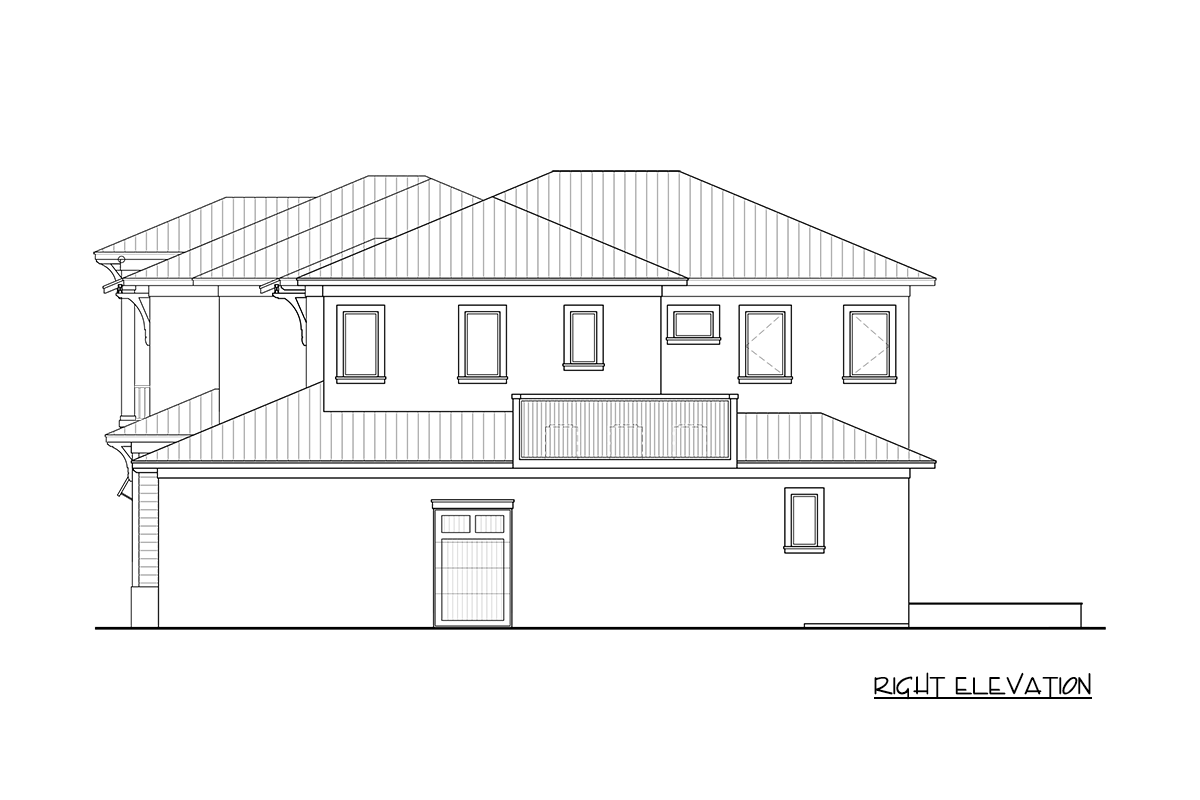

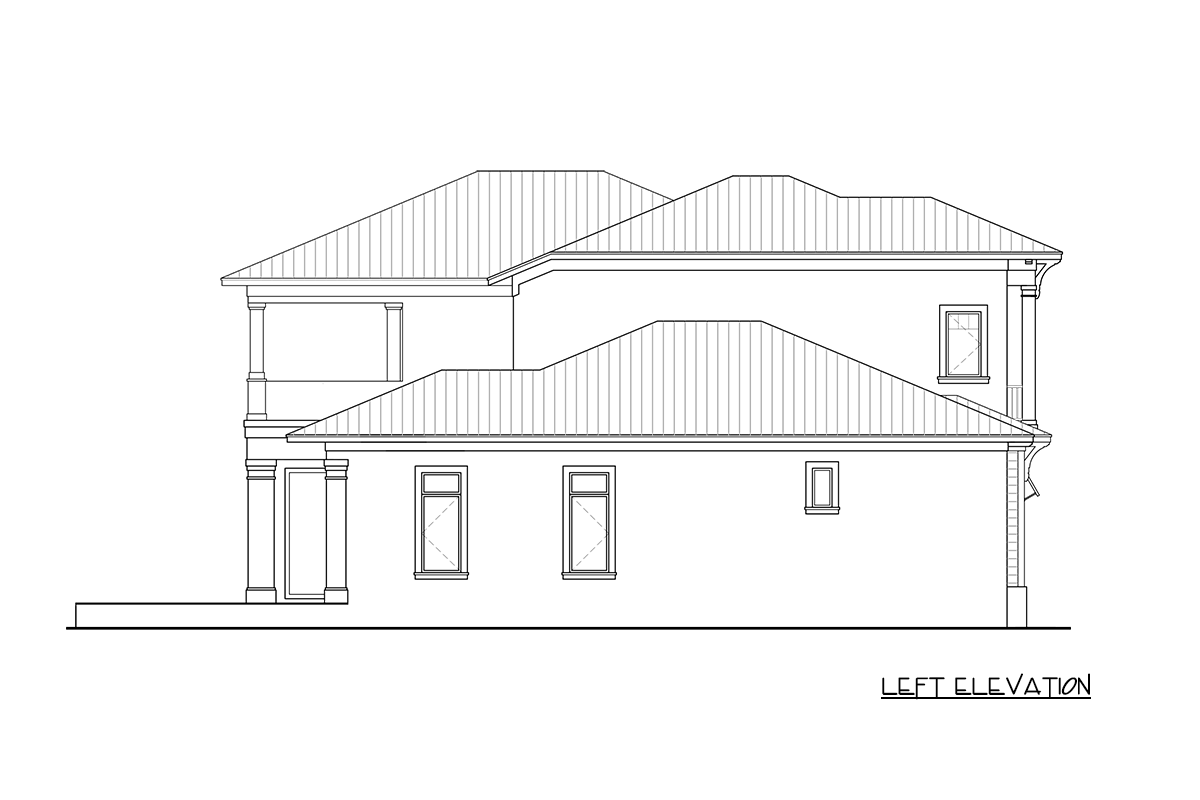

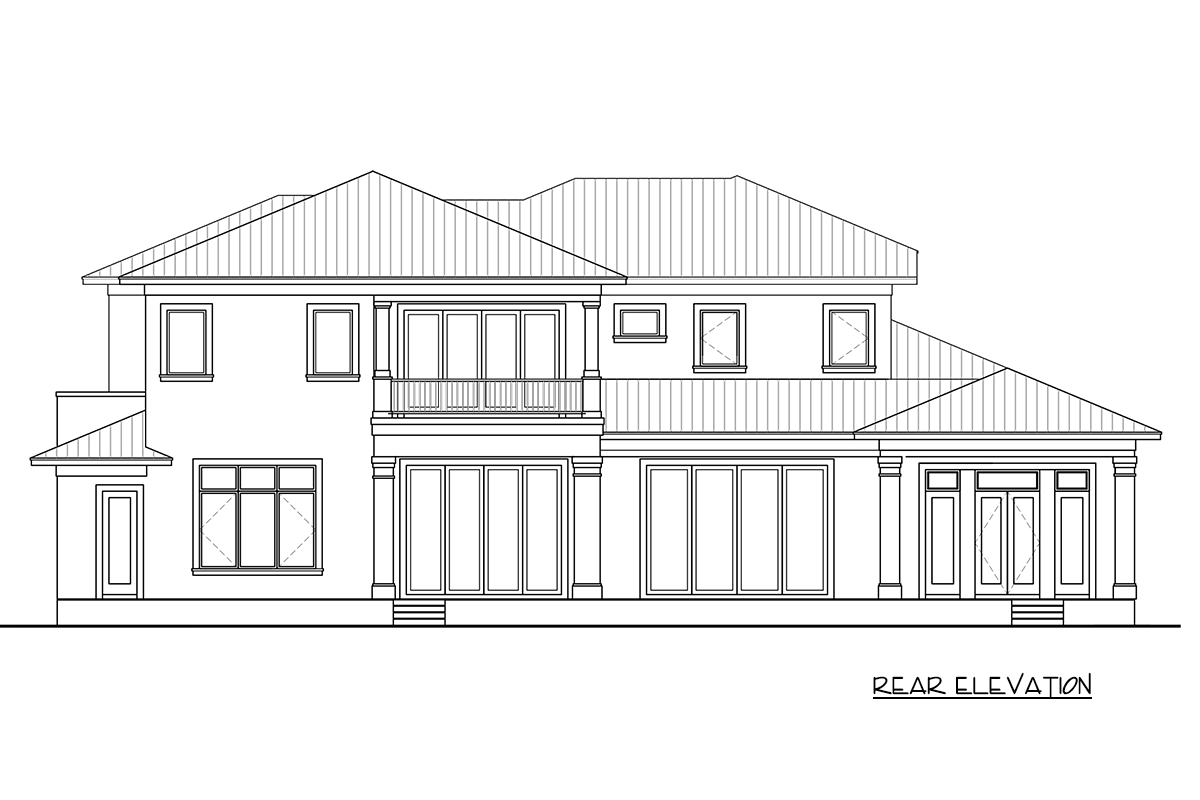

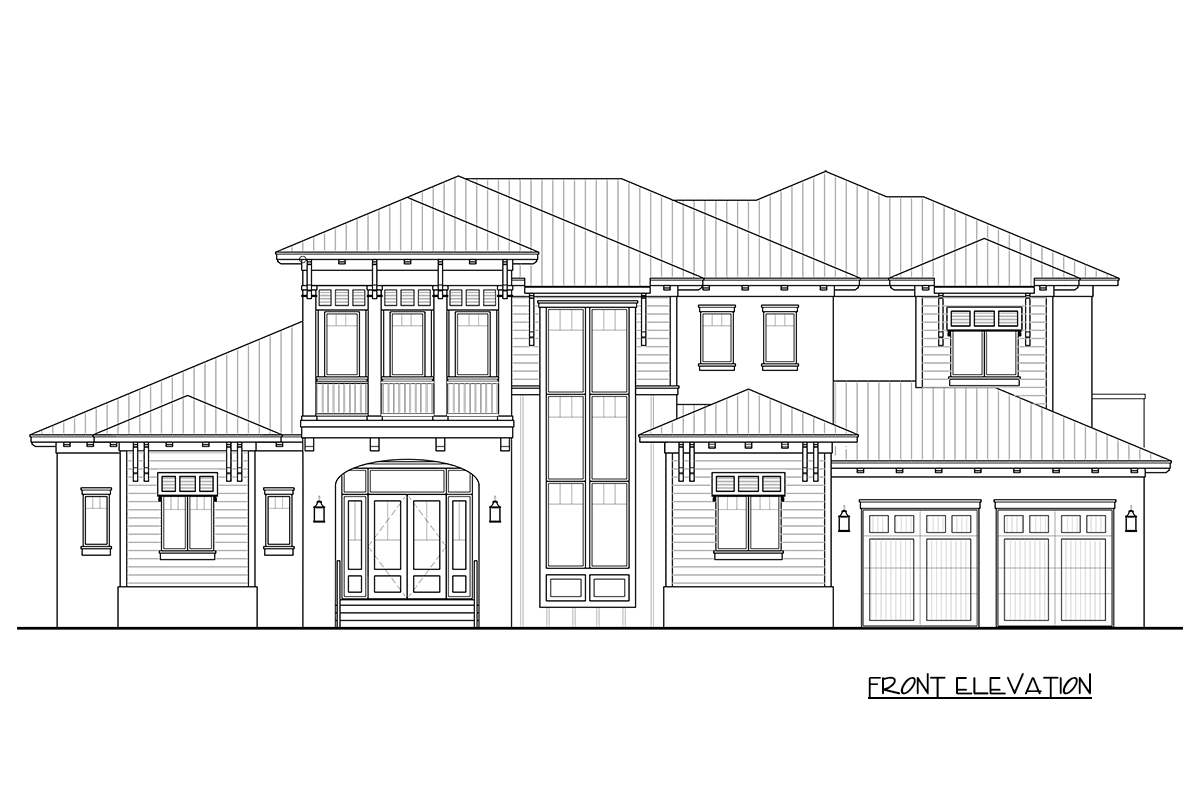

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
