Plan 65768BS

Coastal Florida Style House Plan with Three Bedrooms and Study

Name: Plan 65768BS: Coastal Florida Style House Plan with Three Bedrooms and Study
Brand: Architectural Designs
SKU: 65768BS
Price: 1584.44 USD
Availability: InStock

Heated S.F.

2,193

Beds

Baths

Stories

Cars

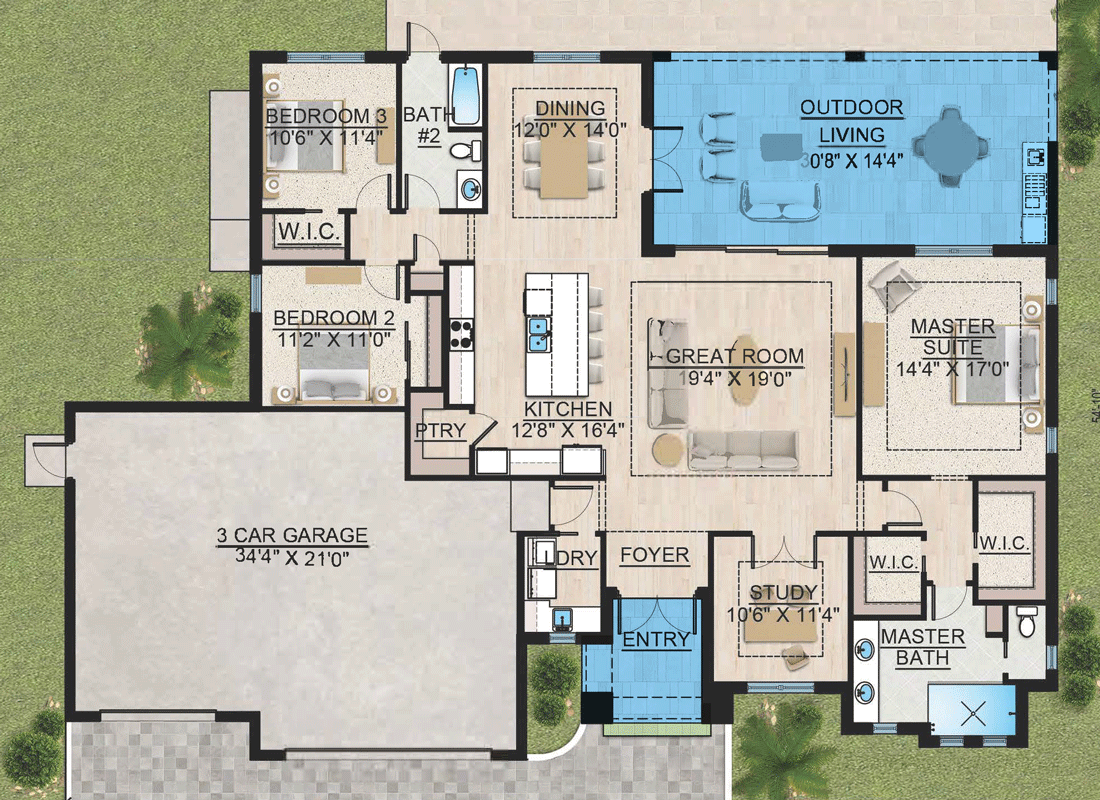

Floor Plan

Plan Details

This 2,193 square foot coastal Florida house plan offers three bedrooms, two bathrooms, and an attached three-car garage.
The striking exterior features clean white lines and a modern aesthetic that welcomes you into a refined foyer.
Inside, the main living area is designed for an airy, open-concept flow that connects the kitchen, dining, and living spaces for a seamless lifestyle.
A dedicated library or study provides a quiet retreat, while the walk-in pantry adds functional organization to the gourmet kitchen layout.
The primary bedroom suite occupies a private wing of the home, ensuring a peaceful sanctuary separate from the two secondary bedrooms.
Thoughtful design elements include a formal dining room and a main-level laundry room, blending sophisticated architecture with everyday convenience.

What's Included

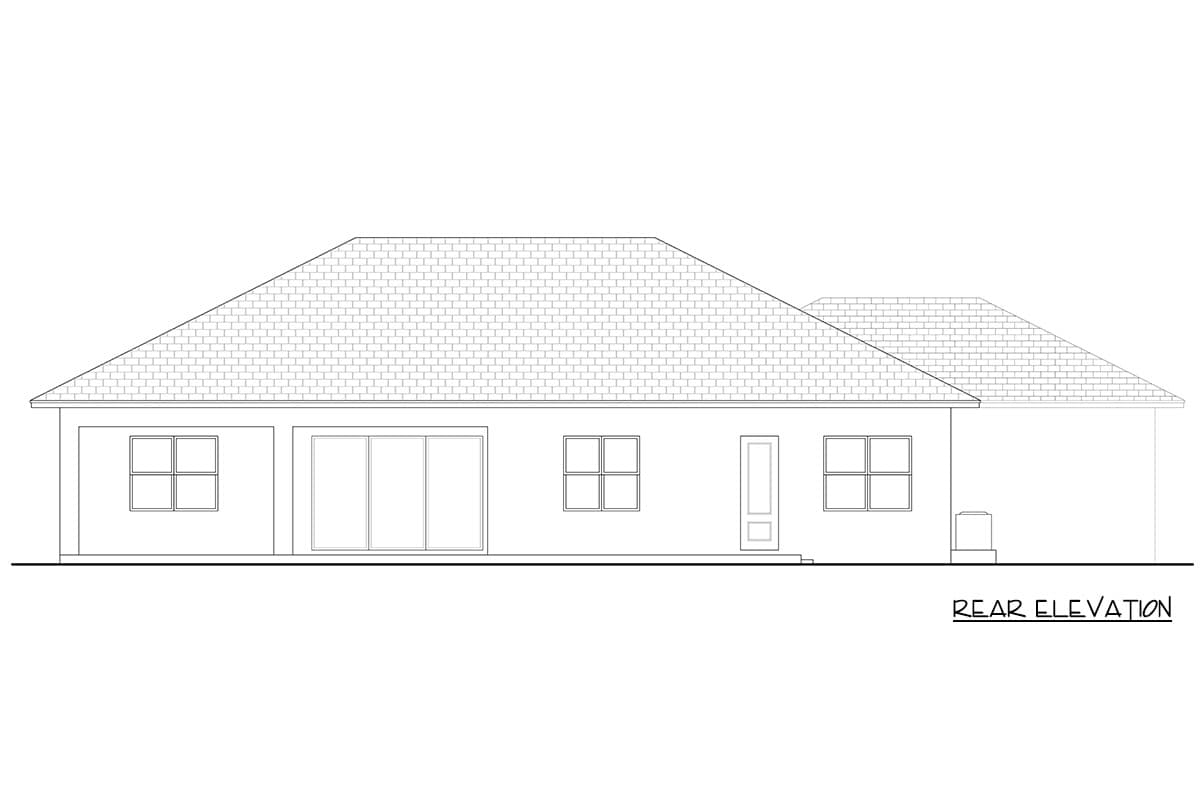

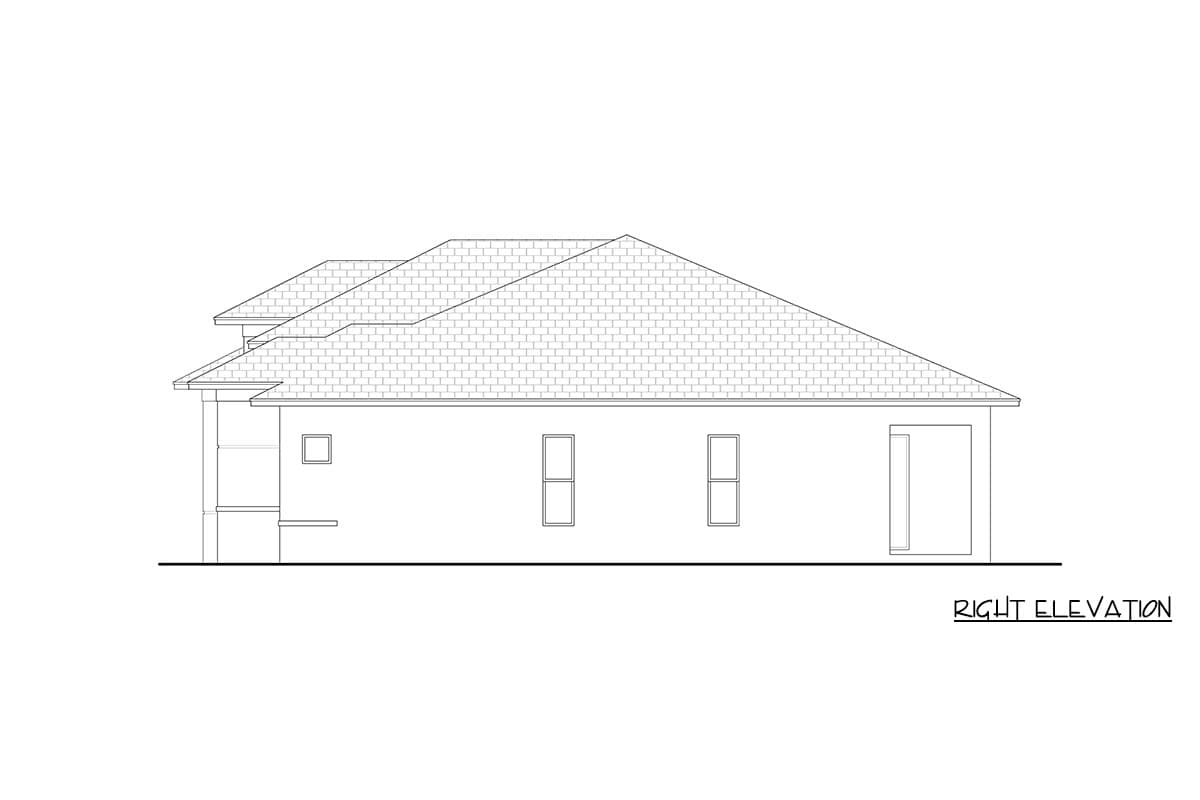

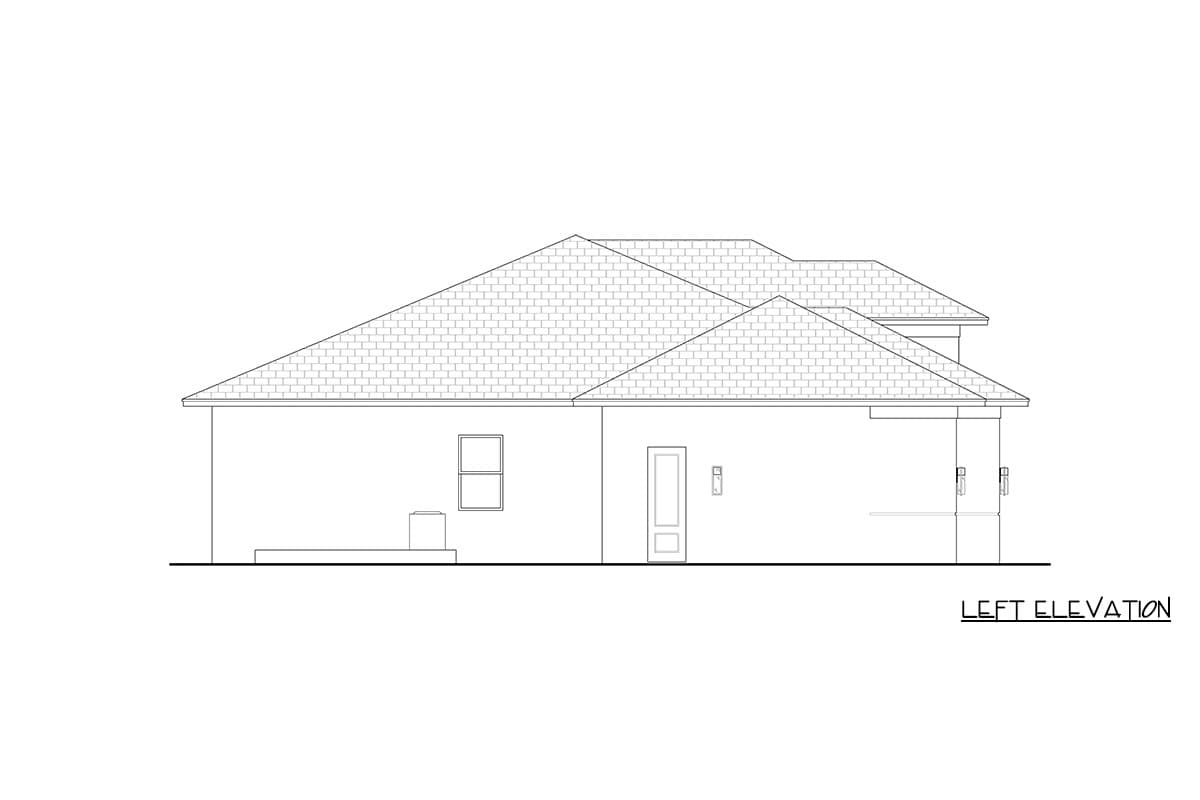

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
