Coastal Florida Style House Plan with Wraparound Porch and Bonus Room

Name: Plan 66249WE: Coastal Florida Style House Plan with Wraparound Porch and Bonus Room
Brand: Architectural Designs
SKU: 66249WE
Price: 1500.0 USD
Availability: InStock

Heated S.F.

3,020

Beds

Baths

3.5

Stories

Cars

Floor Plan

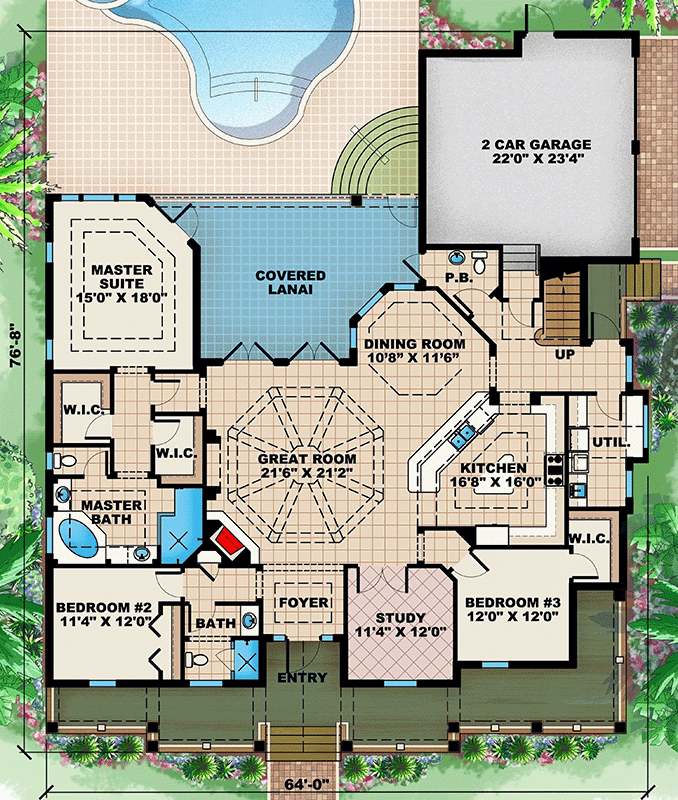

Main Level

2nd Floor

Plan Details

This 3,020 square foot coastal Florida-style house plan features three bedrooms, three full baths, a half bath, and an attached two-car garage.
A sweeping wraparound porch creates an inviting entry that leads into a bright, airy foyer and a central great room with impressive ceiling detail.
The open-concept floor plan connects the spacious kitchen and dining area to the great room, facilitating a seamless flow for daily life and hosting.
The private primary suite occupies its own wing on the first floor and is complemented by two additional bedrooms located on the opposite side of the home.
The second floor offers a versatile bonus room that functions as a game room or private retreat, complete with a convenient wet bar and full bathroom.
Outdoor living is a highlight of this design, featuring an expansive covered lanai perfect for enjoying the breeze and views of a backyard pool.
The home also includes a dedicated study for remote work and a practical utility room to keep household tasks organized and out of sight.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
