Plan 66273WE

Coastal Living

Heated S.F.
3,351
Beds
3
Baths
3
Stories
1
Cars
2

Floor Plan

Plan 66273WE

Lower Level
Lower Level
Main Level
Main Level

Plan 66273WE

M-F 9am-5pm EST |

1-203-761-8500

Lower Level

Plan 66273WE: Coastal Living - Floor Plan - Lower Level - Florida-Style, Mediterranean

Main Level

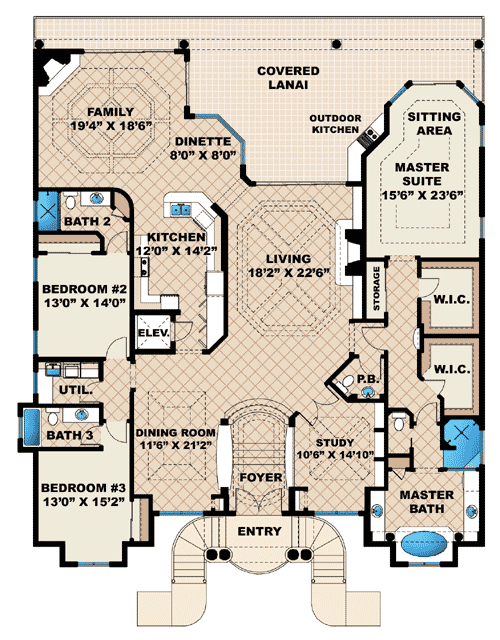

Plan 66273WE: Coastal Living - Floor Plan - Main Level - Florida-Style, Mediterranean

Plan Details

  • This coastal home plan gives a stately first impression with its elegant dual staircases.
  • Originally designed for the intercoastal of Naples, Florida this floor plan has lots of storage on the lower lever that could easily be converted into additional living space.
  • There is even an elevator for your convenience.
  • The main living level boasts an elegant feel with triple coffer ceilings in the foyer and living room.
  • Each bedroom has its own bath, offering ultimate privacy for all. There is a half bath just of the entry for day visitors.
  • As with most coastal home plans this floor plan is centered on the view outside with the family room, dinette, kitchen, living room and master all having a front row seat. There is an ample size lanai on the main level with outdoor kitchen for those nice evenings outside.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,351 sq. ft.

1st Floor

3,351 sq. ft.

Entry

82 sq. ft.

Lanai

1,171 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

69' 0"

Max Ridge Height

39' 2"

Garage

Type

Drive Under

Area

1078 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Coffered

11' 9''

Dinette

Flat

13' 0''

Lanai

Flat

13' 0''

Bedroom 2

Flat

11' 0''

Master Bedroom

Coffered

11' 9''

Kitchen

Flat

13' 0''

Dining Room

Coffered

11' 9''

Study

Coffered

11' 9''

Bedroom 3

Flat

11' 0''

Master Bath

Flat

11' 0''

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

3,351 sq. ft.

1st Floor

3,351 sq. ft.

Entry

82 sq. ft.

Lanai

1,171 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

69' 0"

Max Ridge Height

39' 2"

Garage

Type

Drive Under

Area

1078 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Living Room

Coffered

11' 9''

Dinette

Flat

13' 0''

Lanai

Flat

13' 0''

Bedroom 2

Flat

11' 0''

Master Bedroom

Coffered

11' 9''

Kitchen

Flat

13' 0''

Dining Room

Coffered

11' 9''

Study

Coffered

11' 9''

Bedroom 3

Flat

11' 0''

Master Bath

Flat

11' 0''

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Florida-Style

Mediterranean

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Kitchen
