Plan 65660BS Coastal Mediterranean Home Plan with Study and Split Bedrooms

2,687 4 3.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Coastal Mediterranean Home Plan with Study and Split Bedrooms

Plan 65660BS

  • 2,687

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Enjoy the comforts and convenience of one-level living with this Coastal Mediterranean home plan. The center of the design is completely open and extends onto a back lanai for additional entertaining space.
  • The gourmet kitchen offers plenty of workspace, along with a sizable island that serves as the natural conversation hub when entertaining.
  • A study just off the foyer provides a quiet space to read or get some work done.
  • The secluded master suite offers the homeowner privacy, and features access to the back porch, two walk-in closets, and a freestanding tub in the 5-fixture bathroom.
  • Three additional bedrooms, identical in size, are in line with the 2-car garage on the left side of the design.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:


Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

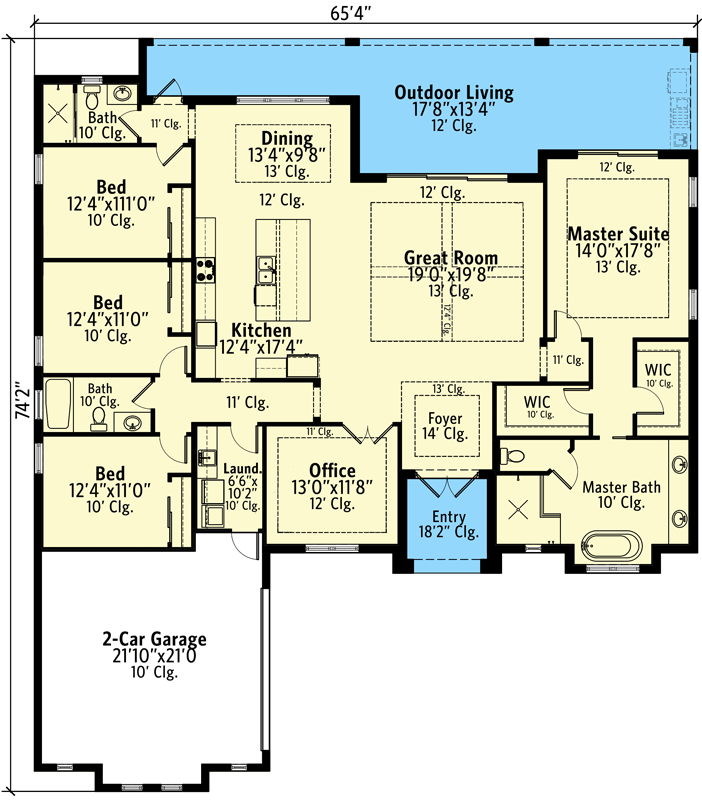

Coastal Mediterranean Home Plan with Study and Split Bedrooms - 65660BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,687 sq. ft.
  • 1st Floor: 2,687 sq. ft.
  • Lanai: 530 sq. ft.
  • Entry: 80 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 4"
  • Depth: 74' 2"
  • Max ridge height: 24' 11"

Garage

  • Type: Attached
  • Area: 536 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Coastal Mediterranean Home Plan with Study and Split Bedrooms

  • 2,687

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD - Single-Build $2,420
  • PDF - Single-Build $2,420
  • View all purchase option online

About This Plan

  • Enjoy the comforts and convenience of one-level living with this Coastal Mediterranean home plan. The center of the design is completely open and extends onto a back lanai for additional entertaining space.
  • The gourmet kitchen offers plenty of workspace, along with a sizable island that serves as the natural conversation hub when entertaining.
  • A study just off the foyer provides a quiet space to read or get some work done.
  • The secluded master suite offers the homeowner privacy, and features access to the back porch, two walk-in closets, and a freestanding tub in the 5-fixture bathroom.
  • Three additional bedrooms, identical in size, are in line with the 2-car garage on the left side of the design.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,687 sq. ft.
  • 1st Floor: 2,687 sq. ft.
  • Lanai: 530 sq. ft.
  • Entry: 80 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 4"
  • Depth: 74' 2"
  • Max ridge height: 24' 11"

Garage

  • Type: Attached
  • Area: 536 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 65660BS
View this and more for this plan by visiting www.architechtecturaldesigns.com/65660BS
|
Need Help? 800-854-7852
|
Plan 65660BS
