Coastal Mediterranean House Plan with 3 Bedrooms and 3-Car Garage

Heated S.F.
2,566
Beds
3
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 66085WE

Main Level
Main Level

Plan 66085WE

M-F 9am-5pm EST |

1-203-761-8500

Main Level

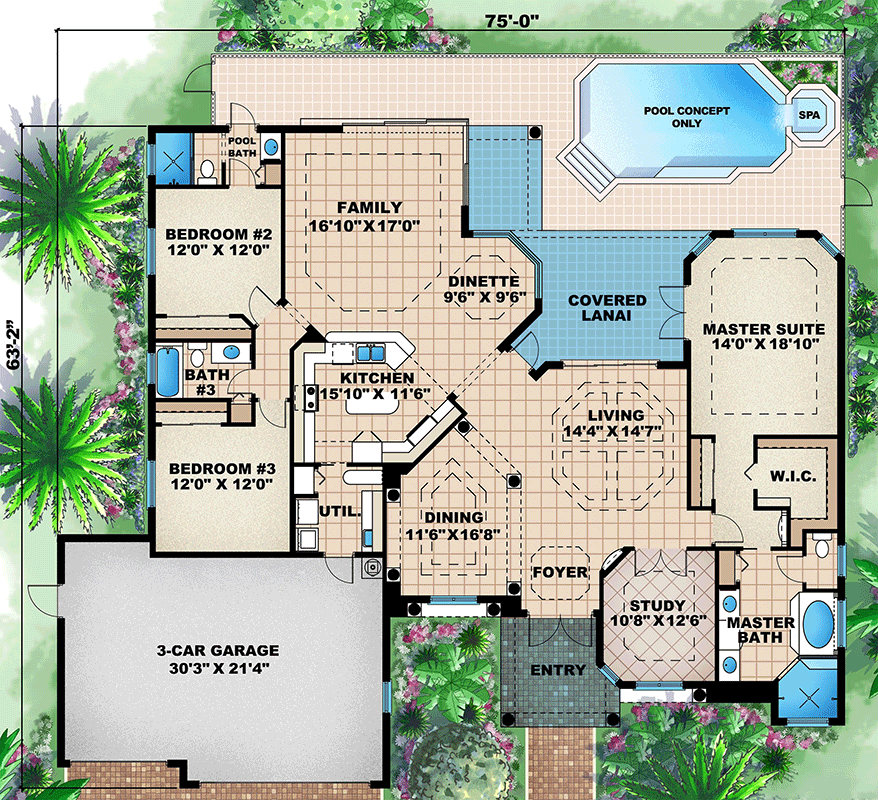

Plan 66085WE: Coastal Mediterranean House Plan with 3 Bedrooms and 3-Car Garage - Floor Plan - Main Level - Coastal, Florida-Style, Mediterranean, Tuscan

Plan Details

  • This 2,566-square-foot Florida-style house plan features three bedrooms, three full bathrooms, and an expansive 670-square-foot three-car garage.
  • A soaring 14-foot entryway sets a grand tone, opening into a home defined by elegant coffered ceilings and a seamless single-story layout.
  • The heart of the home centers on a gourmet island kitchen that flows effortlessly into the dinette and family room, perfect for hosting or relaxed daily living.
  • A private primary suite occupies its own wing of the home, offering a tranquil retreat with a sitting area, while two secondary bedrooms are thoughtfully positioned to ensure comfort for family or visitors.
  • A dedicated study provides a sophisticated, quiet space for professional work or personal projects, enhanced by intricate ceiling details.
  • The rear of the home features a generous 287-square-foot covered lanai, creating an effortless transition between indoor living and outdoor relaxation.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

2,566 sq. ft.

1st Floor

2,566 sq. ft.

Entry

112 sq. ft.

Lanai

287 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

63' 2"

Max Ridge Height

22' 8"

Garage

Type

Attached, Standard

Area

670 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Bedroom 3

Flat

10' 0''

Bedroom 2

Flat

10' 0''

Family Room

Coffered

10' 0''

Lanai

Flat

10' 0''

Kitchen

Flat

10' 0''

Dinette

Coffered

10' 0''

Master Bath

Flat

10' 0''

Entry

Flat

14' 0''

Study

Coffered

12' 0''

Living Room

Coffered

12' 0''

Master Bedroom

Coffered

10' 0''

Dining Room

Coffered

12' 0''

Foyer

Coffered

13' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Coastal

Florida-Style

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,566 sq. ft.

1st Floor

2,566 sq. ft.

Entry

112 sq. ft.

Lanai

287 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

75' 0"

Depth

63' 2"

Max Ridge Height

22' 8"

Garage

Type

Attached, Standard

Area

670 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Bedroom 3

Flat

10' 0''

Bedroom 2

Flat

10' 0''

Family Room

Coffered

10' 0''

Lanai

Flat

10' 0''

Kitchen

Flat

10' 0''

Dinette

Coffered

10' 0''

Master Bath

Flat

10' 0''

Entry

Flat

14' 0''

Study

Coffered

12' 0''

Living Room

Coffered

12' 0''

Master Bedroom

Coffered

10' 0''

Dining Room

Coffered

12' 0''

Foyer

Coffered

13' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Coastal

Florida-Style

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
