Coastal Mediterranean House Plan with 3 Bedrooms and Expansive Lanai

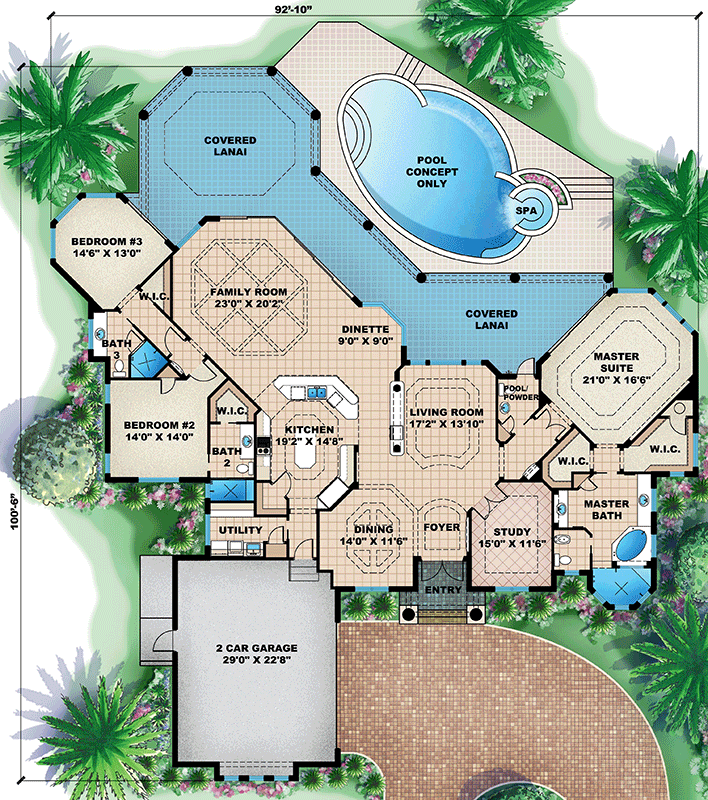

Floor Plans

Drawn at 1/8" to 1/4" = 1′-0" Scale, and Includes:
Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Slab Plan

Drawn at 1/8" to 1/4" = 1′-0" Scale, and Includes:
Rough-in Plumbing Location
Mechanical Equipment Locations
Electrical Locations

Roof Design Plan

Drawn at 1/8" to 1/4" = 1′-0"scale, and Includes:
All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valleys

Building Section Markers

Building Sections

Drawn at 1/8" to 1/4" = 1′-0" Scale, and Includes:
Non-Typical Plate Heights Indicated

Typical Wall Sections

Drawn at 1/8" to 1/2" = 1′-0" Scale, and Includes:
All Labels Indicating Wall Construction
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes

• Architectural or Engineering Stamp - handled locally if required
• Site Plan - handled locally when required
• Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
• Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
• Energy calculations - handled locally when required
