Plan 65739BS Coastal Mediterranean-style House Plan with Golf Cart Garage and Large Lanai

4,424 3 4.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Coastal Mediterranean-style House Plan with Golf Cart Garage and Large Lanai

Plan 65739BS

  • 4,424

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Large gathering spaces make entertaining a breeze in this coastal Mediterranean-style home plan. The rear walls nearly fully retract for a true indoor outdoor living experience.
  • The formal living room features a grand fireplace and a nearby wet bar, while the gourmet kitchen is overly spacious and features a prep island with a bar sink, a walk-in pantry, and six-burner range.
  • The left side of the design is occupied by the deluxe master suite and neighboring study, both with elegant ceilings and ornate finishes.
  • Three bedroom suites complete the layout, while a pool bath attached to the rear of the home helps when hosting fun in the sun for friends and family.
  • A golf cart garage is an added plus. Enter the home from the garage and find a coat closet across from the laundry room, and a nearby powder bath.
  • Related Plans: Get a front-facing garage with house plan 65714BS. Get a porte-cochere with house plan 65752BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

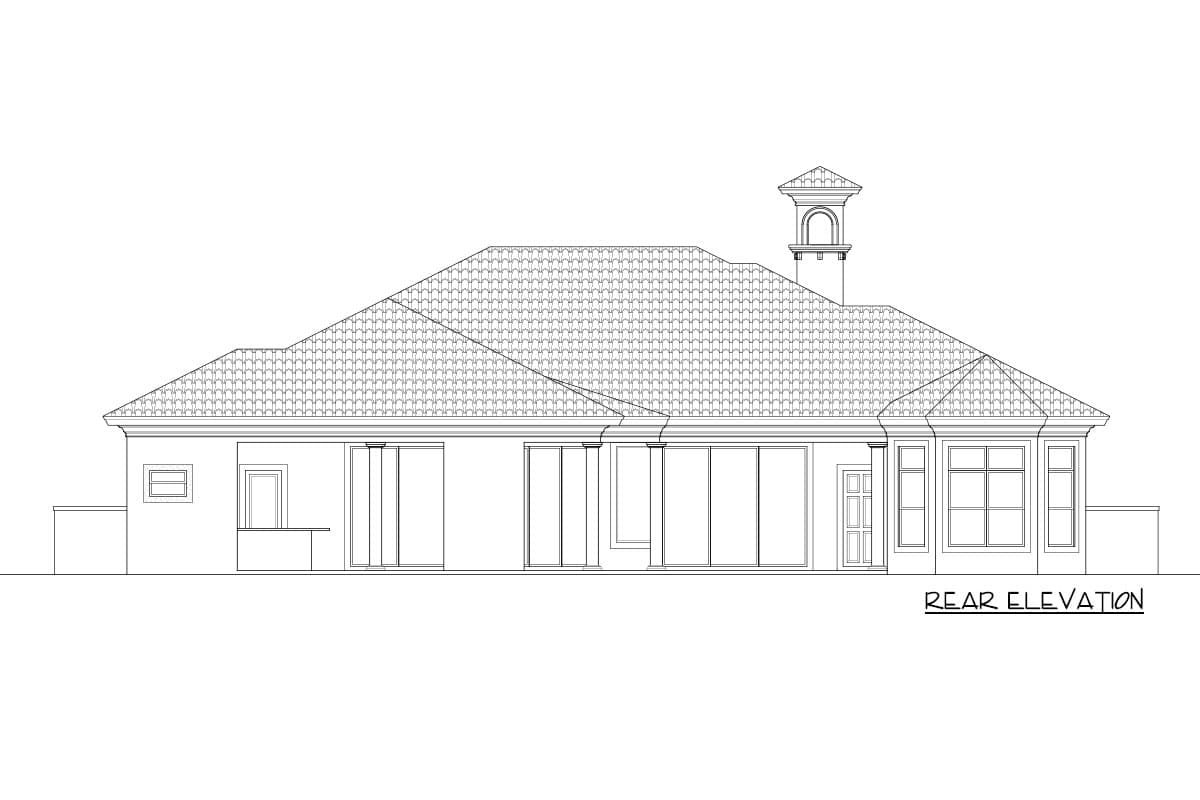

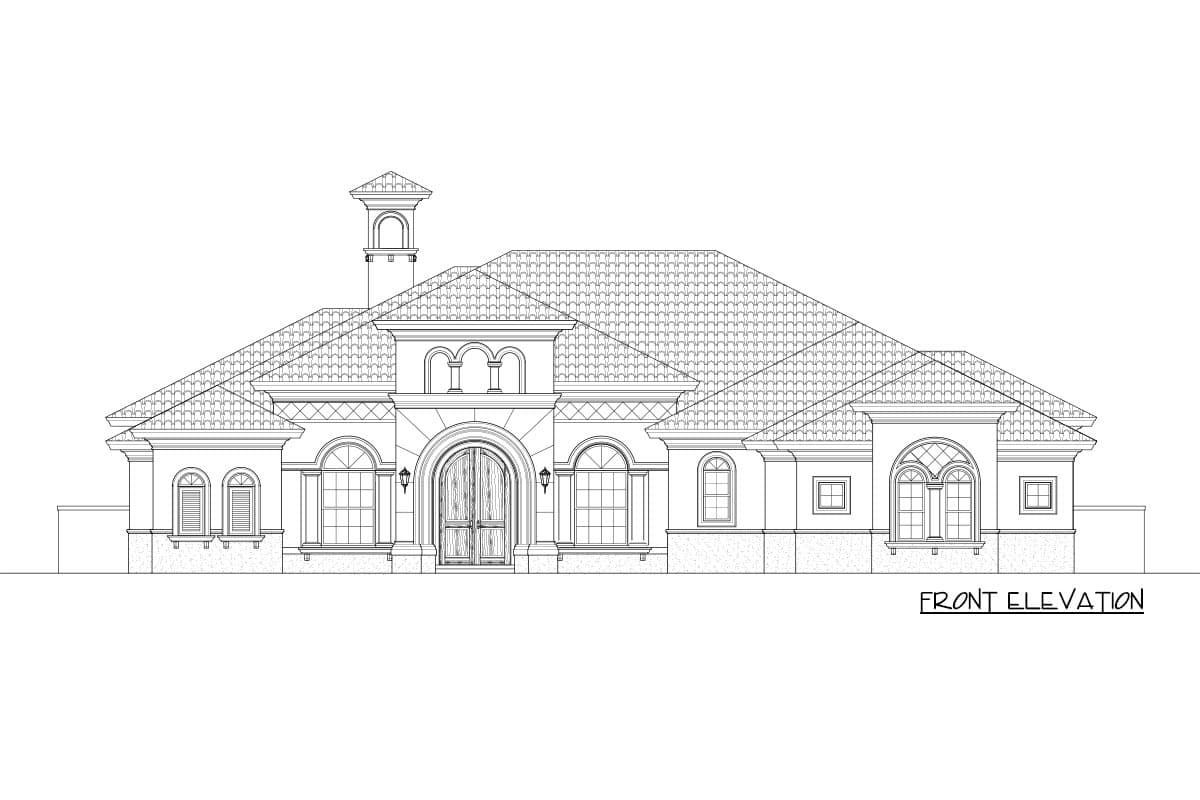

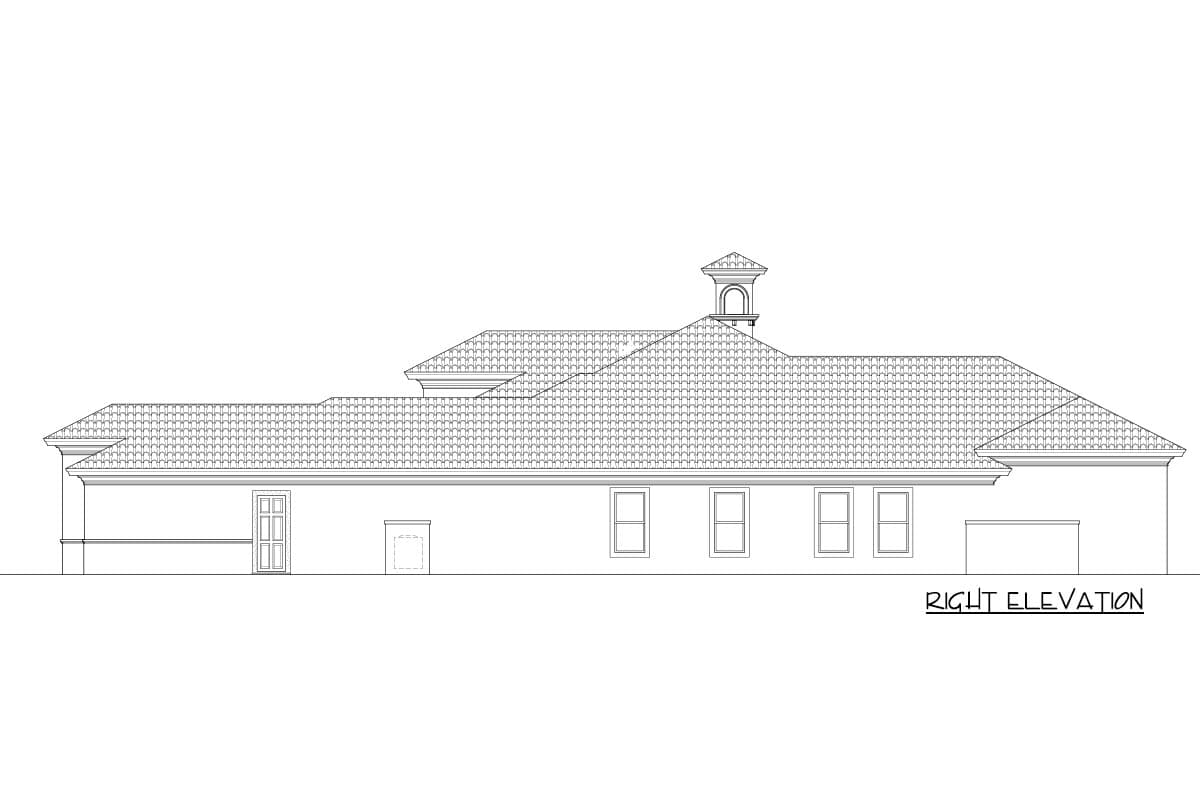

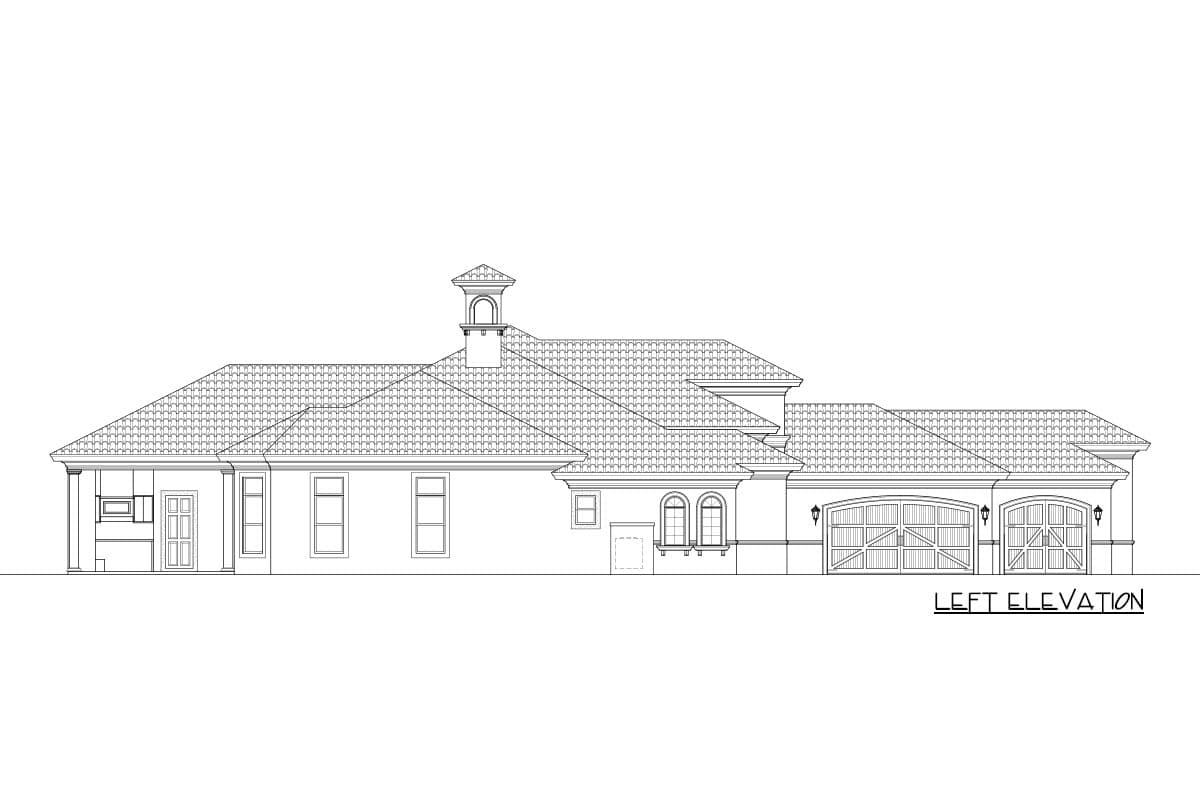

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

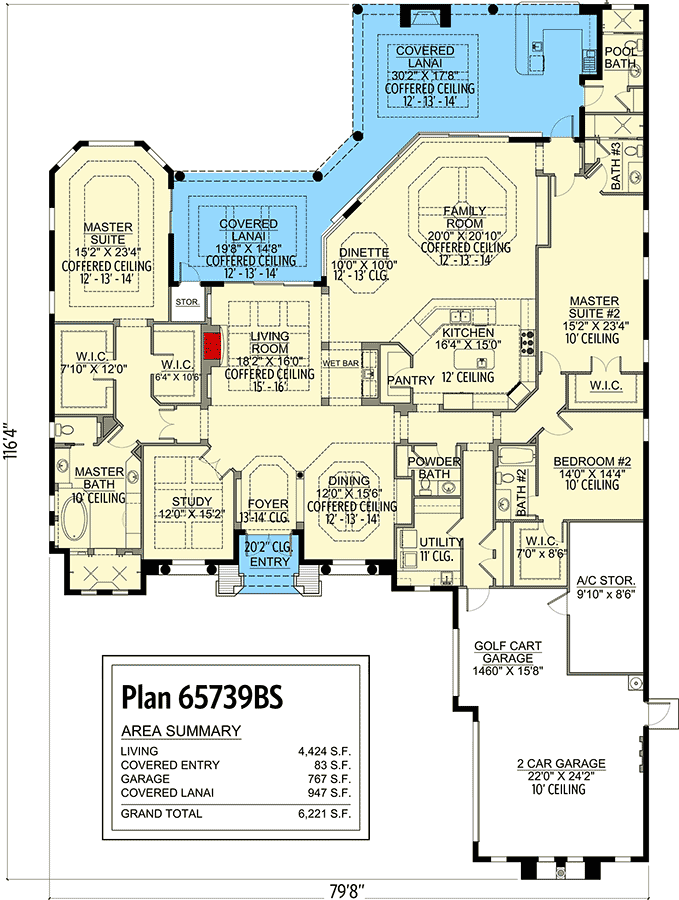

Coastal Mediterranean-style House Plan with Golf Cart Garage and Large Lanai - 65739BS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,424 sq. ft.
  • 1st Floor: 4,424 sq. ft.
  • Lanai: 947 sq. ft.
  • Entry: 83 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 79' 8"
  • Depth: 116' 4"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 767 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Coastal Mediterranean-style House Plan with Golf Cart Garage and Large Lanai

  • 4,424

    Heated s.f.

  • 3

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,424
  • PDF - Single-Build $4,424
  • View all purchase option online

About This Plan

  • Large gathering spaces make entertaining a breeze in this coastal Mediterranean-style home plan. The rear walls nearly fully retract for a true indoor outdoor living experience.
  • The formal living room features a grand fireplace and a nearby wet bar, while the gourmet kitchen is overly spacious and features a prep island with a bar sink, a walk-in pantry, and six-burner range.
  • The left side of the design is occupied by the deluxe master suite and neighboring study, both with elegant ceilings and ornate finishes.
  • Three bedroom suites complete the layout, while a pool bath attached to the rear of the home helps when hosting fun in the sun for friends and family.
  • A golf cart garage is an added plus. Enter the home from the garage and find a coat closet across from the laundry room, and a nearby powder bath.
  • Related Plans: Get a front-facing garage with house plan 65714BS. Get a porte-cochere with house plan 65752BS.
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,424 sq. ft.
  • 1st Floor: 4,424 sq. ft.
  • Lanai: 947 sq. ft.
  • Entry: 83 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 79' 8"
  • Depth: 116' 4"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 767 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 65739BS
View this and more for this plan by visiting www.architechtecturaldesigns.com/65739BS
|
