Plan 65770BS

Coastal Modern House Plan with 3 Bedrooms and 3-Car Garage

Name: Plan 65770BS: Coastal Modern House Plan with 3 Bedrooms and 3-Car Garage
Brand: Architectural Designs
SKU: 65770BS
Price: 1898.01 USD
Availability: InStock

Heated S.F.

2,627

Beds

Baths

3.5

Stories

Cars

Floor Plan

Plan Details

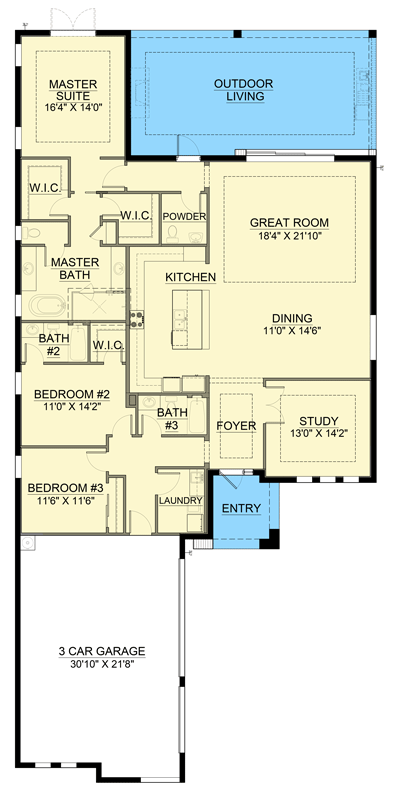

This 2,627 square foot coastal modern house plan features a sleek, single-story layout with three bedrooms, three full baths, one half bath, and a three-car courtyard garage.
The striking exterior combines clean stucco lines with warm wood siding accents, creating a sophisticated curb appeal that welcomes you into a bright and airy foyer.
Designed for seamless daily living, the open-concept floor plan connects the main living areas through an intuitive flow that prioritizes natural light and spaciousness.
The primary suite is thoughtfully positioned for privacy, offering a serene retreat from the two additional bedrooms located on the opposite side of the home.
A dedicated library or study provides a quiet space for remote work, while the integrated breakfast nook offers a cozy spot for casual morning meals.
The spacious layout is completed by a functional main-level laundry room, ensuring that all essential amenities are conveniently accessible within this contemporary coastal residence.

What's Included

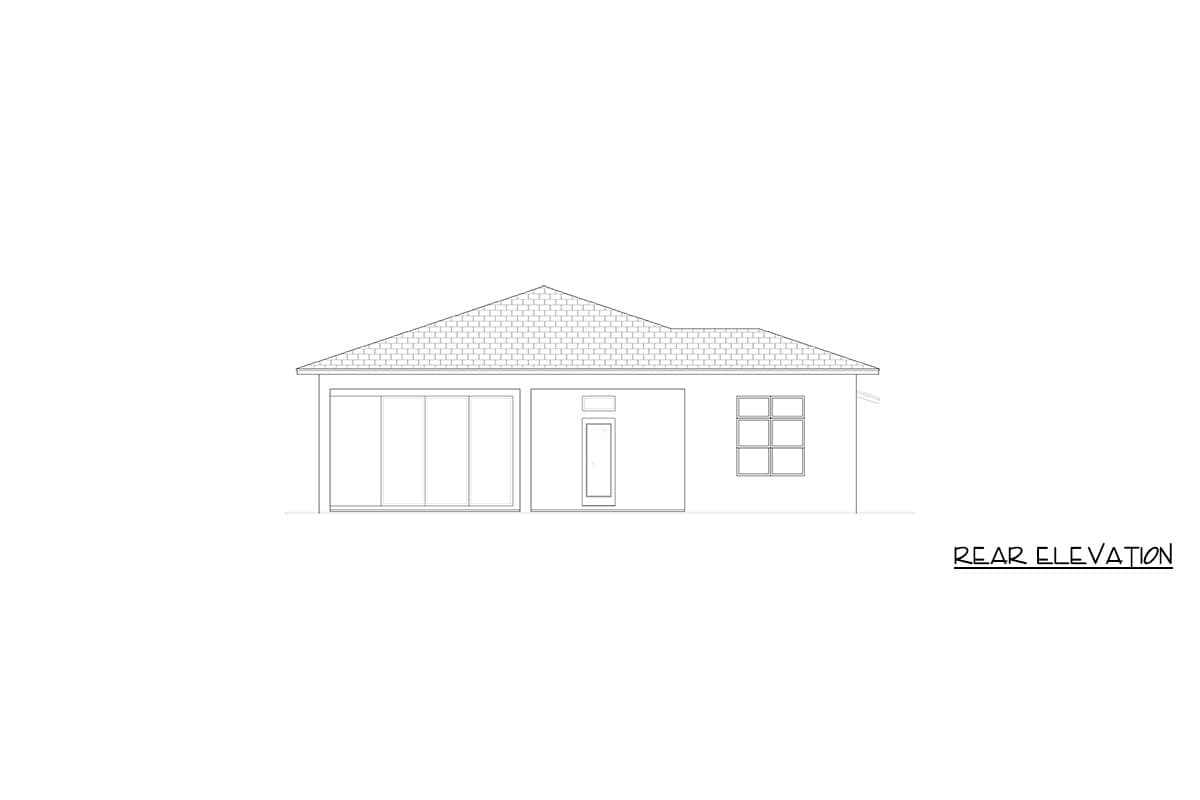

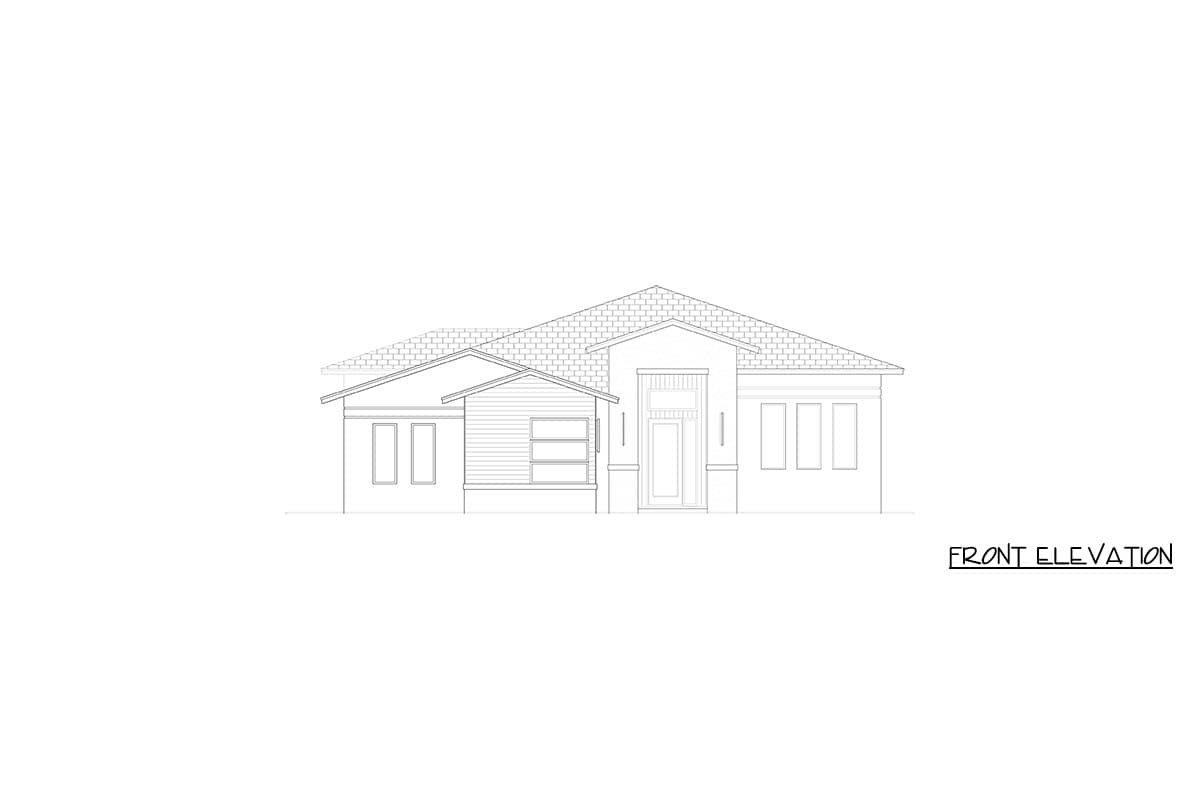

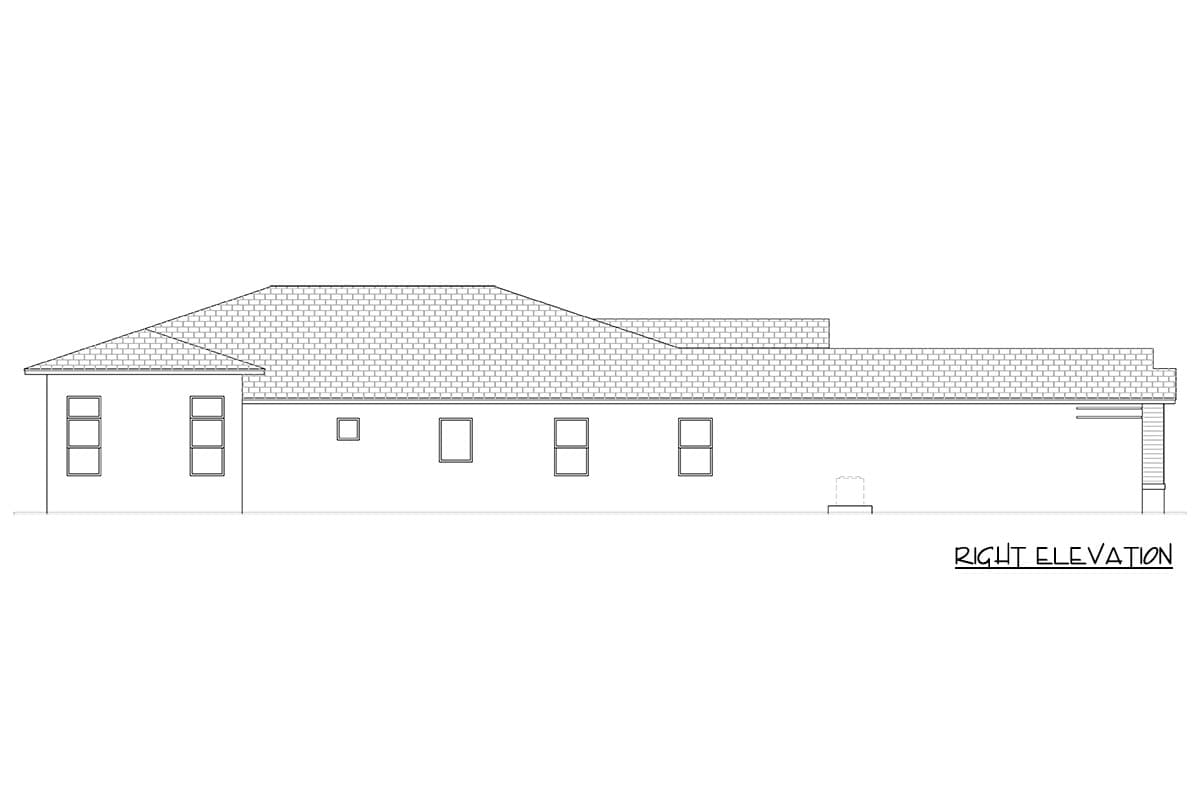

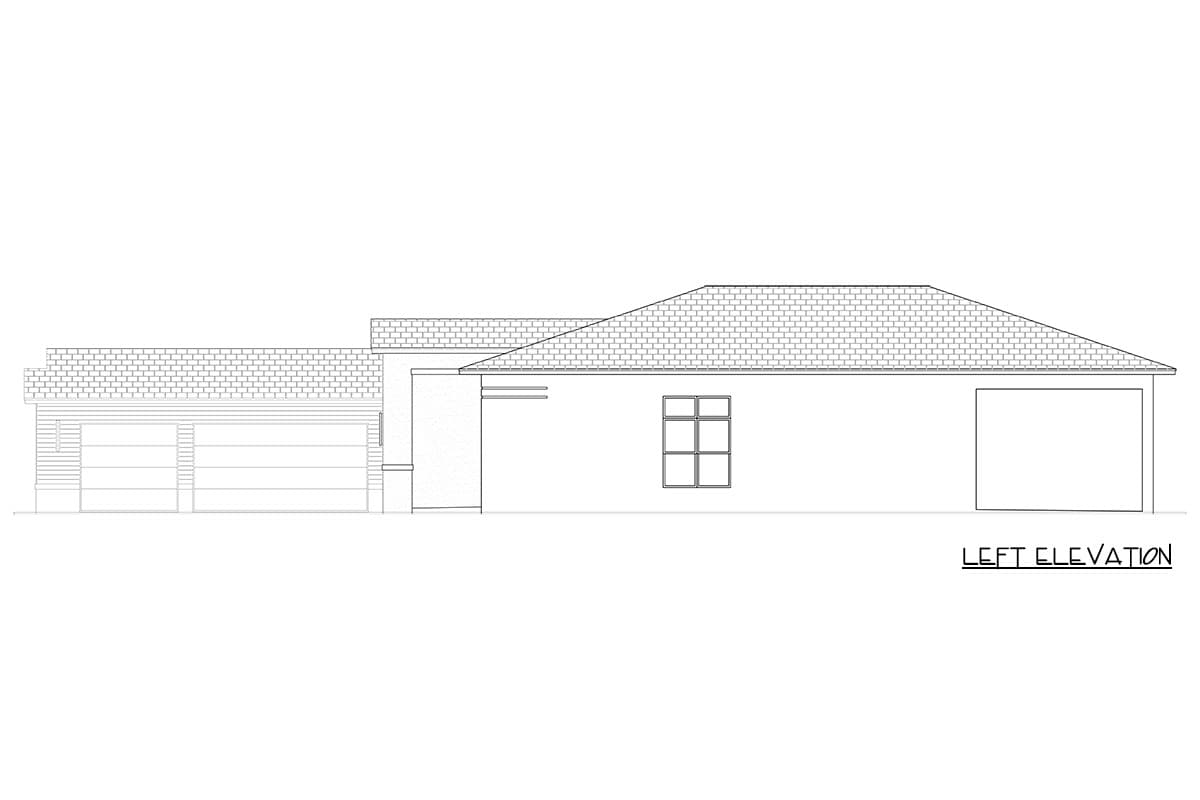

Elevations: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan: - Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor and Deck Joist Sizes, Spacing and Direction
Electrical Locations

Roof Design Plan: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections: - Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections: - Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.
