Plan 654005KNA Coastal Shingle House Plan with Optional Lower Level Apartment

Coastal Shingle House Plan with Optional Lower Level Apartment

Plan 654005KNA

  • 2,158

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • Windows and shake siding dominate the exterior of this exclusive, Shingle house plan, which boasts an open floor plan on the main level, rooftop deck, and an optional apartment on the lower level.
  • Inside, the light and airy living space greets you, where a fireplace and window seat add to the character and charm. The open kitchen features an island that includes seating for three.
  • A den is located behind a barn door, and could double as a guest bedroom when needed. Across the hall, a powder bath near the mudroom includes a laundry closet.
  • Upstairs, a bedroom resides in each of the four corners, with the largest reserved for the homeowner. A coffee bar at the top of the stairs could be converted into a second laundry closet, if preferred.
  • The optional lower level could serve as 1,040 square feet of additional living space, or a separate apartment due to the private exterior entrance. The design includes a kitchen, dining area, and great room, along with two bedrooms.
  • Related Plan: Eliminate Bed 3 and replace it with a porch with house plan 654003KNA.

  • Cover Sheet
  • Foundation Plan
  • Floor plans
  • Exterior elevations
  • Details
  • Building sections
  • Roof plans drawn at 1/4" scale
  • Suggested electrical layout
  • Interior elevation drawings
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

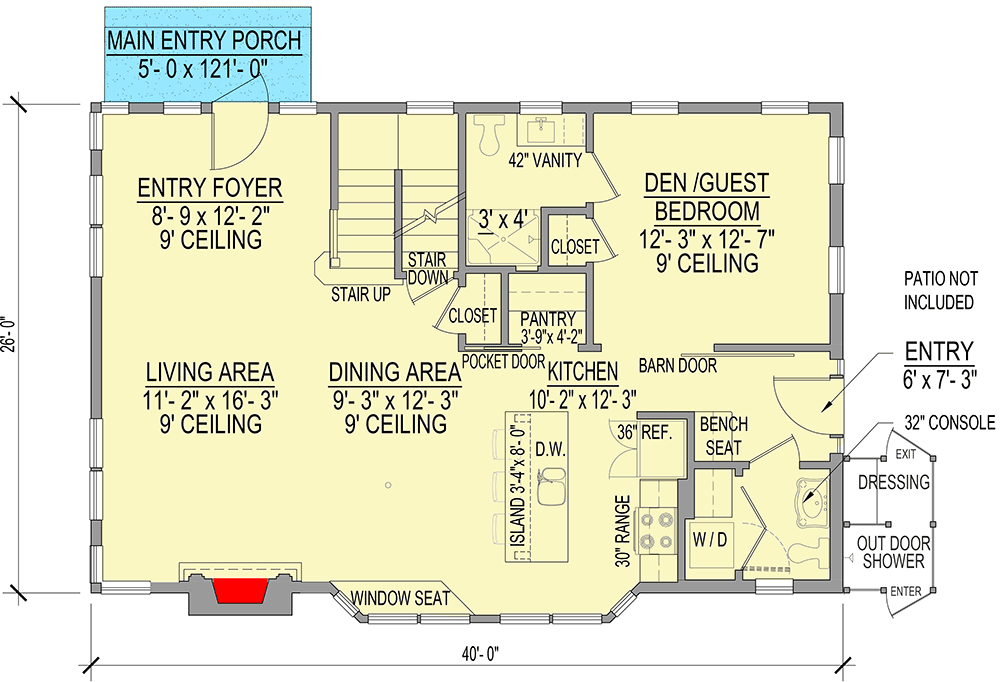

Coastal Shingle House Plan with Optional Lower Level Apartment - 654005KNA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

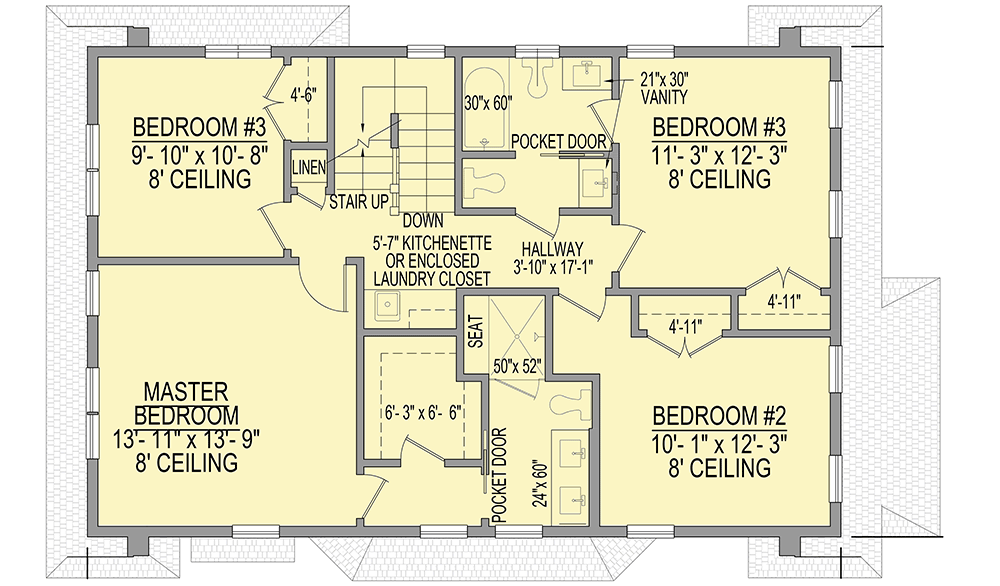

Coastal Shingle House Plan with Optional Lower Level Apartment - 654005KNA floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

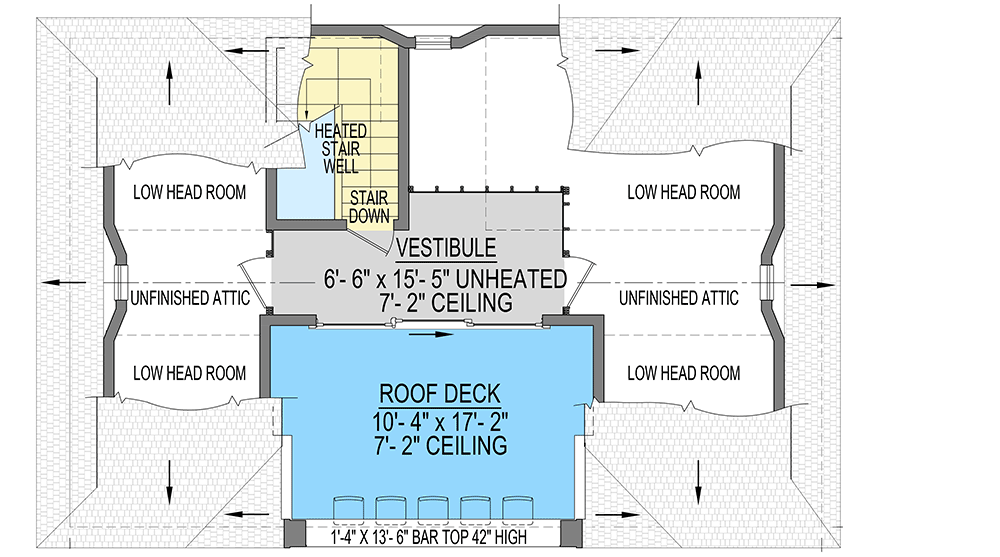

Coastal Shingle House Plan with Optional Lower Level Apartment - 654005KNA floor plan - Roof Top Deck

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

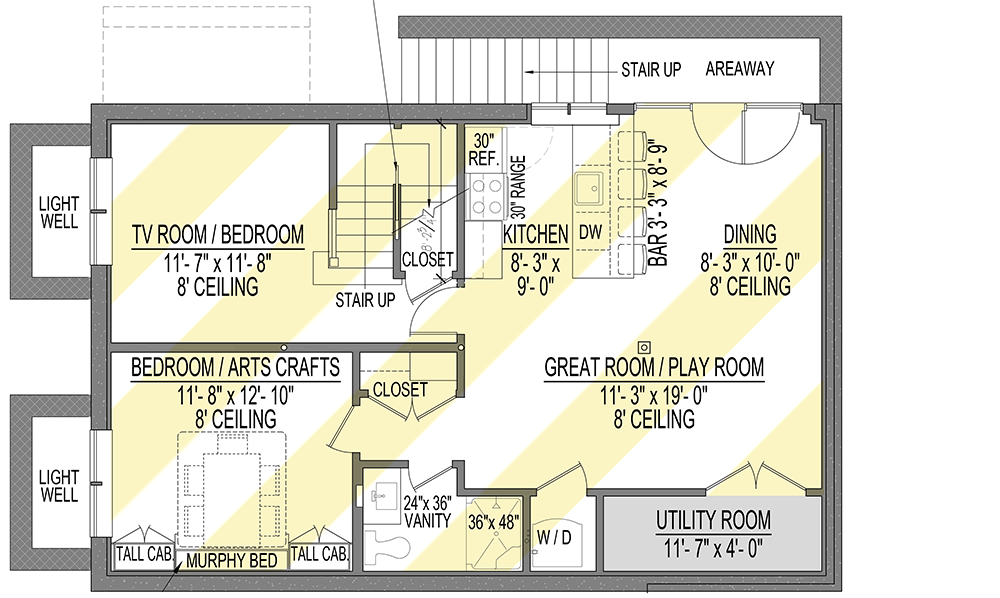

Coastal Shingle House Plan with Optional Lower Level Apartment - 654005KNA floor plan - Optional Lower Level

Plan details

Coastal Shingle House Plan with Optional Lower Level Apartment

  • 2,158

    Heated s.f.

  • 3 - 5

    Beds

  • 4 +

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,400
  • 5 Sets + PDF $1,600
  • CAD - Single-Build $2,600
  • View all purchase option online

About This Plan

  • Windows and shake siding dominate the exterior of this exclusive, Shingle house plan, which boasts an open floor plan on the main level, rooftop deck, and an optional apartment on the lower level.
  • Inside, the light and airy living space greets you, where a fireplace and window seat add to the character and charm. The open kitchen features an island that includes seating for three.
  • A den is located behind a barn door, and could double as a guest bedroom when needed. Across the hall, a powder bath near the mudroom includes a laundry closet.
  • Upstairs, a bedroom resides in each of the four corners, with the largest reserved for the homeowner. A coffee bar at the top of the stairs could be converted into a second laundry closet, if preferred.
  • The optional lower level could serve as 1,040 square feet of additional living space, or a separate apartment due to the private exterior entrance. The design includes a kitchen, dining area, and great room, along with two bedrooms.
  • Related Plan: Eliminate Bed 3 and replace it with a porch with house plan 654003KNA.

Floor Plans

  • Main Level

  • 2nd Floor

  • Roof Top Deck

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,158 sq. ft.
  • 1st Floor: 1,085 sq. ft.
  • 2nd Floor: 1,073 sq. ft.
  • Porch, Combined: 256 sq. ft.
  • Optional Lower Level: 1,040 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 26' 0"
  • Depth: 40' 0"
  • Max ridge height: 32' 3"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10.75 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
