Exclusive Shingle House Plan with Optional Lower Level Apartment

Plan 654003KNA

  • 1,946

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • Windows and shake siding dominate the exterior of this exclusive, Shingle house plan, which boasts an open floor plan on the main level, rooftop deck, and an optional apartment on the lower level.
  • Inside, a light and airy living space greets you, with a fireplace and built-in window seat adding to the character and charm. The open kitchen features an island that includes seating for three.
  • A den is located behind a barn door, and could double as a guest bedroom when needed. Across the hall, a powder bath near the mudroom includes a laundry closet.
  • Upstairs, discover three bedrooms, with the largest reserved for the homeowner. French doors in the master bedroom lead to a covered porch with a cathedral ceiling.
  • The optional lower level could serve as 1,040 square feet of additional living space, or a separate apartment due to the private exterior entrance. The design includes a kitchen, dining area, and great room, along with two bedrooms.
  • Related Plans: Get a matching detached garage with plan 654019KNA. Eliminate the second floor porch and replace it with a bedroom with house plan 654005KNA.

  • Cover Sheet
  • Foundation Plan
  • Floor plans
  • Exterior elevations
  • Details
  • Building sections
  • Roof plans drawn at 1/4" scale
  • Suggested electrical layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

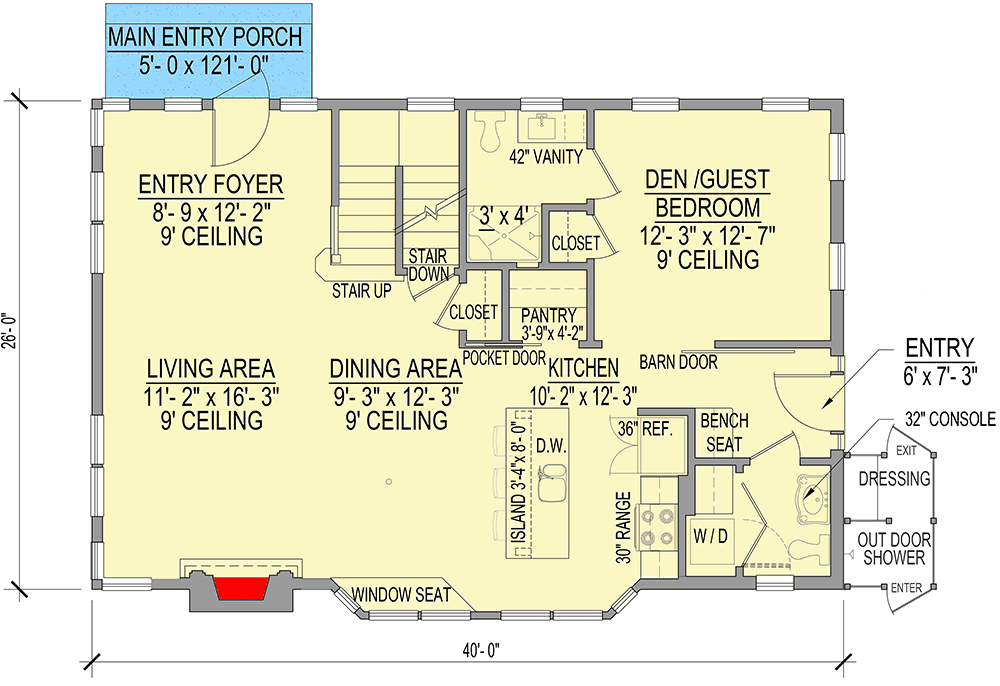

Exclusive Shingle House Plan with Optional Lower Level Apartment - 654003KNA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

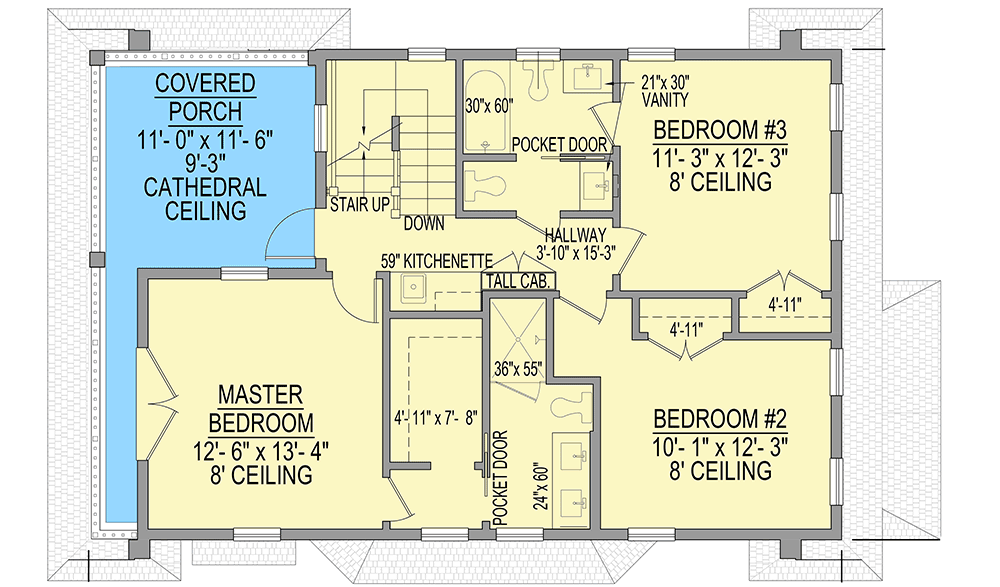

Exclusive Shingle House Plan with Optional Lower Level Apartment - 654003KNA floor plan - 2nd Floor

Optional Roof Top Deck

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

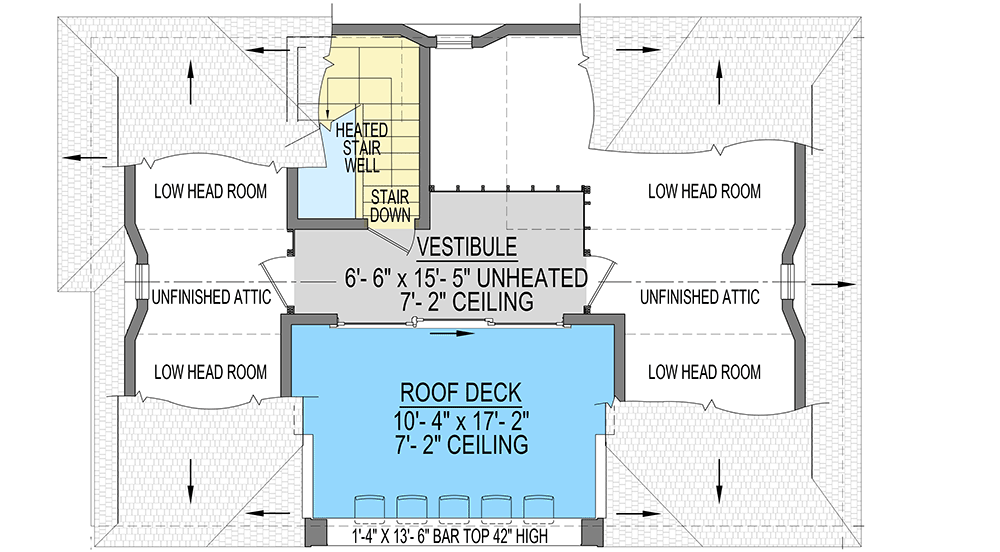

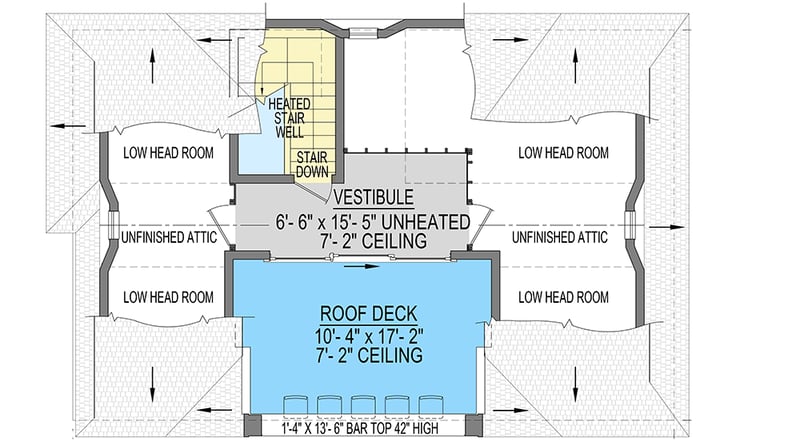

Exclusive Shingle House Plan with Optional Lower Level Apartment - 654003KNA floor plan - Optional Roof Top Deck

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

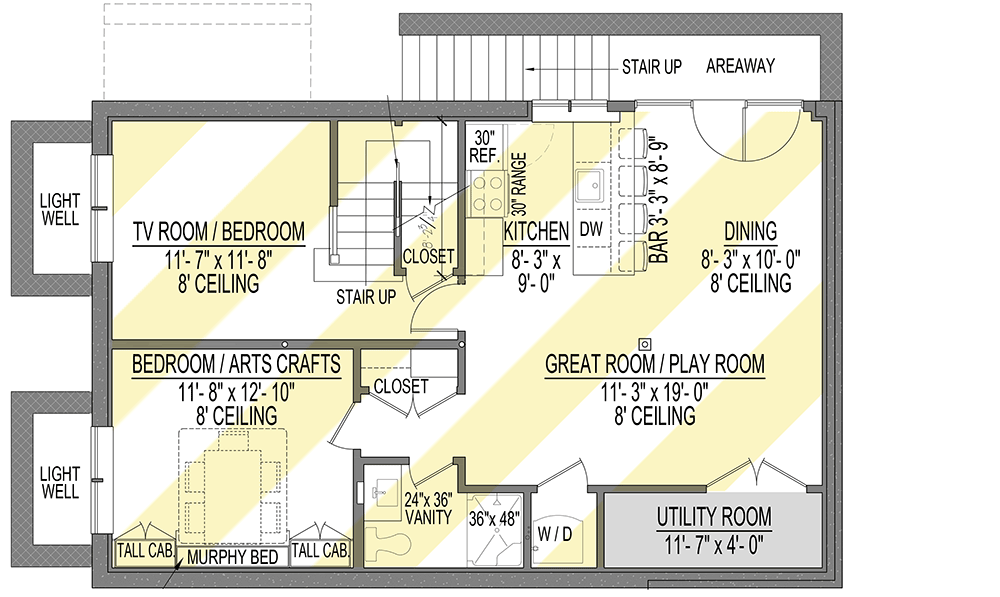

Exclusive Shingle House Plan with Optional Lower Level Apartment - 654003KNA floor plan - Optional Lower Level

Exclusive Shingle House Plan with Optional Lower Level Apartment

  • 1,946

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Roof Top Deck

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,946 sq. ft.
  • 1st Floor: 1,085 sq. ft.
  • 2nd Floor: 867 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 40' 0"
  • Max ridge height: 32' 3"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10.75 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
