Comfortable and Elegant

Plan 80729PM

  • 2,766

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Arched and round windows grace the exterior of this elegant European home plan.
  • A two-sided fireplace is shared by the vaulted living room and the formal dining room.
  • The kitchen has views of both the breakfast nook and the family room with its sliding glass doors to the rear.
  • Three family bedrooms share a large hall bath with a soaking tub and shower.
  • The master suite has its own private bathroom as well as a huge walk-in closet.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Floor 3D view

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Comfortable and Elegant - 80729PM floor plan - Main Floor 3D view

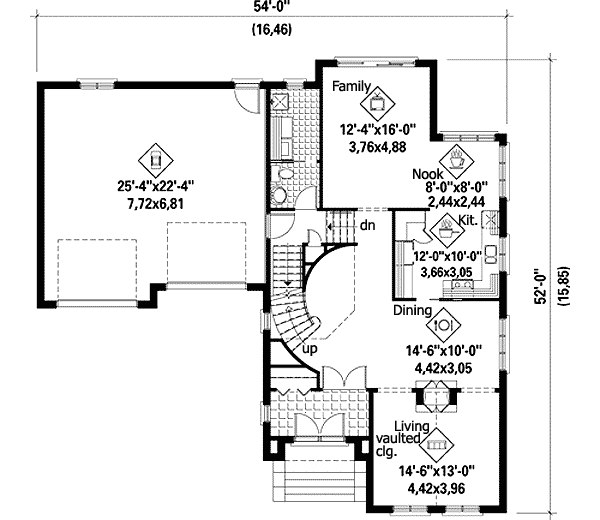

Main Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Comfortable and Elegant - 80729PM floor plan - Main Floor

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

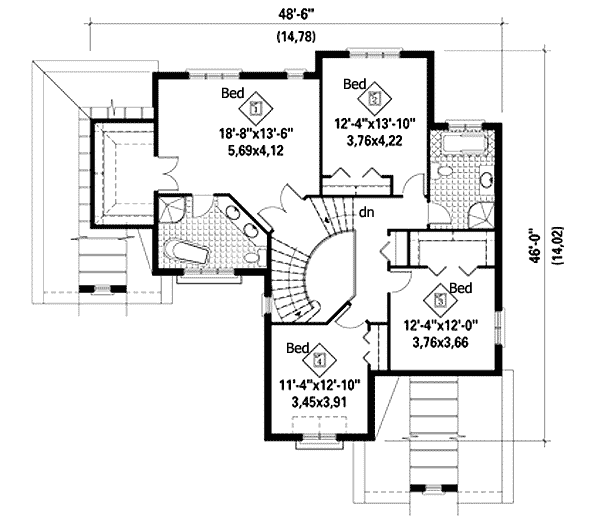

Comfortable and Elegant - 80729PM floor plan - 2nd Floor

2nd Floor 3D view

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Comfortable and Elegant - 80729PM floor plan - 2nd Floor 3D view

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,766 sq. ft.
  • 1st Floor: 1,271 sq. ft.
  • 2nd Floor: 1,495 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 52' 0"
  • Max ridge height: 43' 4"

Garage

  • Type: Attached
  • Area: 659 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Comfortable and Elegant

  • 2,766

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Floor 3D view

  • Main Floor

  • 2nd Floor

  • 2nd Floor 3D view

Plan Details

Square Footage Breakdown

  • Total: 2,766 sq. ft.
  • 1st Floor: 1,271 sq. ft.
  • 2nd Floor: 1,495 sq. ft.

Dimensions

  • Width: 54' 0"
  • Depth: 52' 0"
  • Max ridge height: 43' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 659 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
