Plan 82264KA

Comfortable Ranch House Plan with Split Bedrooms

Comfortable Ranch House Plan with Split Bedrooms

Plan 82264KA

  • 1,513

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • An open dining and living room greet you upon entering, while the heart of the home, located towards the back of the home, offers rear-facing views.
  • The eat-in kitchen provides sliding doors to a back patio; the perfect space for a BBQ.
  • Off the family room, discover a private master bedroom, complete with dual closets and a bathroom with two vanities, a commode room, and a separate tub and shower.
  • Two bedrooms reside on the opposite side of the home and share a full bath.
  • A work area attached to the double garage will be appreciated by the hobbyist.
  • Related Plans: For an alternate exterior, see plans 82263KA and 82265KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

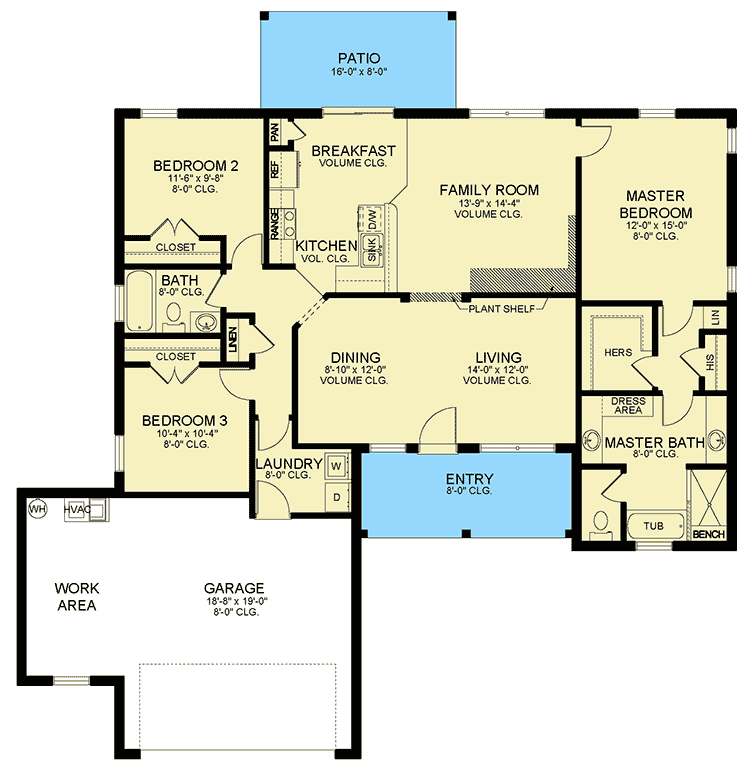

Floor Plan

Plan details



Comfortable Ranch House Plan with Split Bedrooms

  • 1,513

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,185
  • PDF - single-use $1,475
  • CAD $1,475
  • CAD - multi-use $5,925
  • PDF - multi-use $5,925
  • View all purchase option online

About This Plan

  • An open dining and living room greet you upon entering, while the heart of the home, located towards the back of the home, offers rear-facing views.
  • The eat-in kitchen provides sliding doors to a back patio; the perfect space for a BBQ.
  • Off the family room, discover a private master bedroom, complete with dual closets and a bathroom with two vanities, a commode room, and a separate tub and shower.
  • Two bedrooms reside on the opposite side of the home and share a full bath.
  • A work area attached to the double garage will be appreciated by the hobbyist.
  • Related Plans: For an alternate exterior, see plans 82263KA and 82265KA.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,513 sq. ft.
  • 1st Floor: 1,513 sq. ft.
  • Porch, Rear: 128 sq. ft.
  • Porch, Front: 121 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 58' 8"
  • Depth: 61' 0"
  • Max ridge height: 16' 11"

Garage

  • Type: Attached
  • Area: 543 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
